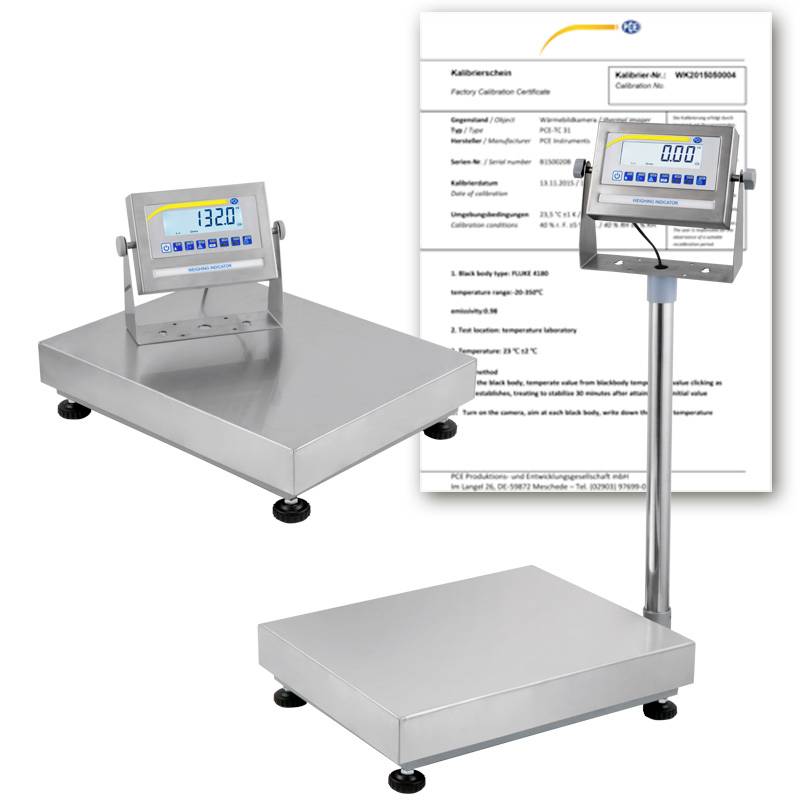

Stainless steel platform calibration scale with digital indicator display, shown with a calibration certificate in the background.<br>

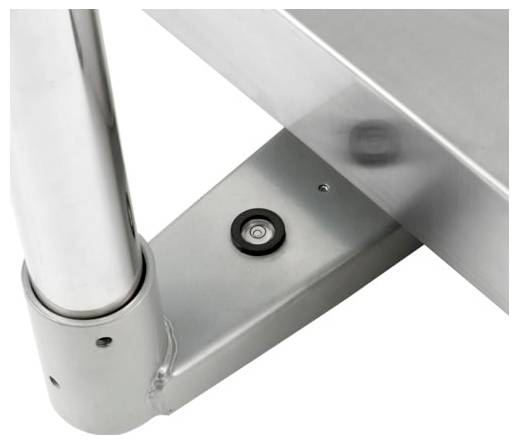

Close-up of a metal bracket joining a vertical tube to an angled frame, with visible bolt and welds.

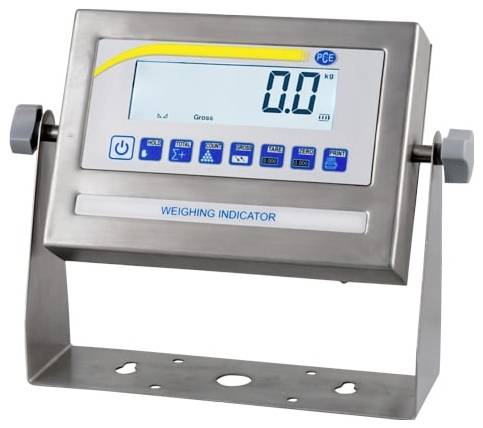

Digital weighing indicator display reading 0.0 kg on a metal stand, with control buttons below the screen.<br>

Person pours water into a dish of white granules on a digital scale reading 0.364, likely measuring ingredients in a lab or kitchen.<br>

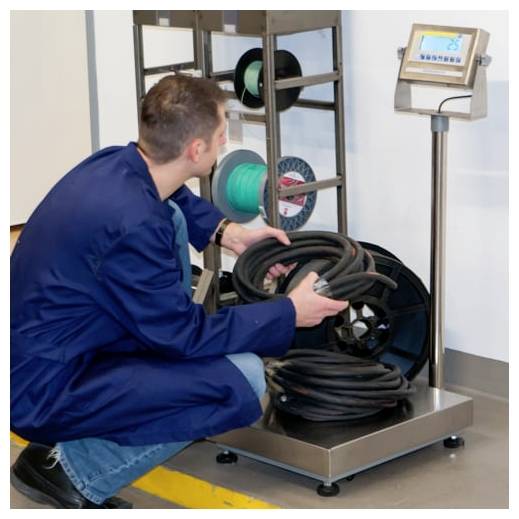

Worker in blue coveralls crouches beside a cable reel rack, sorting coiled hoses; a digital display stands to the right.<br>

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE instruments platform scales PCE-EP 150P1-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-EP 150P1-ICA
Single point platform scale (1 weighing cell)
Two-range scales 60/150 kg
Freely adjustable measuring unit kg/...
Bidirectional RS-232 interface
Battery and mains operation
Display IP54 protected
Stand incl. tripod mount can be removed
Switch-off function (can be deactivated)
Hold function (freezes the weight indication)
PEAK / MAX Weighing function
Sum function
Piece-counting function
Animal weighing function
LIMIT VALUE WEIGHING FUNCTION MIN / OK / MAX.
Container weighing function
Filter function
Incl. ISO calibration certificate

Technical specifications

Weighing range
Measuring range [Max] 60 kg
Resolution [d] 10 g
Accuracy ±3 d (three times the resolution)
Weighing range
Measuring range [Max] 150 kg
Resolution [d] 20 g
Accuracy ±3 d (three times the resolution)
General Technical Data
Outputs 4 ... 20 MA, LO, OK, HI
Cable length 1.6 m.
Measurement functions MIN, MAX, Peak, HOLD
Measurement functions (additional information) Summing function, item counting function, animal weighing function, container weighing function, filter function
Unit(s) kg, lb
Units additional information Freely adjustable weighing unit such as kg/m.
Display type LCD
Digit size [WXH] height: 25 mm
Interface bidirectional RS232
Horizontal type: Two-range scale
Tare range via the full weighing range
Protection class (device) IP54
Power supply for rechargeable battery 6 V / 4 Ah, Mains adapter 9 V / 1.2 A
Connector type for device Euro plug
Battery/Battery 1 x 6 V internal , Lead-gel rechargeable battery
4500 mAh capacity
Operating conditions 0 ... 40 °C , 10 ... 80 % r.F.
Storage conditions 0 ... 40 °C , 10 ... 80 % r.F.
Dimensions ( L x W x H ) 500 x 400 x 600 mm
Weighs 14000 g.

Weight range: 150 kg

Product type: Platform scales

Display: Digital

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 500 x 400 x 600 mm

Weight: 14000 g

Weight resolution: 20 g

Calibratable: No

Calibration service: Incl. ISO calibration certificate

Width: 400 mm

Height: 600 mm

Length: 500 mm

Type: PCE-EP 150P1-ICA

Features: Counting

Top plate (width): 400 mm

Top plate (length): 500 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812527 PCE Instruments PCE-EP 150P1-ICA Platform scales PCE-EP 150P1-ICA

User & Safety Instructions

User & Safety Instructions 3812527 PCE Instruments PCE-EP 150P1-ICA Platform scales PCE-EP 150P1-ICA

Description

The robust platform scales are a real all-rounder. The stand of the platform scale can be easily separated from the platform together with the stand bracket and, if necessary, sunk into the table. The cable between the platform and the display is connected and approximately 1.6 m long. The display of the platform scale is in a stainless steel housing with protection class IP54. The display can be mounted on a table, a wall or on the stand of the platform scale.

In addition to the standard functions, such as counting function, summing function, gross/net weighing, limit value weighing function and the PEAK Hold function, the platform scale also has two special functions, like the filter function for dynamic weighing and the container weighing function. The bidirectional RS-232 interface enables convenient communication with a PC or printer. The weight of the platform scale can be queried by the PC via a query command. We offer you a similar platform scale, but in calibrated form with the PCE-SD series.
