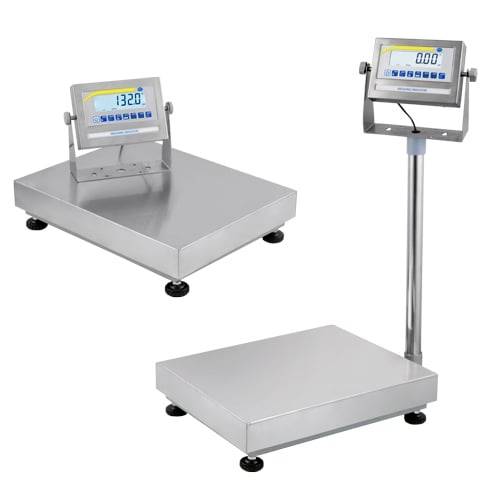

Two stainless steel digital platform scales with LCD displays, one tabletop and one on a pole stand, shown on a white background.

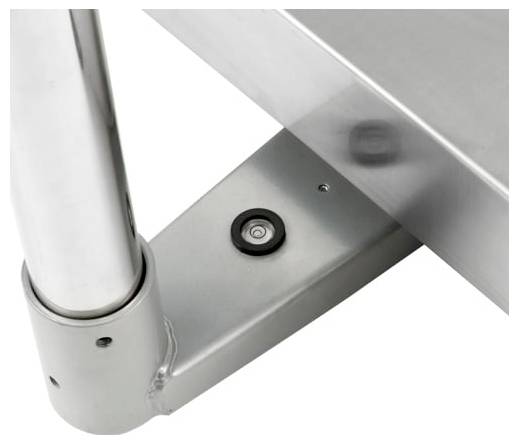

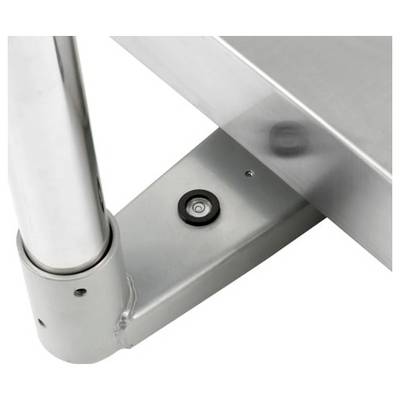

Close-up of a metal hinge bracket connecting a vertical pole to a diagonal support beam, showing a bolt and welded joint.

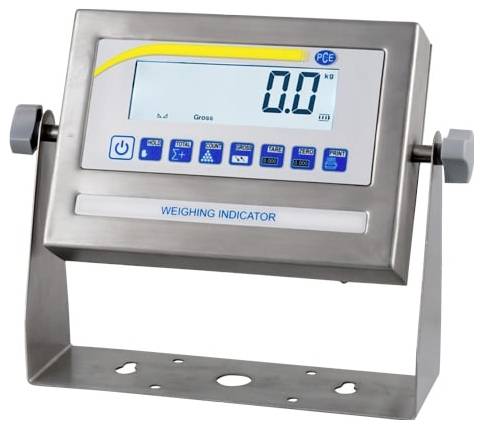

Digital weighing indicator display showing 0.0 kg on a stainless-steel mounting bracket.<br>

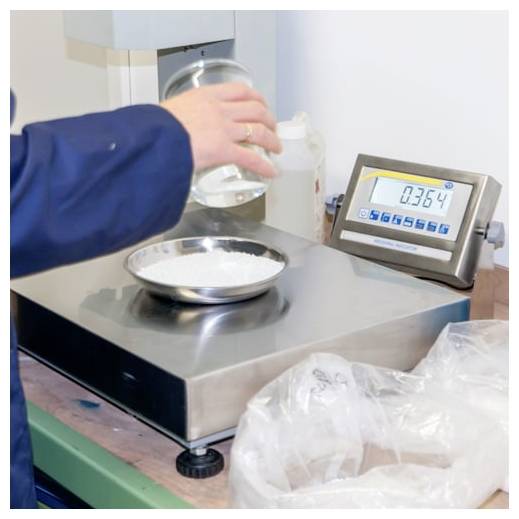

Person pours liquid into a bowl of white powder on a digital scale showing 0.364, suggesting ingredient weighing or mixing in a lab or kitchen.

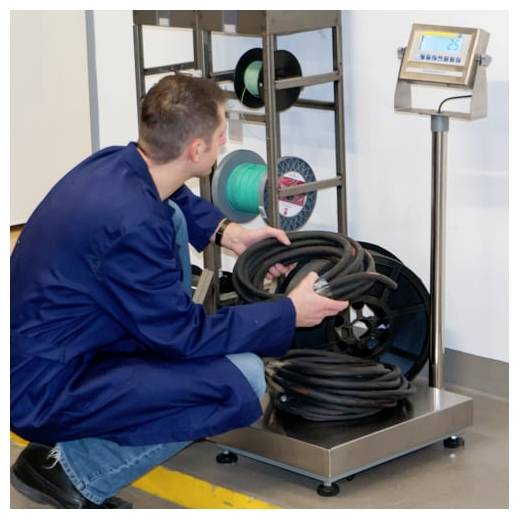

Man crouches loading coiled cable onto a digital reel scale in an industrial workspace.

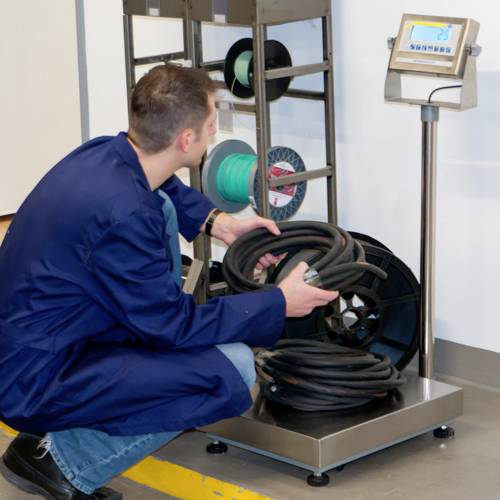

A man in blue workwear is weighing hoses on a scale in a workshop environment. A shelf with additional hoses stands in the background.

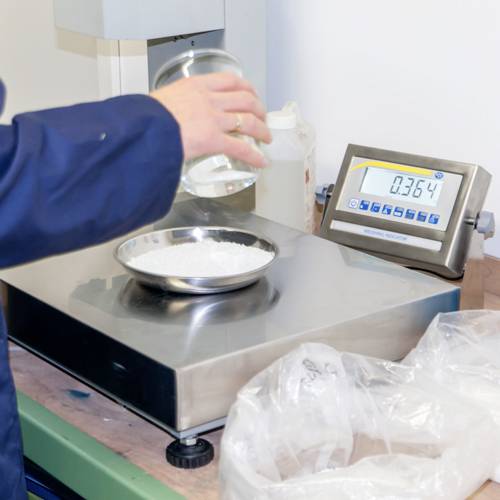

A person is holding a glass container and pouring powder onto a scales. The display shows '0.364'. Scientific measurement.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PLATFORM SCALES PCE-EP 150P1

Single point platform scales (1 weighing cell)
Two-range balance 60/150 kg
Freely adjustable measuring unit kg/…
Bidirectional RS-232 interface
Battery and mains operation
Display IP54 protected
Removable tripod including stand holder
Switch-off function

Technical specifications

Technical data measuring range Max. 1 = 60 kg / max. 2 = 150 kg Resolution up to 60 kg = 10 g of 60 kg ... 150 kg = 20 g Measurement uncertainty ± 3 d (three times the resolution) Platform size [P1] 400 x 500 mm Tara function Multi-factara over the full weighing range Interface RS-232 bidirectional / D-SUB 9 Female Optional: Analogueue output 4-20 mA 1/1000 + 4 potential-free outputs LO / OK / HI / stable as pulse signal or continuous signal can be set. Display LCD with 25 mm digit height Measuring units kg / lb and freely adjustable weighing unit such as kg / m Cable length to the display approx. 160 cm / connector-related Power supply 6 V / 4.5 Ah battery or 9 V / 1.2 A power supply (included) Power consumption approx. 70 mA IP54 protection rating Operating temperature 0 ... + 40 °C / 10 ... 80 % r.F. For dimensions, see "Sketch" download file Weight approx. 14 kg

Weight range: 150 kg

Product type: Platform scales

Readability: 20 g

Display: Digital

Power supply (LOV): rechargeable
via PSU

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 400 x 500 x 150 mm

Weight: 14000 g

Weight resolution: 20 g

Calibratable: No

Weighing plate: Stainless steel

Width: 500 mm

Height: 150 mm

Length: 400 mm

Type: PCE-EP 150P1

Features: Counting
Calibratable

Top plate (width): 400 mm

Top plate (length): 400 mm

Documents & Downloads

Datasheet

Datasheet 2452424 PCE Instruments PCE-EP 150P1 Platform scales PCE-EP 150P1 Weight range 150 kg Readability 20 g rechargeable, via PSU

User & Safety Instructions

User & Safety Instructions 2452424 PCE Instruments PCE-EP 150P1 Platform scales PCE-EP 150P1 Weight range 150 kg Readability 20 g rechargeable, via PSU

Description

Two-range - platform scale / higher resolution / counting function / summing function / removable stand / battery operation / container weighing function / bidirectional RS-232 interface The robust platform scale is a real multi-talent. The platform scale stand can be conveniently separated from the platform together with the stand holder and, if necessary, sunk into the table. The cable between the platform and the display is plugged in and about 1.6 m long. The display of the platform scale is in a stainless steel housing with the protection class IP54. The display can be mounted on the table, on the wall or on the stand of the platform scale. In addition to the standard functions such as counting function, totalizing function, gross/net weighing, limit value weighing function and the PEAK Hold function, the platform scale also has two special functions such as the filter function for dynamic weighing and the container weighing function. The bidirectional RS-232 interface allows convenient communication with a PC or printer. The weight of the platform scales can be queried by the PC via the query command. A similar platform scale, but in calibrated form, we offer you with the PCE-SD series.
