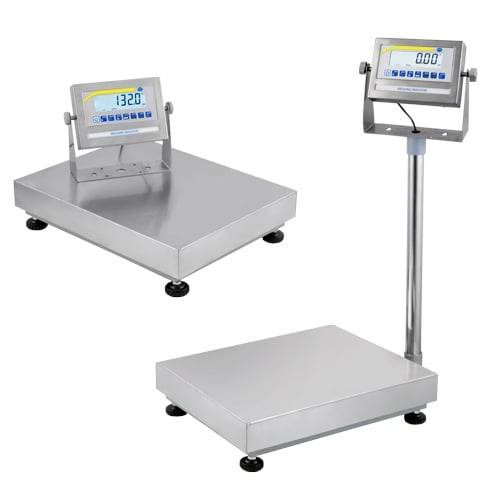

Two stainless steel platform scales with digital displays, one showing 1320 and the other 000, on adjustable stands.

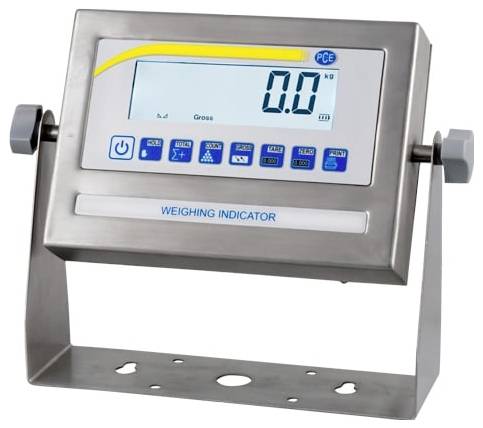

Digital weighing indicator showing 0.0 kg, with a stainless-steel display unit and mounting bracket.<br>

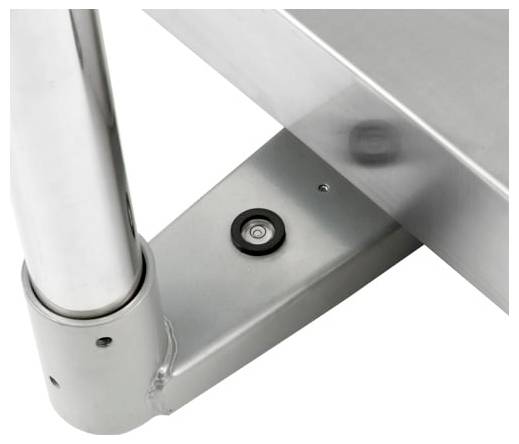

Close-up of a metal frame joint with a bolt and round connector securing two silver tubes at an angle.

Icon panel showing seven labeled indicators: 'CAL EXT', 'IP54', 'POWER', 'ACCU', 'RS-232', 'UNIT', and 'TARE'.

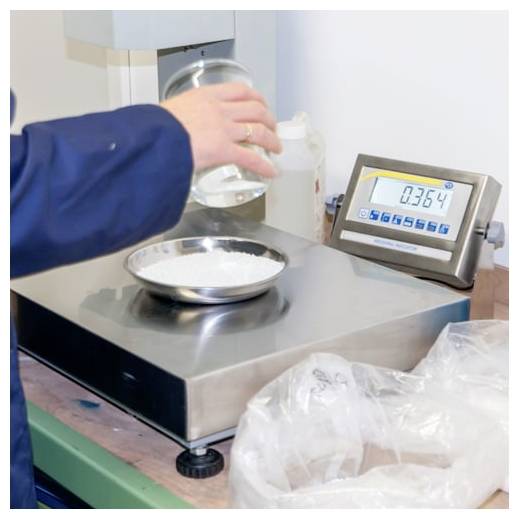

Person pours liquid into a small bowl on a digital scale showing 0.364, in a lab or food preparation setting.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

DIGITAL SCALES PCE-EP 150P2

Single point platform scales (1 weighing cell)
Two-range balance 60/150 kg
Freely adjustable measuring unit kg/…
Bidirectional RS-232 interface
Battery and mains operation
Display IP54 protected
Removable tripod including stand holder
Switch-off function

Technical specifications

Technical data Max. Reading range 1 = 60 kg / max. 2 = 150 kg Resolution up to 60 kg = 10 g of 60 kg ... 150 kg = 20 g Measurement uncertainty ± 3 d (three times the resolution) Platform size [P2] 500 x 600 mm Tara function Multi-factara over the full weighing range Interface RS-232 bidirectional / D-SUB 9 Female Optional: Analogueue output 4-20 mA 1/1000 + 4 potential-free outputs LO / OK / HI / stable as pulse signal or continuous signal can be set. Display LCD with 25 mm digit height Measuring units kg / lb and freely adjustable weighing unit such as kg / m Cable length to the display approx. 160 cm / connector-related Power supply 6 V / 4.5 Ah battery or 9 V / 1.2 A power supply (included) Power consumption approx. 70 mA IP54 protection rating Operating temperature 0 ... + 40 °C / 10 ... 80 % r.F. For dimensions, see "Sketch" download file Weight approx. 25.5 kg

Weight range: 150 kg

Product type: Counting scales

Display: Digital

: Manufacturer's standards (no certificate)

Dim: (L x W) 500 mm x 600 mm

Weight: 25.5 kg

Weight resolution: 20 g
10 g

Calibratable: No

Width: 600 mm

Length: 500 mm

Type: PCE-EP 150P2

Features: Counting

Top plate (width): 600 mm

Top plate (length): 500 mm

Documents & Downloads

Datasheet

Datasheet 2452425 PCE Instruments PCE-EP 150P2 Counting scales PCE-EP 150P2 Weight range 150 kg

User & Safety Instructions

User & Safety Instructions 2452425 PCE Instruments PCE-EP 150P2 Counting scales PCE-EP 150P2 Weight range 150 kg

Description

Two-range - digital scale / higher resolution / counting function / summing function / removable stand / battery operation / container weighing function / bidirectional RS-232 interface The robust digital scale is a real multi-talent. The stand of the digital scale can be easily separated from the platform together with the stand holder and, if necessary, sunk into the table. The cable between the platform and the display is plugged in and about 1.6 m long. The display of the platform scale is in a stainless steel housing with the protection class IP54. The display can be mounted on the table, on the wall or on the stand of the digital scale. In addition to the standard functions such as counting function, totalizing function, gross/net weighing, limit value weighing function and the PEAK Hold function, the platform scale also has two special functions such as the filter function for dynamic weighing and the container weighing function. The bidirectional RS-232 interface allows convenient communication with a PC or printer. The weight of the platform scales can be queried by the PC via the query command. A similar platform scale, but in calibrated form, we offer you with the PCE-SD series.
