Buy PCE Instruments PCE-EP 30P2 Platform scales PCE-EP 30P2 Weight range 150 kg Readability 5 g rechargeable, via PSU

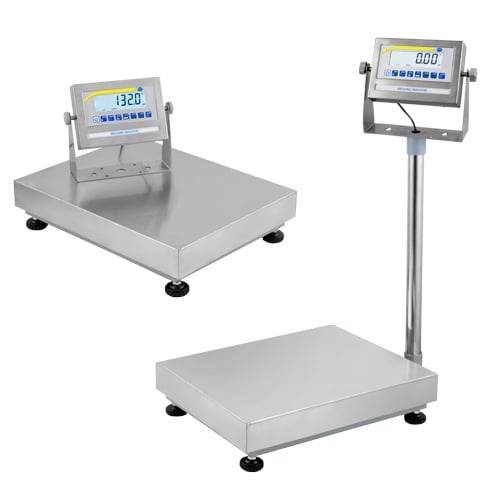

Two stainless steel digital platform scales with separate display stands; one shows 132.0 on the screen.<br>

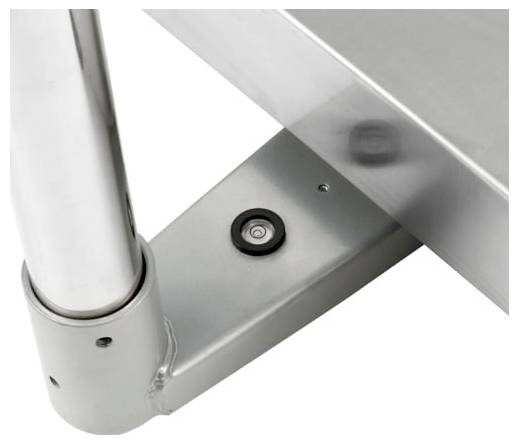

Close-up of a metal frame joint with a vertical tube, diagonal support beam, and a black circular fastener on a gray bracket.

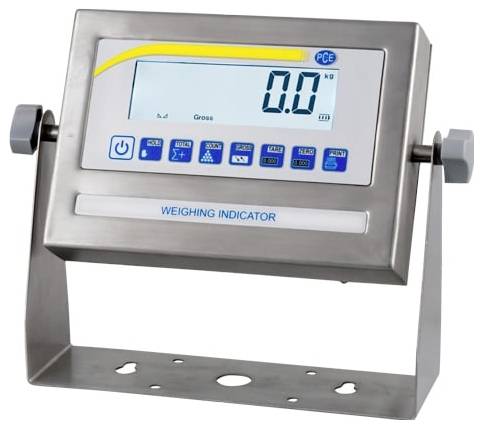

Digital weighing indicator display showing 0.0 kg, mounted in a metal frame with control buttons and side knobs.

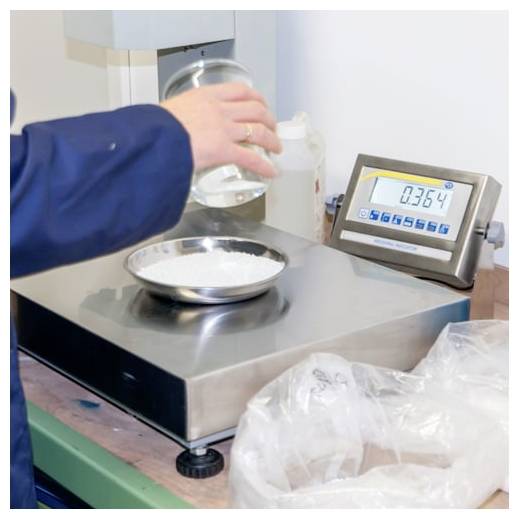

Person pours liquid into a metal bowl on a digital scale, which displays 0.364, suggesting ingredient weighing or lab measurement.

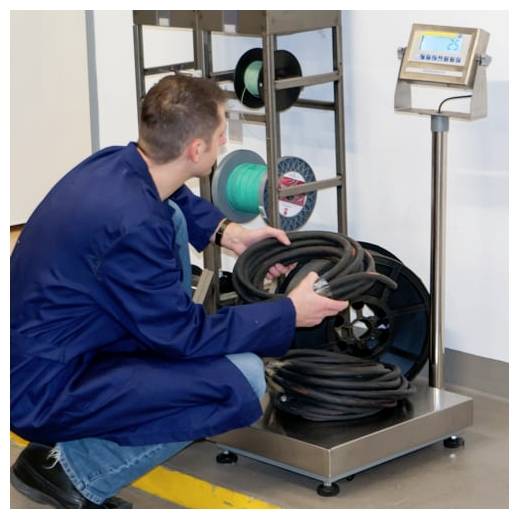

Man in blue work clothes kneels beside a scale, weighing coiled hoses or cables in an industrial setting.<br>

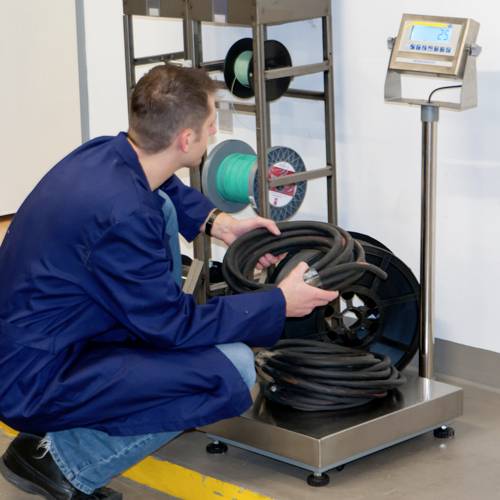

A man is kneeling on a platform scale, measuring the weight of a coiled hose. Additional rolls can be seen in the background.

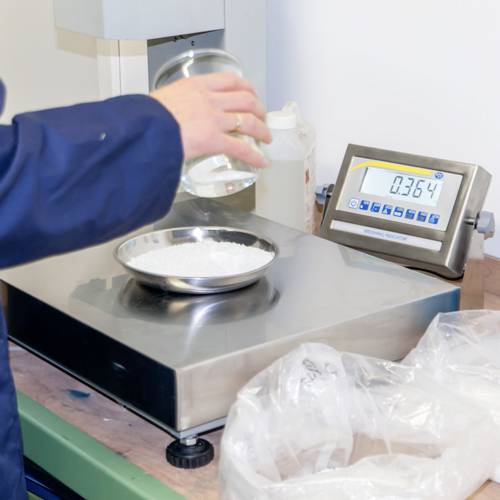

A hand holds a glass over a balance with white powder in the weighing dish. The balance shows '0.3674'. Laboratory environment.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

DIGITAL SCALES PCE-EP 30P2

Single point platform scales (1 weighing cell)
Two-range balance 15/30 kg
Freely adjustable measuring unit kg/…
Bidirectional RS-232 interface
Battery and mains operation
Display IP54 protected
Removable tripod including stand holder
Switch-off function

Technical specifications

Technical data Max. Reading range 1 = 15 kg / max. 2 = 30 kg Resolution up to 15 kg = 2 g of 15 kg ... 30 kg = 5 g Measurement uncertainty ± 3 d (three times the resolution) Platform size [P2] 500 x 600 mm Tara function Multi-factara over the full weighing range Interface RS-232 bidirectional / D-SUB 9 Female Optional: Analogueue output 4-20 mA 1/1000 + 4 potential-free outputs LO / OK / HI / stable as pulse signal or continuous signal can be set. Display LCD with 25 mm digit height Measuring units kg / lb and freely adjustable weighing unit such as kg / m Cable length to the display approx. 160 cm / connector-related Power supply 6 V / 4.5 Ah battery or 9 V / 1.2 A power supply (included) Power consumption approx. 70 mA IP54 protection rating Operating temperature 0 ... + 40 °C / 10 ... 80 % r.F. For dimensions, see "Sketch" download file Weight approx. 25.5 kg

Weight range: 150 kg

Product type: Platform scales

Readability: 5 g

Display: Digital

Power supply (LOV): rechargeable
via PSU

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 500 x 600 x 190 mm

Weight: 25500 g

Weight resolution: 5 g

Calibratable: No

Weighing plate: Stainless steel

Width: 600 mm

Height: 190 mm

Length: 500 mm

Type: PCE-EP 30P2

Features: Counting
Calibratable

Top plate (width): 500 mm

Top plate (length): 500 mm

Documents & Downloads

Datasheet

Datasheet 2452427 PCE Instruments PCE-EP 30P2 Platform scales PCE-EP 30P2 Weight range 150 kg Readability 5 g rechargeable, via PSU

User & Safety Instructions

User & Safety Instructions 2452427 PCE Instruments PCE-EP 30P2 Platform scales PCE-EP 30P2 Weight range 150 kg Readability 5 g rechargeable, via PSU

Description

Two-range - digital scale / higher resolution / counting function / summing function / removable stand / battery operation / container weighing function / bidirectional RS-232 interface The robust digital scale is a real multi-talent. The stand of the digital scale can be easily separated from the platform together with the stand holder and, if necessary, sunk into the table. The cable between the platform and the display is plugged in and about 1.6 m long. The display of the platform scale is in a stainless steel housing with the protection class IP54. The display can be mounted on the table, on the wall or on the stand of the platform scale. In addition to the standard functions such as counting function, totalizing function, gross/net weighing, limit value weighing function and the PEAK Hold function, the platform scale also has two special functions such as the filter function for dynamic weighing and the container weighing function. The bidirectional RS-232 interface allows convenient communication with a PC or printer. The weight of the platform scales can be queried by the PC via the query command. A similar platform scale, but in calibrated form, we offer you with the PCE-SD series.
