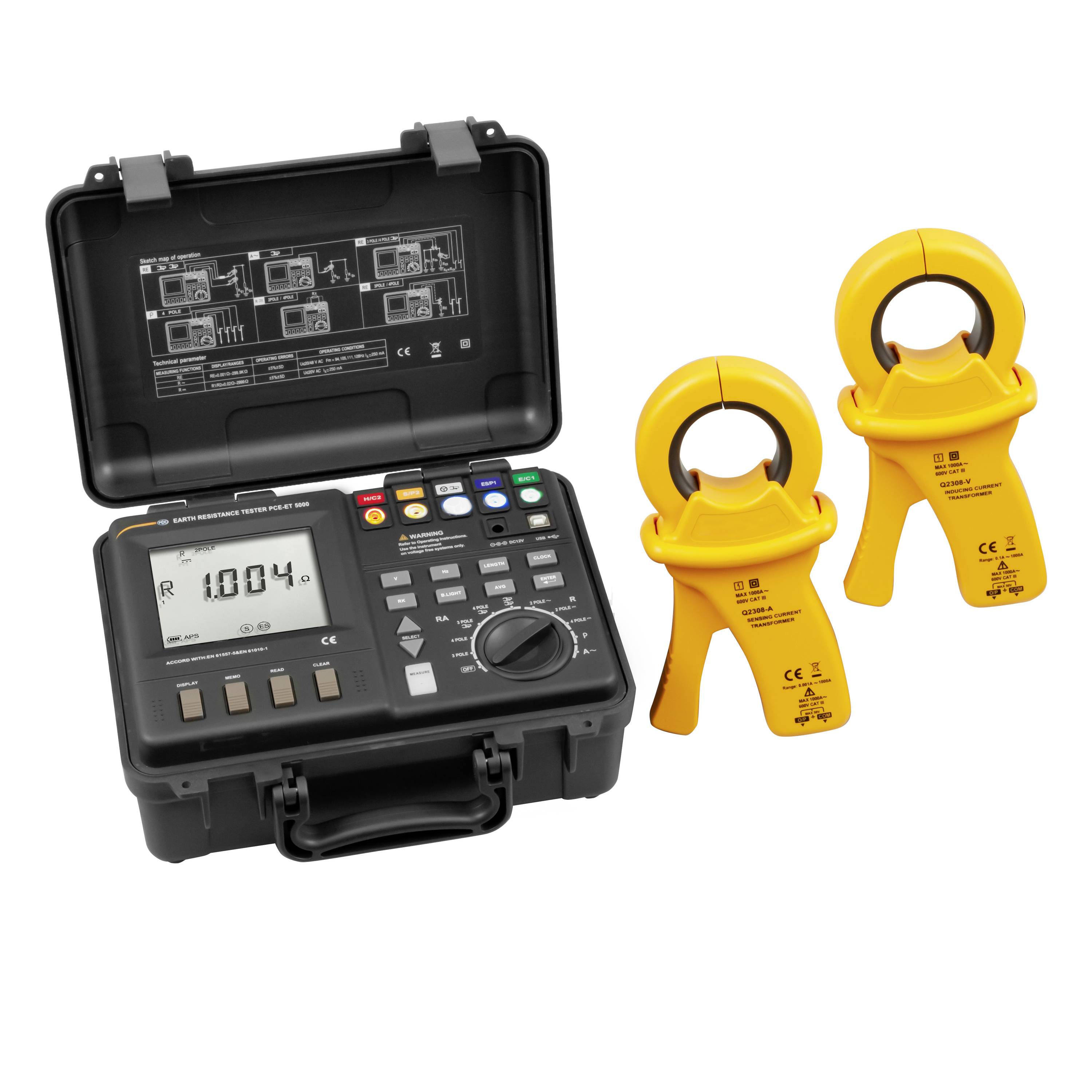

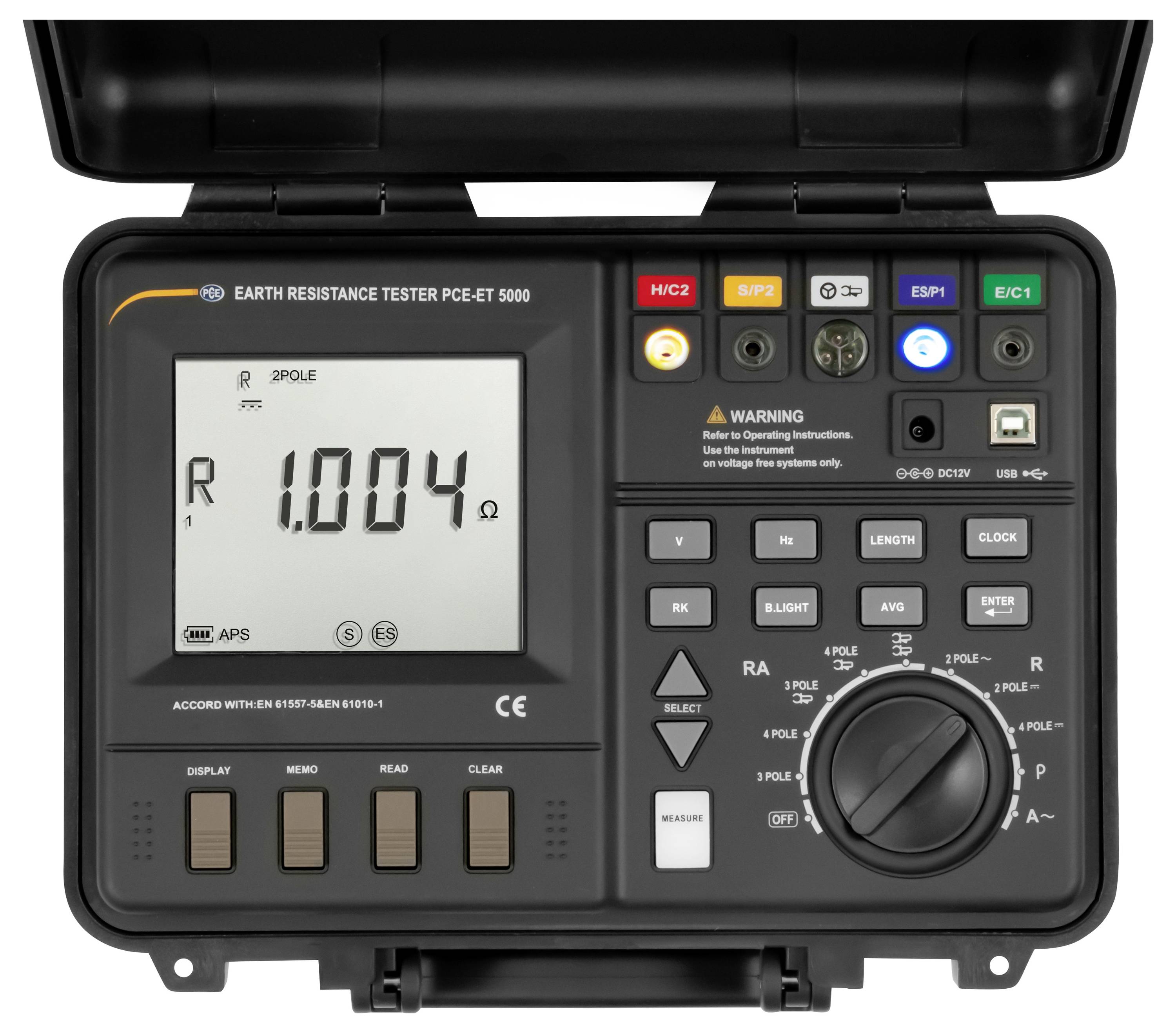

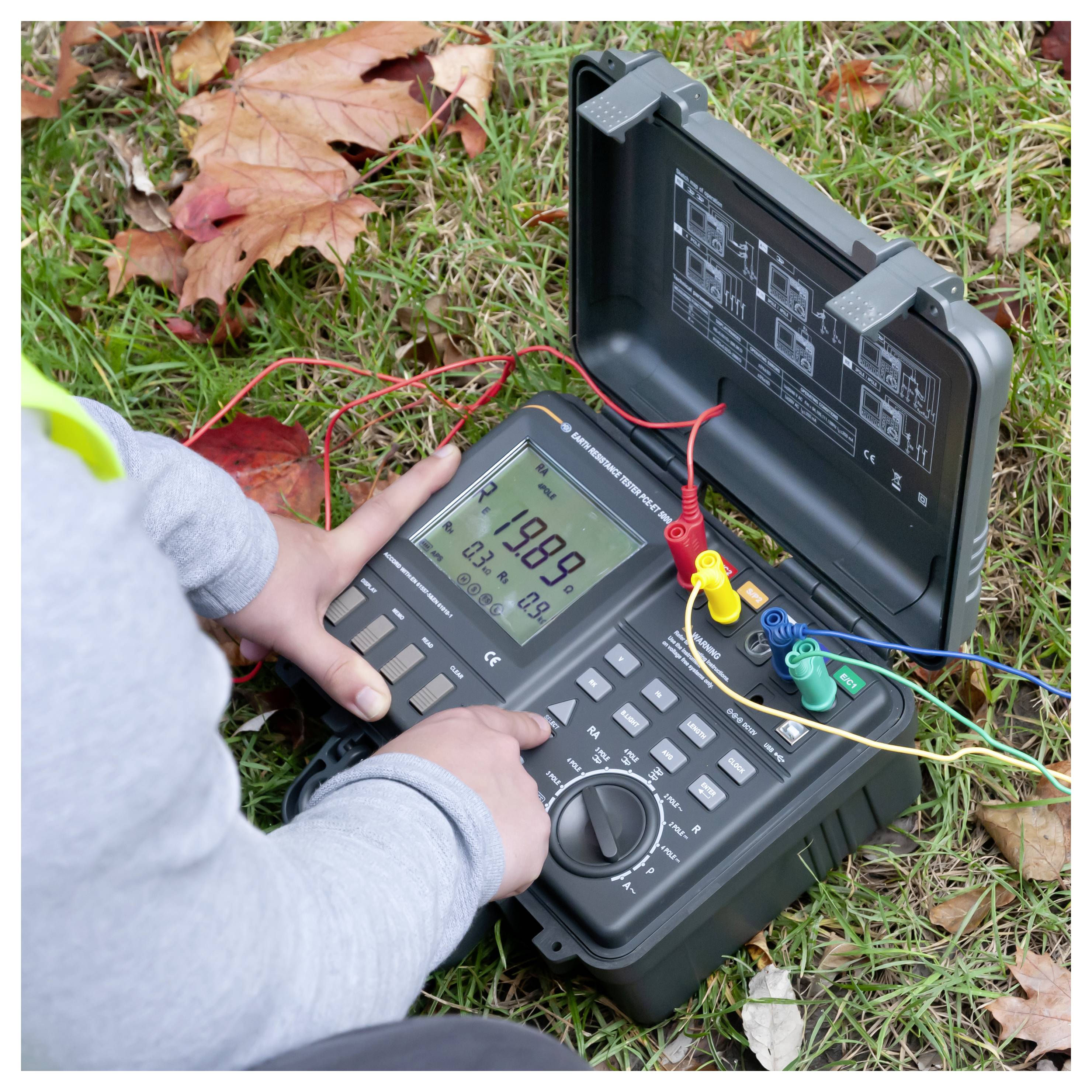

Earthing measuring device PCE-ET 5000

Mobile use thanks to battery and batteries
Data memory for later analysis on the PC
Visual connection help for easy operation
Alarm when the measuring line is incorrectly connected
Direct and indirect resistance measurement
Interference currents, interference voltage, interference frequencies

Technical specifications

3-pin earthing resistance Test voltage 20, 48 V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250 mA Test time 26 seconds Probe resistance Rs< 100 kΩ Auxiliary earth resistance Rh< 100 kΩ Resolution 0.001 Ω Measurement range Re 0.02 Ω ... 300 kΩ Accuracy ±(5% + 10 digits) VAT< 24 V FST 16 ... 400 Hz The accuracy is in an environment of 0 ... 28 °C,< 80% r.h. (non-condensing). Response time <15 seconds (time required to achieve the specified accuracy, after measuring, with the average function switched off.) 4-pin earthing resistance Test voltage 20, 48 V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250 mA Test time 30 seconds Probe resistance Rs< 100 kΩ Auxiliary earth resistance Rh< 100 kΩ Resolution 0.001 Ω Measurement range Re 0.02 Ω ... 300 kΩ Accuracy ±(5% + 10 digits) VAT< 24 V FST 16 ... 400 Hz The accuracy is in an environment of 0 ... 28 °C,< 80% r.h. (non-condensing). Response time < 25 seconds (time required to achieve the specified accuracy, after measuring, with the average function switched off.) 3-pin earthing resistance with clamp-on ammeter Test voltage 20, 48 V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250 mA Test time 26 seconds Probe resistance Rs <100 kΩ Auxiliary earth resistance Rh <100 kΩ Resolution 0.001 Ω Measurement range Re 0.02 Ω ... 20 KΩ Accuracy ±(5% + 10 digits) VAT< 24 V FST 16 ... 400 Hz The accuracy is in an environment of 0 ... 28 °C,< 80% r.h. (non-condensing). Response time <25 seconds (time required to achieve the specified accuracy, after measuring, with the average function switched off.) If the current at the clamp-on ammeter is too low, the measurement can be aborted. 4-pin earthing resistance with clamp-on ammeter Test voltage 20, 48 V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short circuit current 250 mA Test time 26 seconds Probe resistance Rs <100 kΩ Auxiliary earth resistance Rh <100 kΩ Resolution 0.001 Ω Measurement range Re 0.02 Ω ... 20 KΩ Accuracy ±(5 % + 10 digits) VAT< 24 V FST 16 ... 400 Hz The accuracy is in an environment of 0 ... 28 °C,< 80% r.h. (non-condensing). Response time <25 seconds (time required to achieve the specified accuracy, after measuring, with the average function switched off.) If the current at the clamp-on ammeter is too low, the measurement can be aborted. Earthing resistance only with current clamps Test voltage 48 V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC short-circuit current 250 mA Test time 26 seconds Measuring range Re 0.02 Ω ... 150 Ω Resolution 0.001 Ω Accuracy ±(5 % + 10 digits) VAT< 24 V FST 16 ... 400 Hz The accuracy is in an environment of 0 ... 28 °C,< 80% r.h. (non-condensing). Response time <25 seconds (time required to achieve the specified accuracy, after measuring, with the average function switched off.) If the current at the clamp-on ammeter is too low, the measurement can be aborted. Ground resistance (distance resistance) Test voltage 20, 48 V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC Short-circuit current 250 mA Test time 26 seconds Resolution 0.001 Ω * m Measuring range Re 0.02 Ω ... 1000 kΩ * m Accuracy ±(5% + 10 digits) 2-pole resistance measurement (AC) Test voltage 20 V AC Test frequency 94 Hz, 105 Hz, 111 Hz, 128 Hz, AFC short-circuit current 250 mA Test time 26 seconds Measurement range Re 0.02 Ω ... 300 kΩ Resolution 0.001 Ω Accuracy ±(5 % + 10 digits) VAT< 24 V FST 16 ... 400 Hz 2-pin resistance measurement (DC) Test voltage 20 V DC Short-circuit current 250 mA Test time 26 seconds Measuring range Re 0.02 ... 3 kΩ Resolution 0.001 Ω Accuracy ±(5% + 10 digits) VAT< 3 V FST 16 ... 400 Hz 4-pin resistance measurement (DC) Test voltage 20 V DC Short circuit current 250 mA Test time 26 seconds Measurement range Re 0.02 Ω ... 3 kΩ Resolution 0.001 Ω Accuracy ±(5% + 10 digits) VAT< 3 V FST 16 ... 400 Hz Line compensation Test voltage 20, 48 V AC Test frequency 94 Hz, 105 Hz 111 Hz, 128 Hz, AFC short-circuit current 250 mA Test time 26 seconds Resolution 0.001 Ω Measurement range Re 0.02 Ω ... 30 Ω Accuracy ±(3 % + 10 digits) VAT< 24 V FST 16 ... 400 Hz Interference voltage Measuring range ±50 V DC 1 ... 50 V AC Resolution 0.1 V. Accuracy ±(5% + 5 digits) Interference current measuring range 20 mA ... 2 A Resolution 1 mA Accuracy ±(5% + 5 digits) Interference frequency Measurement range 16 ... 400 Hz Resolution 1 Hz Accuracy ±(1% + 10 digits) Additional specifications data memory 100 Measured values operating conditions 0 ... 40 °C,< 80% r.h. (non-condensing) Charging the Battery Environment 10 ... 40 °C,< 80% r.h. (Non-condensing) Storage conditions -10 ... 50 °C,< 90% RH (Non-condensing) Storage conditions for the battery -20 ... 30 °C,< 80% r.h. (Non-condensing) storage height< 12,000 m. Operating altitude <2,000 m Terminal diameter 51 mm Display Backlit LCD, 9999 digits Display Measuring range exceeded > LIMIT Display Measuring range undershot - Measuring frequency earthing resistance / leakage current 1 Hz (if the average value function is activated: One value every four seconds) Measurement frequency Voltage measurement 2 Hz Measurement frequency Interference voltage 4 Hz Measurement frequency Interference frequency 1 Hz Measurement frequency Interference current 1 Hz Interface Measurement connection: E, ES, S, H, Clamp connection USB-B, Charging connection Power supply Batteries 6 x 1.5 V D LR14 Batteries Power supply Battery 1 x 7.2 V Nickel-metal hydride battery pack Power supply Power supply Primary: 100 ... 240 V, 50 ... 60 Hz Secondary: 12 V, 3 A max. Power consumption with power supply 15 VA max. Power consumption with battery or rechargeable battery 6 VA Battery runtime in battery mode approx. 5 hours Battery runtime approx. 9 hours (without background lighting) Maximum input voltage maximum input voltage relative to earth 300 V rms (cat III) Insulation strength 6880 V AC: 15 seconds Surge protection 250 V AC between the connections Dimensions 260 x 125 x 280 mm Weight approx. 2.5 kg Standards Safety: EN61010-1:2001, EN61010-031:2002 Pollution degree 2, cat III 300 V, EMC: EN61000-3-2:2000, IEC61326-1:1997 A.

Product type: Earth ground meter

Interfaces: USB

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 260 x 125 x 280 mm

Weight: 2.5 kg

Display: LCD

Weight, information: approx.

Content: 1 pc(s)

Reading category: CAT III

Measuring type: Ground spike

Width: 125 mm

Height: 280 mm

Length: 260 mm

Type: PCE-ET 5000

Documents & Downloads

Datasheet

Datasheet 2452429 PCE Instruments PCE-ET 5000 Earth ground meter

User & Safety Instructions

User & Safety Instructions 2452429 PCE Instruments PCE-ET 5000 Earth ground meter

Description

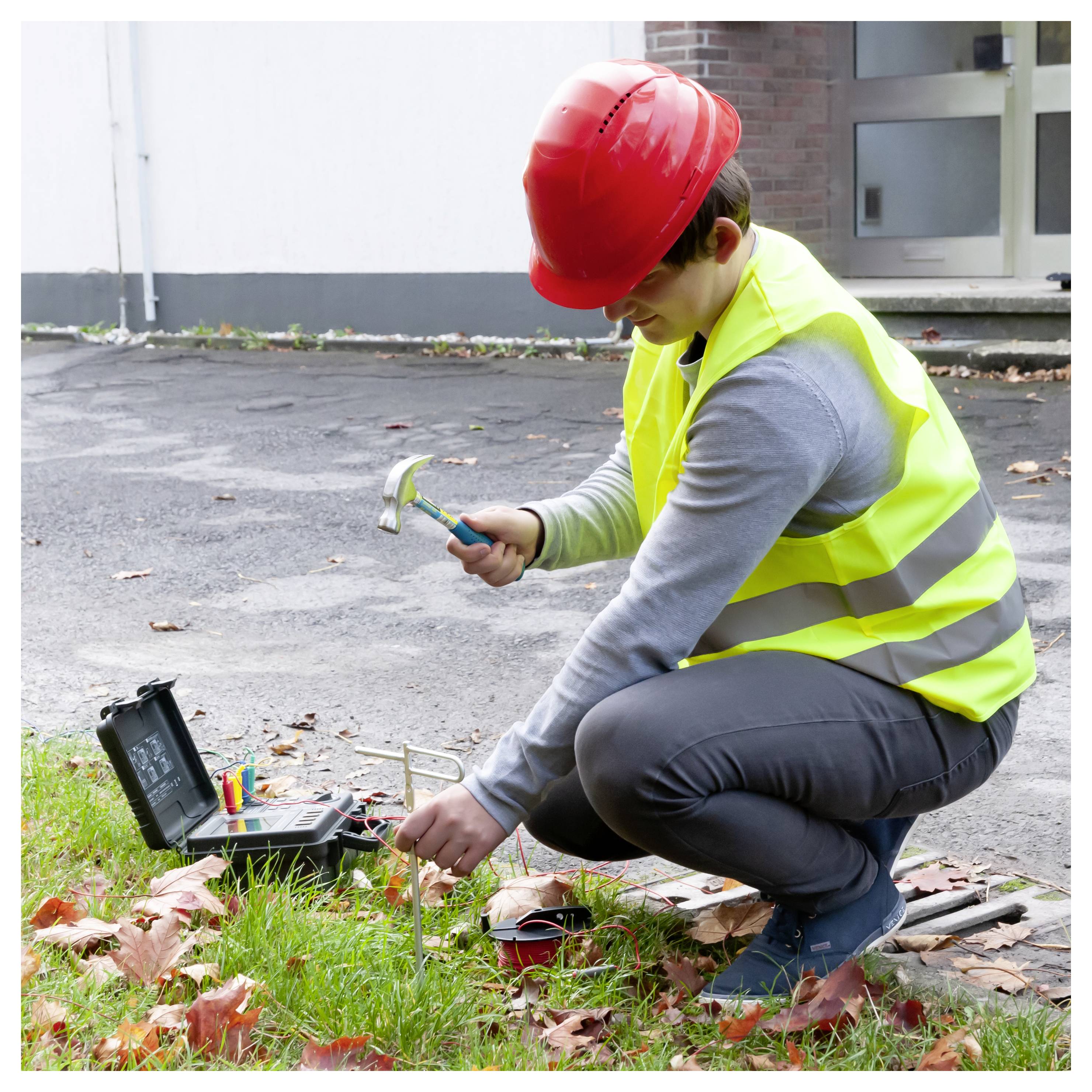

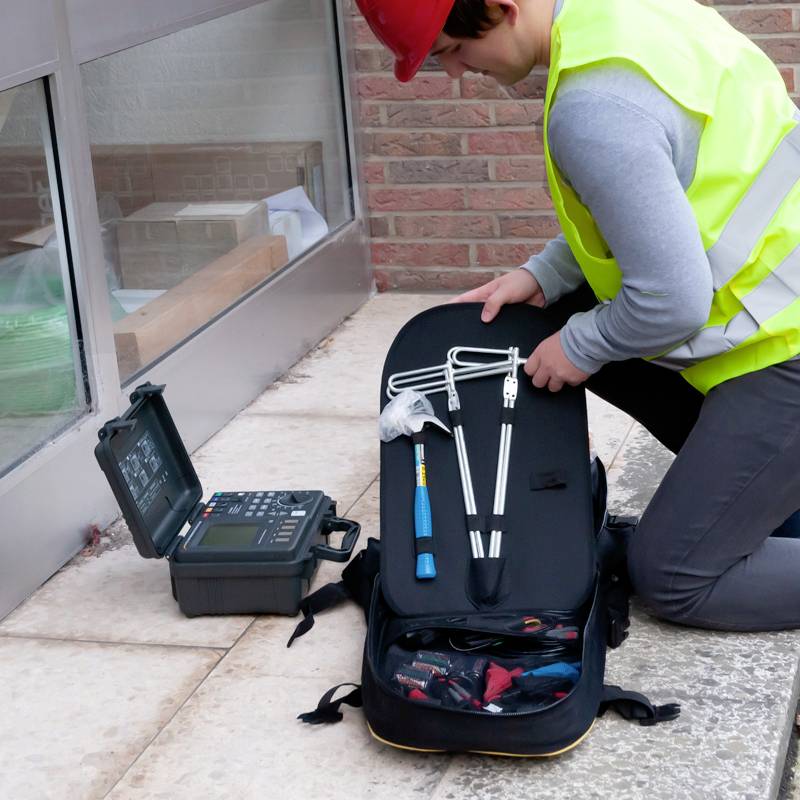

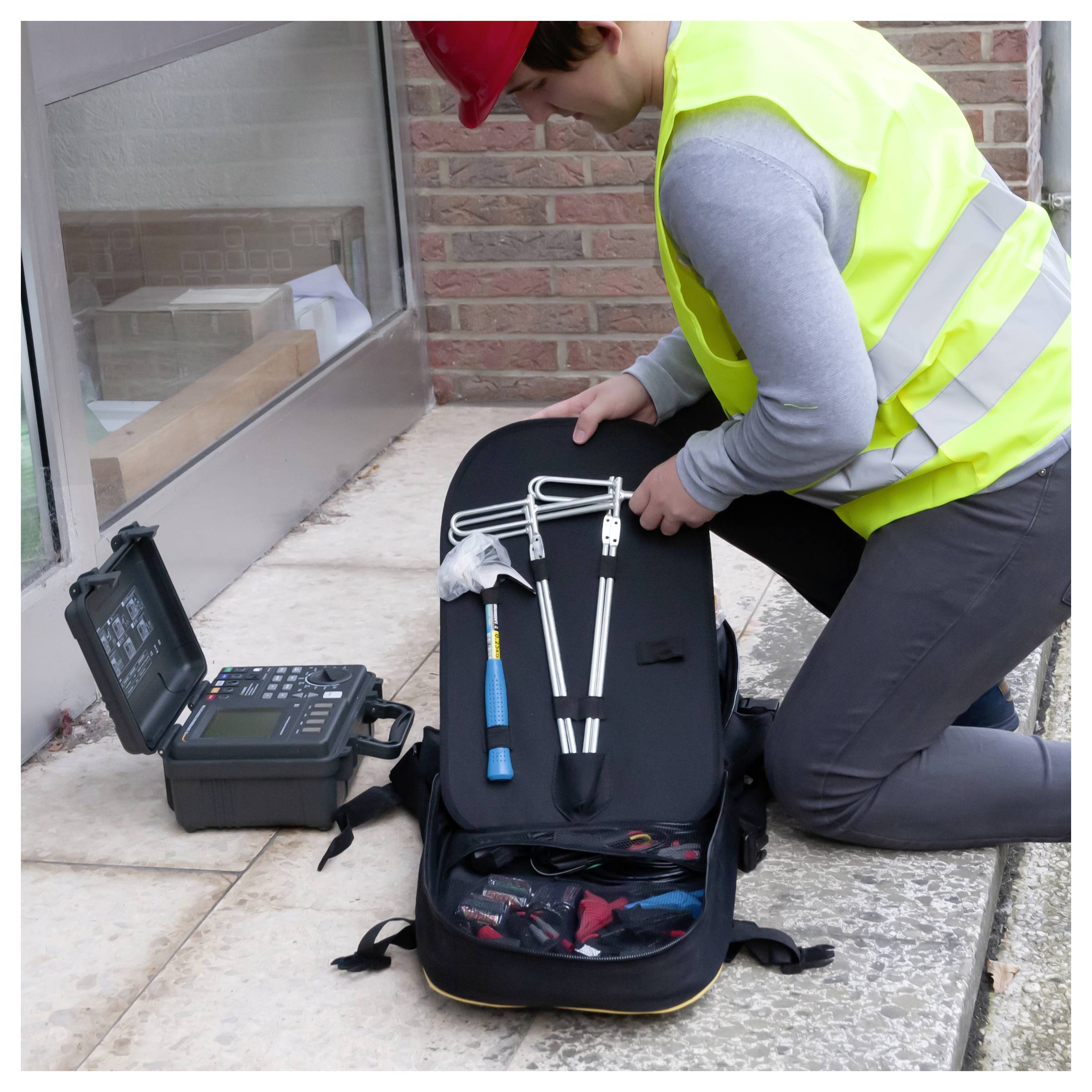

Earth ground meter with memory / mobile use possible thanks to battery / resistance measurement / earth conductor test / visual connection aid / lightning conductor test / background lighting Testing of disturbing voltages, frequencies and currents of the earth ground meter is a versatile resistance measuring device. This earth tester can be used for various resistance measurements. The earth ground meter allows a normal resistance measurement of 2- or 4-pole applications. It is also possible to use the earth ground tester to determine the resistance of the ground. For measuring the earth resistance, corresponding earth spikes are included in the delivery with the earth ground meter. These earth spikes can be easily connected to the earth ground meter using the supplied separate 20 meter cable. Another important measurement function is the measurement of resistance to lightning conductors, for example. This measurement is used to control lightning arresters in schools or university buildings, for example, and is essential to derive a possible lightning strike into the ground. This earth ground tester can thus be used to determine whether the lightning conductor is correctly connected to the ground and whether it has the correct resistance value in order to dissipate a lightning into the ground. In order to ensure a perfect measurement, the earth ground meter has a measuring connection detection. After the operator has set the ground meter to the desired measurement function, the connections to be used light up. If an incorrect connection has been selected by the operator, the earth ground meter signals the operator both acoustically and visually. At the same time, the earth ground meter refuses the measurement until the measuring setup has been correctly connected. This severely restricts faulty measurements by means of the intelligent earth tester. The earth ground meter also has a memory. This allows the measurement data from the earth tester to be transferred to a PC and evaluated after a measurement.
