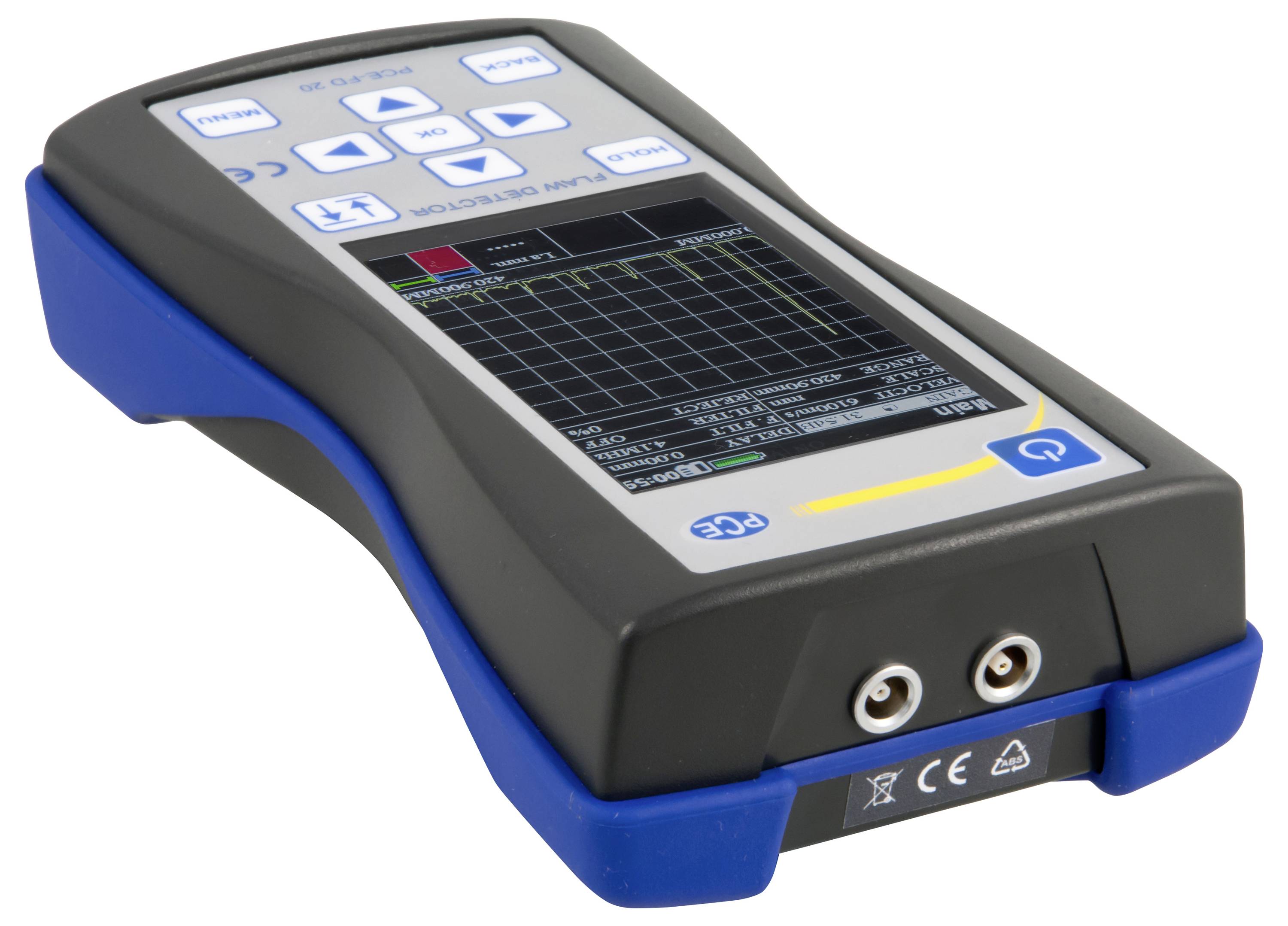

PCE-FD 20 ultrasound error tester

Measuring geometry Measuring probe of 45 ° and 90 °Lightweight Battery or mains operation1.5 m probe cableBright and large displayUSB interface

Technical specifications

Frequency range: 1 ... 10 MHzScan time: 6 ... 1000 µmSound speed: 1000 ... 9999 m/sMeasurement deviation at time intervals: < ±0.025 µm Maximum measuring deviation of the amplitude signals < ±0.5 dB at the receiver input in the range of 0 ... 110 dB Amplification range 125 dBAverage number of material tests. 1 ... 16 Number of control points(Time-adjustable gain): 15 Time from excitation pulse to load: 0.0 ... 0.5 µs Amplitude of the excitation pulse to the 50 ohm resistor: 100, 200, 300 Receiver working frequency range for -3dB: -3dB 1 ... 10 MHz Deviation of the amplitudes at the input signal in the range of 10 ...100 % of the screen size <1 dB Scan: 1 ... 1000 µsScan delay: 0 ... 2000 µsMeasuring range of time intervals: 0 ... 1000 µsProbe delay: 0 ... 2000 µsAutomatic warning in case of defects: dual gate Adjustment of the measuring range for the time-adjustable gain: 0 ... 2000 µs Setting the measuring limits for the time-adjustable gain: 0 ... 100 %. Rectifier (receiver): Positive half-wave, radio modeDimensions (W x H x D) 80 x 162 x 35 mmDisplay dimensions 48 x 74 mmPower supply: 100 ... 250V ACAA batteries 1.5 V (3 pieces)Weight 250 g (without batteries)

Product type: Thickness gauge

Reading range: 1000 - 9999 m/s

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 162 x 80 x 35 mm

Weight: 250 g

Display: LCD

Content: 1 pc(s)

Reading range (max.): 9999 m/s

Reading range (min.): 1000 m/s

Measuring type: Ultrasound

Width: 80 mm

Height: 35 mm

Length: 162 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2623499 PCE Instruments PCE-FD 20 Thickness gauge 1000 - 9999 m/s

User & Safety Instructions

User & Safety Instructions 2623499 PCE Instruments PCE-FD 20 Thickness gauge 1000 - 9999 m/s

Description

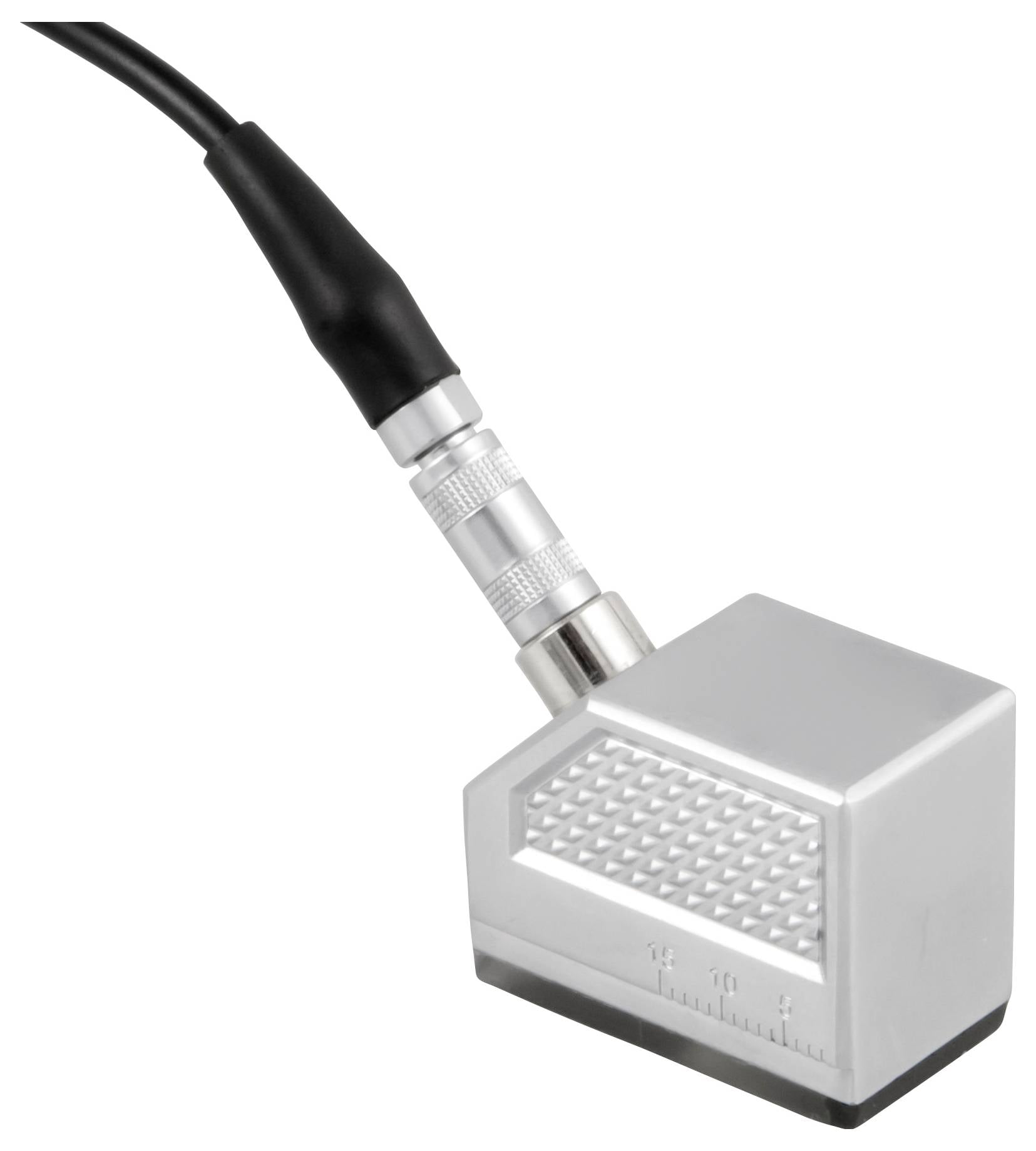

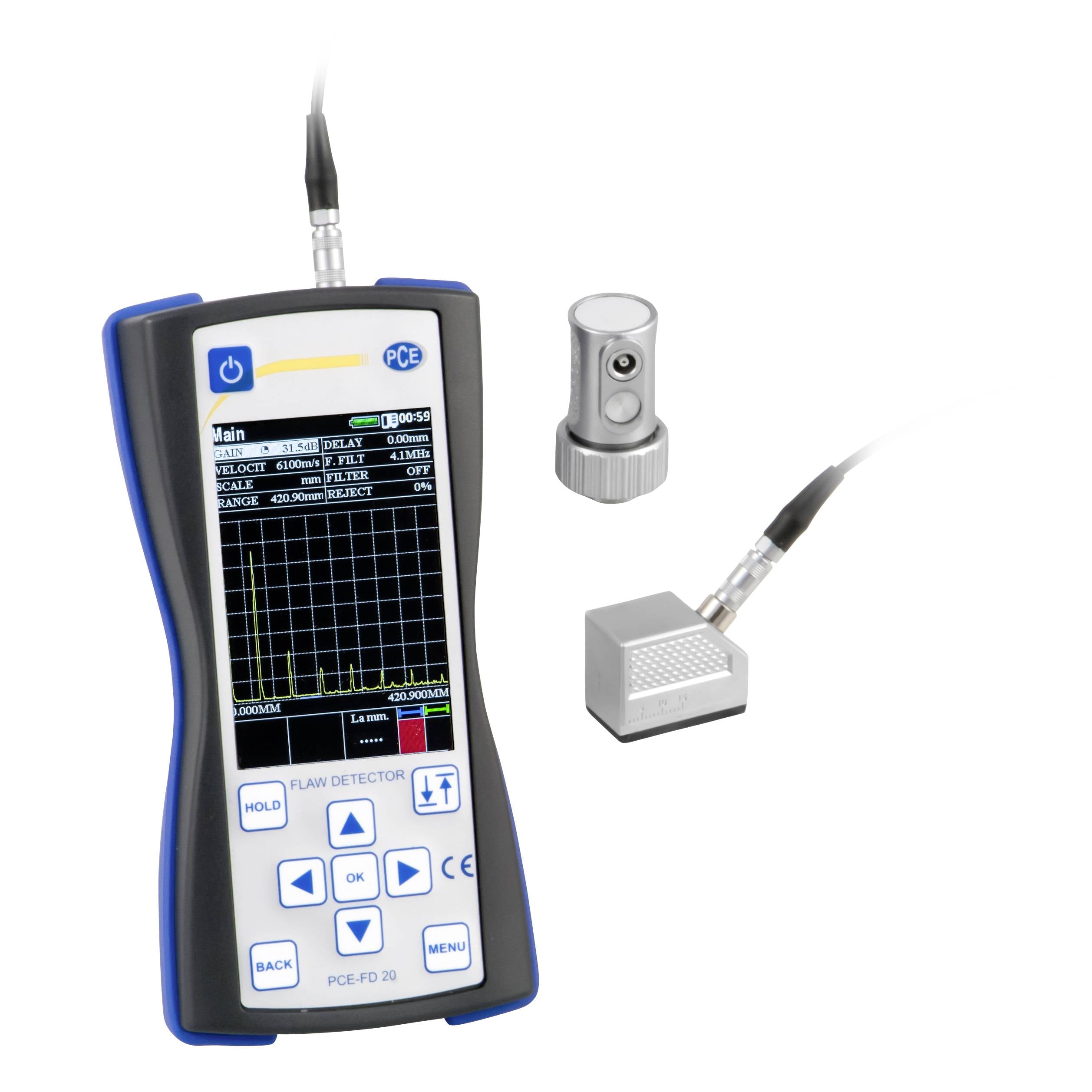

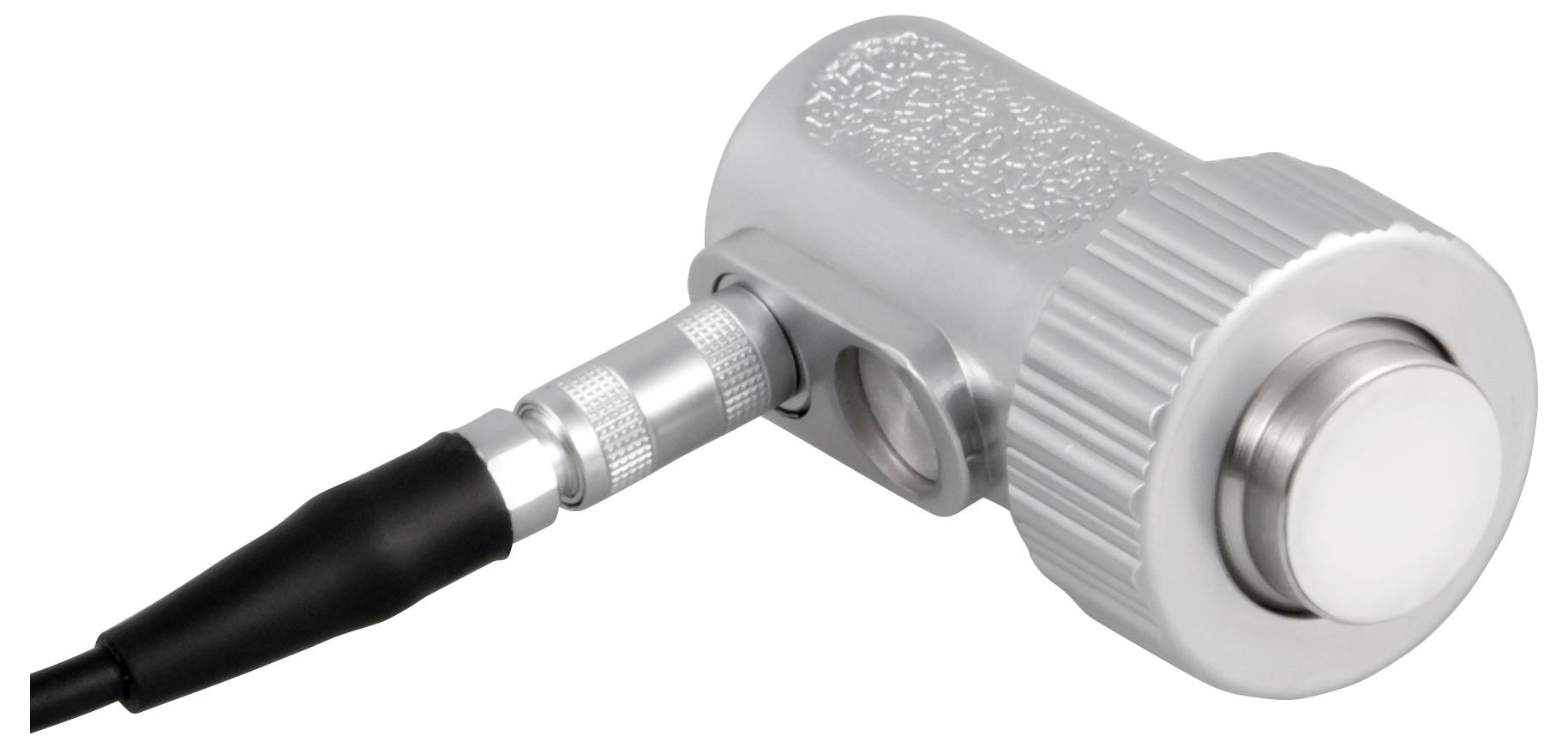

Defectoscope for material testing / battery or mains power operation / two different measuring probes (45 ° and 90 °) / probe cable with a length of 1.5 m. The PCE-FD 20 defectoscope is used for material testing. Most applications of the ultrasonic tester include testing materials for defects such as cracks, voids and imperfecto. The ultrasonic testing device is also suitable for the control of welding seams. By the principle of ultrasound, the ultrasonic tester allows you to measure surfaces completely non-destructive. In addition to the detection of defects, the depth of these defects can also be determined. It is also possible to determine the complete thickness of the material using the ultrasonic tester. At interfaces of different materials with unequal density and wave impedance, the ultrasound is reflected and scattered. The ultrasound waves can be sent through the material using different measuring probes. A measuring probe has the ability to send the ultrasound at an angle of 90 ° and one has the possibility to send ultrasound at an angle of 45 ° to the test piece. After the ultrasonic has been transmitted through the test piece and the running time has been determined, wall thicknesses can be determined, welding seams can be tested and component errors can be localized. The light weight of only 250 g enables you to take the device easily to different places. The adjustable frequencies lie between one and 10 megahertz. In addition, the ultrasonic testing device offers sound vibrations between 1000 and 9999 meters per second.

This text is machine translated.

Scope of delivery

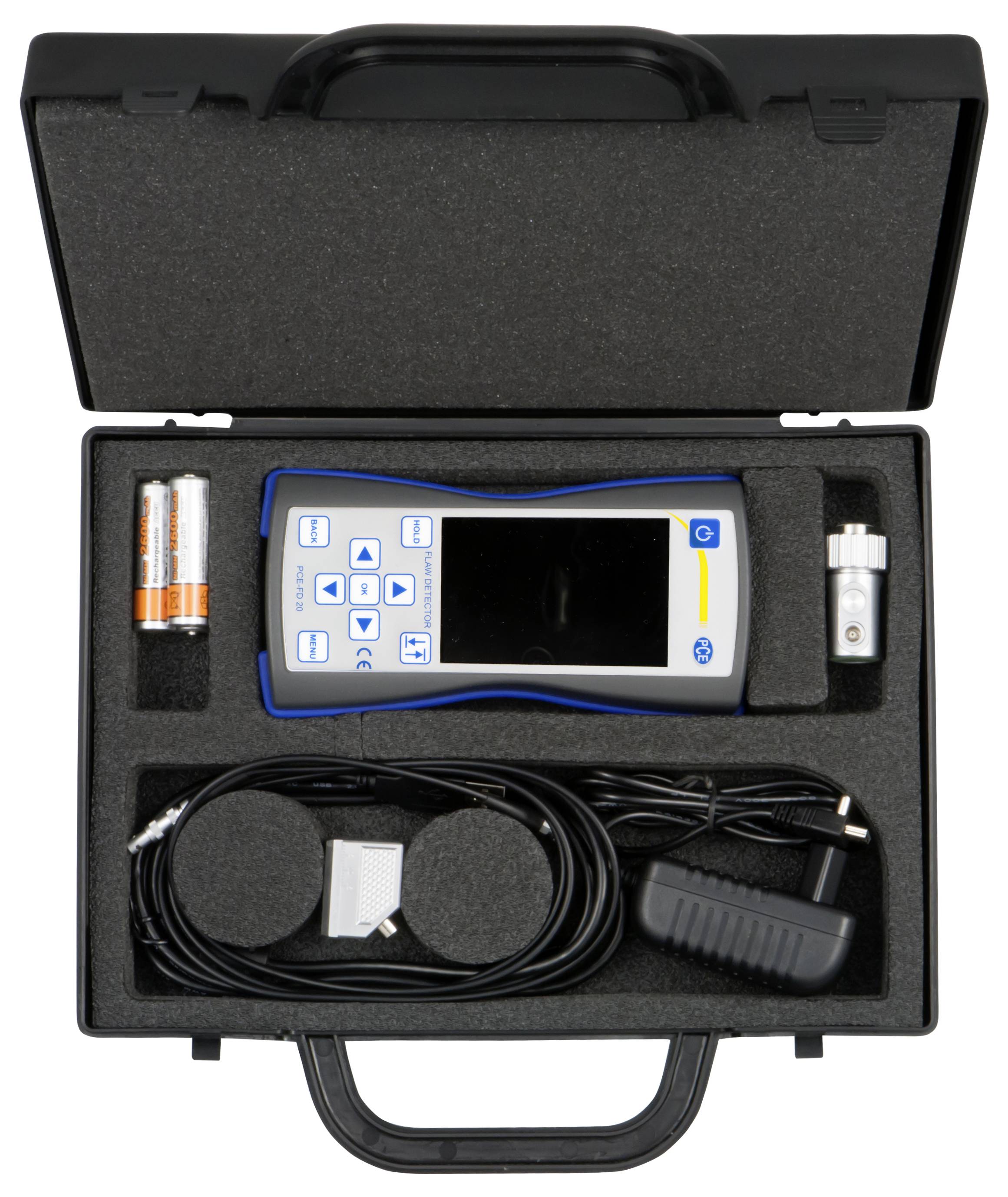

1 x PCE-FD 20 defectoscope 1 x probe cable (1.5 m) 1 x ultrasound probe (90 °) 1 x ultrasound probe (45 °) 3 x 1.5 V battery (AA) 1 x charging cable 1x USB cable 1 x software 1x user manual
