PCE Instruments PCE-FM 200 Dynamometer Manufacturer's standards (no certificate)

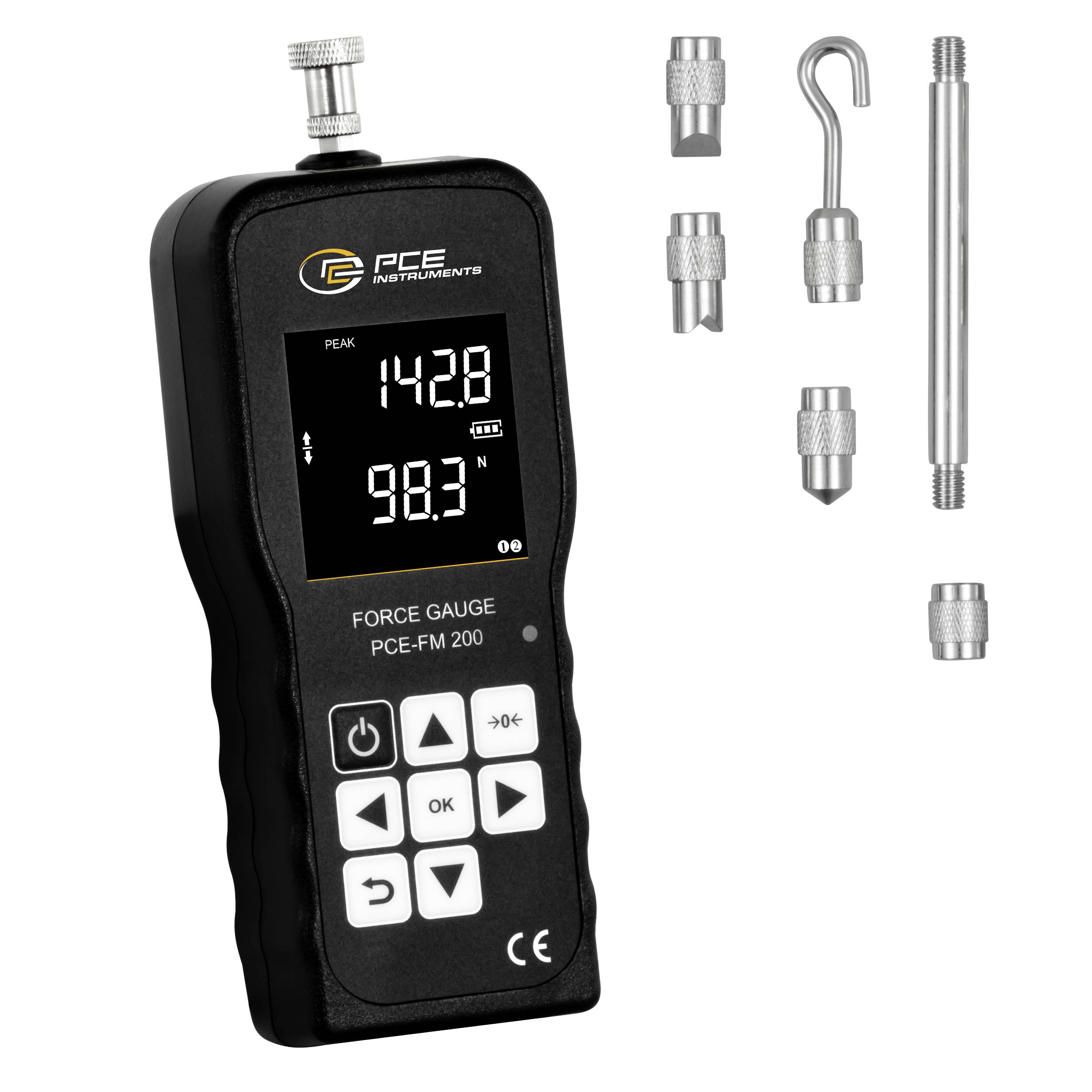

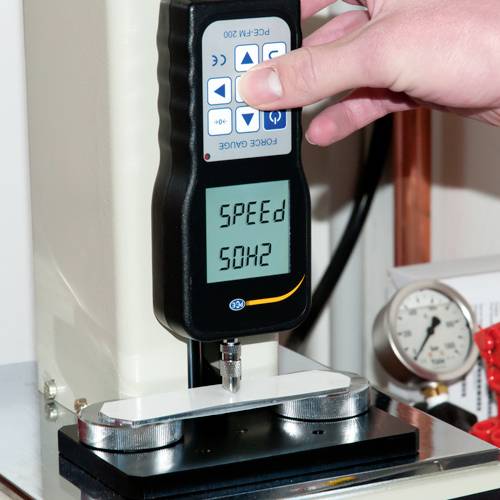

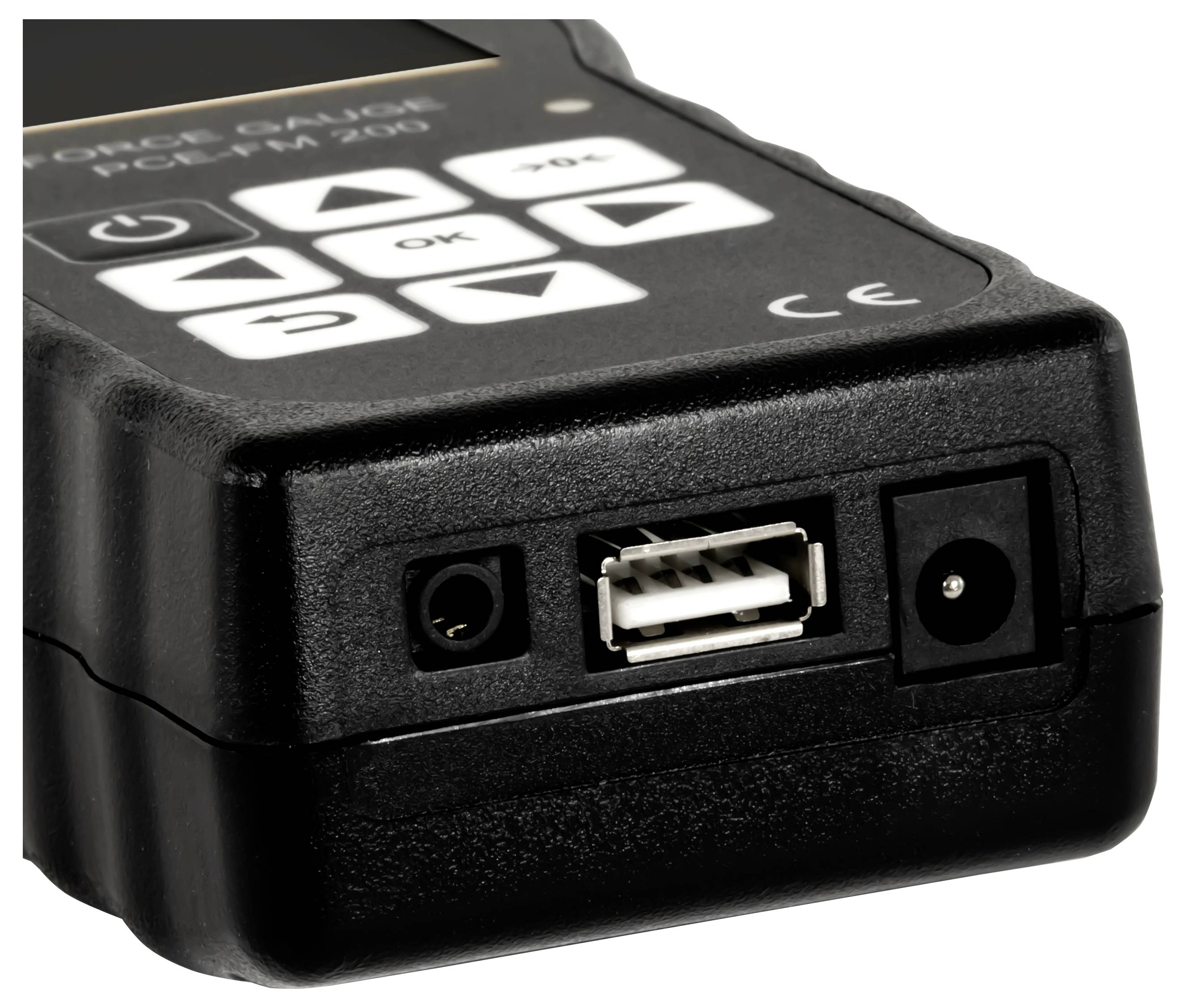

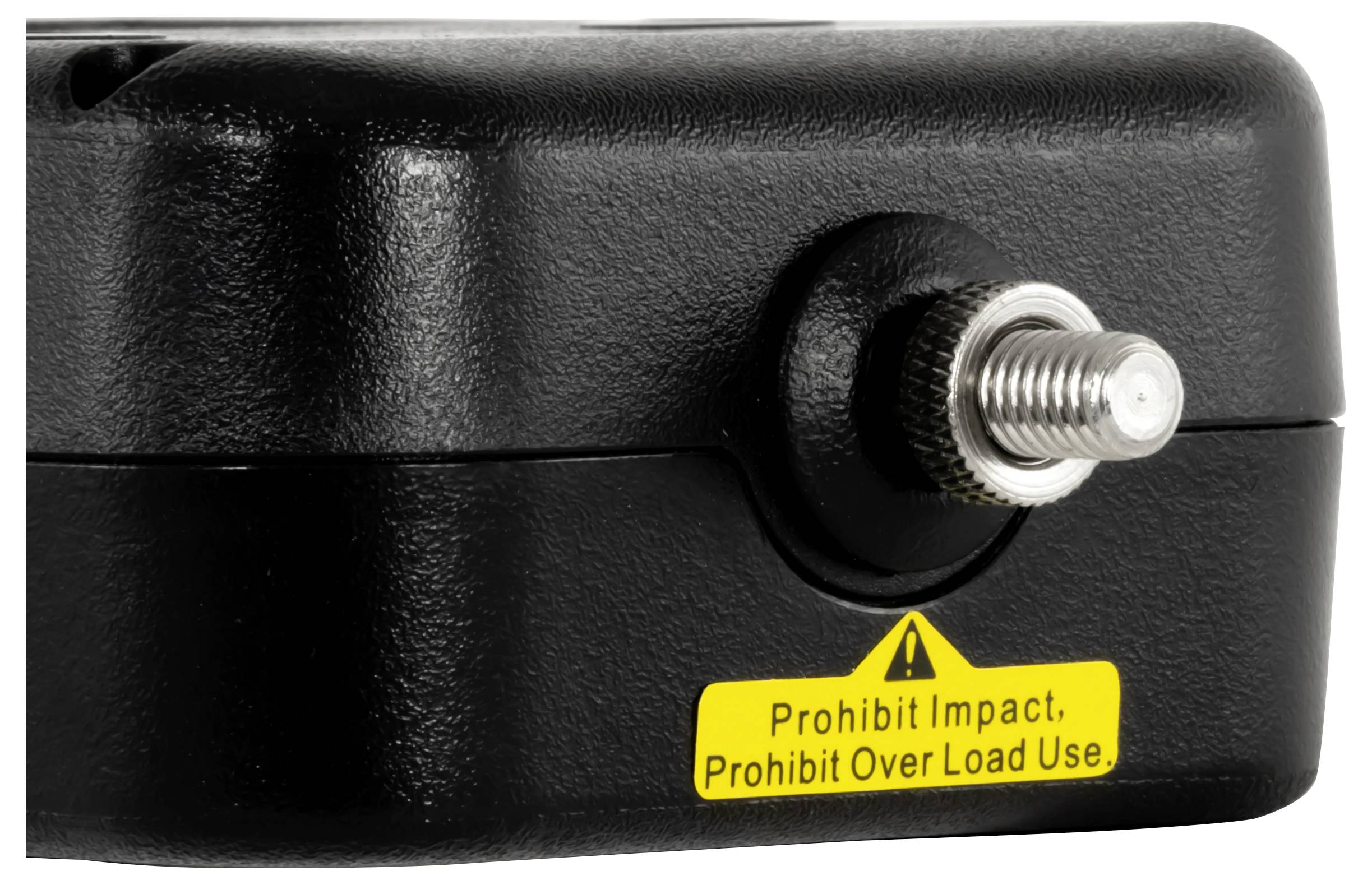

Force measuring device PCE-FM 200 Dynamometer for tensile force measurement and pressure force measurement up to 200 N USB interface and evaluation software for data transfer / many measuring adapters The dynamometer PCE-FM 200 is a hand-held device up to 200 N. The force measuring device can determine the units N, kg and lb. The PPCE-FM 200 power meter comes with various adapters with different shapes. These can be screwed onto the device and thus offer the optimal solution for different surface obtained in pressure and tensile measurement. In addition to the adapters, an extension rod is also supplied, which allows measurements to be taken in places that are difficult to access. This extension rod has a length of 65 millimeters. The PPCE-FM 200 power meter comes with a flat head adapter, hook adapter, ball head adapter, chisel head adapter and a notch head adapter, using the hook adapter for draft measurements. The PCE-FM 200 force meter has a thread on the back of the device to allow the force meter to be mounted on a test stand. Test stands are used with a force meter whenever reproducible measurement results are required for force measurement. These test stands are optimal additions to a force meter because they are operated via an exact handwheel or motor. in addition, both tensile and compressive force measurements can be carried out on them. Tests in the laboratory are thus possible with the force meter as well as the evaluation during the incoming goods inspection. Caution: The internal force measuring cell is maintenance-free, lightweight and has extremely long service life. Only high-quality materials are used for the manufacture of this force measuring cell, which guarantee a maximum of safety and durability. The force gauge has an overload range. If you exceed this, destroy the internal force measuring cell. Therefore, if you select a force gauge for your application, proceed to the next higher model for safety reasons.

This text is machine translated.
