PCE Instruments PCE-FM 200-ICA Force gauge 0 - 200 N ISO standards

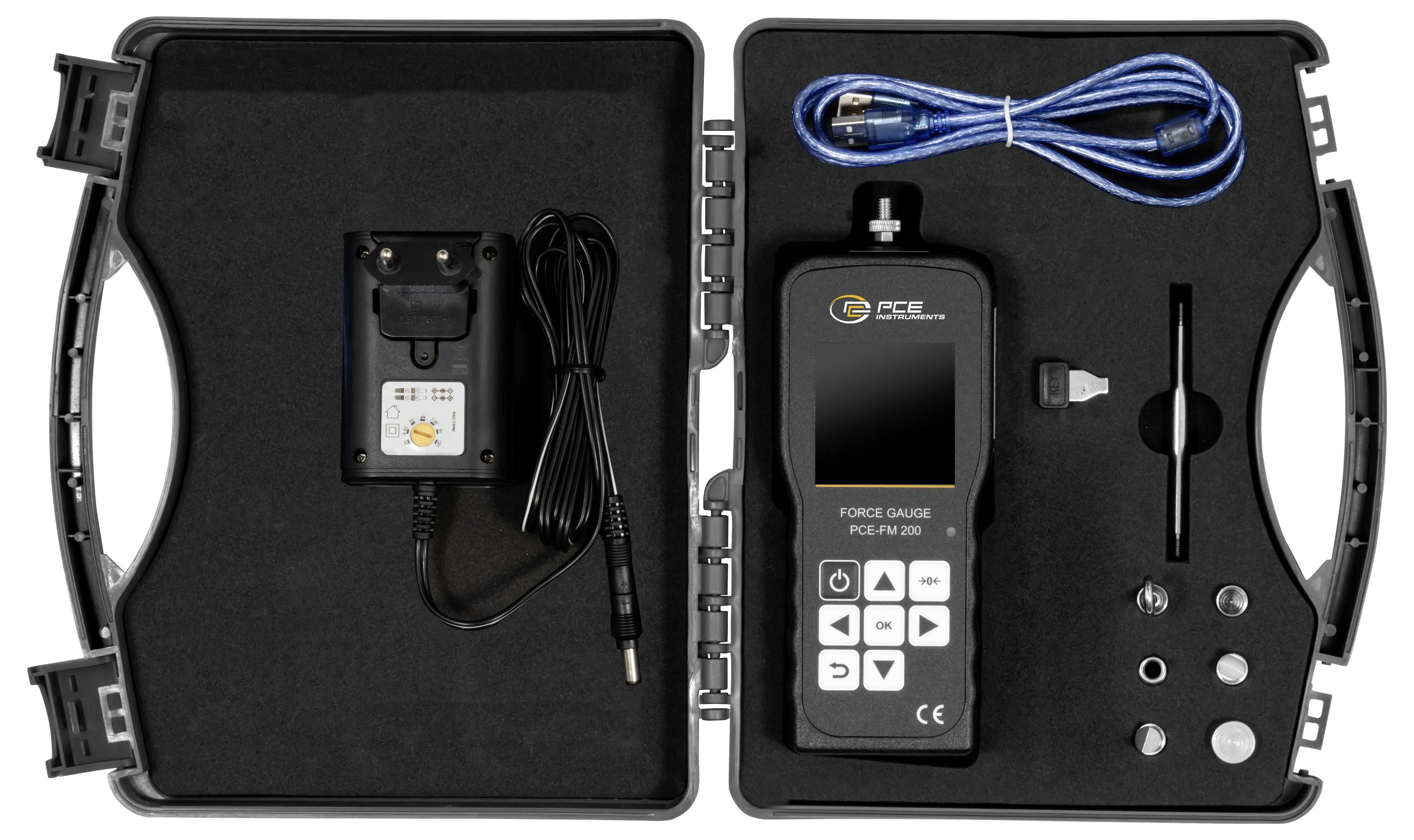

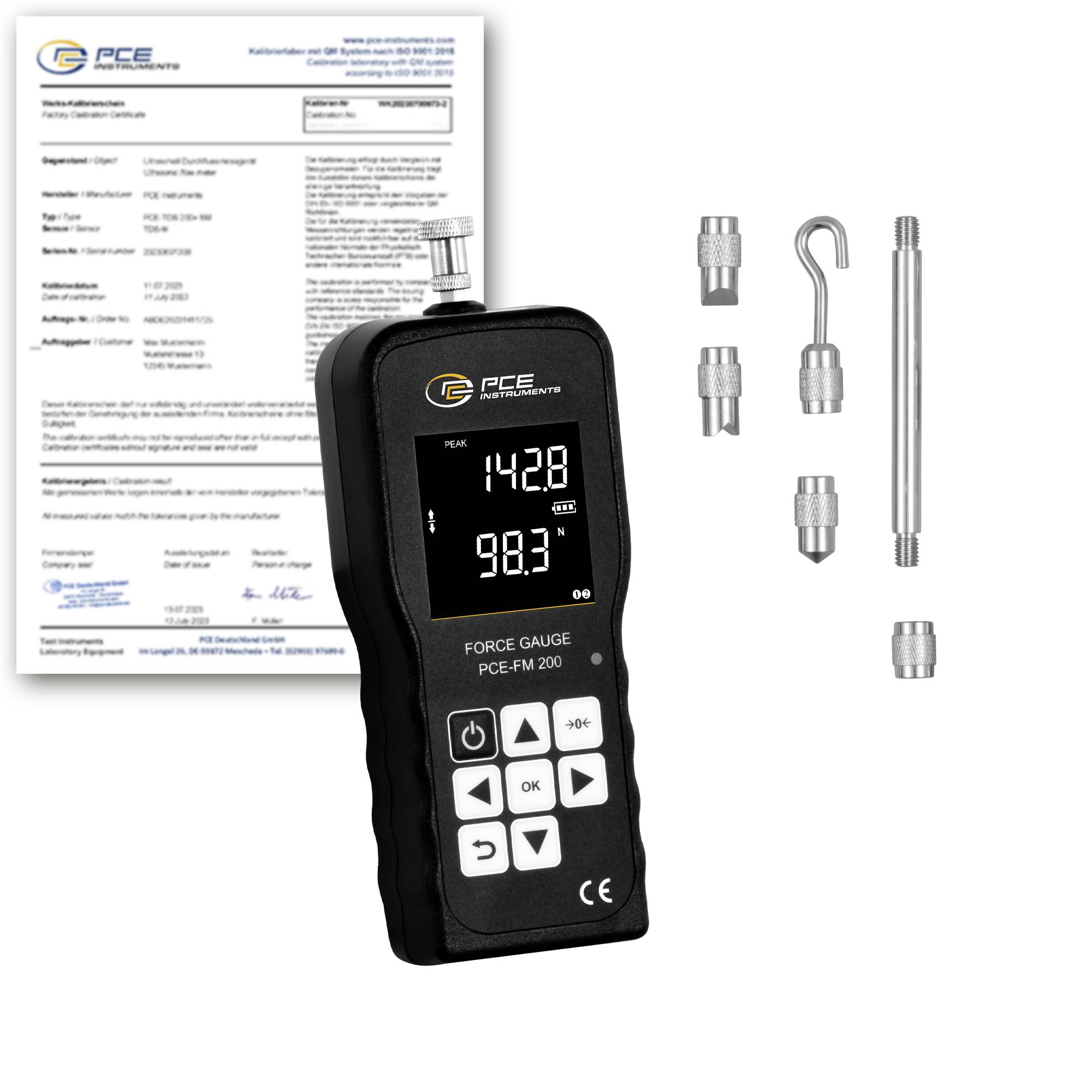

The force meter is a hand-held device up to 200 N. The force meter can determine the units N, kg and lb. The force gauge comes with different adaptors, each of which has different shapes. These can be screwed on to the device and thus offer the optimum solution for different surfaces in the measurement of pressure and tensile force. In addition to the adapters, an extension rod is also included, which enables measurements in hard to reach places. This extension rod has a length of 65 millimeters. The power meter comes with flat-head adapters, hook adapters, ball-head adapters, chisel-head adapters and a notch-head adapter, whereby the hook adapter is used for tensile force measurements.

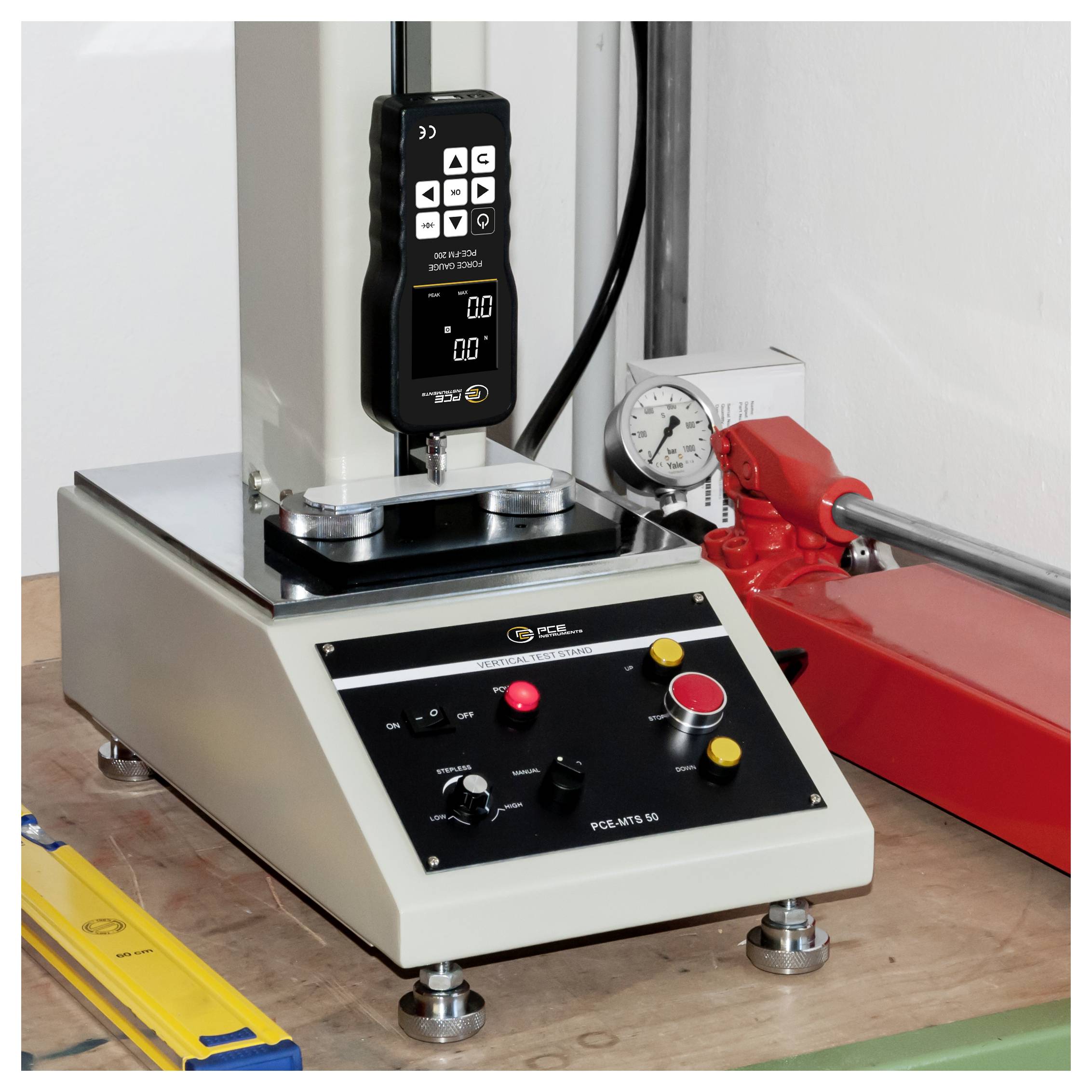

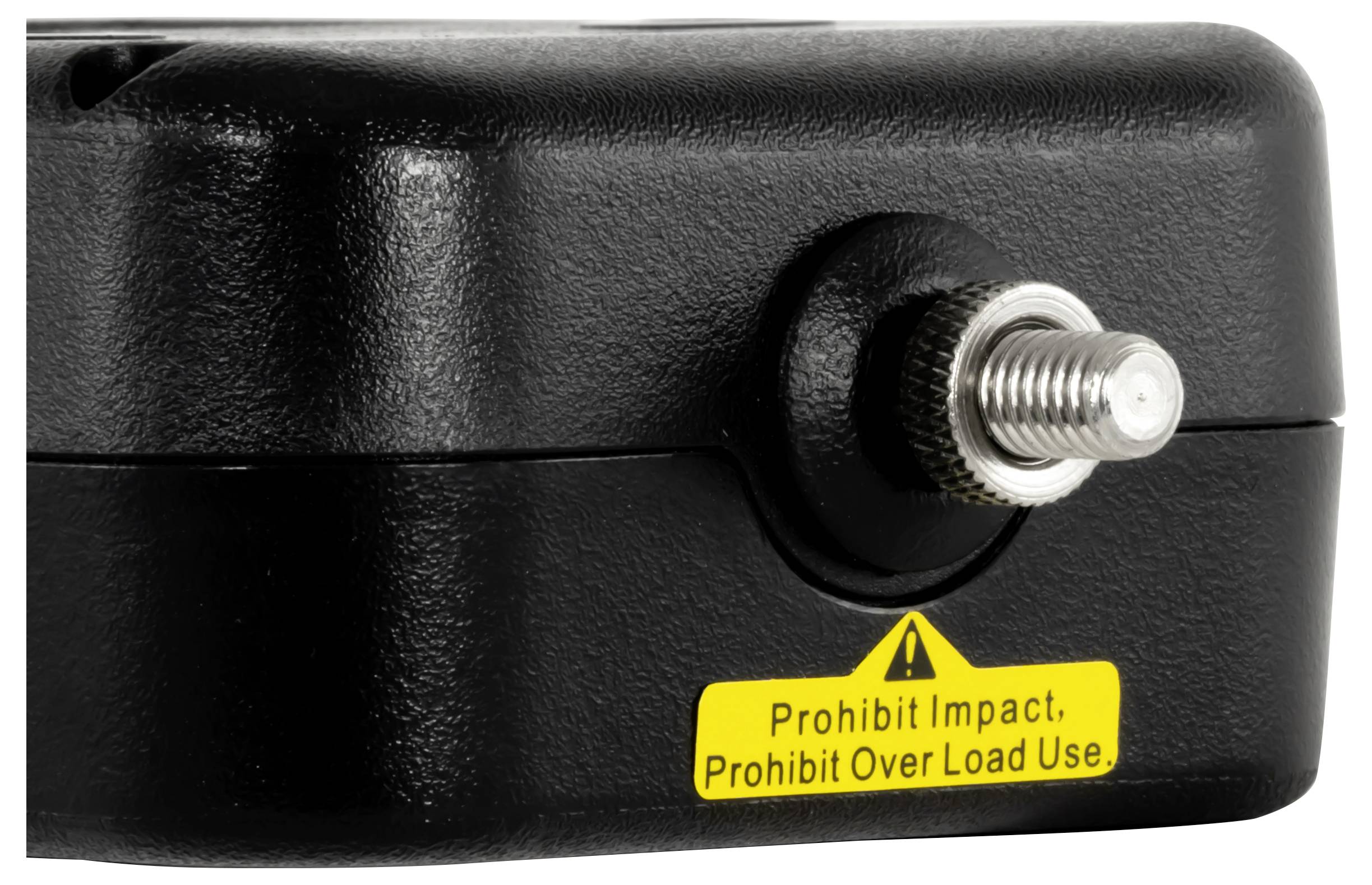

The force gauge is threaded on the back of the unit to allow the force meter to be mounted on a test stand. Test stands are always used in a force gauge when reproducible measurement results are required in force measurement. These test stands are optimal supplements to a force gauge because they are operated via an exact handwheel or an engine. They can also be used for tensile and compressive measurements. Tests in the laboratory are thus possible with the force meter as well as inspection during the incoming goods inspection.

Attention: The internal force measuring cell is maintenance-free, lightweight and is characterized by extremely long service life. For the production of this force measuring cell only high-quality materials are used, which guarantee a high level of safety and durability. The force gauge has an overload range. If you exceed this, you will destroy the internal force measuring cell. If you select a force gauge for your application, move to the next higher model for safety when measuring.
