Buy PCE Instruments PCE-FM 500N Force gauge 5 - 500 N Manufacturer's standards (no certificate)

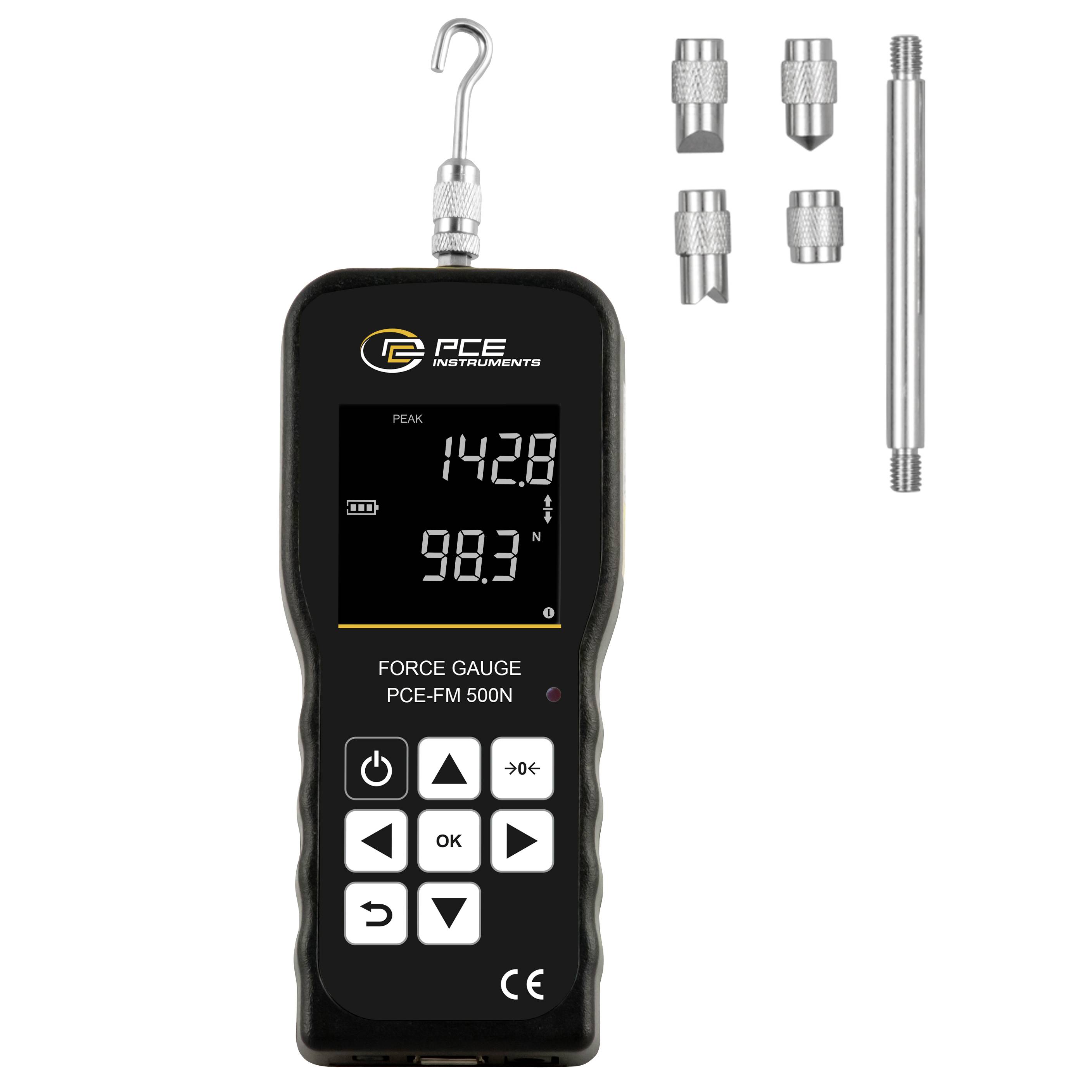

Handheld PCE force gauge showing peak 14.28 and 98.3 N, with hook and interchangeable test adapters included.<br>

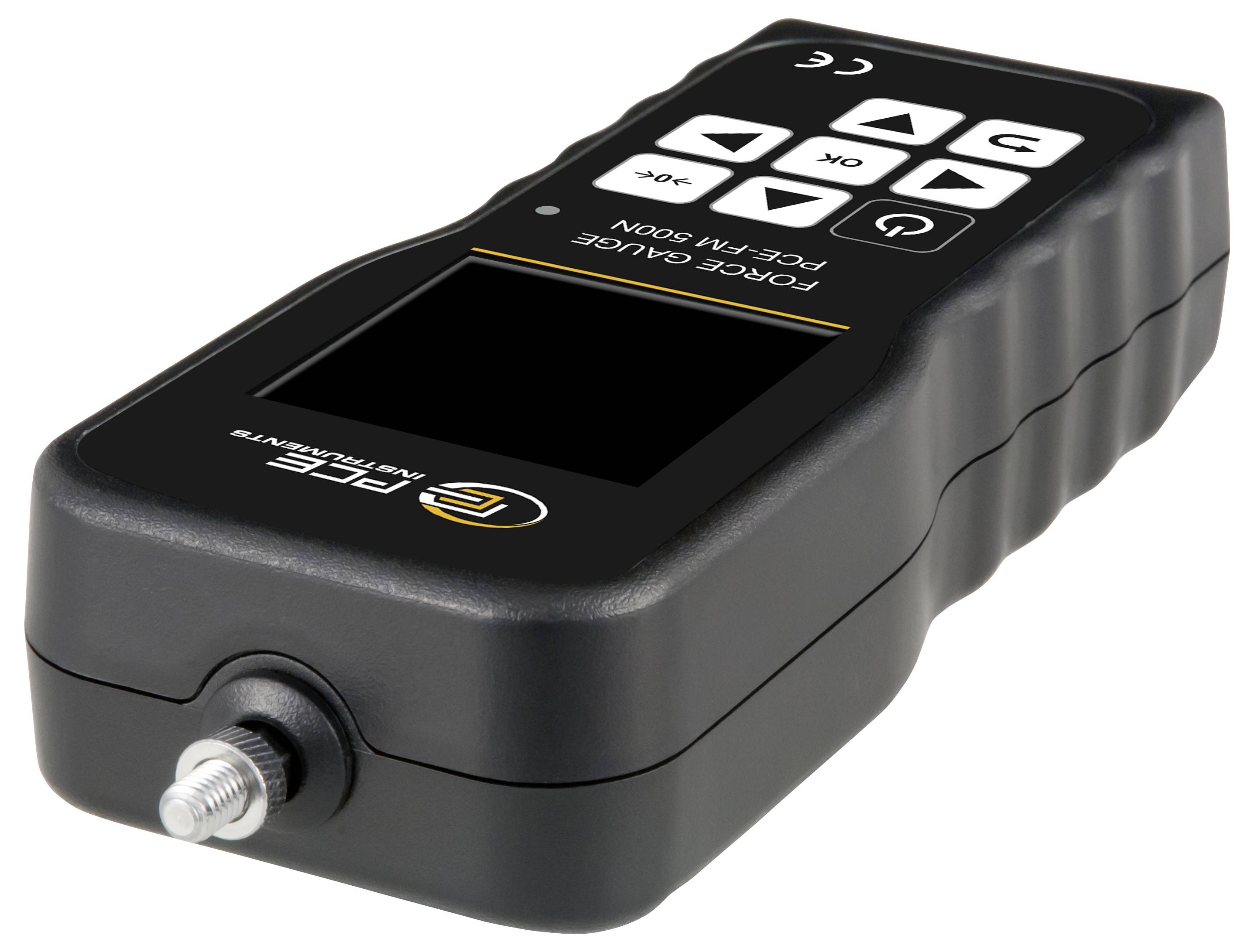

Black handheld digital force gauge with display and directional buttons, shown in perspective on a white background.

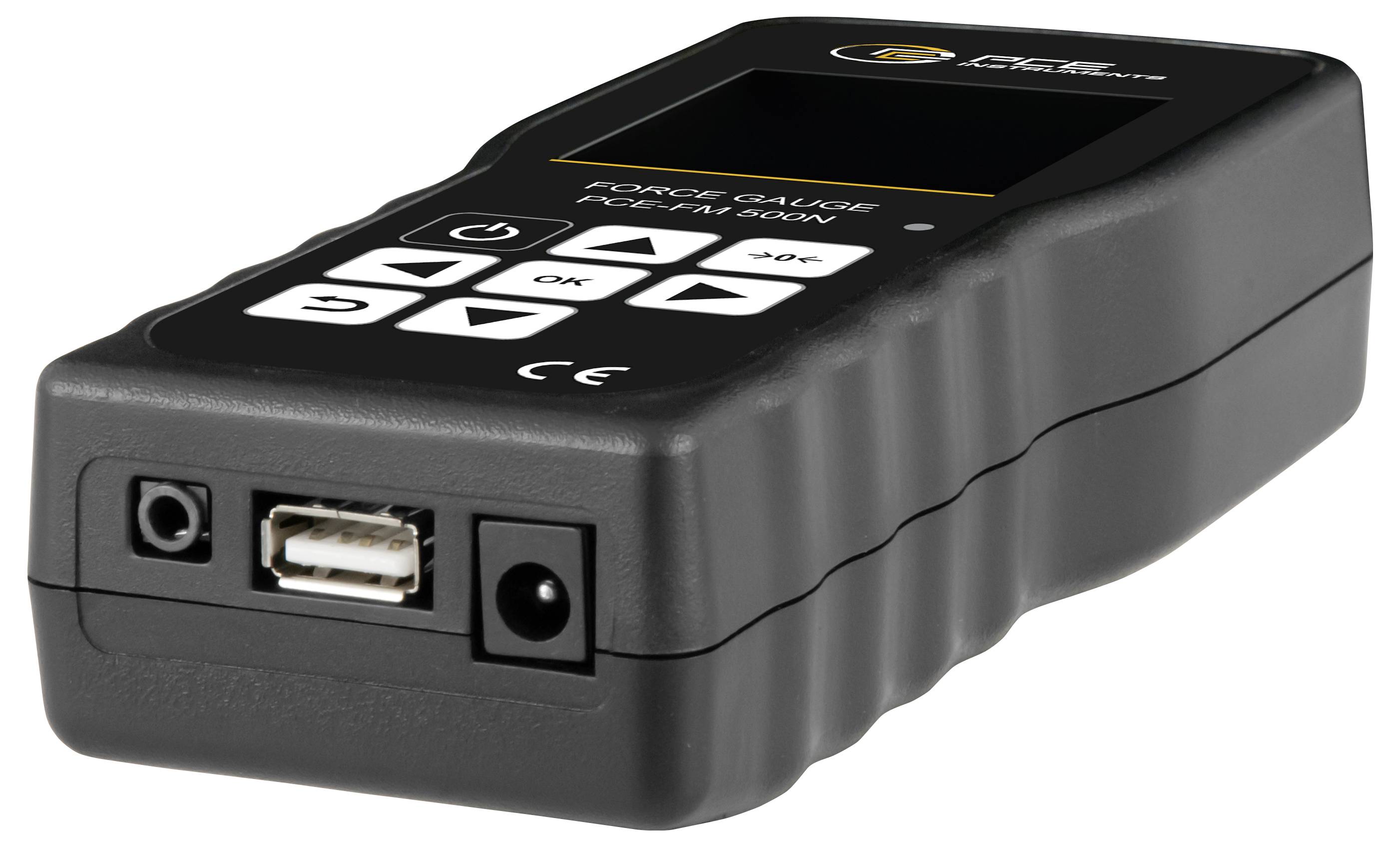

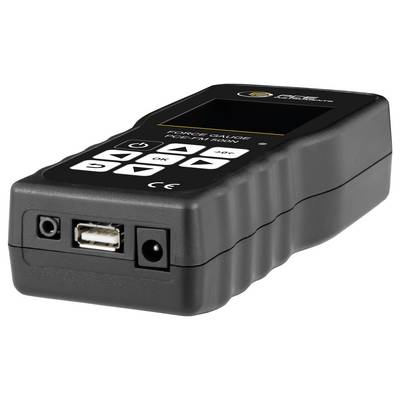

Black handheld Forda gauge meter with screen and control buttons, shown angled on a white background with USB, audio jack, and power ports visible.

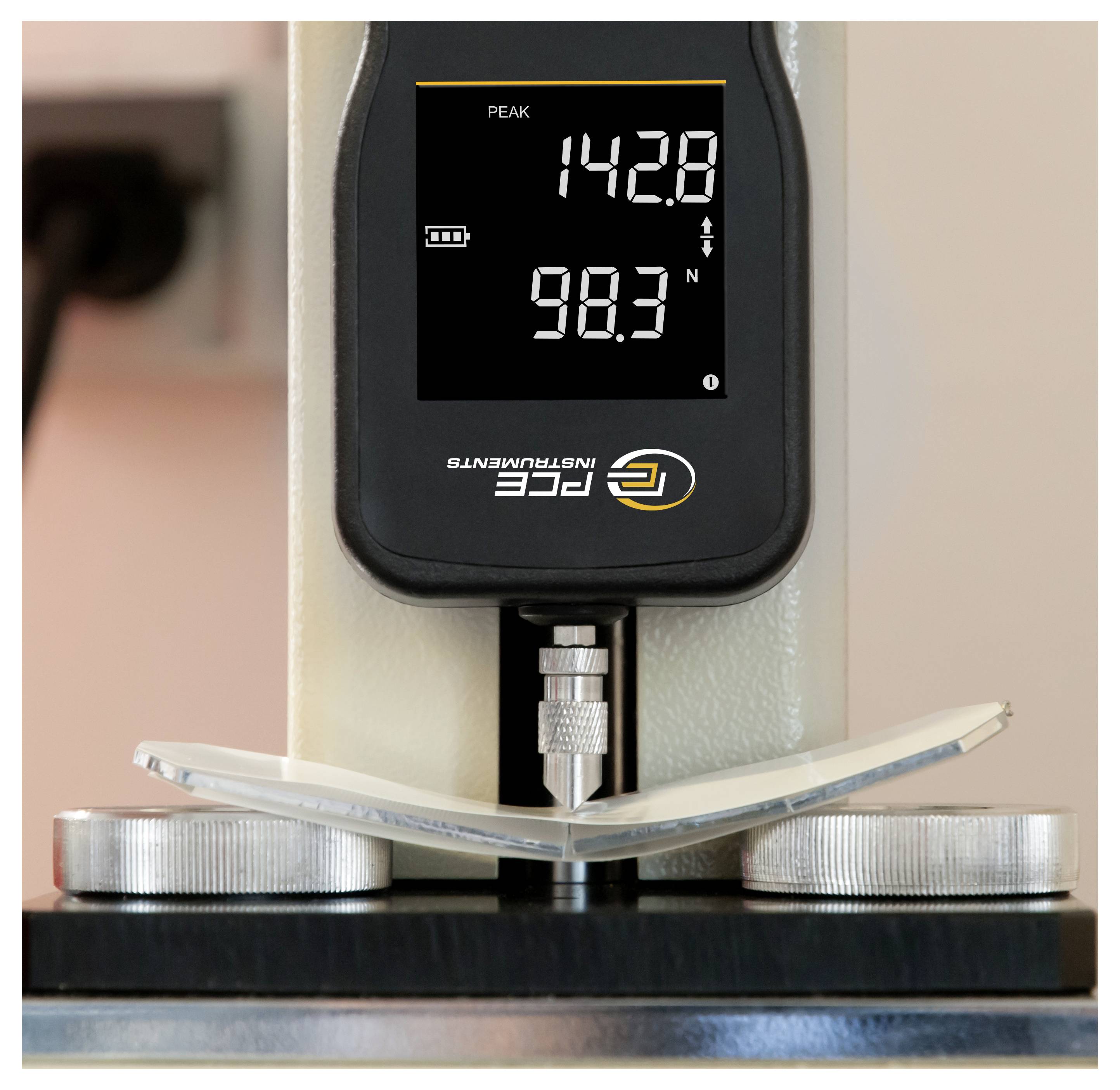

Force gauge testing the bend of a thin metal strip between two supports, reading peak 142.8 and current 98.3 N.

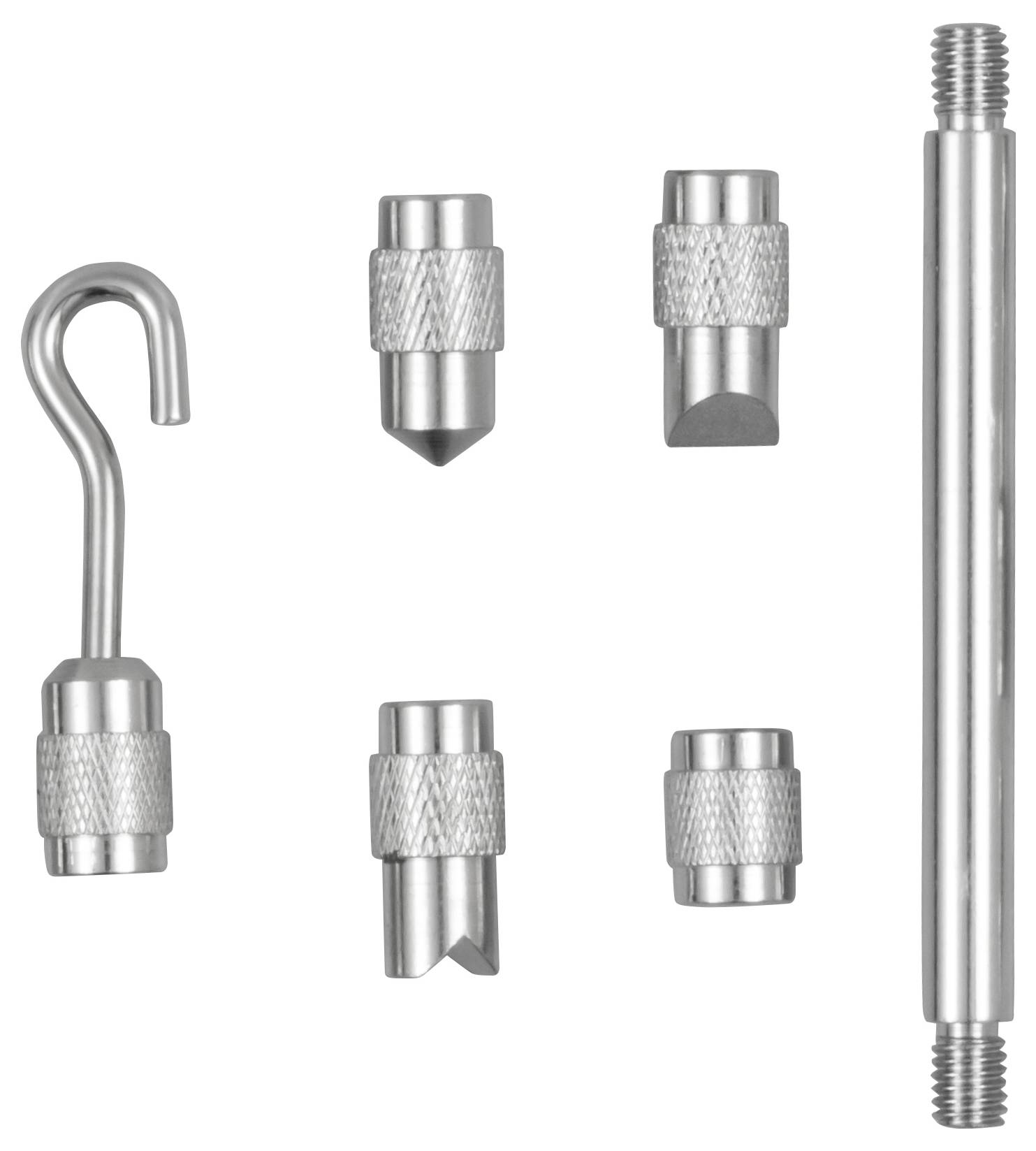

Set of six metal woodworking lathe centers and attachments, including a hook tool, four pointed or flat tips, and one long threaded shaft.

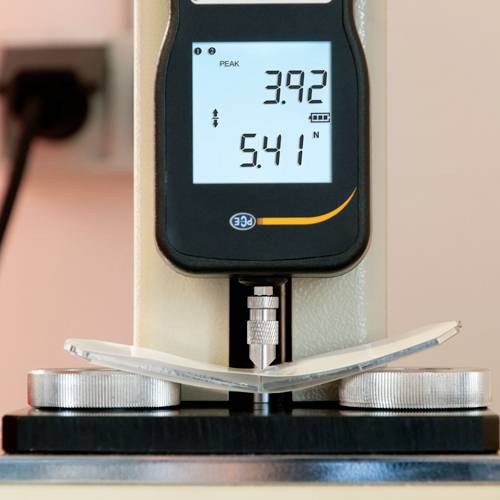

A digital measuring device displays 'PEAK 3.92' and '5.41 N'. It measures the pressure on a slightly curved object between two discs.

1/6

Datasheet (PDF)

Unavailable

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-FM 500N Force gauge 5 - 500 N Manufacturer's standards (no certificate)

Differently shaped measuring adapter
Incl. evaluation software
Device for mounting on test stands
Peak measurement
Power supply via charging adapter
Supplied with extension rod
Evaluation via USB interface
Fast measured value display

Technical specifications

Measuring range 5 ... 500N Resolution 0.1 N. Pressure calibration 1 MPa Load cell integrated load cell with M6 connection Measuring range 1 ... 100 % of the full scale Measurement accuracy ± 0.5 % Units N, kg, lb Display LCD Power supply internal battery, power supply 12 V / 1 A operating temperature +10 ... +30 °C relative humidity 15 ... 80% relative humidity Weight 1 kg. Working conditions The device must not be placed in the vicinity of sources of vibration or corrosive substances

Product type: Force gauge

Display: LCD

Force reading range (max.): 500 N

: Manufacturer's standards (no certificate)

Factory colour: Black

Dim: (L x W x H) 93.9 x 35.4 x 184.3 mm

Weight: 1 kg

Resolution (force): 0.1 N

Basic accuracy: 0.5 %

Force reading range: 5 - 500 N

Force reading range (min.): 5 N

Width: 35.4 mm

Height: 184.3 mm

Length: 93.9 mm

Interfaces: USB

Documents & Downloads

Datasheet

Datasheet 2452433 PCE Instruments PCE-FM 500N Force gauge 5 - 500 N Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 2452433 PCE Instruments PCE-FM 500N Force gauge 5 - 500 N Manufacturer's standards (no certificate)

Description

Dynamometer PCE-FM 500N Dynamometer for tensile force measurement and pressure force measurement up to 500 N / with internal force cell / USB interface for data transfer The force meter PCE-FM 500N is a microprocessor controlled force meter with fast and accurate reading of tensile and compressive forces in N, kg and lb. The display of the force meter can be read easily by the large digits. The force gauge is equipped with an internal force measuring cell for tensile and compressive tests. The force measuring cell of the force measuring device PCE-FM 500N is equipped with a M6 threaded head. This means that the force meter can also be screwed into and screwed into other holders, test facilities and test stands. The force meter is operated with an internal rechargeable battery or the external power supply. This force meter also has a USB interface for data transfer. With the interface and the software of the force measuring devices, the data can be transmitted quickly and easily to a PC. With the help of the optionally available mounting plate, the force measuring cell can be adapted to outgoing test benches. These test stands are ideal for tensile and compressive force measurement in quality controls and tests in the laboratory or for product development.
