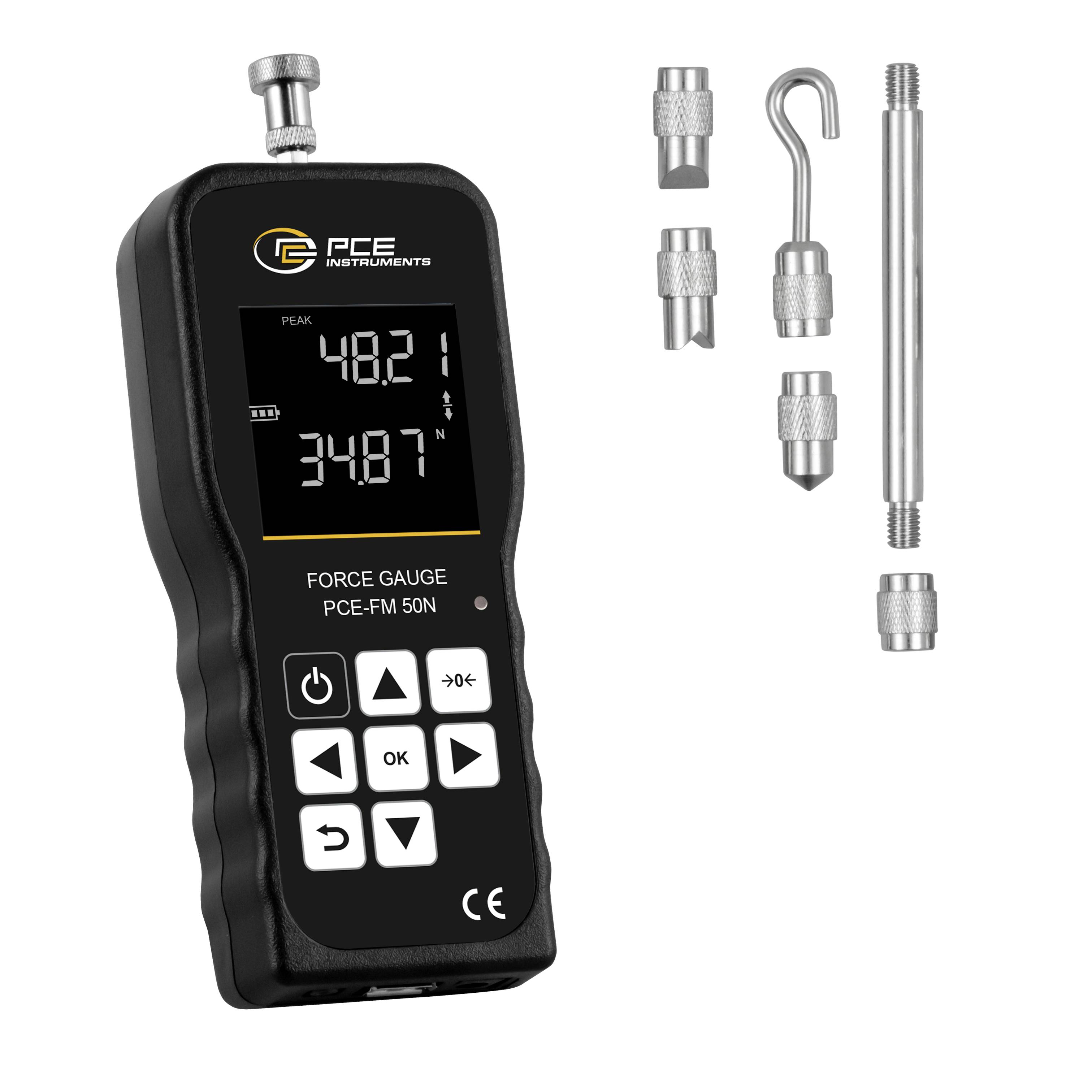

Handheld PCE force gauge with digital display and button controls, shown with interchangeable measuring attachments and hook accessory.

Digital force gauge showing peak 46.55 and current 35.93 with battery indicator; PCE-FM 50N model text visible.<br>

Black handheld torque angle gauge with digital display and directional buttons, shown at an angle on a white background.

A black handheld oxygen gauge/calibrator device with a display, control buttons, and front ports for power or data connections.

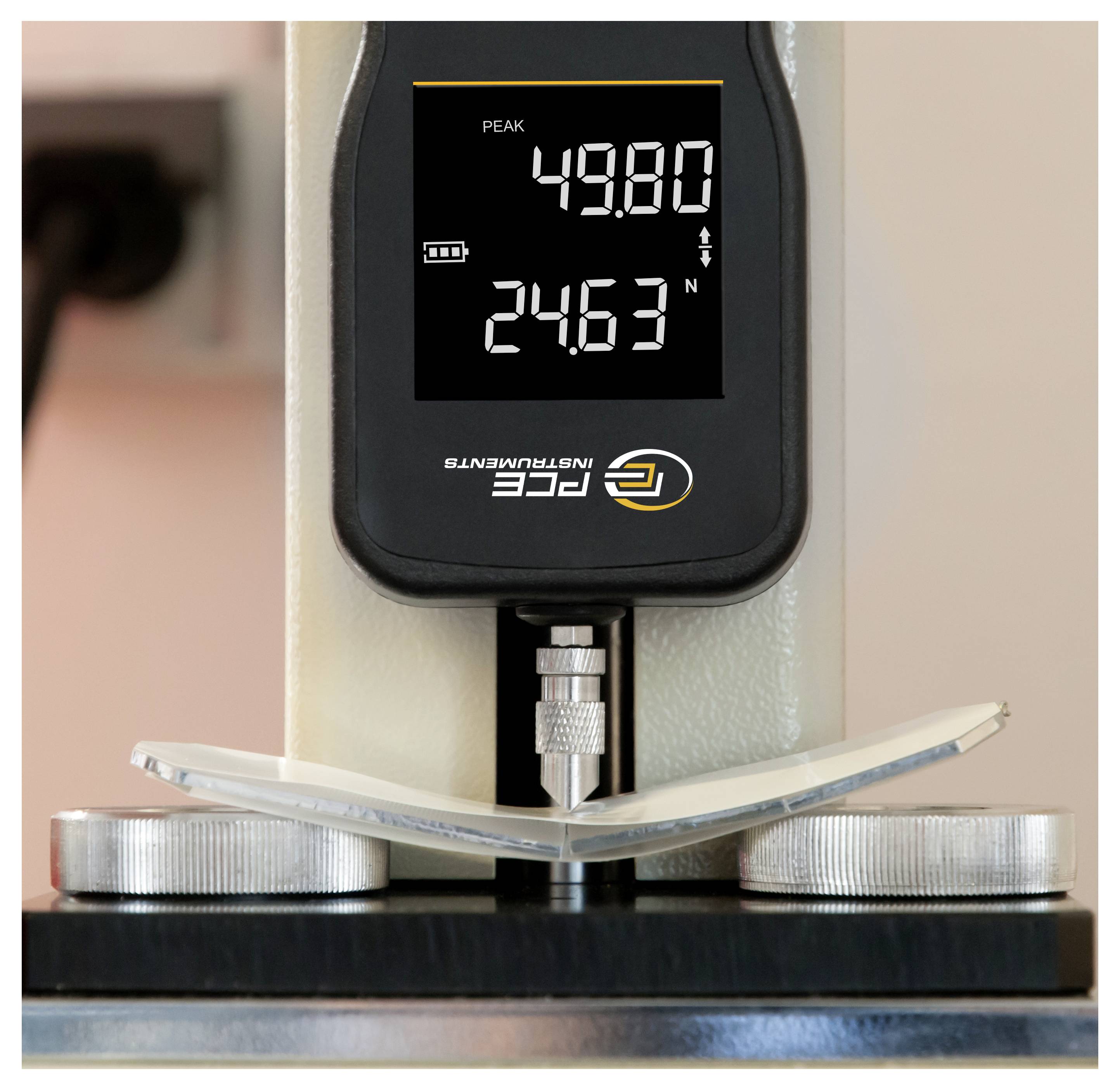

Force gauge measuring the bending load of a thin sample between two metal supports; display shows peak 49.80 and current 24.63 N.

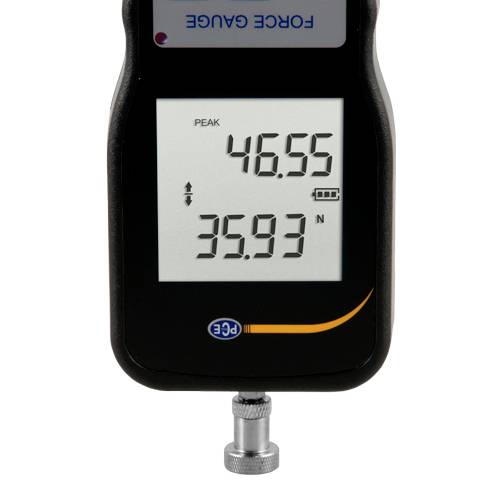

'Kraftmesser' shows a 'peak' value of '46.55' and '35.93 N'. Black device with digital display.<br><br>Note: In British English, I've retained the numerical formatting with a decimal point and kept the technical terms consistent with the original text.

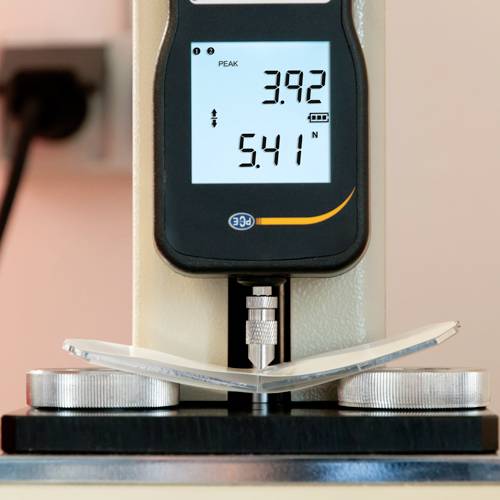

A testing device measures the pressure on a clamped material. The digital screen displays values of 3.92 and 5.41 N.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-FM 50N Force gauge 0.5 - 50 N Manufacturer's standards (no certificate)

Differently shaped measuring adapter
Incl. evaluation software
Device for mounting on test stands
Peak measurement
Power supply via charging adapter
Supplied with extension rod
Evaluation via USB interface
Fast measured value display

Technical specifications

Measurement range 0.5 ... 50 N Resolution 0.01 N. Pressure calibration 0.1 MPa Load cell integrated load cell with M6 connection Measuring range 1 ... 100% of the full scale Measurement accuracy ± 0.5 % Units N, kg, lb Display LCD Power supply internal battery, power supply 12 V / 1 A operating temperature +10 ... +30 °C relative humidity 15 ... 80% relative humidity Weight 1 kg. Working conditions The device must not be placed in the vicinity of sources of vibration or corrosive substances

Product type: Force gauge

Display: LCD

Force reading range (max.): 50 N

: Manufacturer's standards (no certificate)

Factory colour: Black

Dim: (L x W x H) 93.9 x 35.4 x 184.3 mm

Weight: 1 kg

Resolution (force): 0.1 N

Basic accuracy: 0.5 %

Force reading range: 0.5 - 50 N

Force reading range (min.): 0.5 N

Width: 35.4 mm

Height: 184.3 mm

Length: 93.9 mm

Interfaces: USB

Documents & Downloads

Datasheet

Datasheet 2452434 PCE Instruments PCE-FM 50N Force gauge 0.5 - 50 N Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 2452434 PCE Instruments PCE-FM 50N Force gauge 0.5 - 50 N Manufacturer's standards (no certificate)

Description

Force meter PCE-FM 50N Measuring device for tensile force / compressive force / USB interface PEAK function / different measuring units / incl. software This force meter is a measuring device for tensile force / compressive force. This measuring device for tensile force/pressure force has an internal force measuring cell. It is a portable measuring device for tensile force/pressure force, which allows it to be installed in a force measuring level. The measurement range of this tensile and compressive force gauge is up to 50N. This makes the measuring device suitable for precise tensile and compressive tests. The measurement results can be transferred directly to the PC via USB interface. These can be archived and evaluated there. An integrated statistical evaluation is used to evaluate the measurement results. Thus, the force meter is able to store maximum and minimum measured values automatically in the display.
