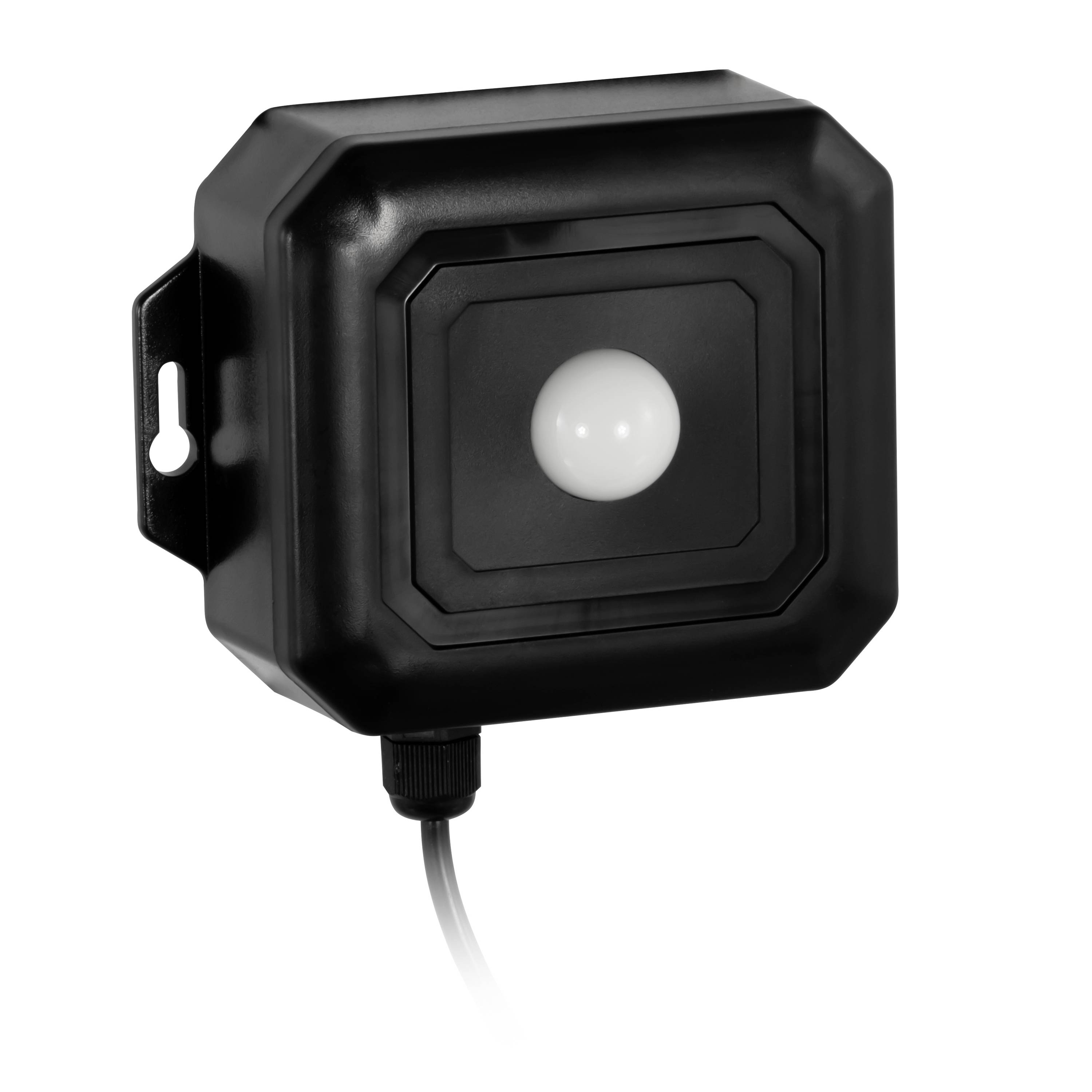

PCE Instruments PCE-FST-100-2003-LS PCE-FST-100-2003-LS Photo sensor 1 pc(s) (L x W x H) 120 x 134 x 43 mm Box
EAN:
Part number:
Item no:
Packaging type
Box
Product type
Photo sensor
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Type
PCE-FST-100-2003-LS
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-FST-100-2003-LS
- Illumination: 0 ... 65535 lx
- Reaction time: ≤ 0.1 s
- RS-485 output
- Protection class IP65
- Wall mounting
Our service for you
Technical specifications
- Illumination strength
- Measuring range 0 ... 65535 lx
- Resolution 1 lx
- Accuracy ±7 % FS @25 °C.
- General Technical Data
- RS485 outputs

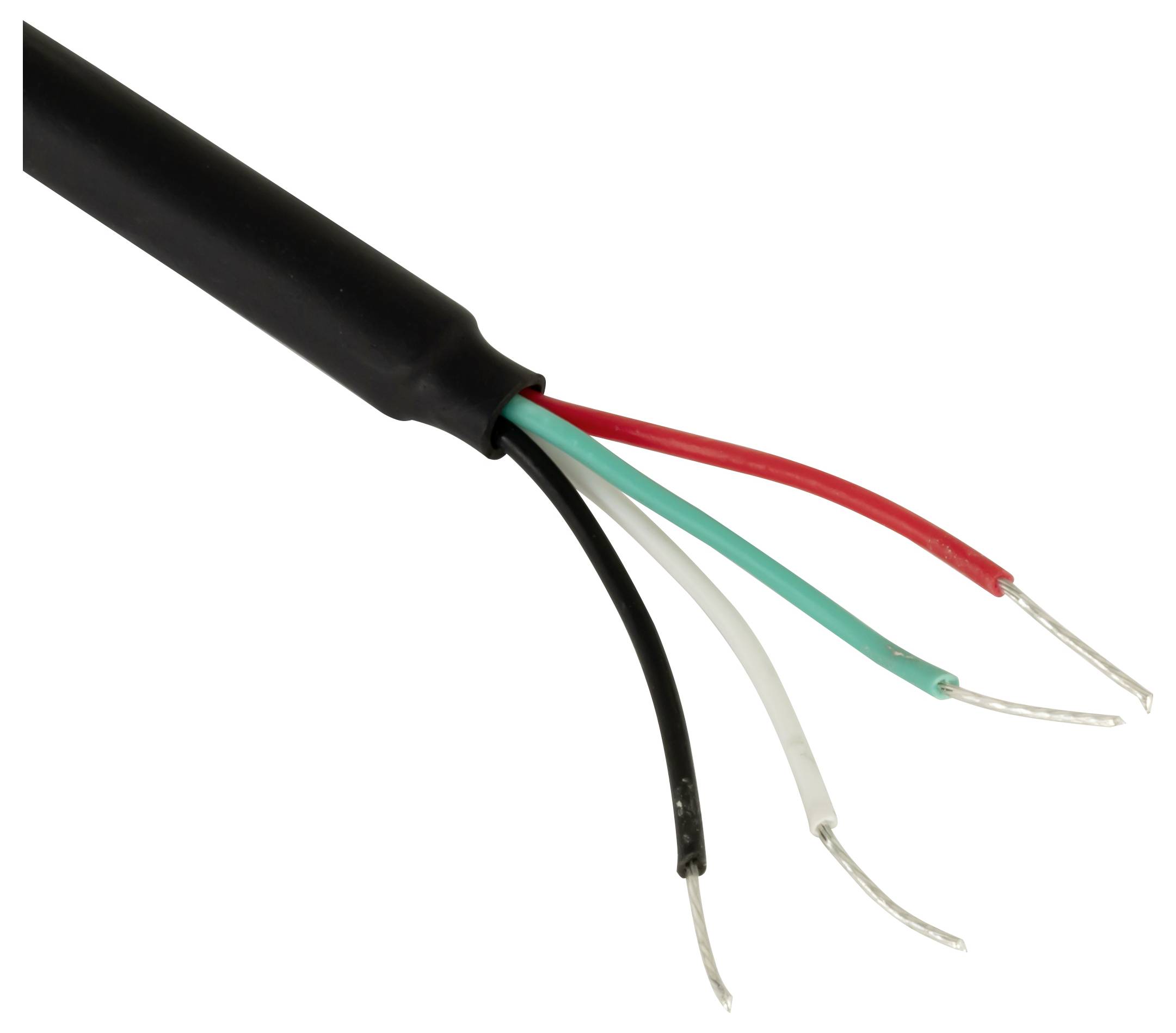

- Cable length 1 m
- Response time 0.1 s
- Protection class (device) IP65
- Power supply 10 ... 30 V DC
- Operating conditions -20 ... 60 °C , 0 ... 80 % r.F.
- Storage conditions -20 ... 80 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 120 x 134 x 43 mm
- Weight 220 g.
- Packaging type
Box
- Product type
Photo sensor
- Type
PCE-FST-100-2003-LS
- Content
1 pc(s)
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Activation threshold (min.)
0
- Activation threshold (max.)
65535 lx
- Switching threshold (min.)
0
- Switching threshold (max.)
65535 lx
IP65
- Min. temperature
-20 °C
- Max. temperature
60 °C
- Length
120 mm
- Width
134 mm
- Height
43 mm
- Dim
(L x W x H) 120 x 134 x 43 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3812948 PCE Instruments PCE-FST-100-2003-LS PCE-FST-100-2003-LS Photo sensor 1 pc(s) (L x W x H) 120 x 134 x 43 mm Box
User & Safety Instructions
User & Safety Instructions 3812948 PCE Instruments PCE-FST-100-2003-LS PCE-FST-100-2003-LS Photo sensor 1 pc(s) (L x W x H) 120 x 134 x 43 mm Box
Description
The light sensor is Ideal for monitoring the light intensity in greenhouses, industrial plants or Smart-farming systems, with the light sensor a precise control of lighting and energy usage. The lighting sensor detects light intensity of 0 … 65 535 lx and supplies the measured values via a digital RS‑485 Modbus RTU output. The accuracy is ±7 % FS at 25 °C, the response time is ≤ 1 s, the supply voltage is 10 … 30 V DC, and the robust, moisture-proof housing allows for indoor and outdoor use.
The lighting sensor is used mainly by operators of greenhouses, environmental researchers and companies in the field of Smart farming as well as industrial plants, which wish to reliably monitor light intensity and implement automated control systems.
This text is machine translated.
The lighting sensor is used mainly by operators of greenhouses, environmental researchers and companies in the field of Smart farming as well as industrial plants, which wish to reliably monitor light intensity and implement automated control systems.
This text is machine translated.

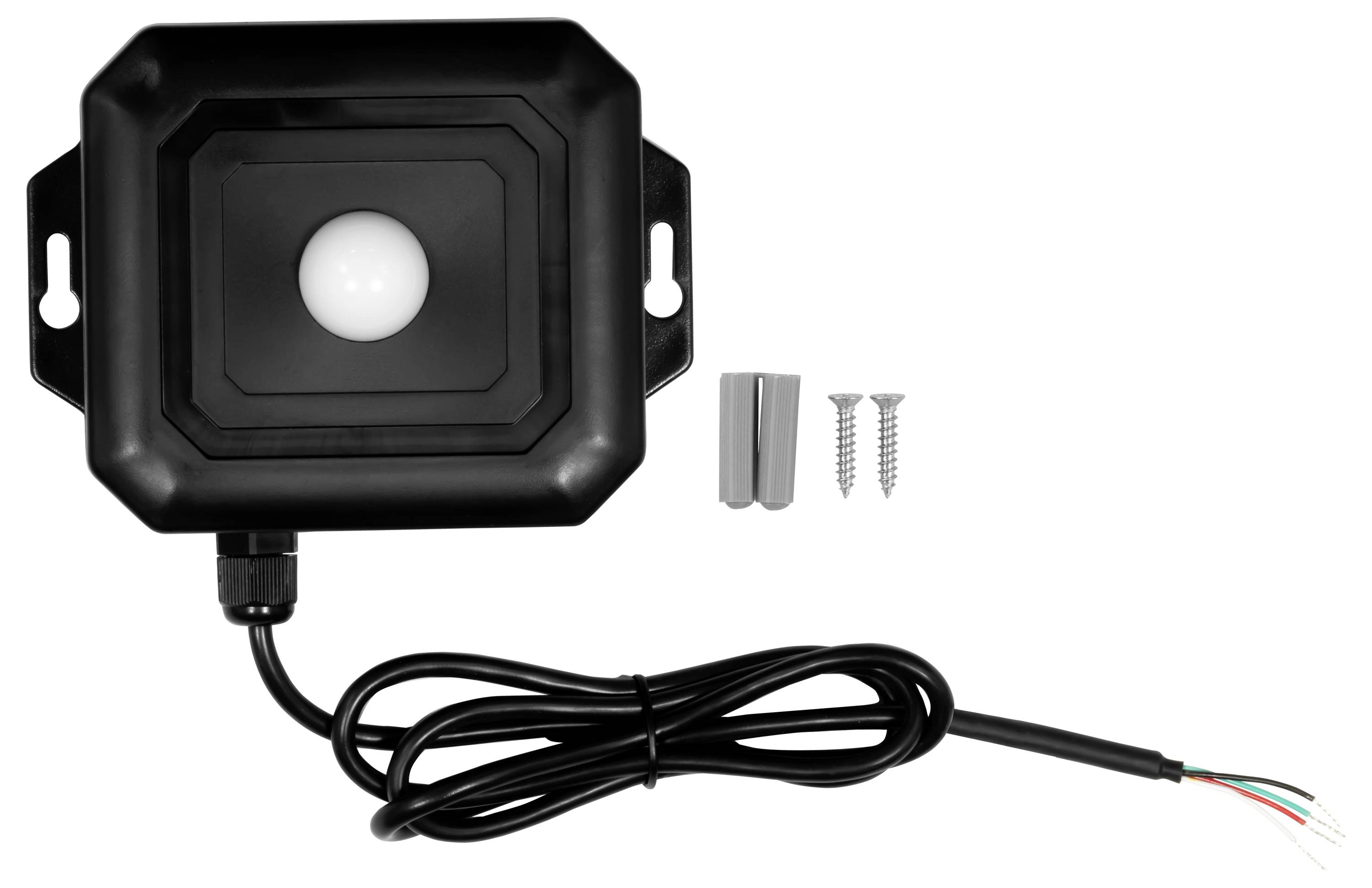

Scope of delivery
- 1 x lighting sensor PCE-FST-100-2003-LS
- 1x user manual
- 2 x screws with plugs
