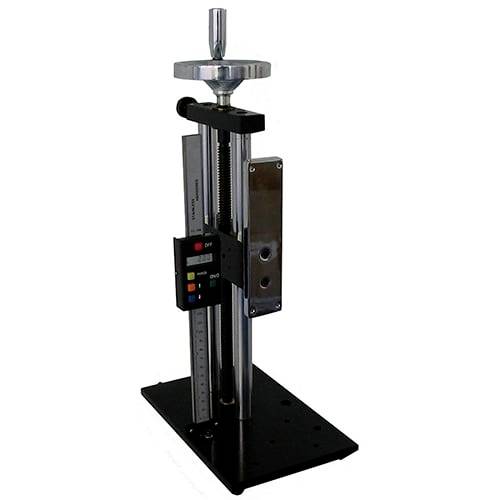

Vertical force gauge on a stand with a metal plate and adjustable height, used for measuring push or pull force.

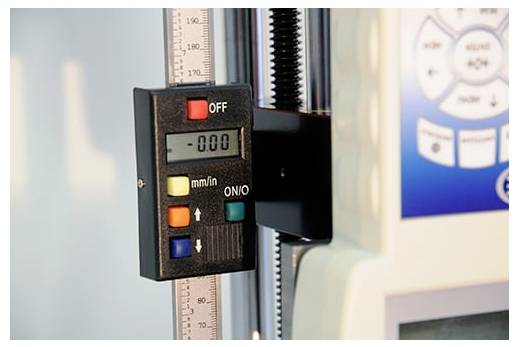

Digital measurement gauge on a vertical scale with a display reading 0.00 and mm/in controls, mounted on a testing machine.

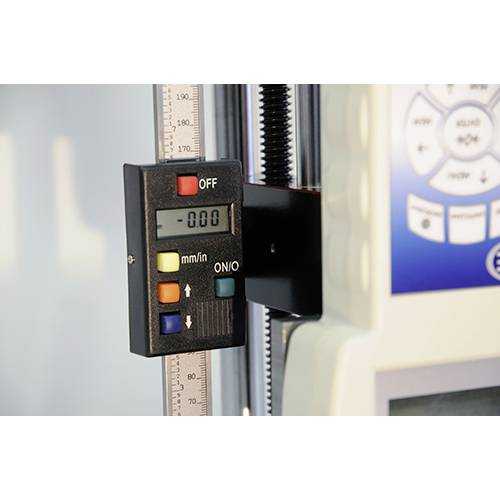

'Measuring device with a digital display and control buttons mounted on a machine. Displays measurement values and operating controls.'

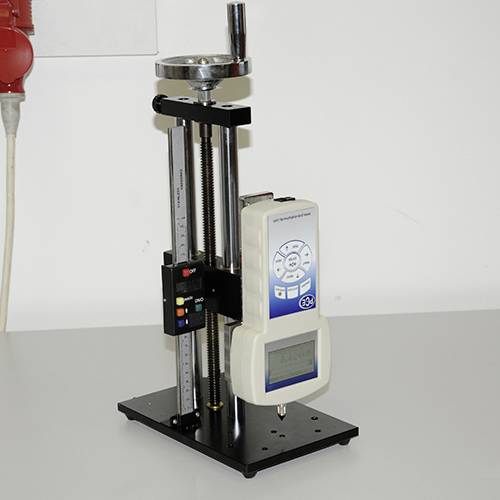

Testing device on a table, displaying measurement scale and digital screen for data indication, potentially for force measurement.

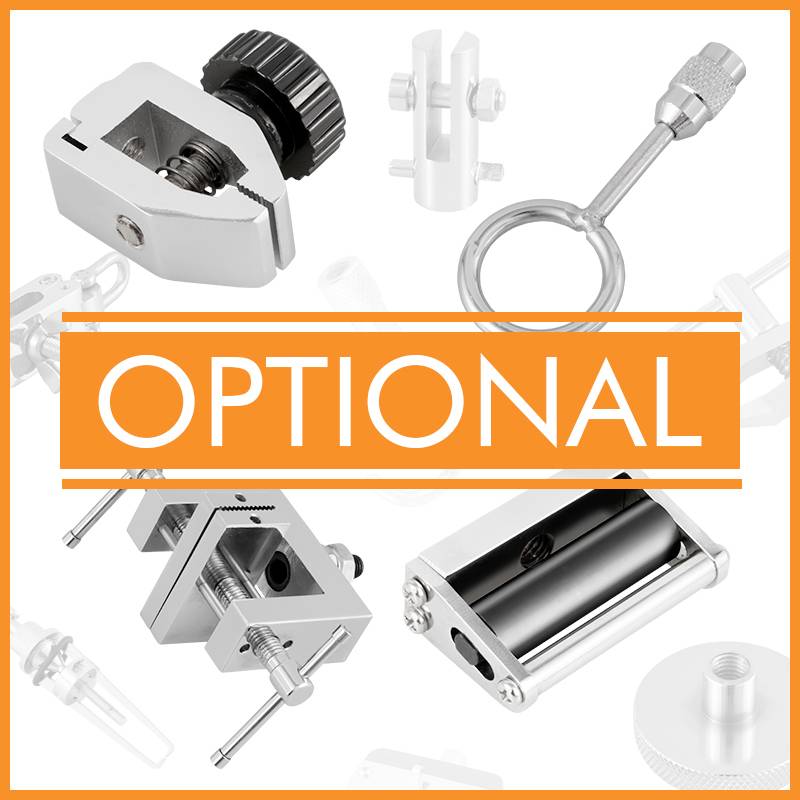

Several silver metal clips and holders in front of a white background; an orange rectangle with the word 'OPTIONAL' in the centre.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-FTS50 Force gauge Manufacturer's standards (no certificate)

With digital travel dipstick
Maximum operating length of 236.36 mm
Total length of 500 mm (without handwheel)
Hand wheel diameter of 100 mm
Base plate on stand 234 x 152 mm
Weight of approx. 9.15 kg
Max. Force range 500 N.
Supplied without force gauge

Technical specifications

Force range max. 500 N. Travel distance max. 335 mm Spindle pitch 3 mm Hand wheel Ø 120 mm Base plate 145 x 100 mm Dimensions 600 x 210 x 128 mm Weight approx. 8.8 kg The following devices can be adapted to this test stand (with the appropriate plate): PCE-FM 50N PCE-FM 500N PCE-FM 200 PCE-PTR 200N PCE-DFG N 10

Product type: Force gauge

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452435 PCE Instruments PCE-FTS50 Force gauge Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 2452435 PCE Instruments PCE-FTS50 Force gauge Manufacturer's standards (no certificate)

Description

Manual force-path-measuring stand up to 500 N, different force meters with internal force measuring cell can be connected, over 300 mm stroke, integrated stroke of force-path-measuring stand PCE-FTS 50 is used in various combinations with our force measuring devices. The force-path measuring stand offers the optimum solution for almost all your manual pressure and tensile measurements. The use of the force-path-measuring stand promises to you highly exact agreement of the test device and test pattern. Thus you can always achieve reproducible results of force measurement with the force-path-measuring stand PCE-FTS 50. The pressure or pull range, by using this force-to-travel level, is a maximum of 50 kg. The force-path measuring stand is operated via the handwheel and spindle (3 mm pitch). An exact and sensitive measurement lead-through is thus guaranteed with the force-way measuring stand. Often, the force-to-travel level is also used out-of-band for other measurements on materials. Caution: A force gauge must always be ordered as an option for the force-to-force measuring stand!
