PCE Instruments PCE-FWS 30 Anemometer 0 up to 50 m/s Thermometer
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-FWS 30
- Outdoor sensors with thermo hygrometer, wind gauge, rain gauge, UV and light sensor
- Wireless data transmission with up to 1500 m range in the open
- Weather forecast based on barometric pressure
- Adjustable alarm functions for various weather parameters
- Operates with batteries (AAA and AA) and solar panel as an auxiliary power supply
- Simple installation and maintenance, including cleaning of the rain gauge
- Long battery life of at least 12 months
Technical specifications
- Absolute pressure
- Measuring range 300 ... 1100 hPa
- Resolution 0.1 hPa
- Accuracy ±3 hPa
- Humidity relative
- Measuring range 10 ... 99%
- Resolution 1%
- Accuracy ±5 % from MW.
- Humidity relative sensor
- Measuring range 10 ... 99%
- Resolution 1%
- Accuracy ±5 % from MW.
- Speed
- Measuring range 0 ... 10 m/s
- Resolution 0.1 m/s
- Accuracy ±0.3 m/s.
- Speed
- Measuring range 10 ... 50 m/s
- Resolution 0.1 m/s
- Accuracy ±10 % from MW.
- Illumination strength
- Measuring range 0 ... 200 lx
- Resolution 1 lx
- Accuracy ±15 % from MW.
- Wind direction
- Measuring range 0 ... 360 °
- Resolution 1 °
- Accuracy ±10 °
- UV
- Measuring range 1 ... 15
- Resolution 1
- Accuracy ±1
- Precipitation
- Measuring range 0 ... 9999 mm
- 1 mm release
- Accuracy 15 mm ±7 % of MW.
- Temperature
- Measuring range 0 ... 60 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- Temperature sensor
- Measuring range -40 ... +60 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- General Technical Data
- Display type LC-color display with illumination
- Display size 7 inches
- Interface Wi-Fi
- Optical alarm, acoustic alarm
- Alarm modes upper alarm, lower alarm, for details see user manual
- Menu language English (GB), English (US)
- Protection class (device) IP20
- Protection class (additional information) external unit IP52
- Power supply Display: 5.9 V DC (power supply or 3x AAA-Battery),External unit: 3x AA-Battery
- Connector type Euro plug
- Battery 3 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions 0 ... 60 °C , 10 ... 99 % r.F.
- Storage conditions 0 ... 60 °C , 10 ... 99 % r.F.
- Dimensions ( L x W x H ) 193 x 140 x 30 mm
- Weight 400 g
- Product type
Anemometer
- Temperature reading range
-40 up to 60 °C
- Wind speed
0 ... 50 m/s
- Accuracy
10 %
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 193 x 140 x 30 mm
- Features
Thermometer
- Accuracy
0.3 m/s
- Weight
400 g
- Temperature reading range (max.)
60 °C
- Temperature reading range (min.)
-40 °C
- Air speed reading range (max.)
50 m/s
- Air speed reading range (min.)
0 m/s
- Width
140 mm
- Height
30 mm
- Length
193 mm
- Power supply (details)
5.9 V DC
Documents & Downloads
Datasheet
Datasheet 3812952 PCE Instruments PCE-FWS 30 Anemometer 0 up to 50 m/s Thermometer
User & Safety Instructions
User & Safety Instructions 3812952 PCE Instruments PCE-FWS 30 Anemometer 0 up to 50 m/s Thermometer
Description

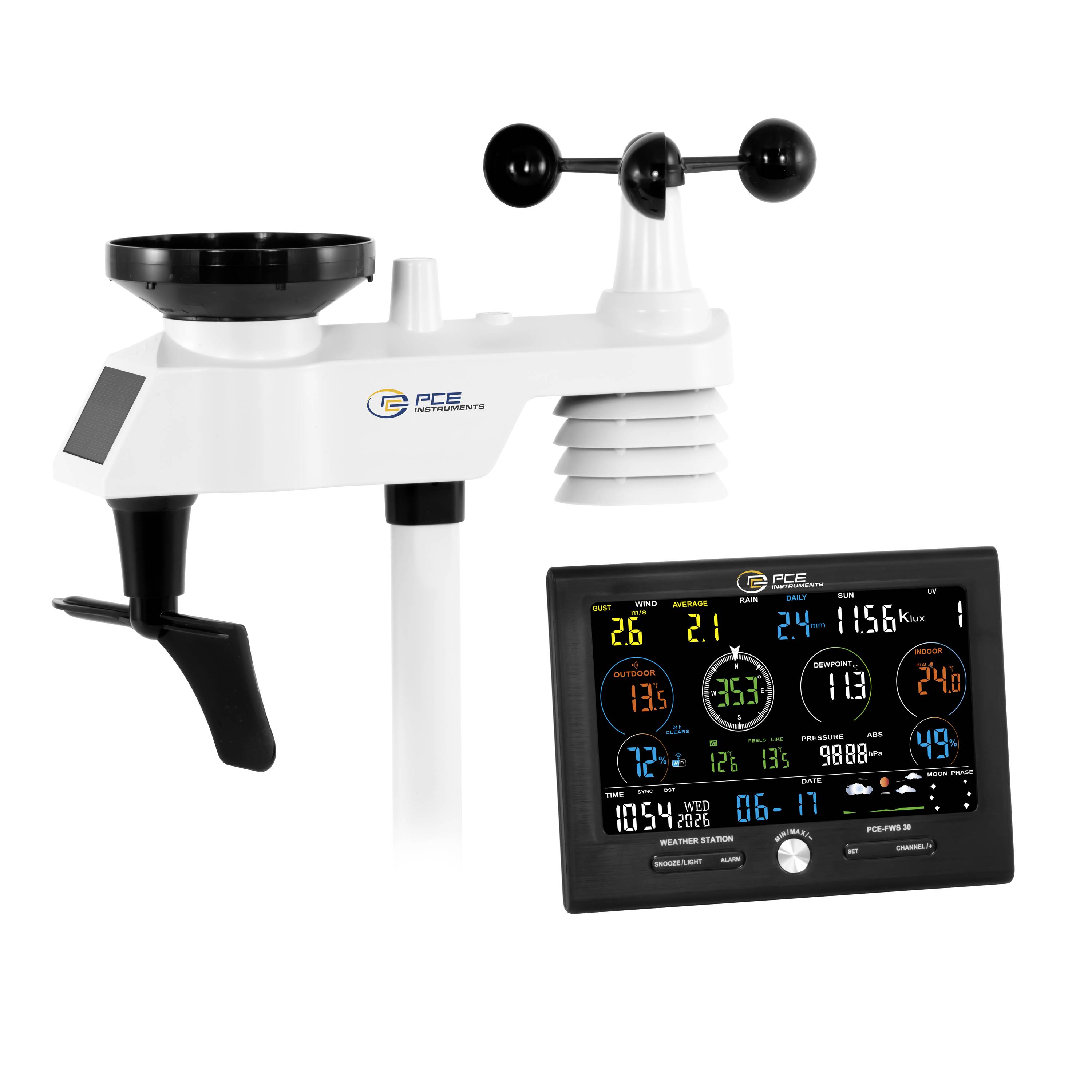

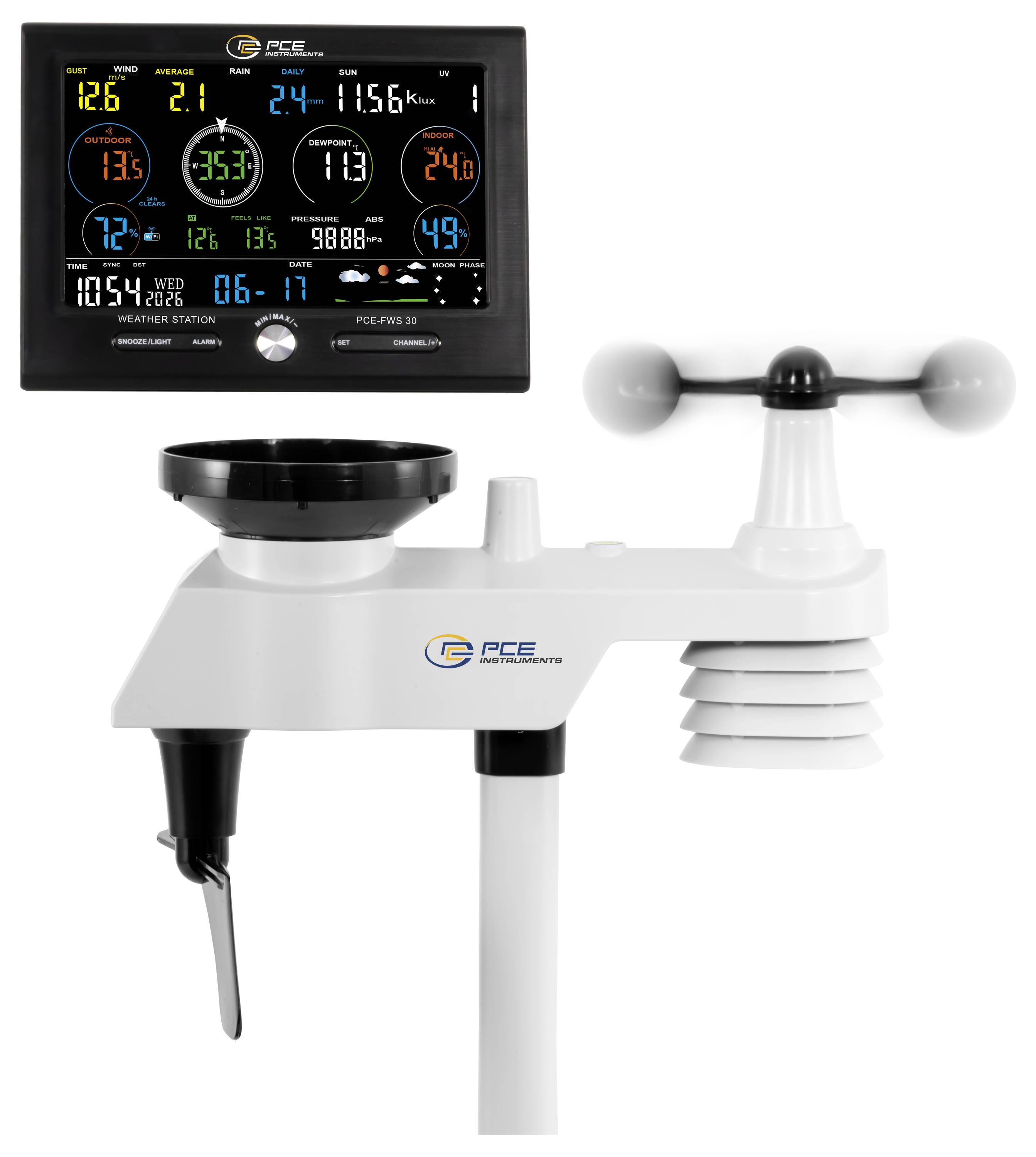

The weather station provides precise and comprehensive weather data for professional applications, agriculture, building management or demanding weather observers. The outdoor sensors detect temperature, air humidity, wind speed, precipitation, UV-radiation as well as the intensity of the sunlight and thus enable a detailed analysis of the current weather conditions.

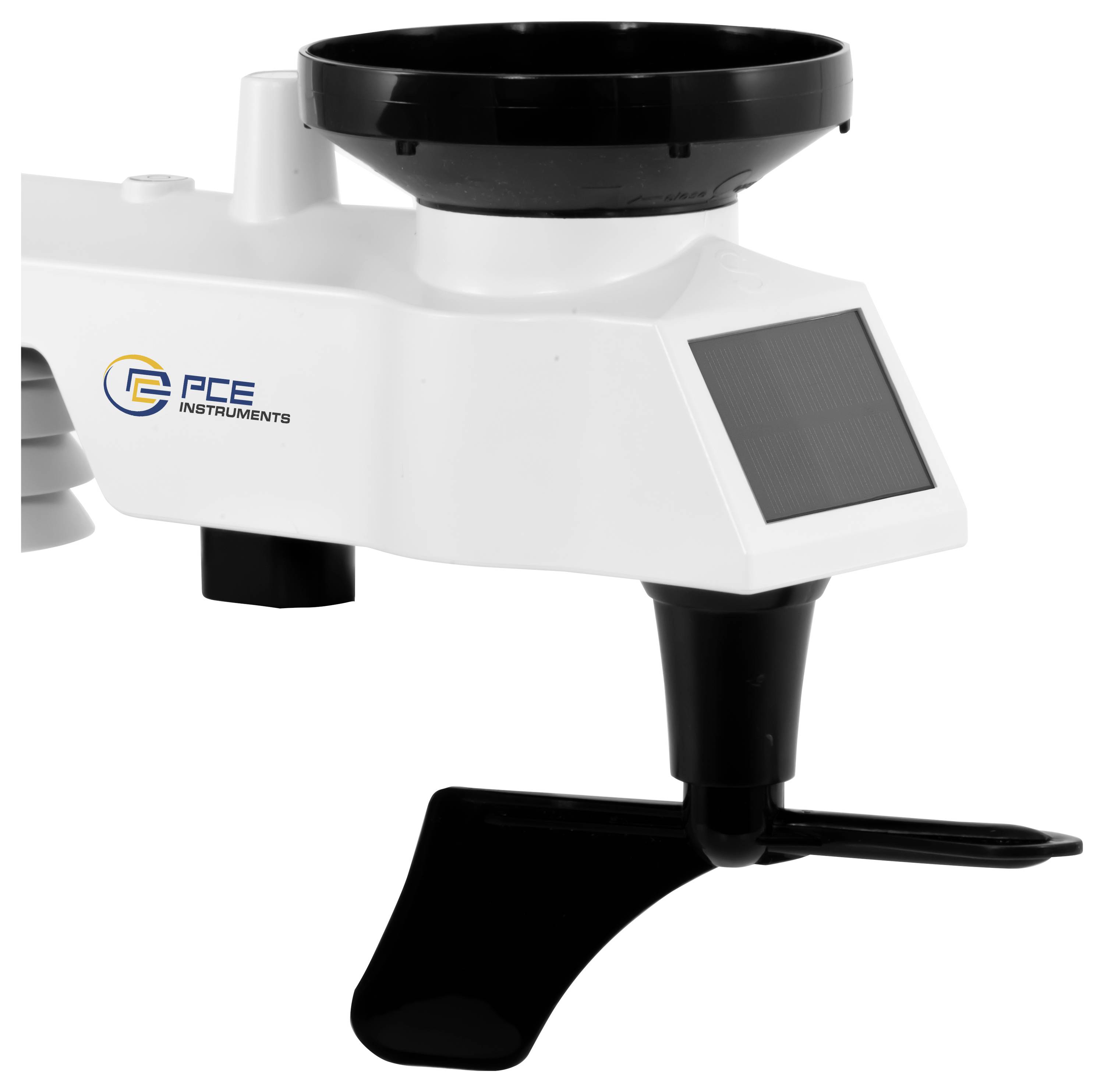

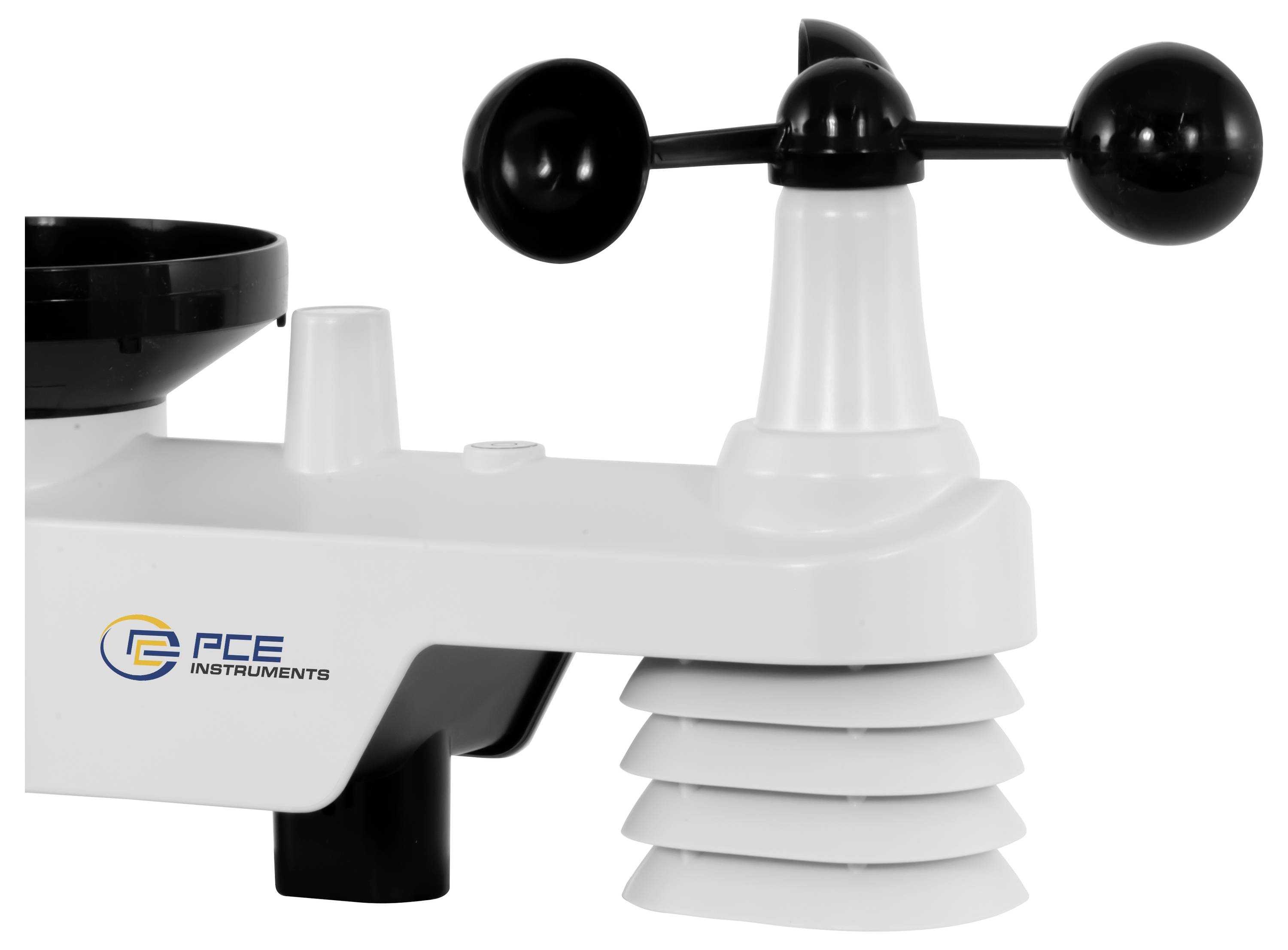

The sensor system consists of a thermo-hygrometer, wind gauge, rain gauge as well as UV and light sensor. The wireless data transmission is made in the 868 MHz frequency range (Europe) and achieves a range of up to 1500 m in the open. All measured values are displayed clearly on the color display.
In addition to the current weather, the station offers a weather forecast based on barometric pressure development. Individually adjustable alarm functions reliably informs about defined limiting values for different weather parameters. In addition, temperature, air humidity, wind speed, precipitation and sunlight can be calibrated to increase the measuring accuracy.
The weather station is suitable for use in the northern and southern hemisphere and is characterized by its simple mounting and low maintenance costs. For a permanently reliable precipitation measurement, the rain gauge can be easily cleaned. The power is supplied by AAA and AA batteries. An integrated solar panel supports the power supply of the outdoor sensor and contributes to a long battery life of at least 12 months.
For convenient long-term monitoring and analysis of the measurement data the weather station can also be connected to the weather data clouds Weather Cloud and Weather Underground.
This text is machine translated.
The sensor system consists of a thermo-hygrometer, wind gauge, rain gauge as well as UV and light sensor. The wireless data transmission is made in the 868 MHz frequency range (Europe) and achieves a range of up to 1500 m in the open. All measured values are displayed clearly on the color display.
In addition to the current weather, the station offers a weather forecast based on barometric pressure development. Individually adjustable alarm functions reliably informs about defined limiting values for different weather parameters. In addition, temperature, air humidity, wind speed, precipitation and sunlight can be calibrated to increase the measuring accuracy.
The weather station is suitable for use in the northern and southern hemisphere and is characterized by its simple mounting and low maintenance costs. For a permanently reliable precipitation measurement, the rain gauge can be easily cleaned. The power is supplied by AAA and AA batteries. An integrated solar panel supports the power supply of the outdoor sensor and contributes to a long battery life of at least 12 months.
For convenient long-term monitoring and analysis of the measurement data the weather station can also be connected to the weather data clouds Weather Cloud and Weather Underground.
This text is machine translated.
Scope of delivery
- 1 x weather station PCE-FWS 30
- 1 x external unit including sensors
- 1 x Power adapter (5.9 V / 500 mA)
- 1 x installation material for outdoor unit
- 1x user manual
