Buy PCE Instruments PCE-G 2 Digital display

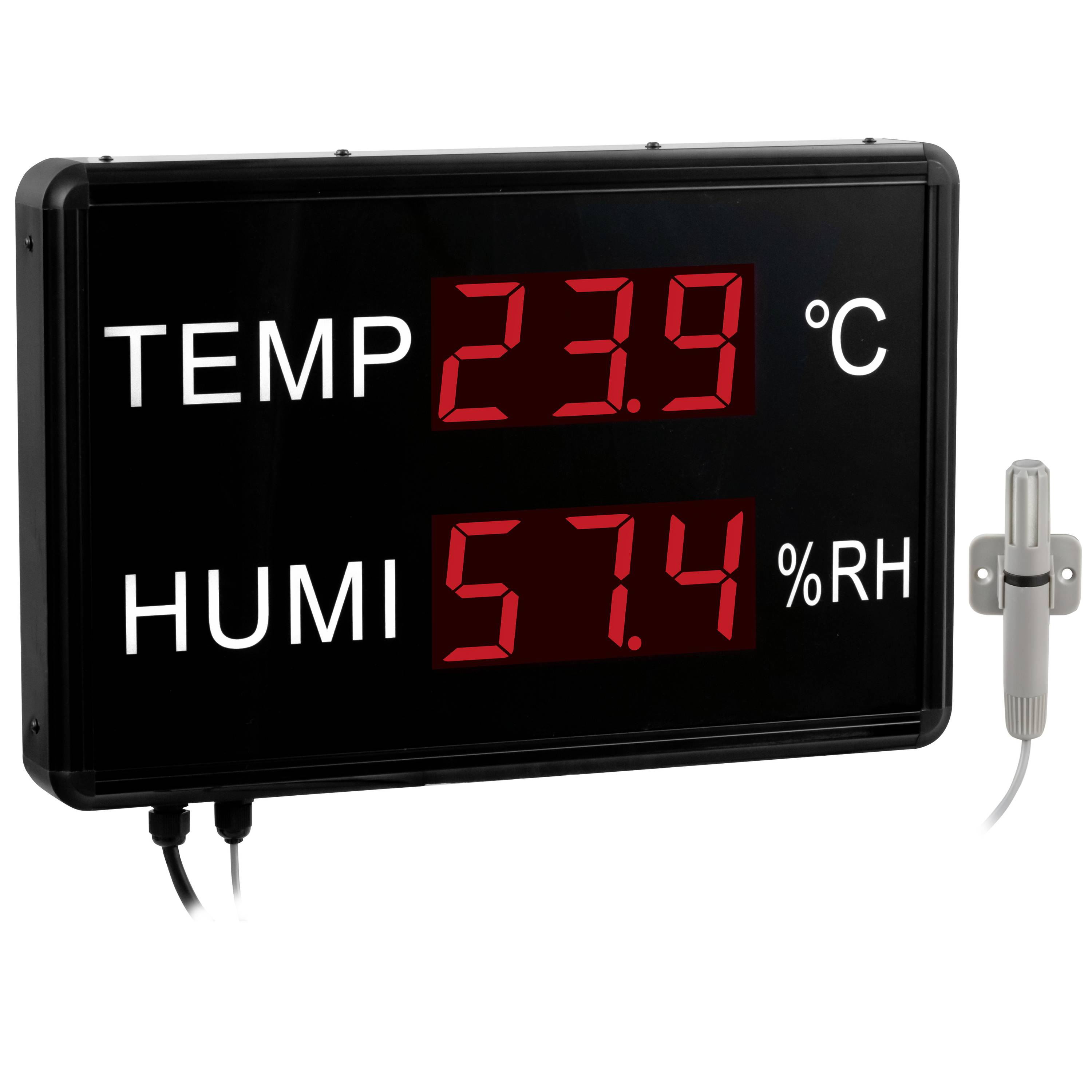

Digital temperature and humidity display showing 23.9 °C and 57.4% RH with a sensor probe attached.<br>

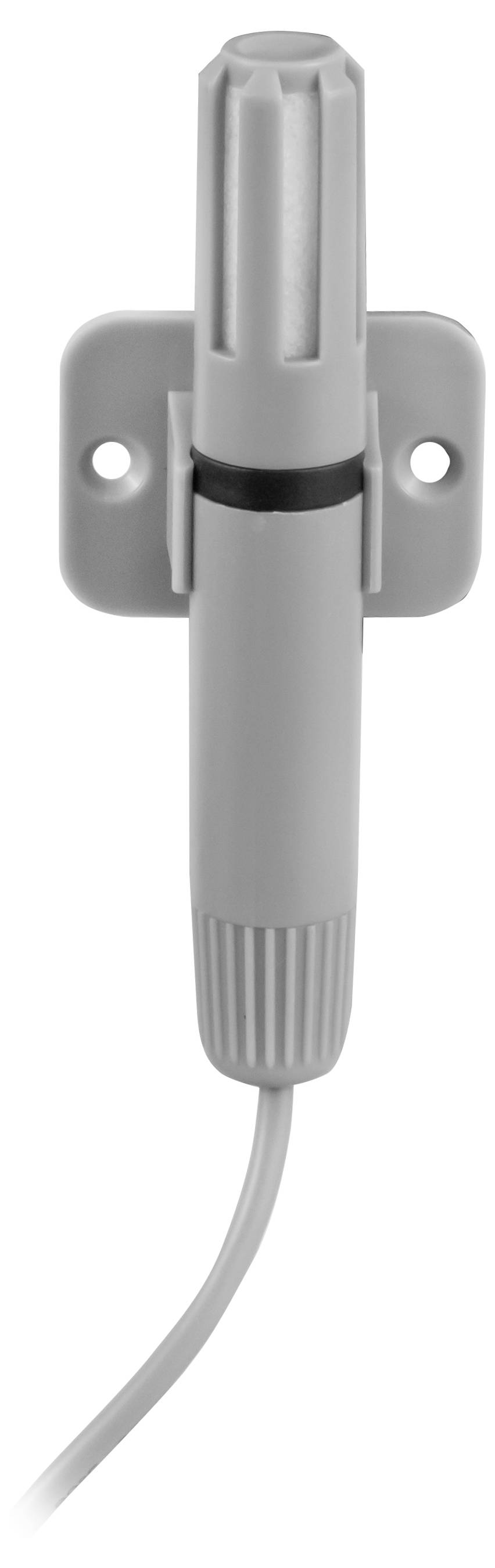

Wall-mounted gray electrical connector with attached cable, shown vertically on a white background.

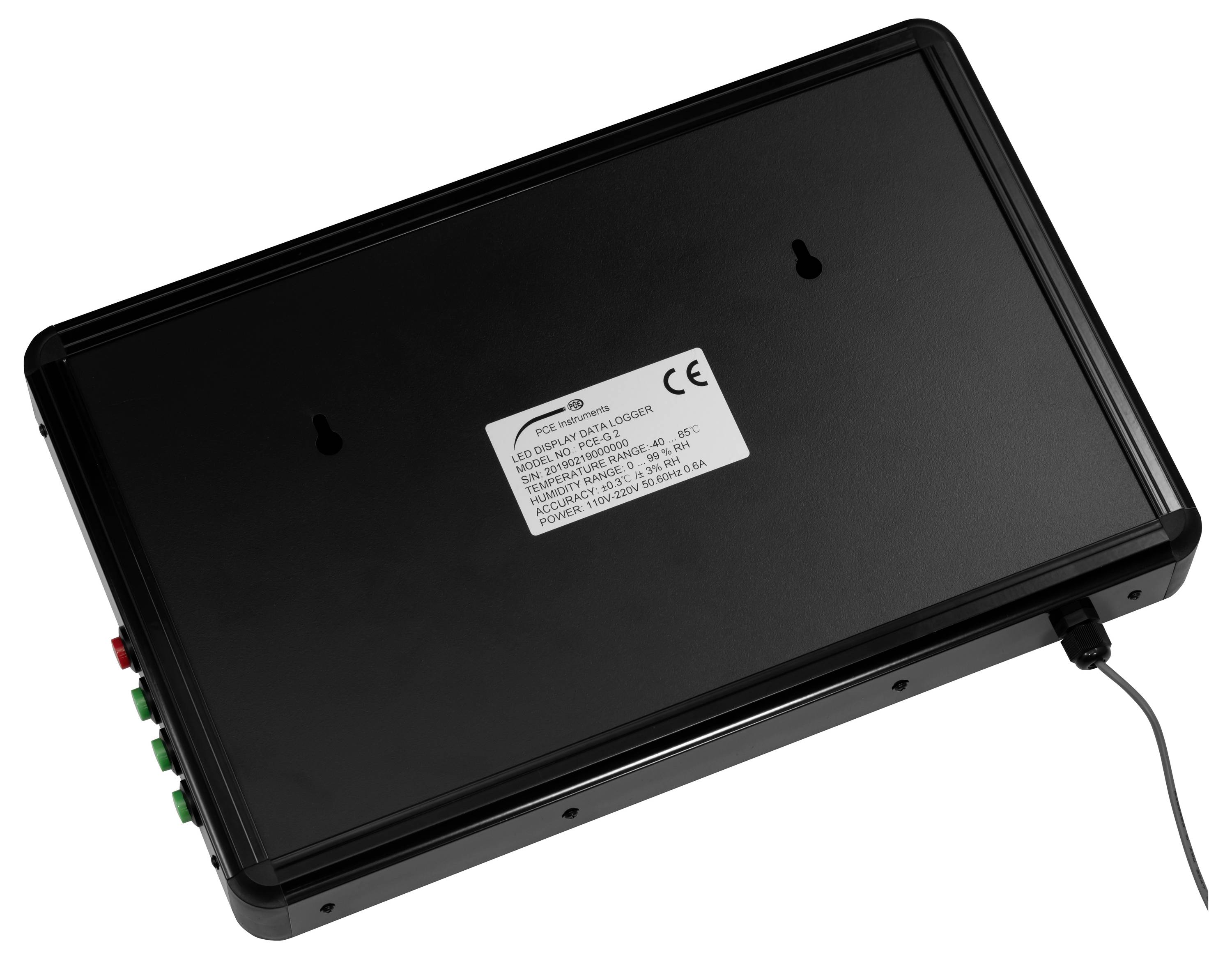

Black rectangular electronic device with a label on top, side connector ports, and a power cable plugged in.

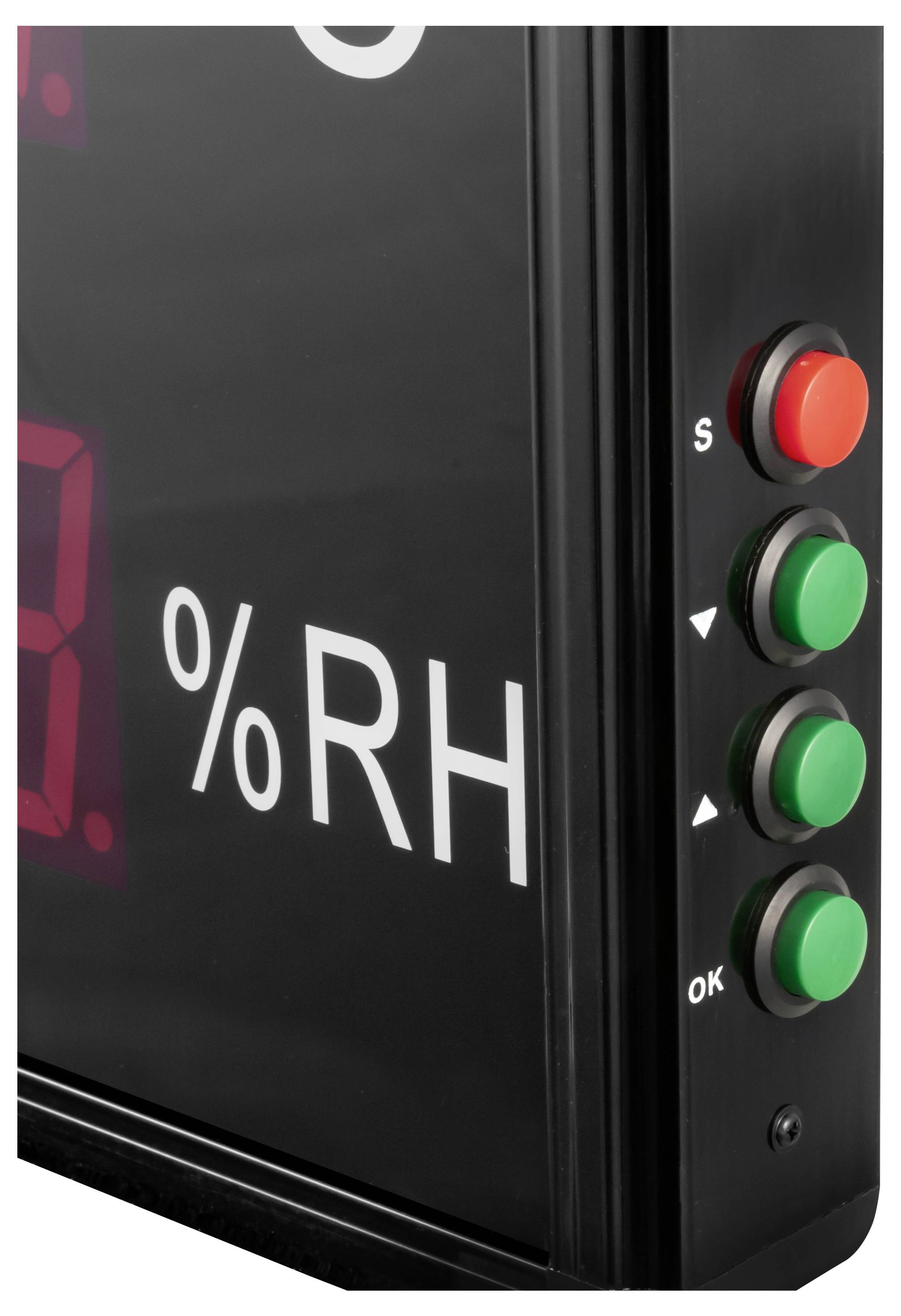

Black digital humidity control panel showing '%RH' with red display and four side buttons, including a red top button and green buttons labeled S, arrows, and OK.

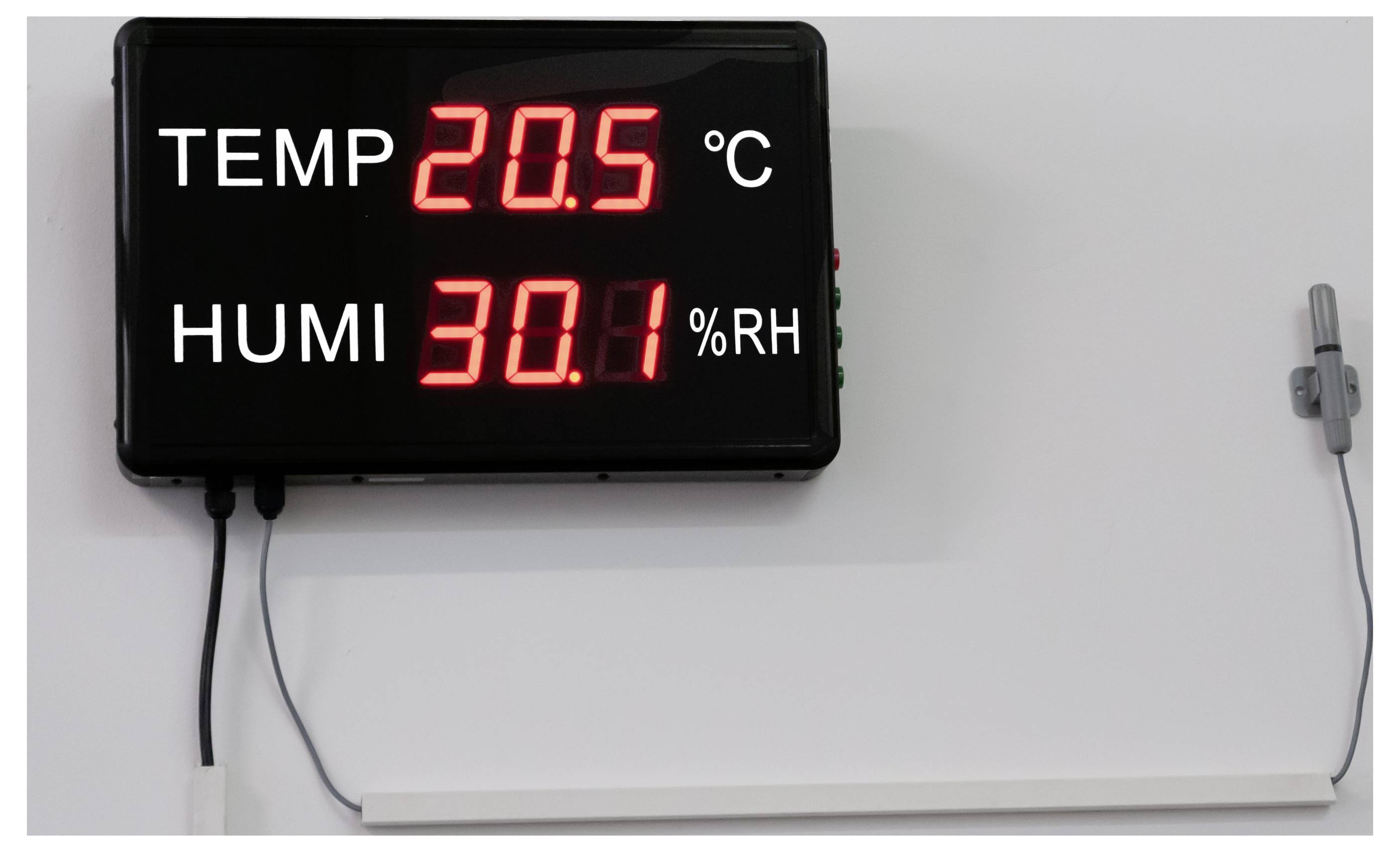

Digital wall display showing temperature 20.5°C and humidity 30.1% RH<br>

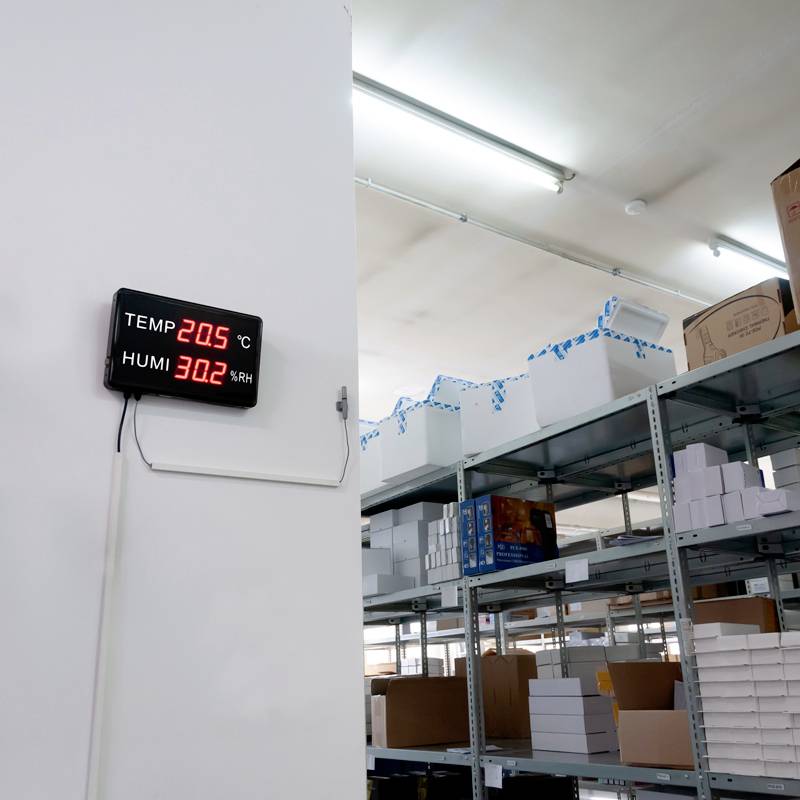

Temperature display shows 'TEMP 20.5 °C' and 'HUMI 30.2 %RH' in a warehouse with shelves full of boxes and products.

1/6

Datasheet (PDF)

Unavailable

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Installation display

Temperature and air light measurement
Wall mounting
230 V AC power supply
55 mm digit height
Up to 30 m reading distance
External sensor (cable-bound)

Technical specifications

Measuring function measuring range temperature -40 ... 85 °C Resolution -10 ... 85 °C: 0.1 °C -10 °C: 1 °C. Accuracy: ±0.3 °C Measuring range air humidity 0 ... 99 % r.F. Resolution 0.1 % r.h. Accuracy ± 3 % r.h. Display 2 x 3 digit LED Display (red) 55 mm digit height Reading distance approx. 30 m. Cable lengths of sensor cable approx. 2 m. Power supply: Approx. 1 m. Primary supply: 100 .. 240 V AC 50/60 Hz Secondary 12 V DC, 0.5 A. Operating conditions -20 ... 70 °C / max. 85 % r.h. Dimensions 395 x 255 x 50 mm Weight approx. 2.5 kg

Product type: Digital display

Reading type: Temperature

Reading range (min.): -40 °C

Type: PCE-G 2

Reading range (max.): -10 °C

Display technology: LCD

Dim: (L x W x H) 395 x 255 x 50 mm

Weight: 2500 g

Width: 255 mm

Height: 50 mm

Length: 395 mm

Digit height: 55 mm

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452437 PCE Instruments PCE-G 2 Digital display

User & Safety Instructions

User & Safety Instructions 2452437 PCE Instruments PCE-G 2 Digital display

Description

Installation display PCE-G 2 for temperature and air humidity / 55 mm digit height / can be read up to 30 m / external sensor / 230 V mains operation The large display for temperature and air humidity PCE-G 2 is used to measure the environmental variables temperature and air humidity. The large display can be used in warehouses, open-plan offices, schools, etc. The large display has 55 mm high digits that indicate the temperature and air humidity. Due to the enormously high digit height, the large display can be read well from distances up to 30 m. The temperature and air humidity sensor of the large display is connected with a cable of approx. 2 m. The large display is operated with 230 V AC mains voltage. Alarm level can be set on the large display using the buttons on the side.

This text is machine translated.
