PCE Instruments PCE-G1 Hygrometer
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Measuring ranges relative humidity / temperature 10 ... 95 % r.F. / 0 ... +60 °C Resolution relative humidity / temperature 1 % r.h. / 1 °C. Accuracy relative humidity / temperature ±2 % r.h. / ±1 °C Visibility can be read on approx. 50 m Sensor type relative humidity / temperature capacitive / Pt1000 Response time T 90 approx. 4 s. Cable length (between sensor and display) 1 m Display 100 mm monochrome Display (change display) Supply 230 V / 50 ... 60 Hz Current consumption approx. 20 mA Sensor dimensions 50 x 70 x 20 mm Large display 175 x 175 x 75 mm Protection IP 54 Weight 1.3 kg (incl. sensor and cable)
- Product type
Hygrometer
- Max. temperature
60 °C
Manufacturer's standards (no certificate)
- Dim
(W x H) 175 mm x 75 mm
- Width
175 mm
- Height
75 mm
- Min. temperature
0 °C
- Packaging type
Carton
- Operating voltage
230 V
- Max. operating voltage
230 V
Documents & Downloads
Datasheet
Datasheet 2452438 PCE Instruments PCE-G1 Hygrometer
User & Safety Instructions
User & Safety Instructions 2452438 PCE Instruments PCE-G1 Hygrometer
Description

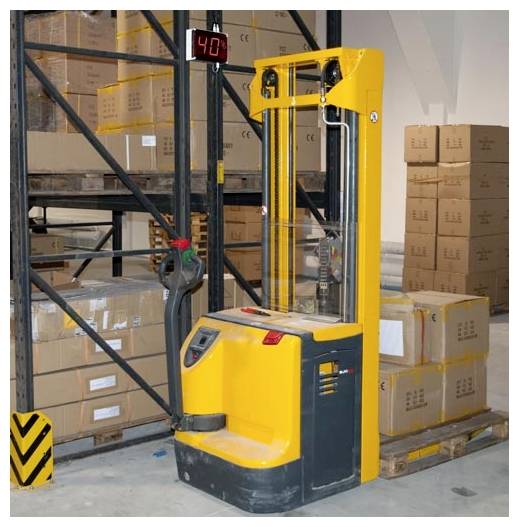

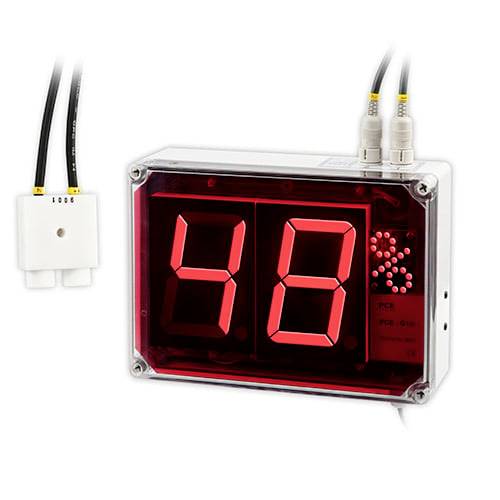

Measuring device for relative humidity and temperature with a large display (values can be read up to 50 m) The humidity measuring device (REL) is intended for stationary measurement of relative humidity and temperature as well as for direct display on a large display. This humidity meter (REL) consists of a large monochrome display and is protected according to IP 54. The measured values are displayed alternately: Relative humidity (2 s) and temperature (2 s). The large display sensors are calibrated at the factory. However, an ISO calibration certificate can also be ordered as an option. Simple, accurate and robust.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x large display PCE-G1
- 1 x temperature and humidity sensor with connection cable (in selected configuration)
- 1 x power cable
- 1x user manual
