PCE Instruments PCE-G1A Hygrometer

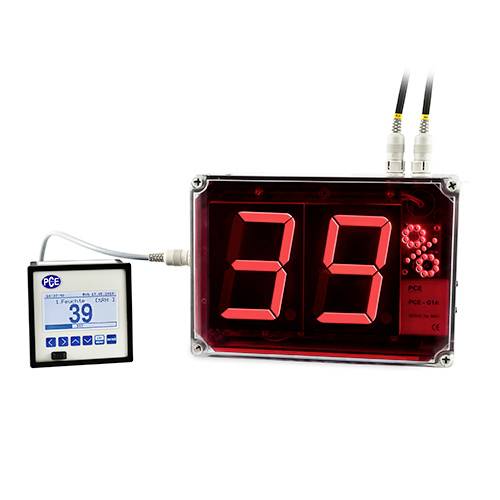

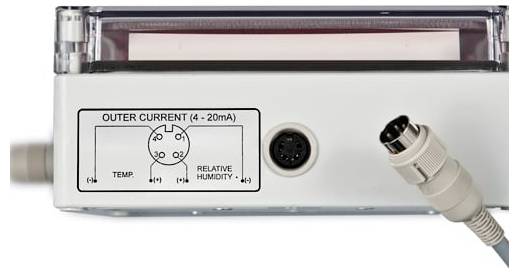

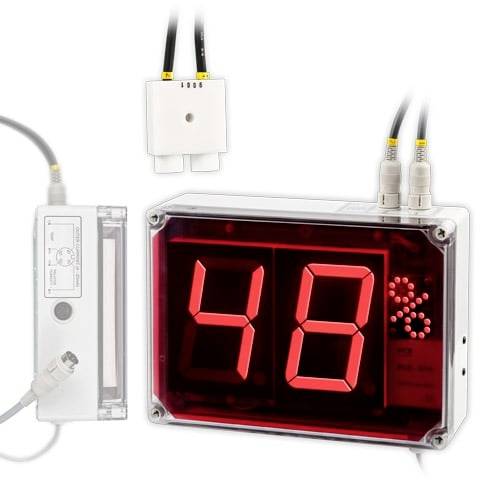

Moisture meter (REL) PCE-G1A / very easy to read large display humidity meter (REL) / Two channel analogue output 4-20 mA / IP 54 relative humidity and temperature meter The humidity meter (REL) is a measuring device for stationary measurement of relative humidity and temperature. This humidity meter (REL) consists of an LED seven-segment display with digit height of 100 mm, which enables you a very good readability even at distances of up to 50 m. The humidity meter (Rel.) is IP 54 protected and intended for wall mounting. The relative humidity and temperature are measured in 5 seconds. Intervals displayed alternately in the moisture meter (REL). The sensors are mounted by plug connections, on a 1 m long cable to the humidity meter (REL). This allows you to measure the relative humidity and temperature regardless of the location of the large display. Furthermore, the moisture meter (REL) is equipped with a two channel 4-20 mA analogueue output. This two channel analogueue output, converts the measured values of relative humidity and temperature directly into 4-20 mA, even before the measurements appear in the large display. The analogue outputs can be used to store, control and control. The sensors are factory calibrated, but an ISO calibration certificate is also available as an option.

This text is machine translated.
