PCE Instruments PCE-G1A-ICA Digital display Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments large display PCE-G1A-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE G1A ICA
- Protection class IP 54
- 100 mm large numbers
- 4-20 mA analogue output
- Two-channel analogue output (passive)
- External sensors
- Display alternately
- Wall mounting
- High durability
- Excellent readability
- High accuracy
- Incl. ISO calibration certificate
Technical specifications
- Humidity relative
- Measuring range 10 ... 95 % r.F.
- Resolution 1 % r.h.
- Accuracy ±2 % r.h.
- Temperature
- Measuring range 0 ... 60 °C
- Resolution 1 °C
- Accuracy +/1 °C
- General Technical Data
- Outputs 4 ... 20 mA
- Cable length 1 m
- Display type LCD
- Response time 4 s
- Sensor dimensions 50 x 70 x 20 mm
- Sensors HC1000, Pt1000
- Visibility 50 m
- Protection class (device) IP54
- Power supply 230 V / 50 ... 60 Hz
- Operating conditions 0 ... 60 °C , 0 ... 95 % r.F.
- Storage conditions 0 ... 60 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 175 x 175 x 75 mm
- Weight 1300 g
- Product type
Digital display
- Reading type
Temperature
- Reading range (min.)
0 °C
- Type
PCE-G1A-ICA
- Reading range (max.)
60 °C
- Display technology
LCD
IP54
- Operating voltage
230 V
- Dim
(L x W x H) 175 x 175 x 75 mm
- Weight
1300 g
- Max. operating voltage
230 V/50 - 60 Hz
- Display lighting
red
- Width
175 mm
- Height
75 mm
- Length
175 mm
- Digit height
100 mm
ISO standards
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812543 PCE Instruments PCE-G1A-ICA Digital display Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812543 PCE Instruments PCE-G1A-ICA Digital display Calibrated to (ISO standards)
Description

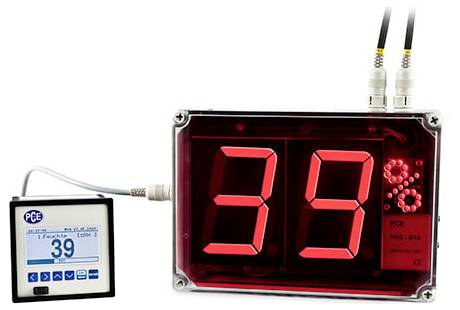

The large display is a measuring device for stationary measurement of relative humidity and temperature. This large display consists of a LED seven-segment display with digit height of 100 mm, which enables you a very good readability, even at distances of up to 50 m The large display is IP 54 protected and intended for wall mounting. The relative humidity and temperature are measured in 5 sec. Intervals displayed alternately on the large display.

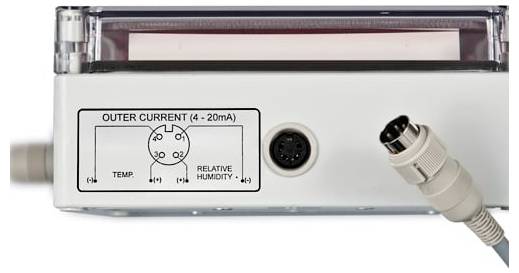

The sensors are connected to the large display on a 1 m cable. This allows you to measure the relative humidity and temperature regardless of the location of the large display. Furthermore, the large display is provided with a two channel 4-20 mA analog output. This two-channel analogue output, converts the measured values of relative humidity and temperature, directly into 4-20 mA, even before the measurements appear on the large display. By means of the analog outputs, storage, control and control is possible. The sensors are calibrated ex-factory, but an ISO calibration certificate is also optionally available.
This text is machine translated.
The sensors are connected to the large display on a 1 m cable. This allows you to measure the relative humidity and temperature regardless of the location of the large display. Furthermore, the large display is provided with a two channel 4-20 mA analog output. This two-channel analogue output, converts the measured values of relative humidity and temperature, directly into 4-20 mA, even before the measurements appear on the large display. By means of the analog outputs, storage, control and control is possible. The sensors are calibrated ex-factory, but an ISO calibration certificate is also optionally available.
This text is machine translated.
Scope of delivery
- 1 x large display PCE-G1A-ICA
- 1 x temperature and air humidity sensor with connecting cable (in selected configuration)
- 1 x 12 V power cable
- 1 x 4-pin DIN plug
- 1x user manual

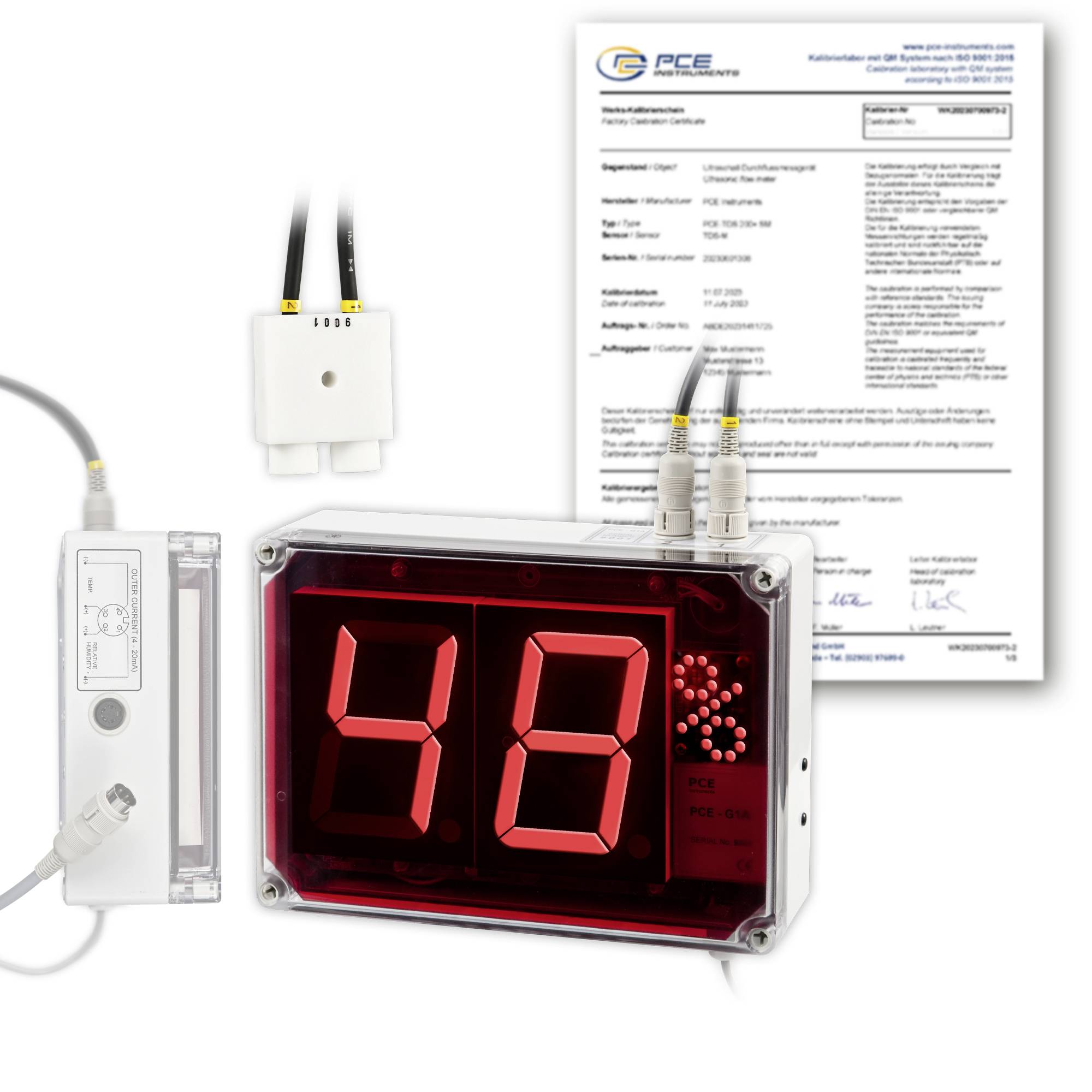

- 1 x ISO calibration certificate
