PCE Instruments PCE-GA 12 Gas leak detector Exchangeable electrode Calibrated to Manufacturer's standards (no certificat
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

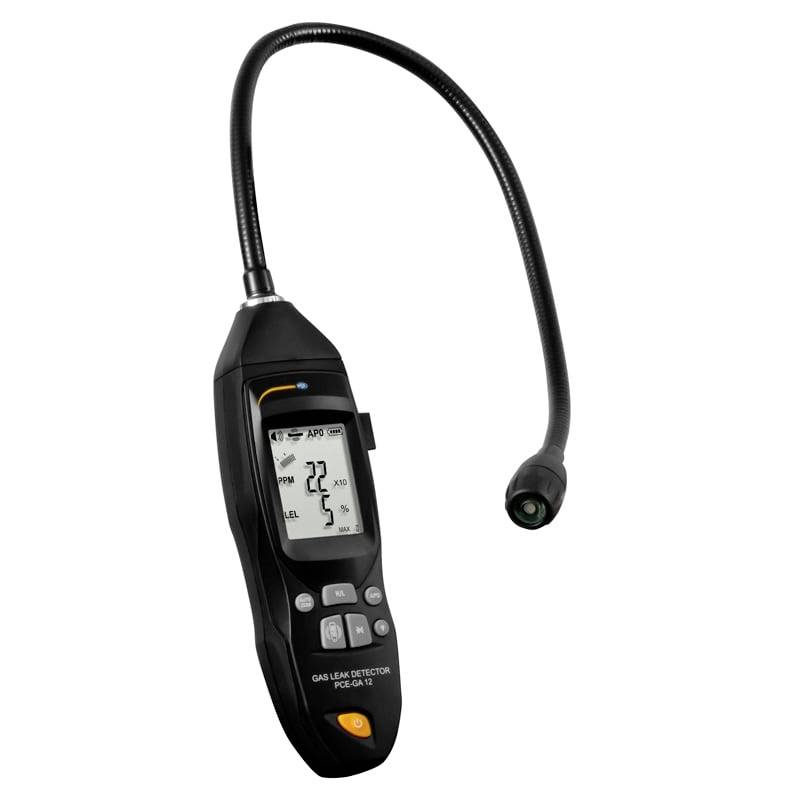

Industrial safety measuring device PCE-GA 12
- Acoustic alarm with 85 dB
- Rechargeable battery for mobile use
- Automatic calibration
- Measurement range up to 10000 ppm
- For the detection of flammable gases
- Sensor can be used for approx. 5 years
- Vibration alarm for gas detection
- Sensor
Technical specifications
- Testable gases Acetaldehyde Ammonia Benzene Ethan Ethanol Ethylene Formaldehyde Hexane ISO-Butan Metan Propane P-Xylene Hydrogen Sulfur Toluene Hydrogen and compounds in which these gases occur Measuring range at low concentration 0 ... 1000 ppm (methane only) at high concentration 0 ... 10000 ppm Acoustic alarm Volume 85 dB Sensitivity <10 ppm (for methane) Measurement interval <2 seconds Display of measured value display of flammable gases on the LC display, bar graph Calibration automatic Warm-up phase 40 seconds Battery Polymer Li-Ion Battery 18500 3.7 V Power supply Primary side: 100 ... 240 V, 50/60 Hz, 0.2 A secondary side: 5 V, 1 A. Auto switch-off If the battery is too low, the battery automatically switches off its capacity or after 10 minutes when not in use. Sensor durability approx. 5 years (sensor is replaceable) Probe semi-rigid approx. 500 mm / 16 " Weight approx. 430 g
- Product type
Gas leak detector
- Unit of measurement
Flammable gases
- Electrode length
500 mm
- Dim
(L x W x H) 211 x 70 x 45 mm
- Features
Exchangeable electrode
- Weight
430 g
- Width
70 mm
- Height
45 mm
- Length
211 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452442 PCE Instruments PCE-GA 12 Gas leak detector Exchangeable electrode Calibrated to Manufacturer's standards (no certificat
User & Safety Instructions
User & Safety Instructions 2452442 PCE Instruments PCE-GA 12 Gas leak detector Exchangeable electrode Calibrated to Manufacturer's standards (no certificat
Security datasheet
Security datasheet 2452442 PCE Instruments PCE-GA 12 Gas leak detector Exchangeable electrode Calibrated to Manufacturer's standards (no certificat
Description
Industrial safety measuring device PCE-GA 12 Gas detector for flammable gases / rechargeable battery / acoustic alarm / semi-rigid approx. 500 mm probe / durability of the probe approx. 5 years / vibration alarm / measured value display up to 10000 ppm / battery and mains operation The gas detector PCE-GA 12 is a very easy to use measuring device. This gas detector detects flammable gases and emits a vibration alarm as well as an acoustic alarm as soon as a combustible gas has been detected by the gas detector. Thanks to the semi-rigid hose on the gas detector, the sensors can be aligned in almost any position to reach inaccessible places. This makes the gas detector an ideal measuring device for employees who want to detect sporadically escaping gases (testing of systems during the tour of operations, checking of motors and supply lines, testing of gas supply lines). Manual adjustment of the gas detector is not necessary because the gas detector automatically calibrates.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Safety measuring device PCE-GA 12
- 1x charger
- 1x user manual
