Highlights & Details

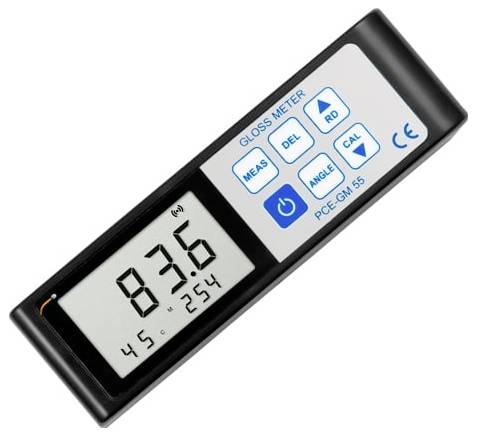

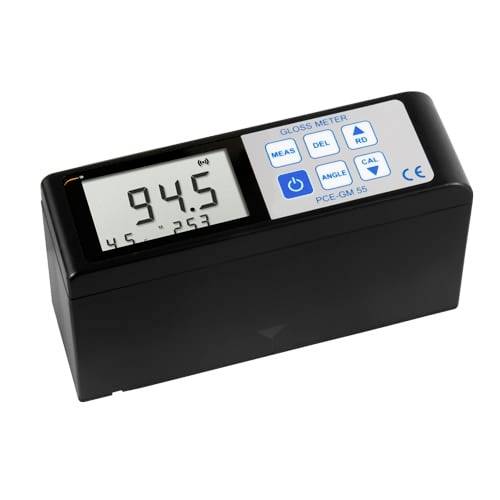

Gloss measuring device PCE-GM 55

20°, 45 ° and 75 ° measuring angle
Measurement range up to 200 gloss units

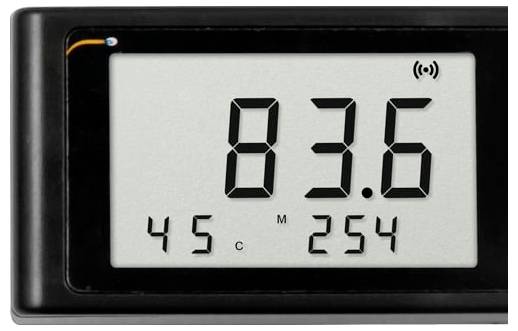

LCD display
Serial interface
For medium and high gloss - measurement possible on textiles and paper

Technical specifications

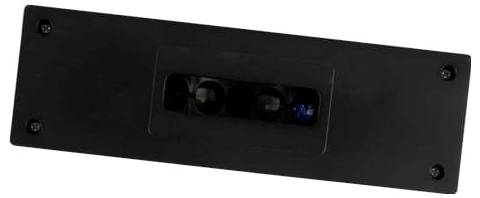

Measuring angle 20°, 45°, 75° Measurement range 0 ... 200 gloss units Resolution 0.1 gloss units Accuracy ± 1 gloss units (on reference standard) Repeatability ± 0.5 gloss units (0 ... 99.9 GE) Measuring area 7 x 14 mm (elliptical) Data memory 254 measuring points Serial interface Operating conditions 0 ... 40 °C / max. 85 % r.h. Power supply Li-ion battery Weight 305 g. Dimensions 140 x 45 x 75 mm

Product type: Gloss meter

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 140 x 45 x 75 mm

Display: LCD

Weight: 305 g

Width: 45 mm

Height: 75 mm

Length: 140 mm

Documents & Downloads

Datasheet

Datasheet 2452444 PCE Instruments PCE-GM 55 PCE-GM 55 Gloss meter

User & Safety Instructions

User & Safety Instructions 2452444 PCE Instruments PCE-GM 55 PCE-GM 55 Gloss meter

Description

Gloss Knives PCE-GM 55 Gloss Knives with three measuring angles / 20°, 45° and 75° / for medium and high gloss / interface and software / Li-Ion Battery of the Gloss Knives PCE-GM 55 is a 3-angle Gloss Knives. The measuring angles of the gloss meter are 20°, 45° and 75°. This allows the gloss meter to be used for gloss and medium gloss measurements. The special measuring angle of 75° allows, among other things, measurements of the gloss level on paper and textiles. The gloss meter is based on ASTM, DIN and EN ISO standards. The measuring range of the gloss meter ranges from 0 ... 200 gloss units. The measurement of the gloss level with the gloss meter is done by reflecting light from the surface to be measured. The gloss level is measured continuously and displayed on the LCD screen by the gloss meter. The measurement values can be transferred from the gloss meter to a PC via the integrated interface. A Li-ion rechargeable battery is used for power supply. This can be charged via a 5V power supply.
