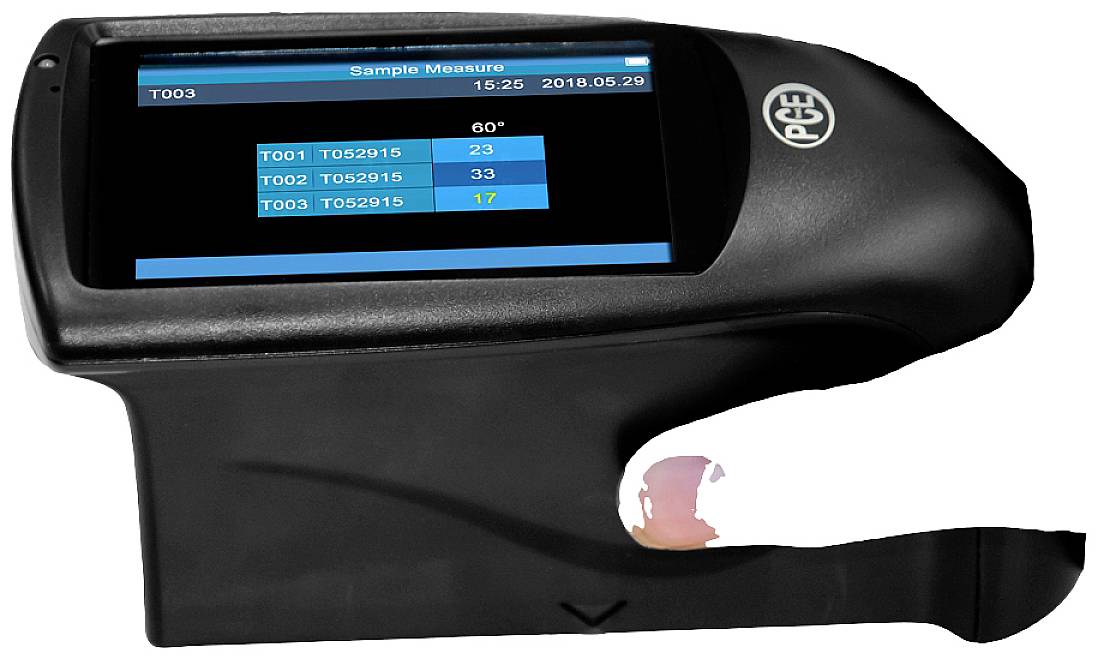

PCE Instruments PCE-GM 60Plus PCE-GM 60Plus Gloss meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 382.35 / piece)
€ 382.35
plus VAT.
Only 2 Piece(s) available
Highlights & Details

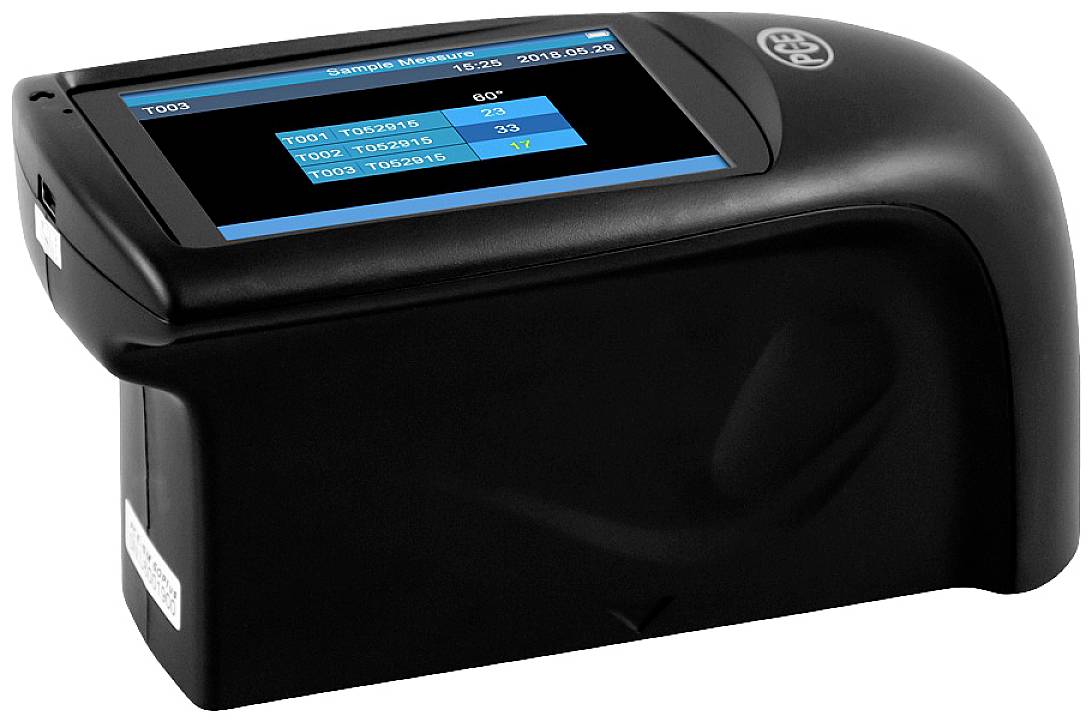

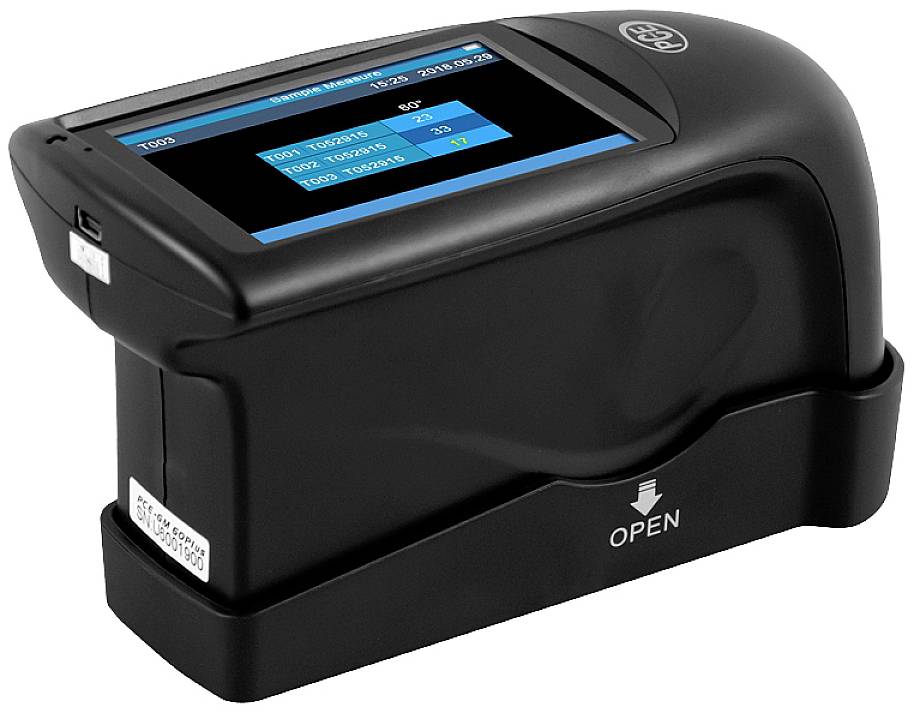

Gloss meter PCE-GM 60plus

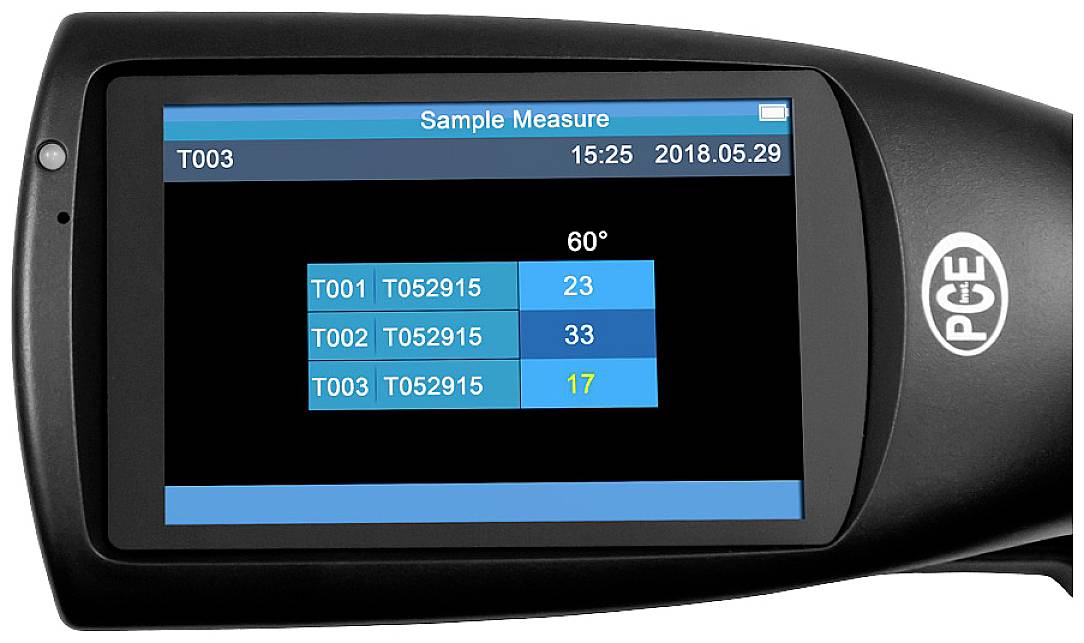

- Measuring geometry 60 °Calibration plate included in deliveryErgonomic housing3.5" TFTLow measurement timeUp to 200 glossary units
Technical specifications
- Measuring geometry 60 °Display 3.5 " TFT displaySTANDARDS ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457Measuring area 9X15 mmMeasurement range 0 ... 200 GUReadability 1 GURepeatability ± 1 GUReproducibility ± 1 GUColor art corresponds to CIE 1931(2 °) under a CIE C light sourceMeasurement accuracy ±1.5 GU / ±1.5Measurement time 0.5 secondsDimensions 160 x 75 x 90 mmWeight 350 gMenu language English, ChinesePower supply 3200 mAh Li-ion batteryInterface USB / RS-232Ambient temperature 0 ... +40 °C).Storage temperature -20 ... +50 °CRelative humidity <85 % rel. humidity (non-condensing)
- Product type
Gloss meter
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 160 x 75 x 90 mm
- Display
LCD
- Weight
350 g
- Width
75 mm
- Height
90 mm
- Length
160 mm
- Interfaces
Mini USB
- Use
Paint
Documents & Downloads
Datasheet
Datasheet 2620706 PCE Instruments PCE-GM 60Plus PCE-GM 60Plus Gloss meter
User & Safety Instructions
User & Safety Instructions 2620706 PCE Instruments PCE-GM 60Plus PCE-GM 60Plus Gloss meter
Description

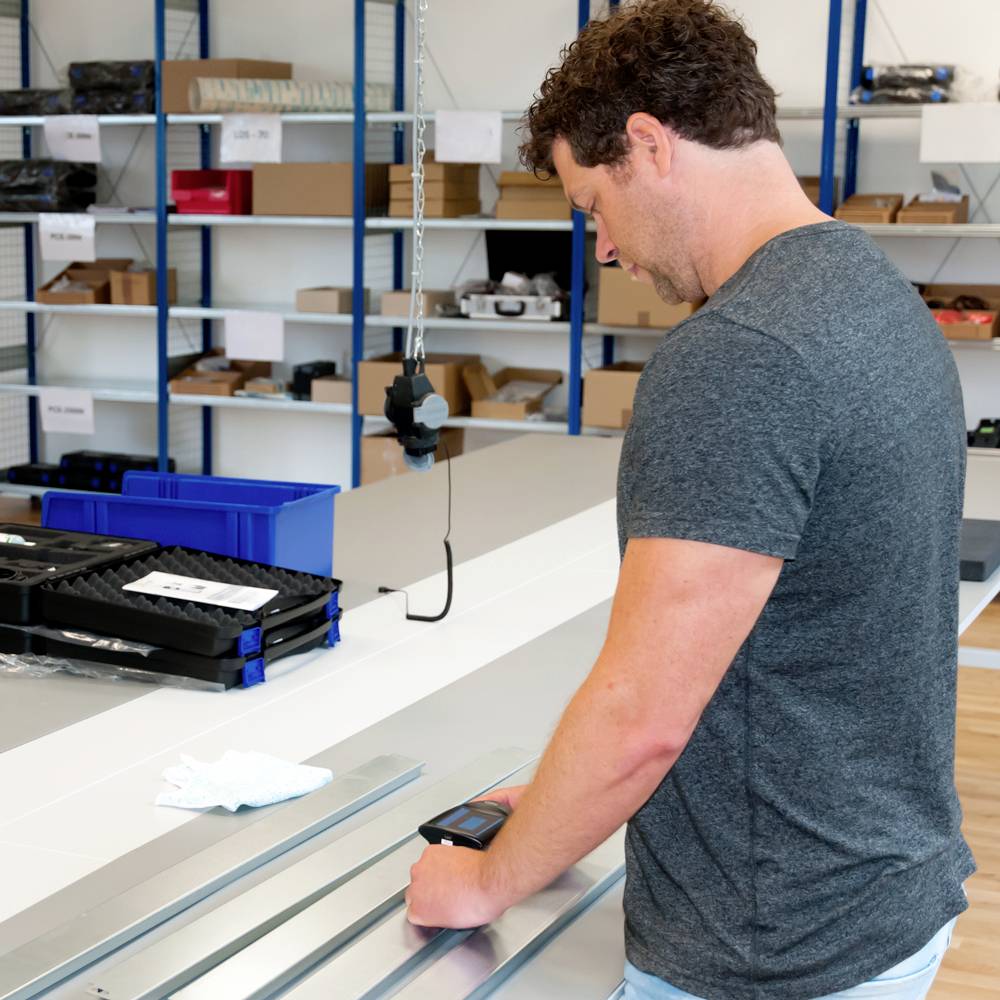

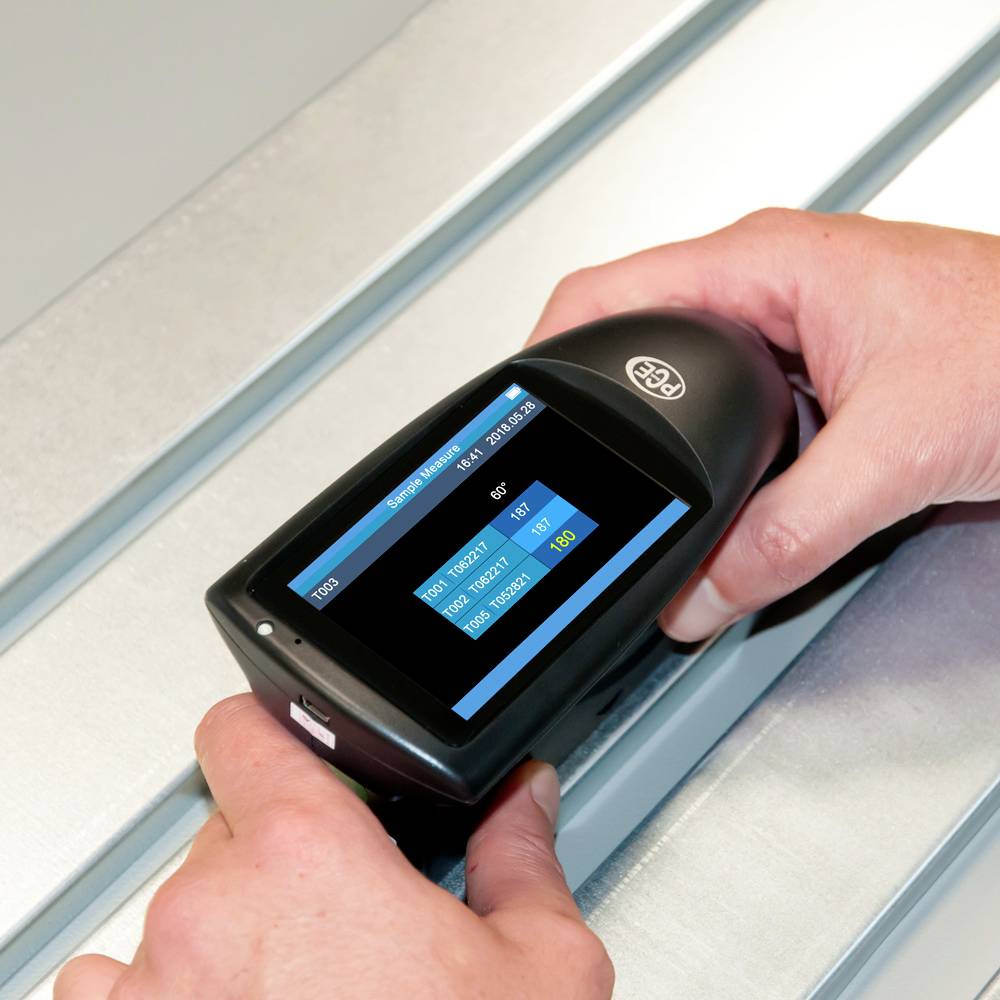

Gloss measuring device for non-stationary use / measurement up to 200 highlights / 60 ° measuring geometry / 3.5 " TFT display / low measurement time of 0.5 seconds The gloss tester is a measuring device for determining gloss on different materials. During the measurement, the specular tester records the reflection of emitted light. The light is emitted directly by the gloss checker. Part of the light is then reflected from the surface to be measured and part of the light is absorbed through the surface. The reflected light then calculates the gloss level and displays it clearly on the TFT display. The gloss checker is used in areas where it is essential that individual products always have the same appearance and properties. In this way, complaints and associated costs are avoided. In addition, the external representation of companies with consistent quality and consistent products is maintained or improved. This allows the gloss checker to assist in this process.
This text is machine translated.
This text is machine translated.

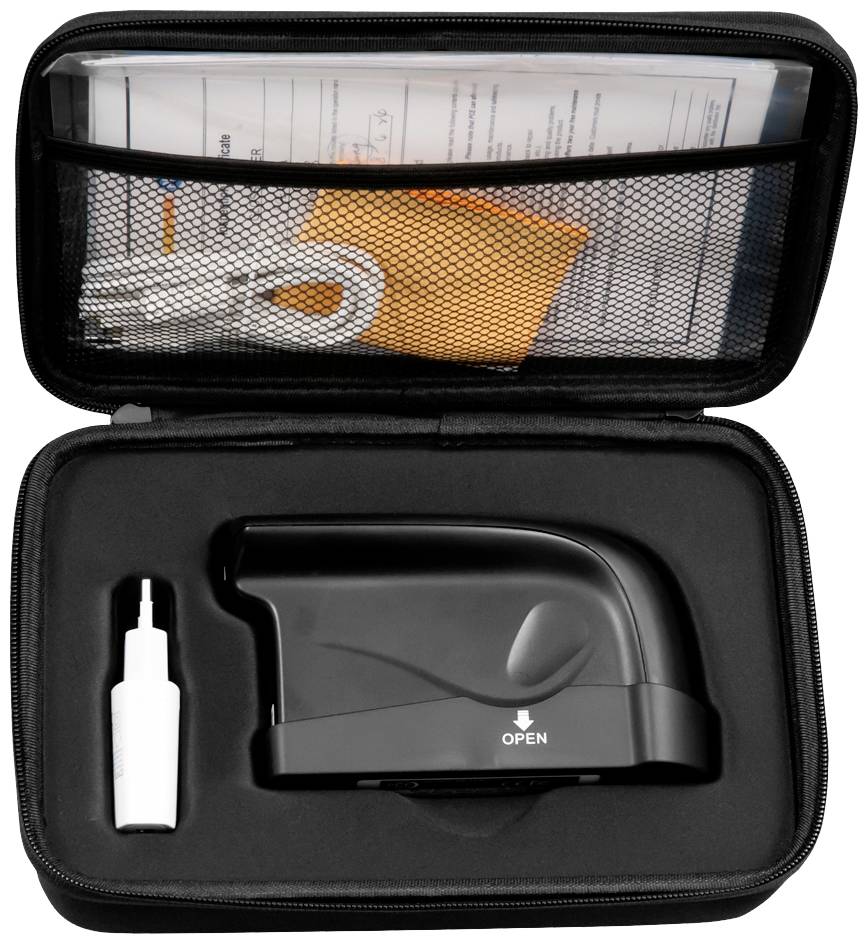

Scope of delivery

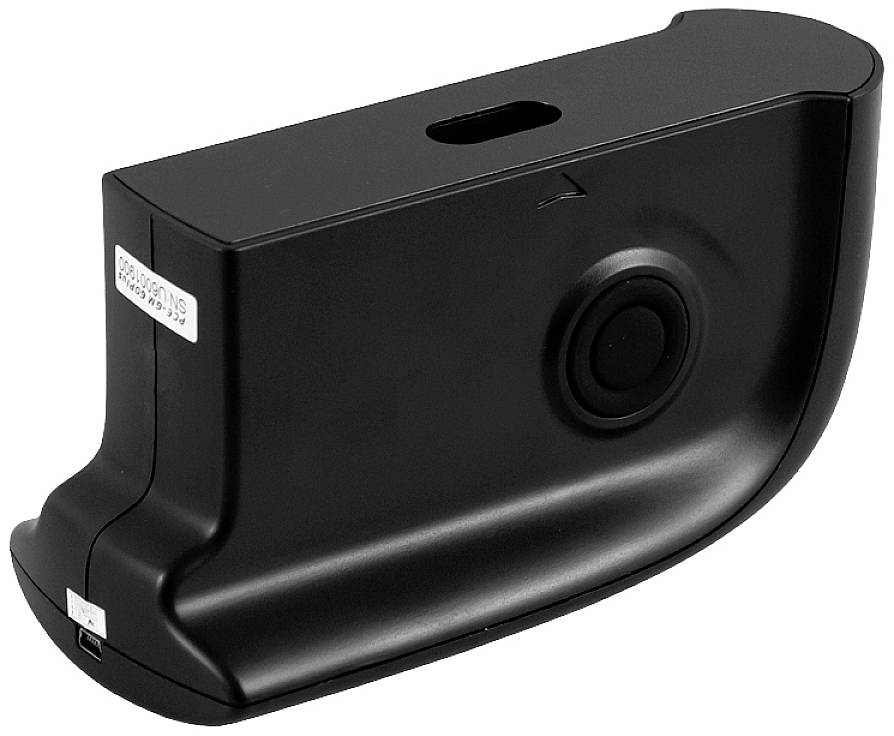

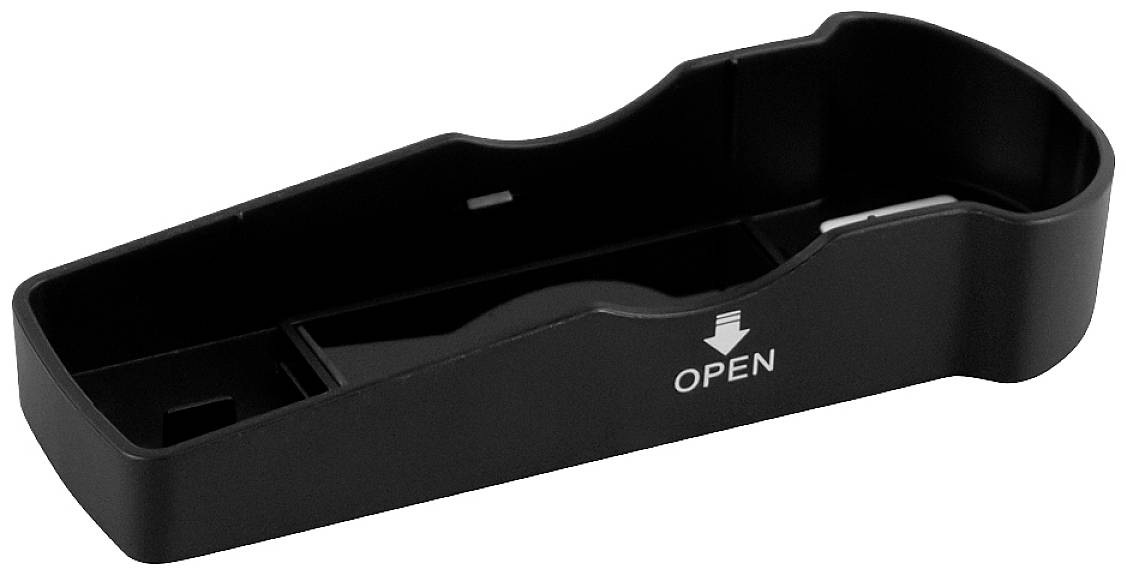

- 1 x gloss measuring device PCE-GM 60plus 1 x charging adapter 1x USB cable 1 x calibration plate 1x user manual
