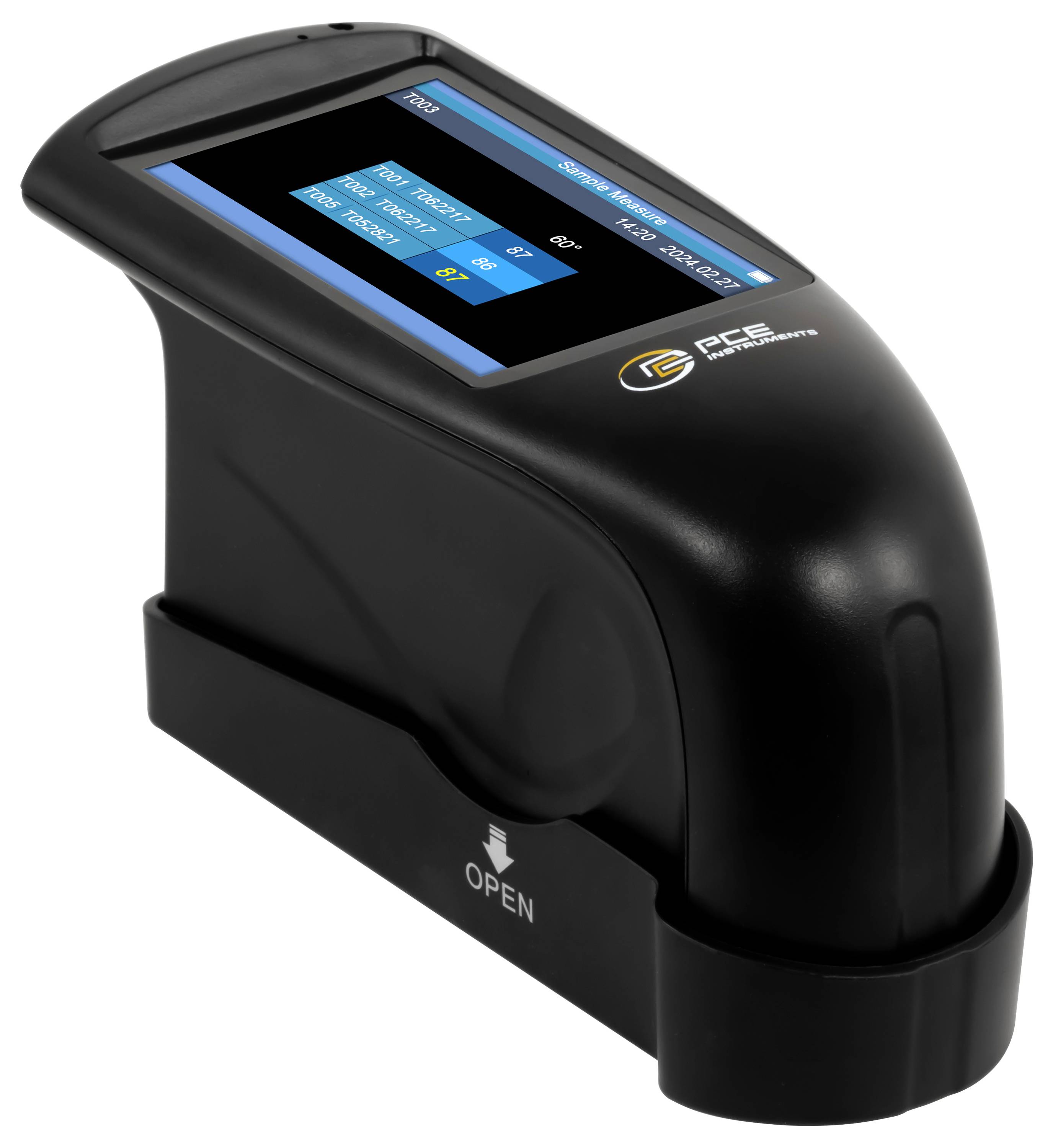

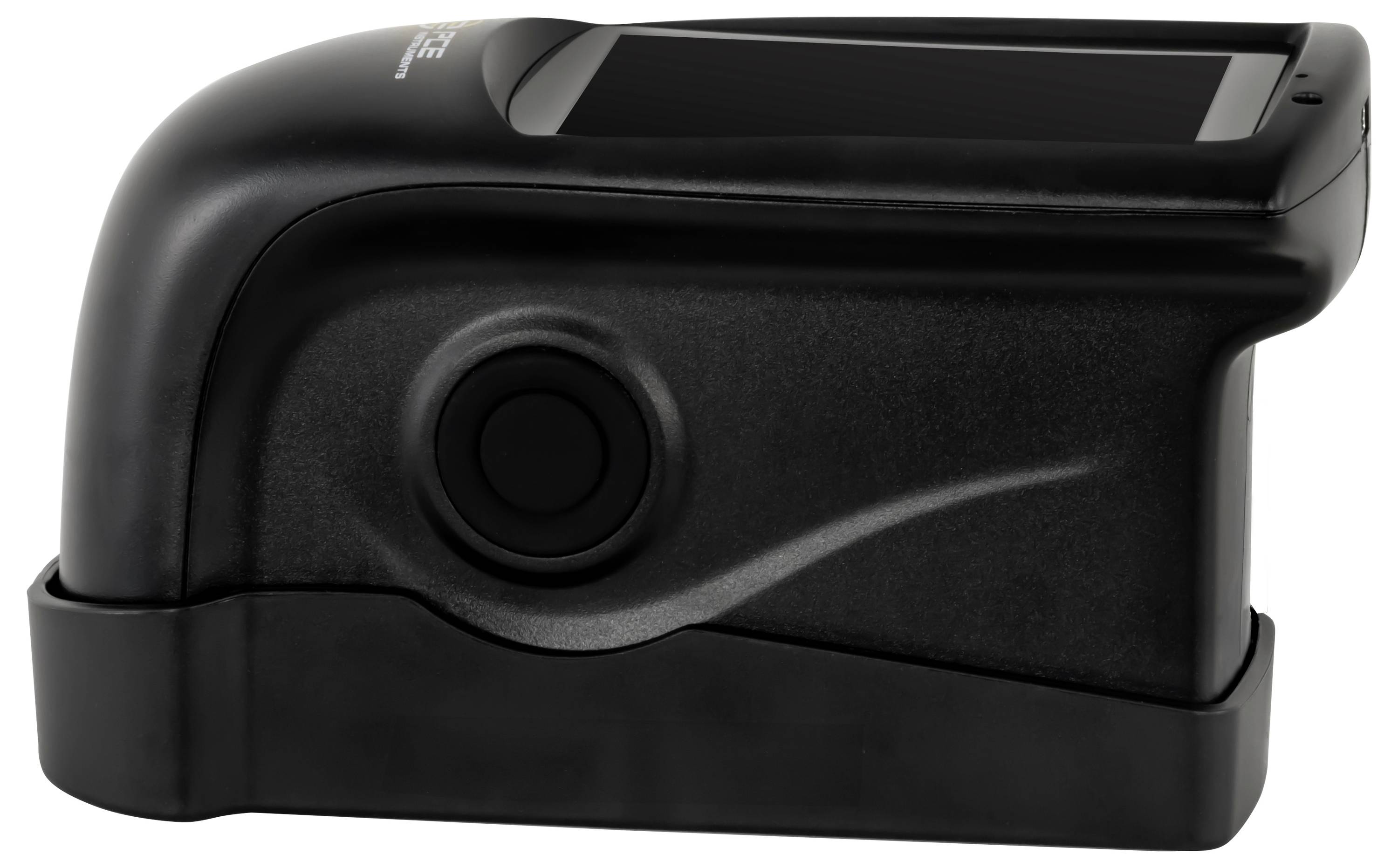

PCE Instruments PCE-GM 60Plus-ICA PCE-GM 60Plus-ICA Gloss meter Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments Glanyard meter PCE-GM 60plus-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE GM 60 plus ICA
- Measuring geometry 60°
- Calibration plate included in delivery
- Ergonomic housing
- 3.5 inches TFT
- Small measurement time
- Up to 200 glossunits

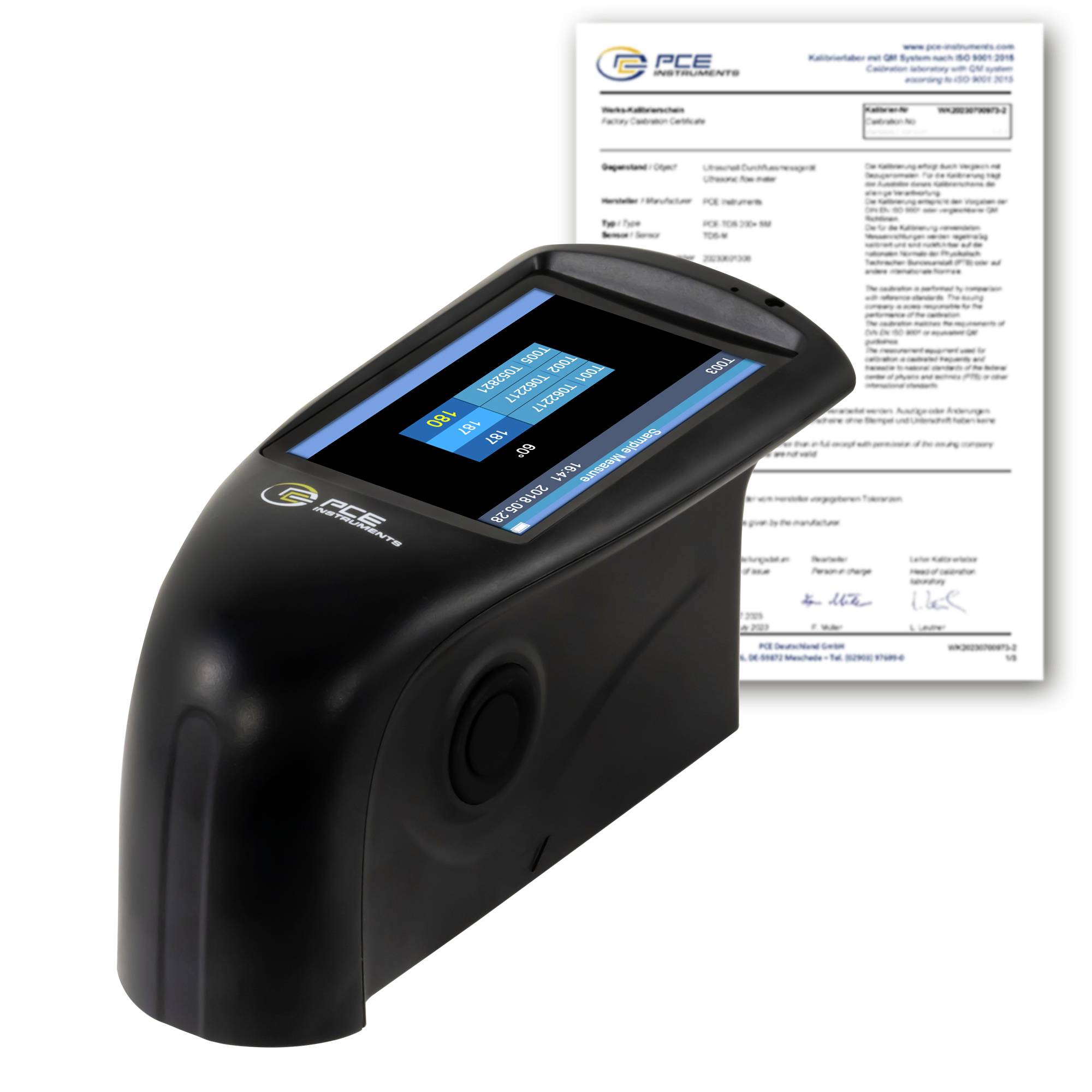

- Incl. ISO calibration certificate
Technical specifications
- Shine
- Measuring range 0 ... 200 GU
- Resolution: 1 Gu
- Accuracy ±1.5 GU / ±1.5 %
- General Technical Data
- Display type TFT color display
- Display size 3.5 inches
- Interface Mini-USB, RS232
- Standard(s) ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
- Measuring surface additional information 9 x 15 mm
- Repeatability 1 GU
- Measurement time 0.5 s.
- Reproducibility ±1 GU
- Measuring geometry 60°
- Colour grade corresponds to CIE 1931(2 °) under a CIE C light source
- Readability 1 GU
- Menu language English (US), Chinese, English (GB)
- Protection class (device) IP20
- Power supply 100 ... 240V AC | 50 ... 60 Hz
- Connector type for device Euro plug
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- Capacity 3200 mAh
- Operating conditions 0 ... 40 °C , 0 ... 85 % r.F.
- Storage conditions -20 ... 50 °C , 0 ... 85 % r.F.
- Dimensions ( L x W x H ) 160 x 75 x 90 mm
- Weight 350 g
- Product type
Gloss meter
ISO standards
- Dim
(L x W x H) 160 x 75 x 90 mm
- Display
Digital
- Weight
350 g
- Calibration service
Incl. ISO calibration certificate
- Illuminance reading accuracy
1.5 %
- Width
75 mm
- Height
90 mm
- Length
160 mm
- Interfaces
RS232
USB
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812546 PCE Instruments PCE-GM 60Plus-ICA PCE-GM 60Plus-ICA Gloss meter Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812546 PCE Instruments PCE-GM 60Plus-ICA PCE-GM 60Plus-ICA Gloss meter Calibrated to (ISO standards)
Description

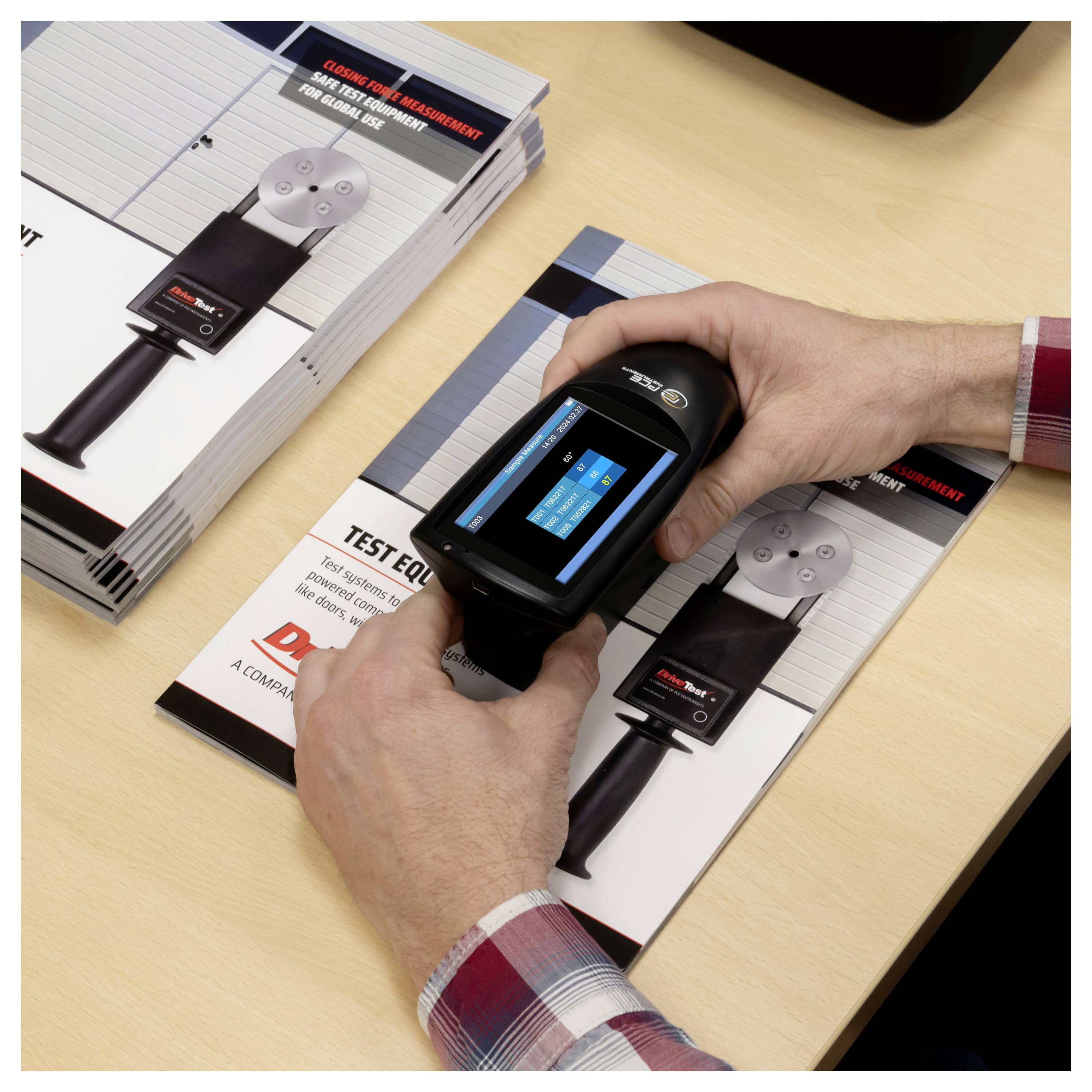

The gloss measuring device is a measuring device for determining gloss on different materials. During measurement, the gloss measuring device detects the Reflexion from emitted light. The light is emitted directly by the gloss measuring device. Part of the light is then reflected from the surface to be measured and part of the light is absorbed through the surface. Through the reflected light, the gloss measuring device calculates the gloss level and displays it on the TFT display easily readable.
The gloss gauge is used in areas where it is essential that individual products always have the same appearance and texture and characteristics. This avoids complaints and associated costs. In addition, the appearance of companies with consistent quality and consistent products is maintained or improved. In this way the gloss measuring device can also assist with this.
This text is machine translated.
The gloss gauge is used in areas where it is essential that individual products always have the same appearance and texture and characteristics. This avoids complaints and associated costs. In addition, the appearance of companies with consistent quality and consistent products is maintained or improved. In this way the gloss measuring device can also assist with this.
This text is machine translated.

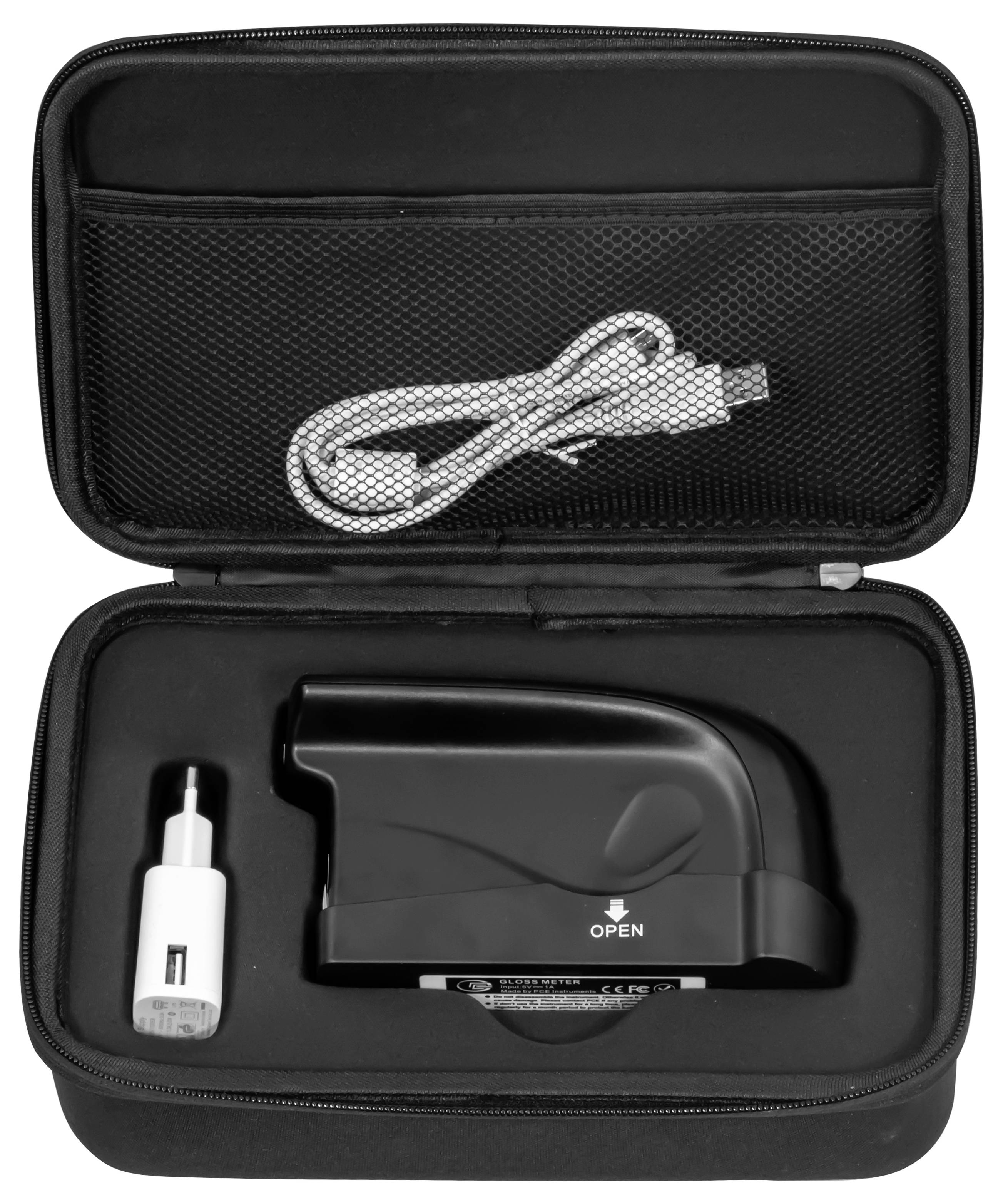

Scope of delivery
- 1 x gloss meter PCE-GM 60plus-ICA
- 1 x Charging adapter 5 V
- 1x USB cable

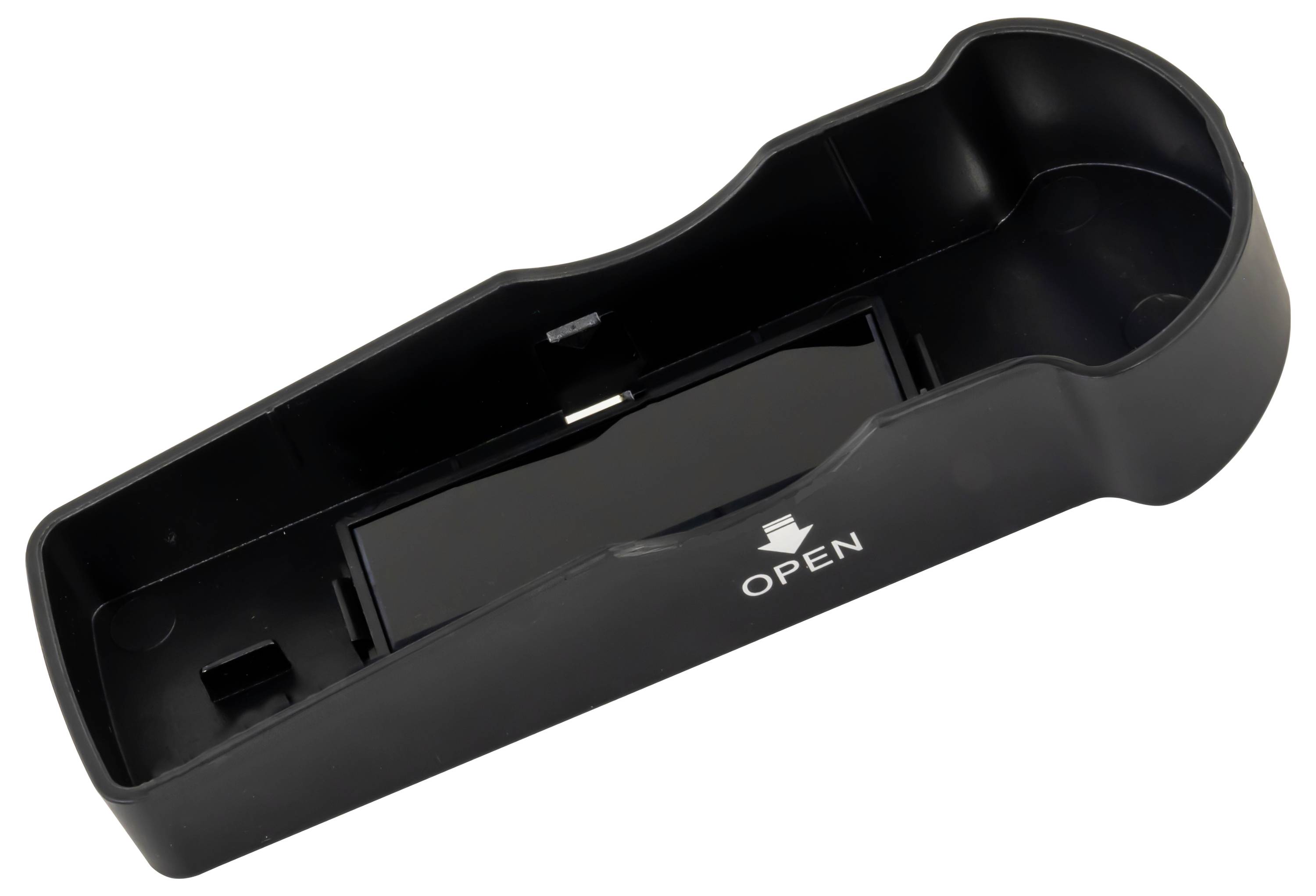

- 1 x calibration plate
- 1x user manual
- 1 x ISO calibration certificate
