PCE Instruments PCE-GM 80-ICA PCE-GM 80-ICA Gloss meter Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

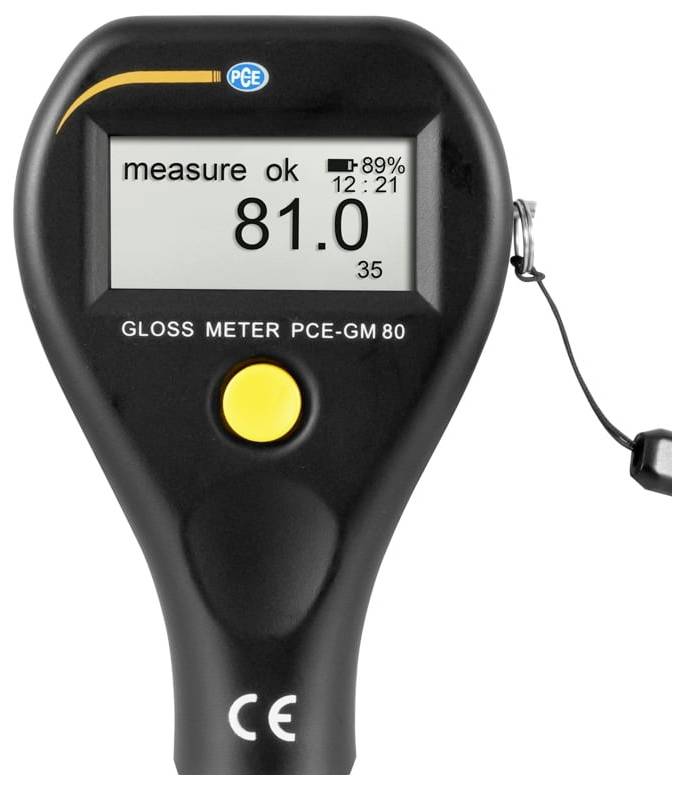

PCE instruments Glanyard meter PCE-GM 80-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-GM 80-ICA
- Externally removable sensor
- Data storage for later analysis
- Measurement range up to 1000 GU
- Micro USB interface to PC connection
- Simple, one-button operation
- Accurate measurements thanks to high accuracy

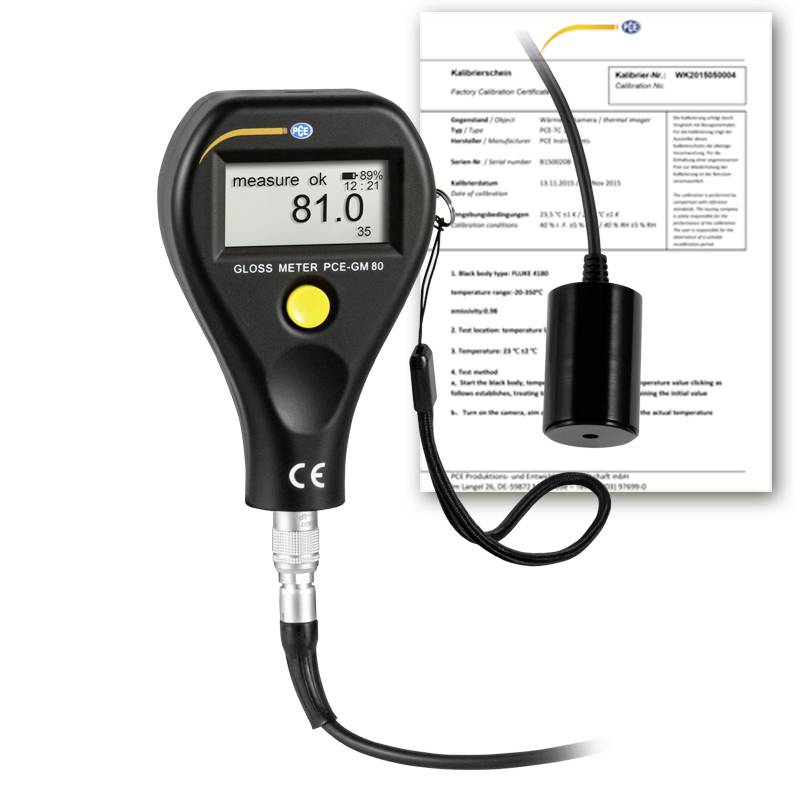

- Incl. ISO calibration certificate
Technical specifications
- Shine
- Measuring range 0 ... 99.9 GU
- Resolution: 0.1 Gu
- Accuracy
- Product type
Gloss meter
- Reading type
Analysis
ISO standards
- Dim
(L x W x H) 115 x 65 x 25 mm
- Display
Digital
- Weight
100 g
- Calibration service
Incl. ISO calibration certificate
- Features
Data logger
- Width
65 mm
- Height
25 mm
- Length
115 mm
- Interfaces
Micro USB
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812549 PCE Instruments PCE-GM 80-ICA PCE-GM 80-ICA Gloss meter Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812549 PCE Instruments PCE-GM 80-ICA PCE-GM 80-ICA Gloss meter Calibrated to (ISO standards)
Description

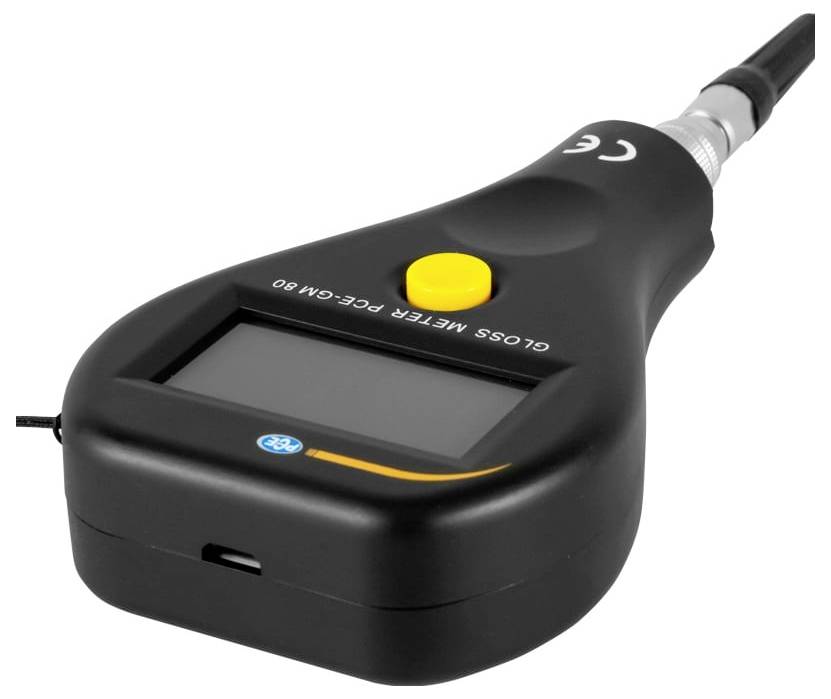

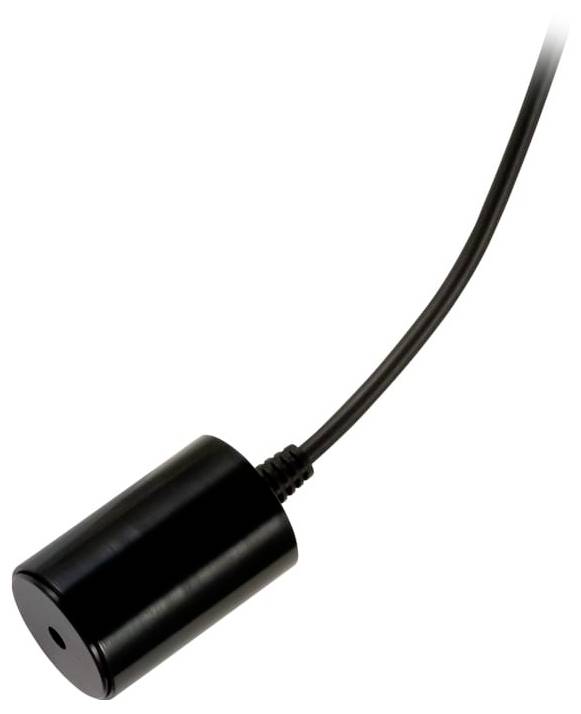

The gloss measuring device is equipped with an external gloss sensor. The measuring area of Ø4,5 mm of the gloss measuring device also contributes significantly to making measurements on small and difficult to access surfaces. With the supplied calibration reference, a check of the gloss measuring device can be carried out at any time. With an accuracy of 1%, the gloss measuring instrument is a highly precise measuring instrument. The one-button operation allows quick and easy operation of the gloss measuring device.
Another special feature of the gloss gauge is the data storage function. With this data storage function, the measured values are stored in the gloss measuring device. The measured values from the gloss measuring device are then read out via a PC. In addition, a direct USB connection can be established with the gloss measuring device and a PC. Installation of a driver or software is not required because the data from the gloss gauge is saved directly as a text file. In addition to the measurement value, a time stamp is also stored by the gloss gauge.
This text is machine translated.
Another special feature of the gloss gauge is the data storage function. With this data storage function, the measured values are stored in the gloss measuring device. The measured values from the gloss measuring device are then read out via a PC. In addition, a direct USB connection can be established with the gloss measuring device and a PC. Installation of a driver or software is not required because the data from the gloss gauge is saved directly as a text file. In addition to the measurement value, a time stamp is also stored by the gloss gauge.
This text is machine translated.

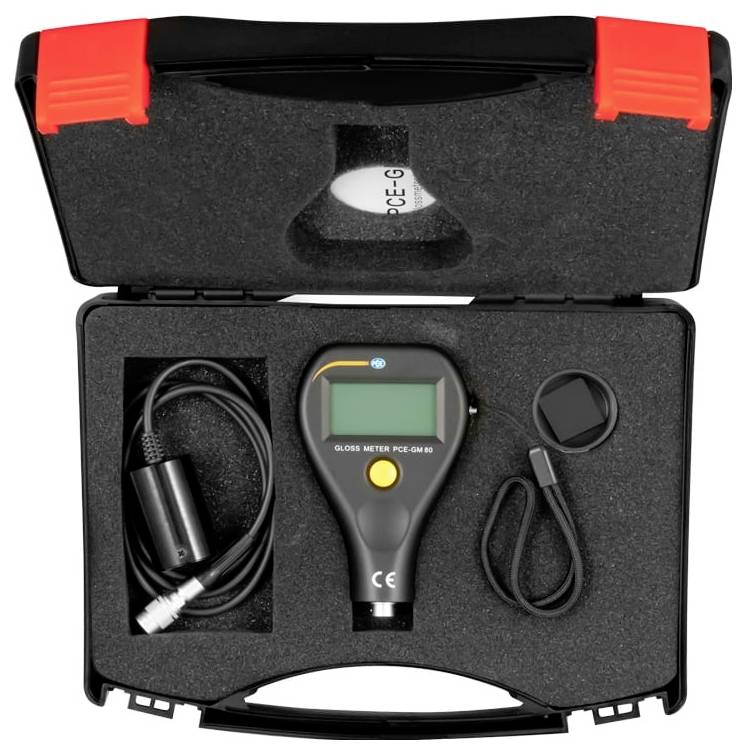

Scope of delivery
- 1 x gloss measuring device PCE-GM 80-ICA
- 1 x calibration reference
- 1 x Cleaning cloth
- 1 x transport case
- 2 x 1.5 V AAA battery
- 1x user manual
- 1 x ISO calibration certificate
