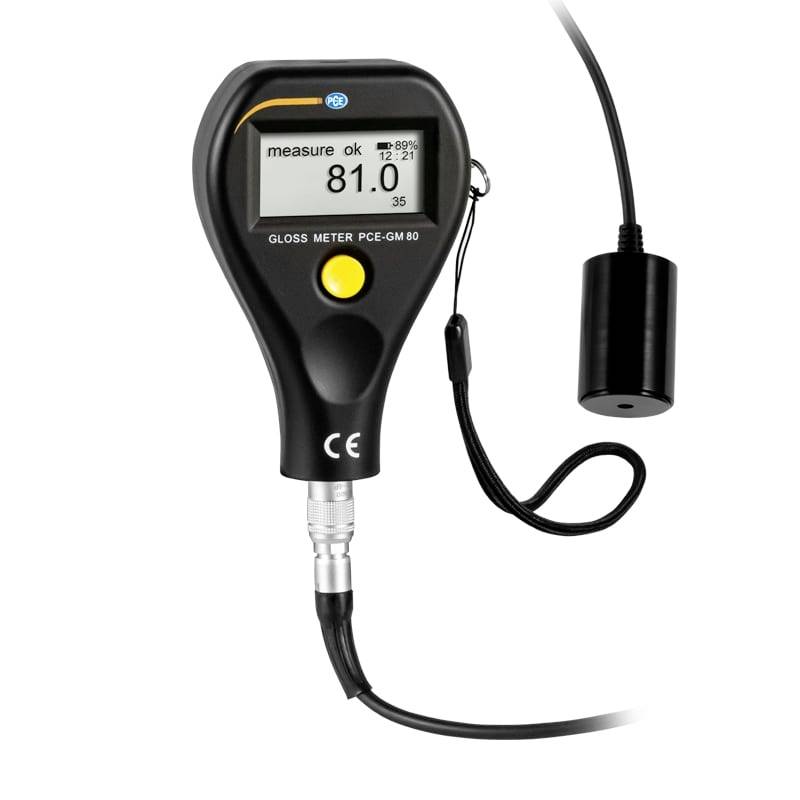

Digital gloss meter showing 81.0 on its display, with a separate black sensor probe attached by cable.<br>

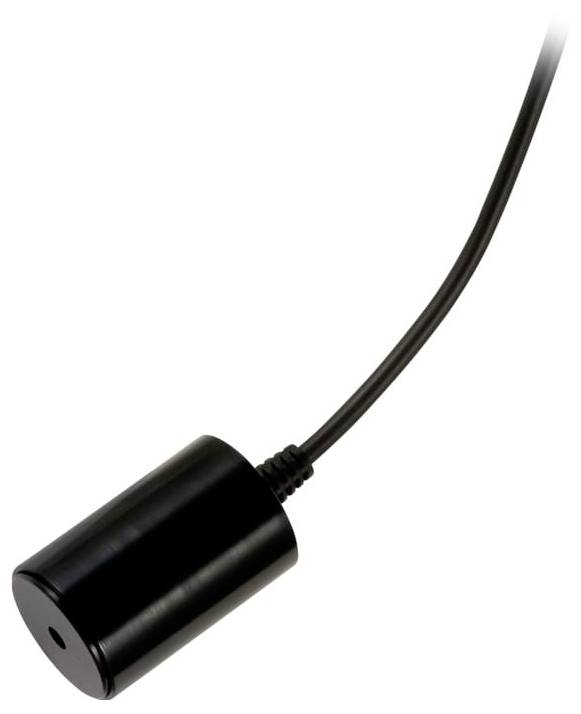

Black cylindrical wired sensor or connector with a single cable extending from the top, shown on a white background.

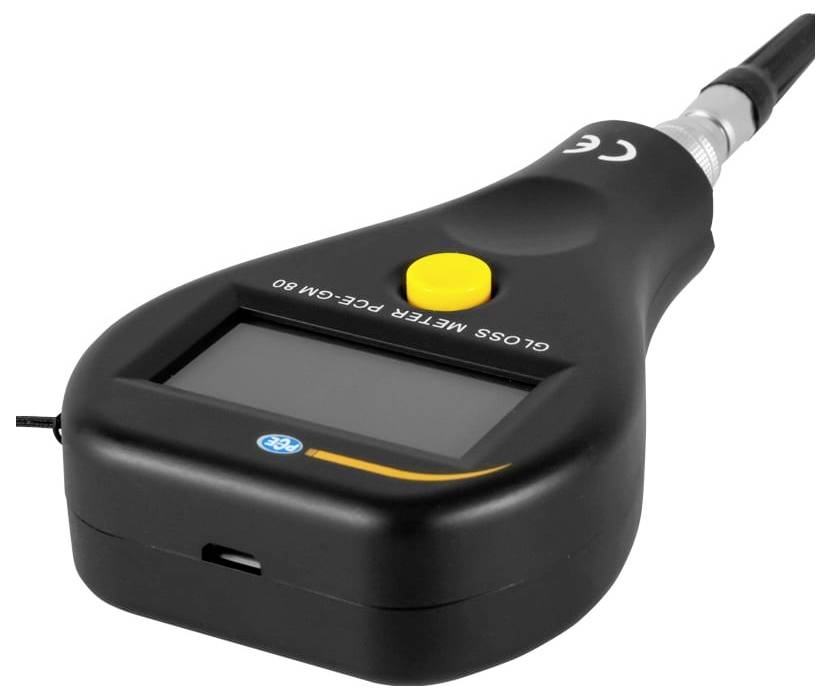

Handheld glass meter with digital display, yellow button, and probe cable attached.

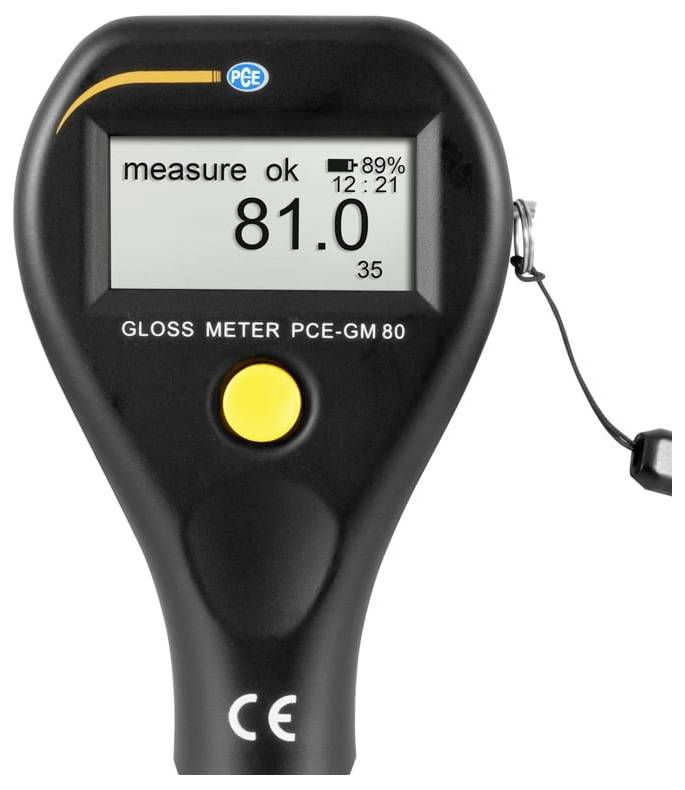

Handheld gloss meter showing a measurement of 81.0, with 'measure ok' and a battery indicator at 89% on the display.

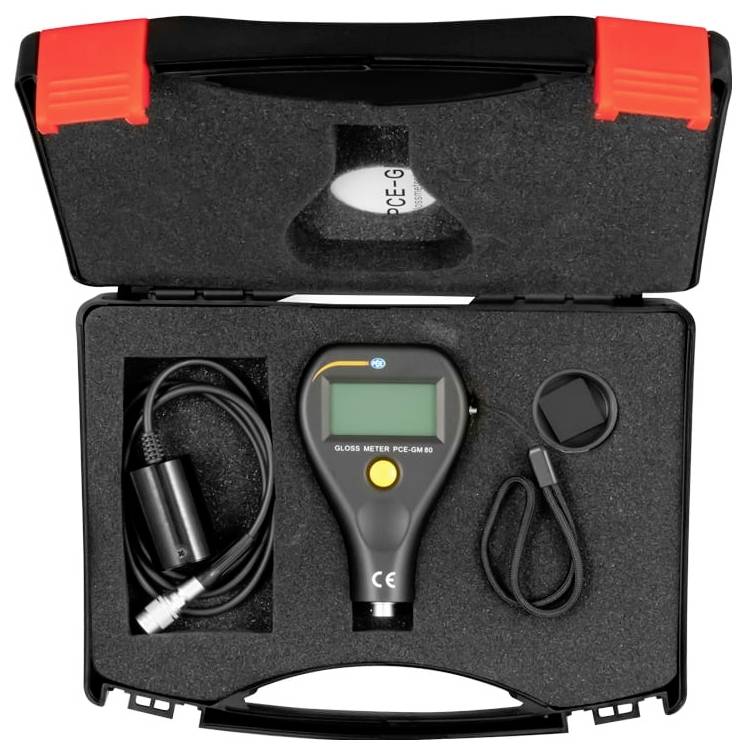

Open carrying case with a gloss meter, cable, and accessory cap in fitted foam padding.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Gloss level measuring device PCE-GM 80

External removable sensor
Data storage for later analysis
Measurement range up to 1000 GU
Micro USB interface for PC connection
Simple one-button operation
Precise measurements thanks to high accuracy

Technical specifications

Measuring range 100 ... 1000 GU Resolution 1 GU Repeat accuracy 0.5 % Accuracy 1 % Measurement range 0 ... 99.9 GU Resolution 0.1 GU Repeat accuracy < 0.45 GU Accuracy < 1 GU Measuring geometry 60° Measuring surface Ø4,5 mm Data memory 1245 measured values Micro USB interface Power supply 2 x 1.5 V AAA batteries Environmental conditions 0 ... 40 °C,< 85 % RH, non-condensing Dimensions 115 x 65 x 25 mm Weight 100 g. STANDARDS GB9754-88, GB9966.5, ISO2813, JJG696-2002

Product type: Gloss meter

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 115 x 65 x 25 mm

Display: Digital

Weight: 100 g

Width: 65 mm

Height: 25 mm

Length: 115 mm

Interfaces: Micro USB

Documents & Downloads

Datasheet

Datasheet 2452446 PCE Instruments PCE-GM 80 PCE-GM 80 Gloss meter

User & Safety Instructions

User & Safety Instructions 2452446 PCE Instruments PCE-GM 80 PCE-GM 80 Gloss meter

Description

Gloss level meter with external gloss sensor / measuring geometry 60° / measuring surface Ø4,5 mm data connection with a PC via micro-USB interface / one-button operation / calibration standard included in delivery / data memory for 1245 measurements The gloss level meter is equipped with an external gloss sensor. The measuring surface of Ø4,5 mm of the gloss level meter also makes a significant contribution to making measurements on difficult to access and small surfaces. With the supplied calibration reference, a check of the gloss level meter can be carried out at any time. With an accuracy of 1%, the gloss level meter is a high-precision measuring instrument. The one-button operation enables a quick and easy operation of the gloss measuring device. Another special feature of the gloss level meter is the data storage function. With this data storage function, the measured values are stored in the gloss degree meter. The measurement values are then read from the gloss level meter via a PC. For this purpose, a direct USB connection can be established with the gloss degree meter and a PC. The installation of a driver or software is not required, since the data from the gloss degree meter is saved directly as a text file. In addition to the measured value, a time stamp is also saved by the gloss degree gauge.
