PCE Instruments PCE-GPA 62 3-phase network quality tester 3-phase Data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

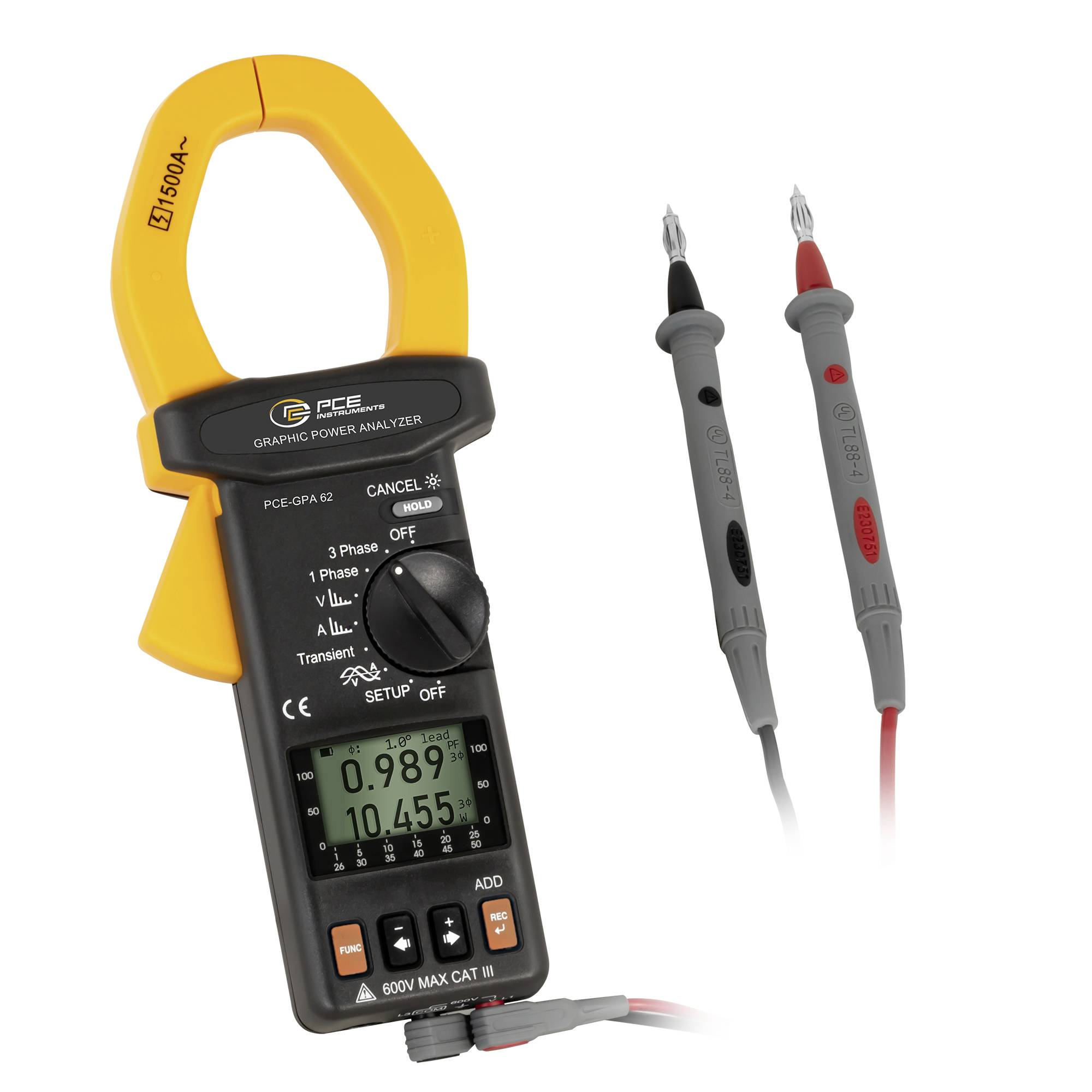

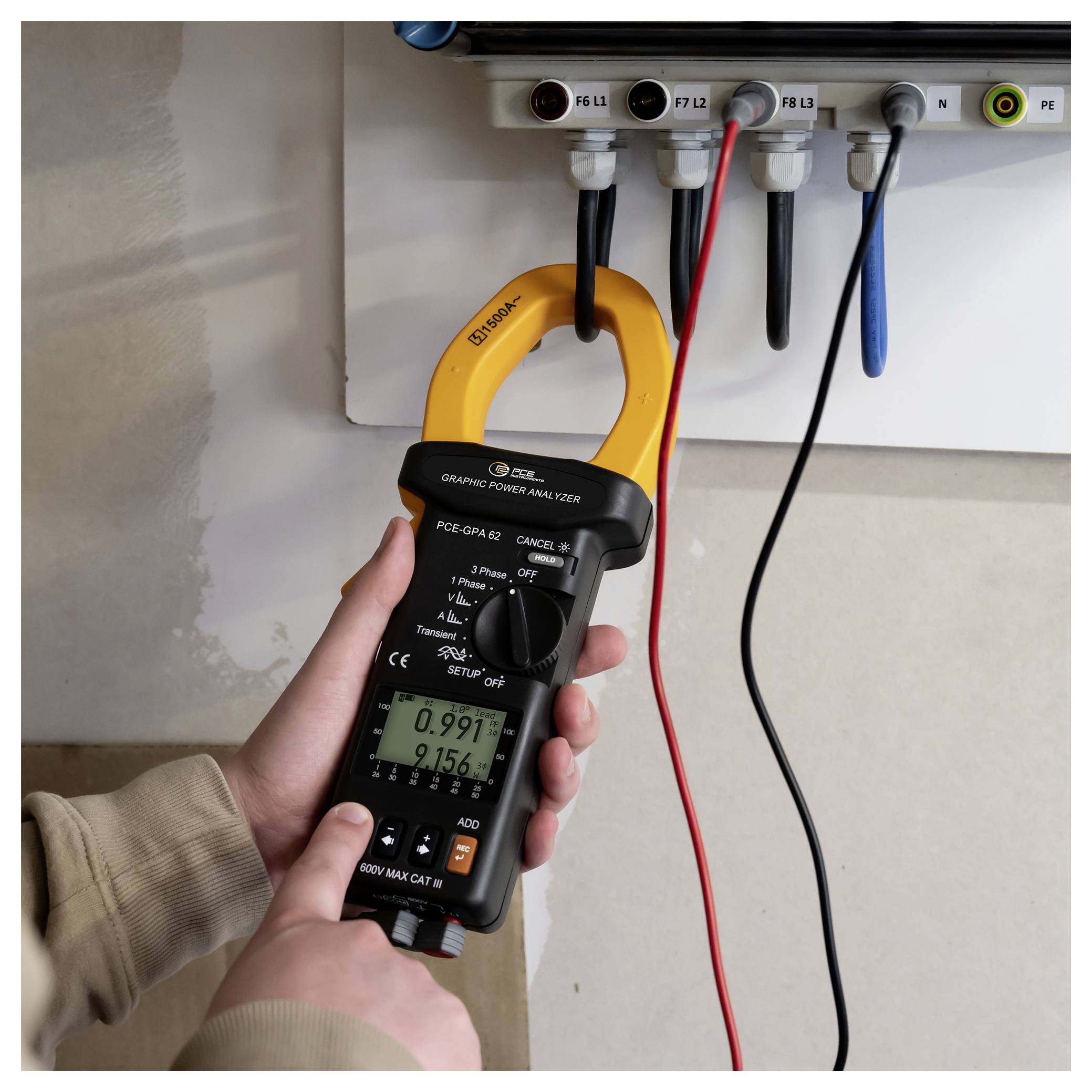

Power meter PCE-GPA 62
- Real-time monitoring
- Recording and voltage/current measurement (real-effective)
- Measures power factor and phase angle
- Frequency, energy, active power, apparent power and reactive power (1 phase or 3 phase)
- Symmetric nets
Technical specifications
- Voltage measurement 4.0 ... 600.0 V Real effective value Accuracy ±0.5 % of measurement ±5 dgts Resolution 0.1 V. Voltage peaks ( > 10 V) 50 Hz - 60 Hz Accuracy ±5 % ±50 dgts Current measurement 4.0 ... 1500.0 A real effective value Accuracy ±1 % of measurement ±5 dgts Resolution 0.01 A Current peaks ( > 20 A) 50 Hz - 60 Hz Accuracy ±5 % ±50 dgts Active power P 10 W ... 9999 kW in 5 measuring ranges Accuracy ±1% of reading +20 dgts ( > 20 V and > 20 A) ±2% of reading +40 dgts (< 20 V and< 20 A) Resolution 0.1 W ... 1 kW depending on measuring range Apparent power S 10 VA ... 9999 kVA in 5 measuring ranges Accuracy ±1% of reading +20 dgts ( > 20 V and > 20 A) ±2 % of measurement +40 dgts (< 20 V and< 20 A) Resolution 0.1 VA ... 1 kVA depending on measuring range Reactive power Q 10 var ... 9999 kVAr in 5 measuring ranges accuracy ±1% of reading +20 dgts ( > 20 V and > 20 A) ±2 % of measurement +40 dgts (< 20 V and< 20 A) Resolution 0.1 var ... 1 kVAr depending on measuring range Power factor PF 0.000 ... 1,000 Accuracy ±0.04 ( > 20 V and > 20 A), ±0.1 (> 20 V and < 20 A) Resolution 0.001 Phase angle -180 ° .... +180 ° Accuracy ±1° Resolution 0.1 Phase angle 0 ° .... +360 ° Accuracy ±1° Resolution 0.1 Frequency measurement (U > 50V) 46 ... 65 Hz Accuracy ±0.3 Hz Resolution 0.1 Hz Work in effect 0 ... 999,999 kWh Accuracy ±1 % of measurement Resolution +20 dgts Apparent work 0 ... 999,999 kVAh Accuracy ±1 % of measurement Resolution +20 dgts Reactive power 0 ... 999,999 kVARh Accuracy ±1 % of measurement Resolution +20 dgts Harmonics in voltage (relative) 1 - 20th Accuracy ±2 % Resolution 0.1 % 50 - 60Hz > 80 V AC 21 - 50th Accuracy ±4 % of measurement ±2 % Resolution 0.1% Harmonics in voltage (absolute) 1 - 20th Accuracy ±2 % ±0.5 V. Resolution 0.1 V 50 - 60Hz > 80 V AC 21 - 50th Accuracy ±4 % of measurement ±0.5 V Resolution 0.1 V. Harmonics in current (relative) 1 - 20th Accuracy ±2 % Resolution 0.1 % 50 - 60Hz > 20 A 21 - 50th Accuracy ±4 % of measurement ±2 % Resolution 0.1% Harmonics in current (absolute) 1 - 20th Accuracy ±2 % of measurement ±0.4 A. Resolution 0.1 A 50 - 60Hz > 20 A 21 - 50th Accuracy ±4 % of measurement ±0.4 A. Resolution 0.1 A Total harmonic distortion (THD-F) 0.0 - 20 % Accuracy 2 % Resolution 0.1 % 50 - 60Hz > 80 V and > 20 A 20.1 - 100 % Accuracy ±6 % of measurement ±1 % Resolution 0.1 % 50 - 60Hz > 80 V and > 20 A 100.1 - 999.9 % Accuracy ±10 % of measurement ±1 % Resolution 0.1% Clamp-on ammeter opening max. 55 mm Range selection automatic over-range display "OL " = Overload Data storage 50,000 data records Interface USB Software suitable for Windows2000, ME, XP ... Display Graphic display, 128 x 64 LCD with illumination Supply 2x 1.5 V type AA Energy consumption approx. 10 mA Dimensions 271 x 112 x 46 mm Weight 650 g Including batteries Ambient conditions max. 85% Relative humidity / -10 °C... +50 °C cat III 600 V / EN 61010-2-032 protection class / standardization
- Product type
3-phase network quality tester
- Reading category
CAT III 600 V
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 271 x 112 x 46 mm
- Weight
650 g
- Measurement type
3-phase
- Features
Data logger
- Width
112 mm
- Height
46 mm
- Length
271 mm
- Interfaces
USB
Documents & Downloads
Datasheet
Datasheet 2452449 PCE Instruments PCE-GPA 62 3-phase network quality tester 3-phase Data logger
User & Safety Instructions
User & Safety Instructions 2452449 PCE Instruments PCE-GPA 62 3-phase network quality tester 3-phase Data logger
Description
The power meter is used for one or three-phase measurement of active, reactive and apparent power, power factor, phase angle, energy, voltage and current, As well as their tips and harmonics up to 50. Harmonious. The integrated graphic display ensures an optimal visual clarification of the values on the power meter. - Voltage measurement: 4.0 ... 600.0 V real effective value - Current measurement: 4.0 ... 1500.0 A real effective value - frequency measurement (U > 50V): 46 ... 65 Hz - clamp-on ammeter opening: Max. 55 mm - incl. ISO calibration certificate Calibration certificates are issued especially for the customer and are excluded from the right of return.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x PCE-GPA 62 power meter

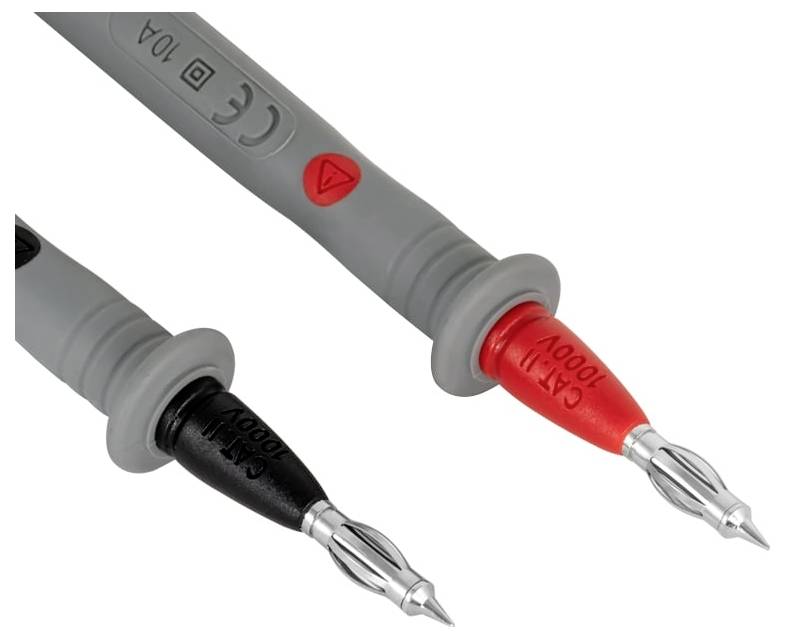

- 2 x insulated clip-on buttons on 2 m cable each
- 2 x battery
- 1 x carrying case
- 1 x USB PC cable

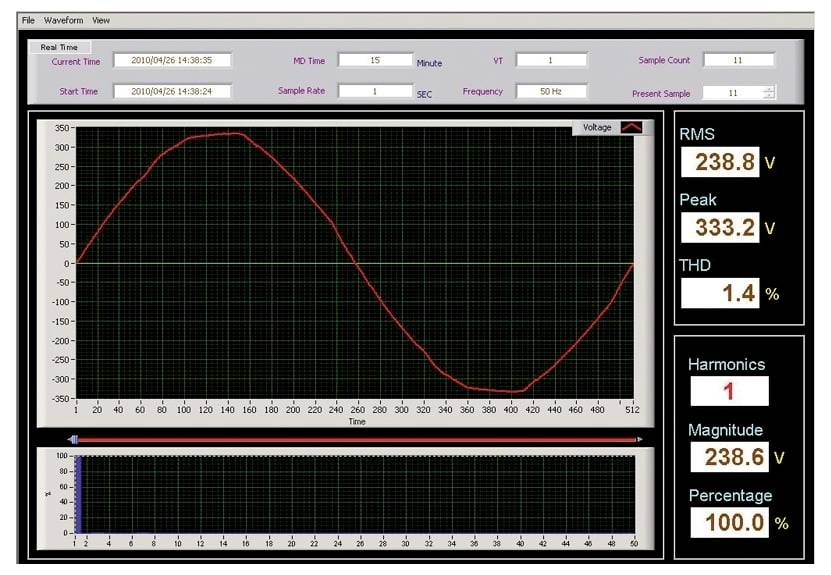

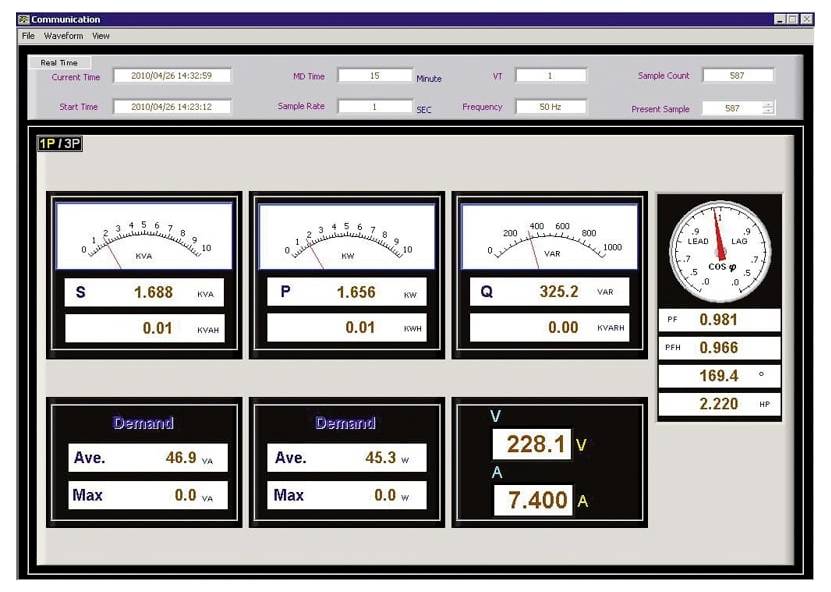

- 1 x software (English, German written and illustrated)
- 1x user manual
