PCE Instruments PCE-HFG 10K-E100-ICA Force gauge 0 - 10000 N ISO standards
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE Instruments PCE-HFG 10K-E100-ICA Force gauge 0 - 10000 N ISO standards
- Hydraulic force meter with analogue scale
- Made of stainless steel
- Compact for small installation rooms
- Measurement of static pressure
- Ring force transducer and pressure stamp
- 27 mm ring hole size
- Pressure force display in Newton [N]
- Measuring range 0 … 10,000 N
- Resolution 200 N
- Integrated drag indicator
- Screw socket for axial mounting
- With mounting holes
- ISO calibration certificate included
Technical specifications
- Measuring range 0 … 10,000 N
- Resolution 200 N
- Measuring accuracy ±1.85% of measuring range
- Hydraulic hose length 100 cm
- Dimensions of the display Ø 55 mm
- Mounting holes 2 x M6
- Environmental conditions: 0 - 50 °C
- Product type
Force gauge
- Display
Analogue
- Force reading range (max.)
10000 N
ISO standards
- Dim
(L x W x H) 180 x 105 x 35 mm
- Weight
1.6 kg
- Resolution (force)
200 N
- Basic accuracy
1.95 %
- Force reading range
0 - 10000 N
- Force reading range (min.)
0 N
- Width
105 mm
- Height
35 mm
- Length
180 mm
Documents & Downloads
Datasheet
Datasheet 3812993 PCE Instruments PCE-HFG 10K-E100-ICA Force gauge 0 - 10000 N ISO standards
User & Safety Instructions
User & Safety Instructions 3812993 PCE Instruments PCE-HFG 10K-E100-ICA Force gauge 0 - 10000 N ISO standards
Description

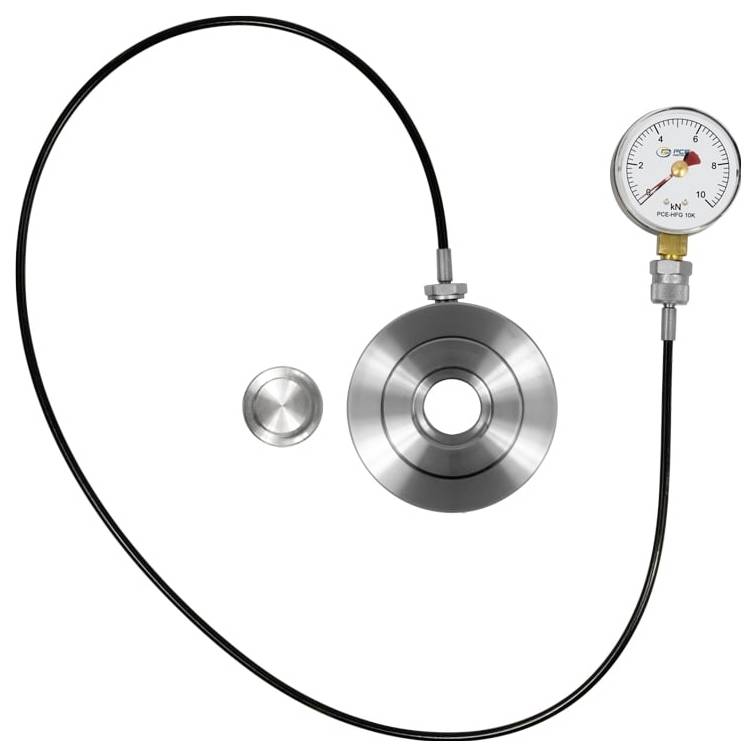

A hydraulic force meter is based on the principle that the force acting on the pressure die is measured hydraulically. The hydraulic pressure generated is displayed by the hydraulic force gauge on a scale in Newton. With the integrated drag indicator, our hydraulic force meter can display the respective maximum measured value.

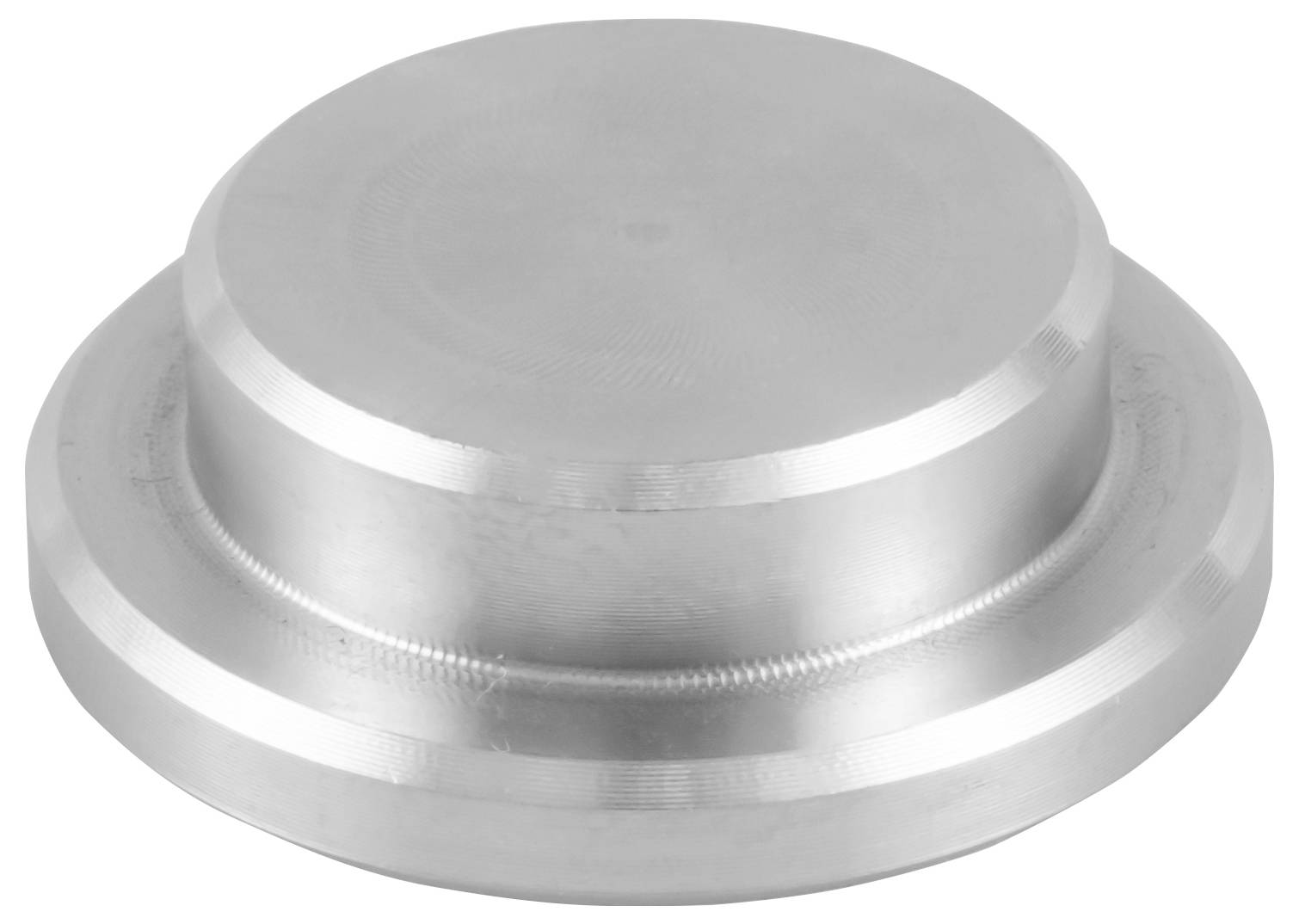

Another special feature of the hydraulic force gauge is the ring opening, which is 27 mm in size. With this ring opening, measurements can be made with the hydraulic force meter on, for example, guide rails, shafts and also bolts from, for example, a hydraulic press. With the applicable stamp adapter, the hydraulic force meter can be converted from a ring force meter to a pressure stamp force meter in seconds. Thus the hydraulic force meter can be used flexibly.

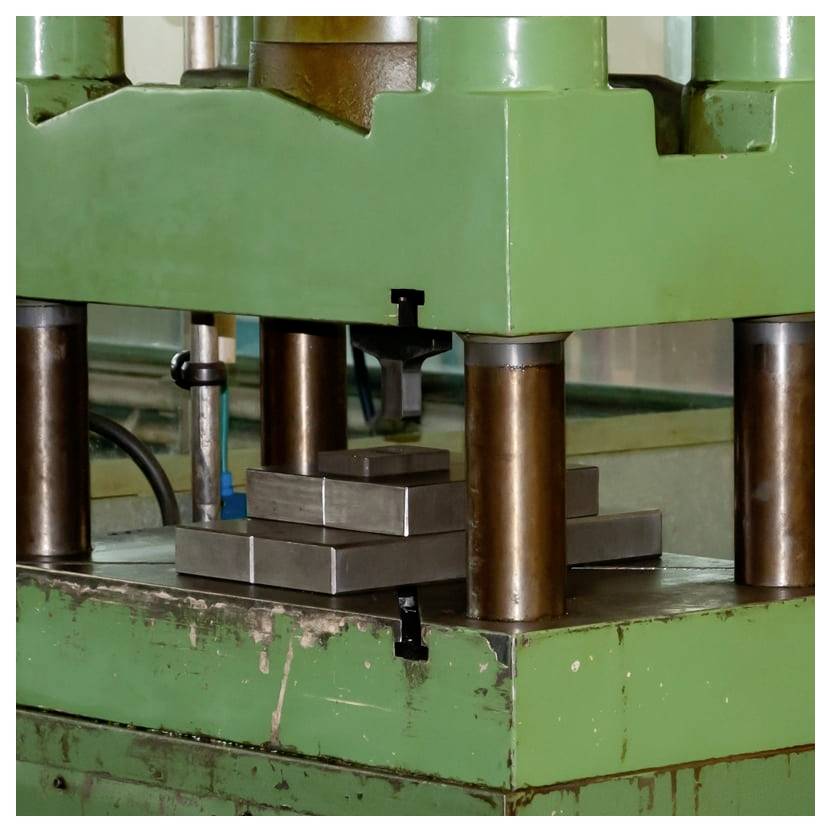

Wherever forces to be measured, a hydraulic force meter is used. For this reason, a hydraulic force gauge can be used optimally for maintenance measurements and adjustments of, for example, industrial machines.
This text is machine translated.
Another special feature of the hydraulic force gauge is the ring opening, which is 27 mm in size. With this ring opening, measurements can be made with the hydraulic force meter on, for example, guide rails, shafts and also bolts from, for example, a hydraulic press. With the applicable stamp adapter, the hydraulic force meter can be converted from a ring force meter to a pressure stamp force meter in seconds. Thus the hydraulic force meter can be used flexibly.
Wherever forces to be measured, a hydraulic force meter is used. For this reason, a hydraulic force gauge can be used optimally for maintenance measurements and adjustments of, for example, industrial machines.
This text is machine translated.
Features
- Measurement of static pressure
- Integrated drag indicator
- Screw socket for axial mounting
- ISO certification included
Scope of delivery

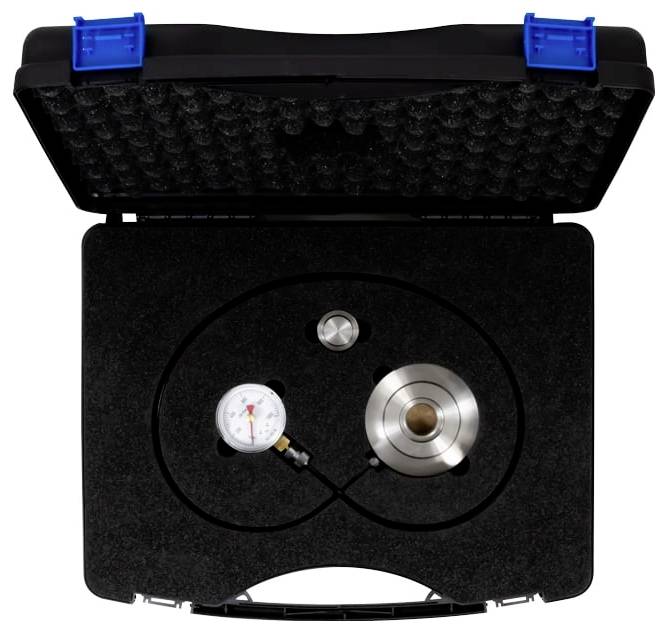

- 1 x PCE-HFG 10K-E100-ICA hydraulic force transducer
- 1 x instrument case
- 1 x insert panel
- 1x user manual
- 1 x ISO calibration certificate
Hints
Hydraulic force transducer PCE-HFG 10K-E100-ICA can also be used as a force meter |Power measuring box |Power measuring cell
