PCE Instruments PCE-HFG 10K-ICA Hydraulic circular force gauge 0 - 10000 N ISO standards
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

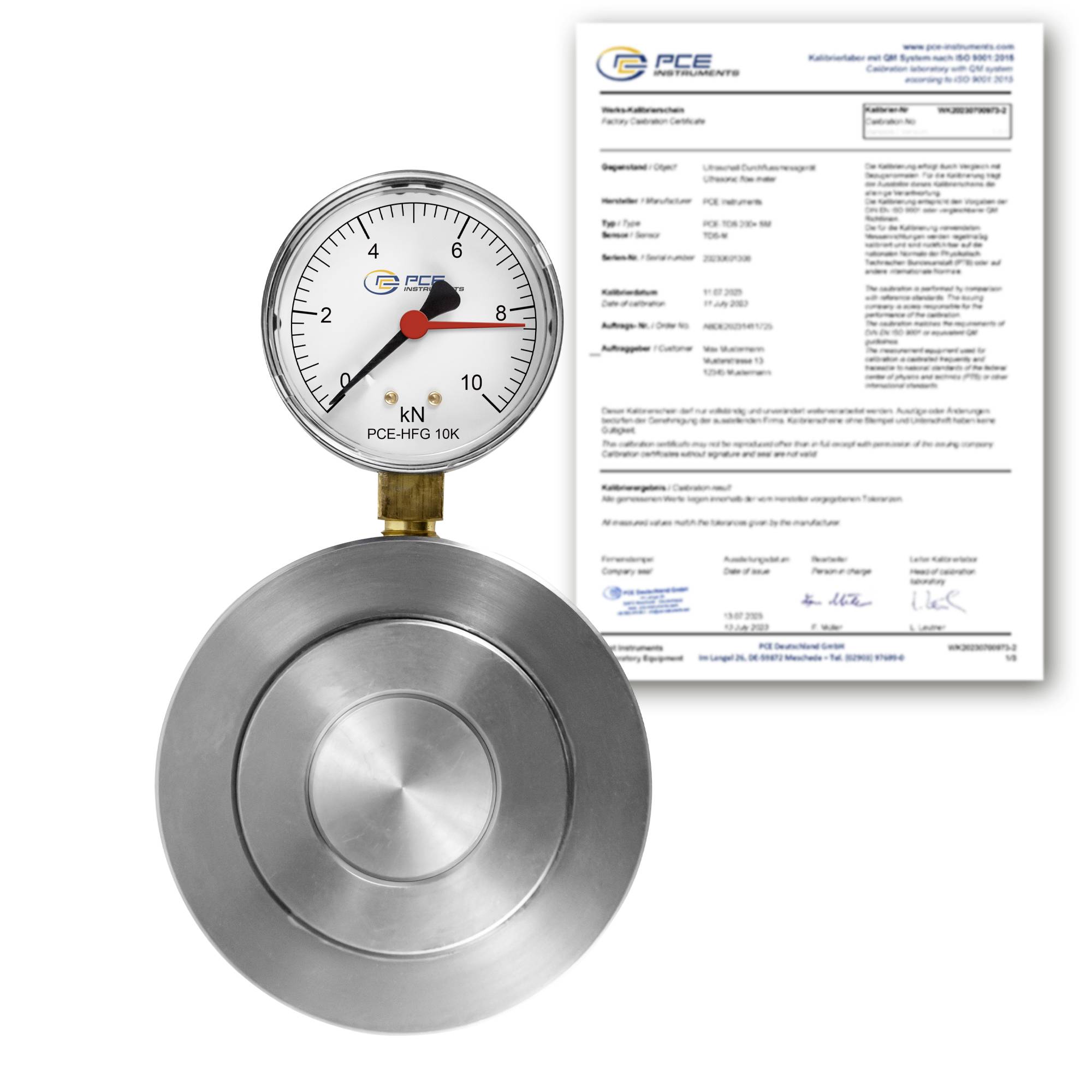

PCE Instruments PCE-HFG 10K-ICA Hydraulic circular force gauge 0 - 10000 N ISO standards
- Stainless steel hydraulic force transducer
- Measurement of static pressure
- Ring force transducer and pressure stamp
- Screw socket for axial mounting
- Integrated drag indicator
- Pressure gauge in Kilonewton [kN]
- Incl. ISO calibration certificate
Technical specifications
- Power
- Measuring range 0 ... 10000 N
- Resolution 200 N
- Accuracy ±1.95 % from r.h.
- General Technical Data
- Unit(s) kN
- Display type without display
- Hydraulic force transducer sensor

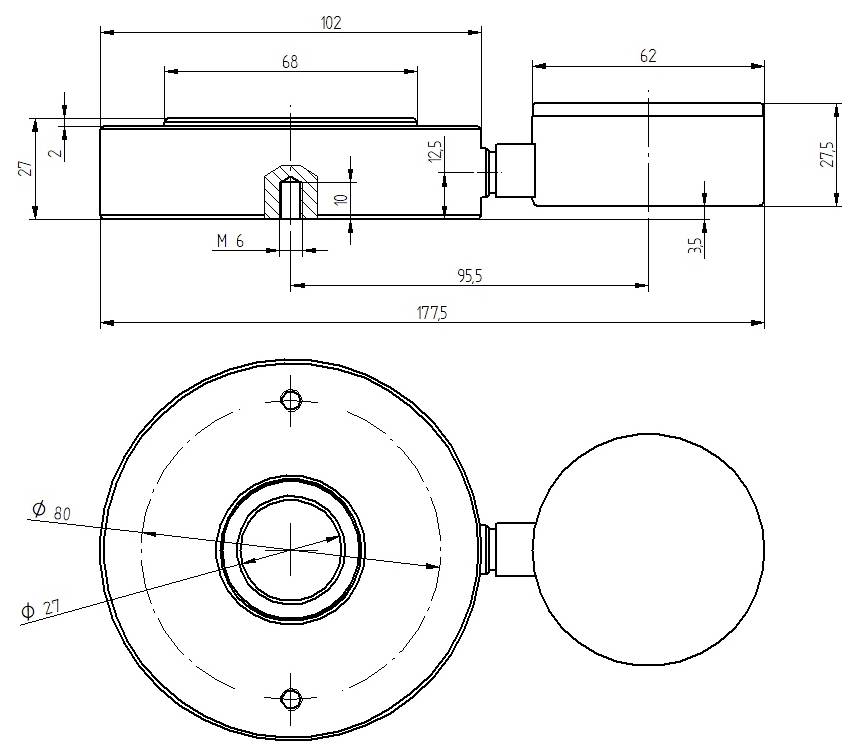

- Mounting holes 2 x M6
- Dimensions of display: Ø55 mm,Hydraulic hose Length: 100 cm
- Protection class (device) IP52
- Operating conditions 0 ... 50 °C , 20 ... 90 % r.F.
- Storage conditions -10 ... 60 °C , 20 ... 90 % r.F.
- Dimensions ( L x W x H x D) 175 x 100 x 28 x 55 mm
- Weight 1600 g
- Product type
Hydraulic circular force gauge
- Display
Analogue
- Force reading range (max.)
10000 N
ISO standards
- Dim
(L x W x H) 175 x 100 x 28 mm
- Weight
1.6 kg
- Resolution (force)
200 N
- Basic accuracy
1.85 %
- Force reading range
0 - 10000 N
- Force reading range (min.)
0 N
- Width
100 mm
- Height
28 mm
- Length
175 mm
Documents & Downloads
Datasheet
Datasheet 3812859 PCE Instruments PCE-HFG 10K-ICA Hydraulic circular force gauge 0 - 10000 N ISO standards
User & Safety Instructions
User & Safety Instructions 3812859 PCE Instruments PCE-HFG 10K-ICA Hydraulic circular force gauge 0 - 10000 N ISO standards
Description
A hydraulic force transducer is based on the principle that the force acting on the pressure die is measured hydraulically. The hydraulic pressure generated is displayed by the hydraulic force sensor on a scale in Kilonewton. With the integrated drag indicator, our hydraulic force sensor can display the respective maximum measured value.

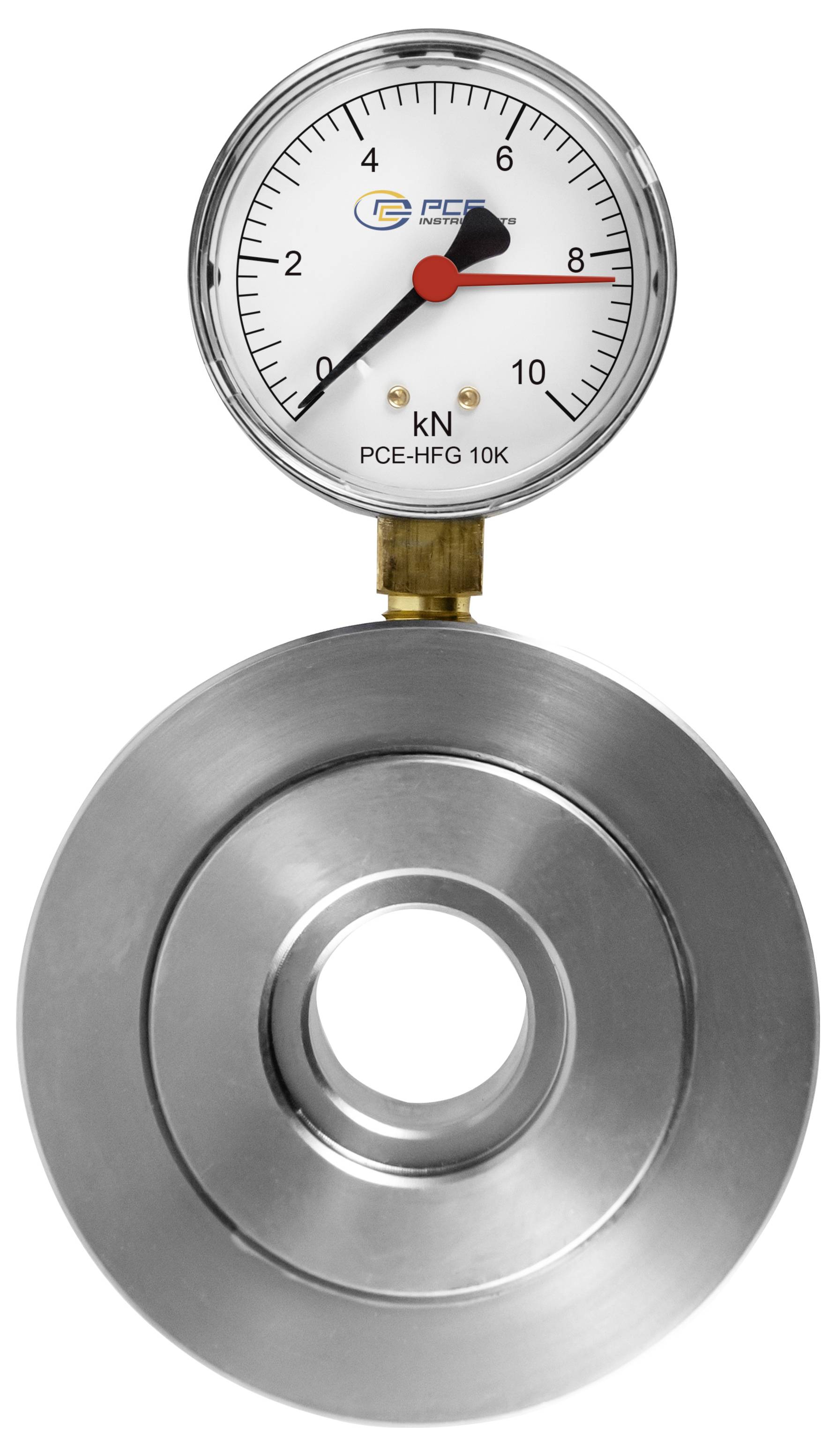

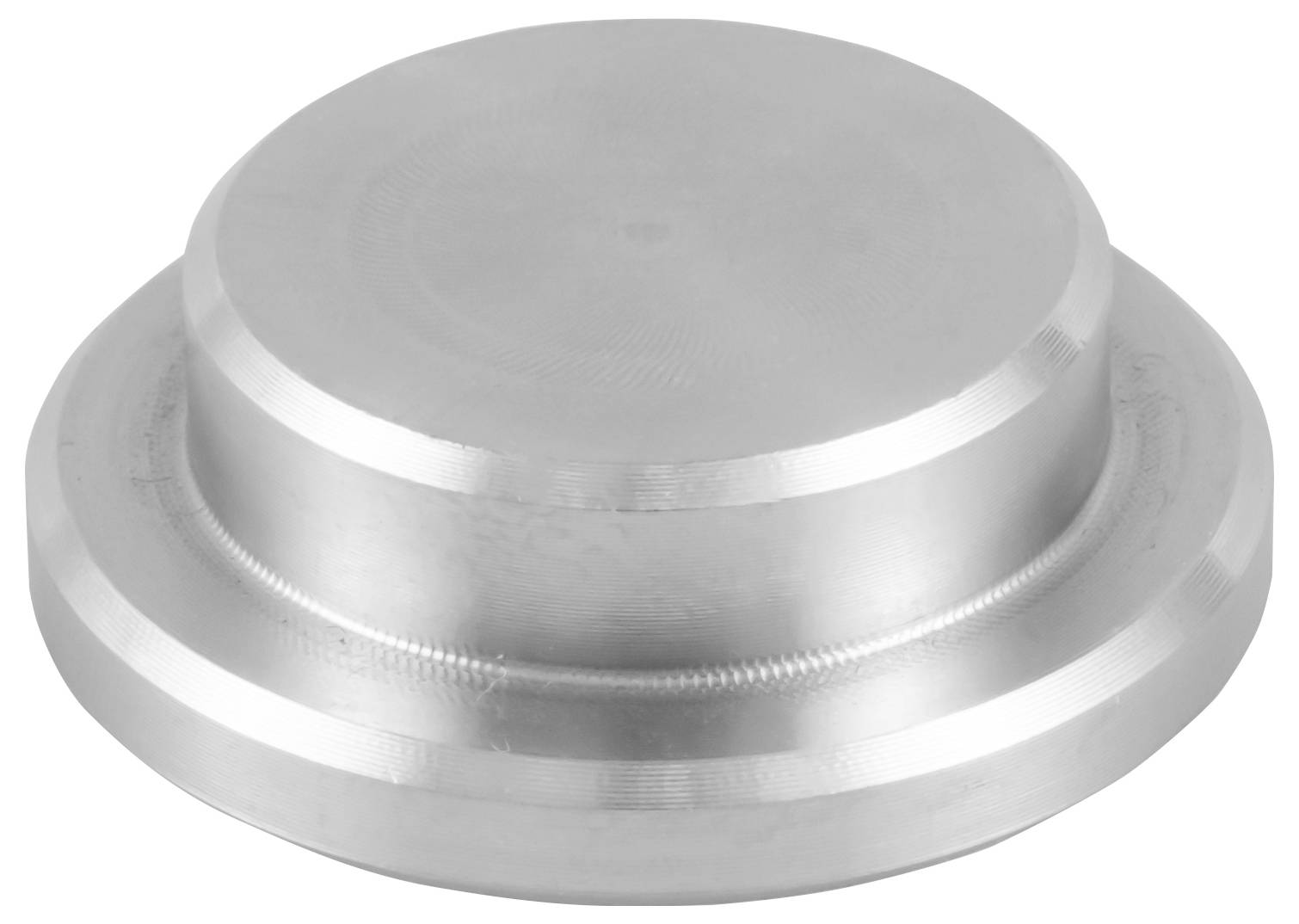

Another special feature of the hydraulic force sensor is the 27 mm ring opening. With this ring opening, the hydraulic force sensor can be used to carry out measurements on, for example, guide rails, shafts and also bolts from, for example, a hydraulic press. With the applicable stamp adapter, the hydraulic force sensor can be converted from a ring force meter to a pressure stamp force meter in seconds. This allows the hydraulic force transducer to be used flexibly.

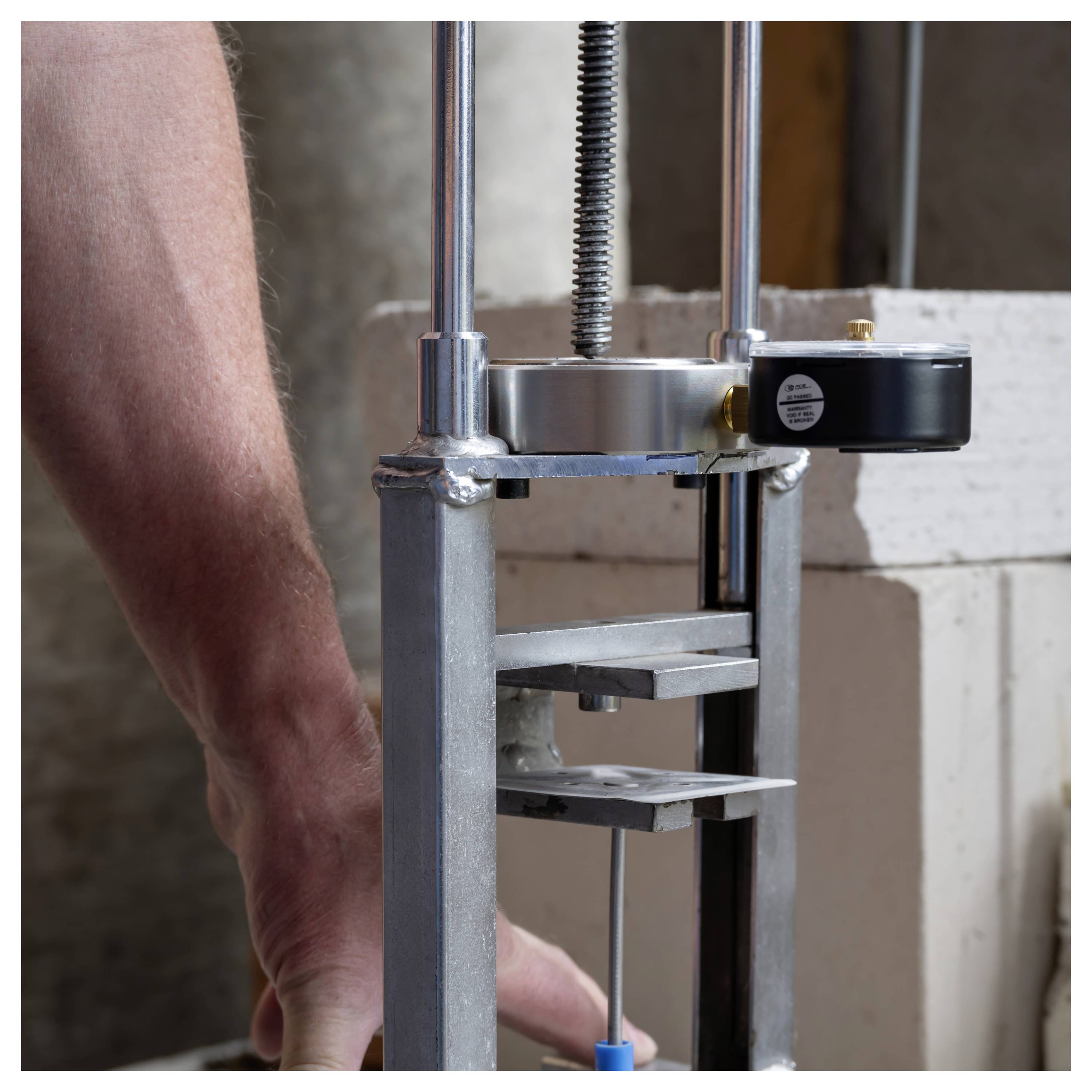

Wherever forces to be measured, a hydraulic force transducer is used. For this reason, a hydraulic force transducer can be used optimally for maintenance measurements and calibration work of, for example, industrial machines.
This text is machine translated.
Another special feature of the hydraulic force sensor is the 27 mm ring opening. With this ring opening, the hydraulic force sensor can be used to carry out measurements on, for example, guide rails, shafts and also bolts from, for example, a hydraulic press. With the applicable stamp adapter, the hydraulic force sensor can be converted from a ring force meter to a pressure stamp force meter in seconds. This allows the hydraulic force transducer to be used flexibly.
Wherever forces to be measured, a hydraulic force transducer is used. For this reason, a hydraulic force transducer can be used optimally for maintenance measurements and calibration work of, for example, industrial machines.
This text is machine translated.
Features
- Measuring range: 0 … 10,000 N.
- Resolution 200 N
- Measuring accuracy ±1.85% of measuring range
- Incl. ISO calibration certificate
Scope of delivery
- 1 x PCE-HFG 10K-ICA hydraulic force transducer
- 1 x transport case
- 1 x insert panel
- 1x user manual
- 1 x ISO calibration certificate
Hints
PCE Instruments Hydraulic force transducer PCE-HFG 10K-ICA incl. ISO calibration certificate can also be used as a force meter force transducer
