PCE Instruments PCE-HFG 1K-E100 Force gauge 0 - 1000 N Manufacturer's standards (no certificate)

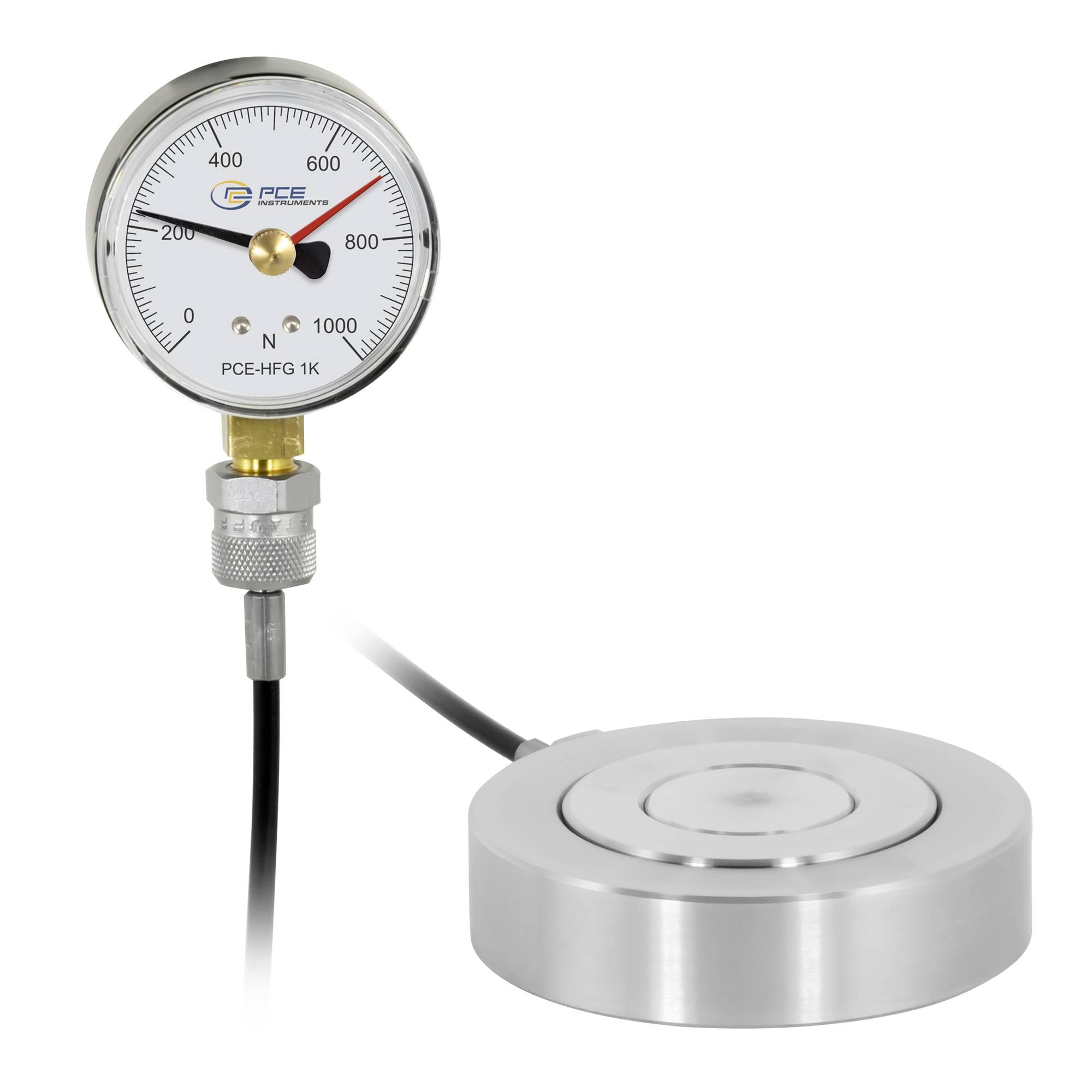

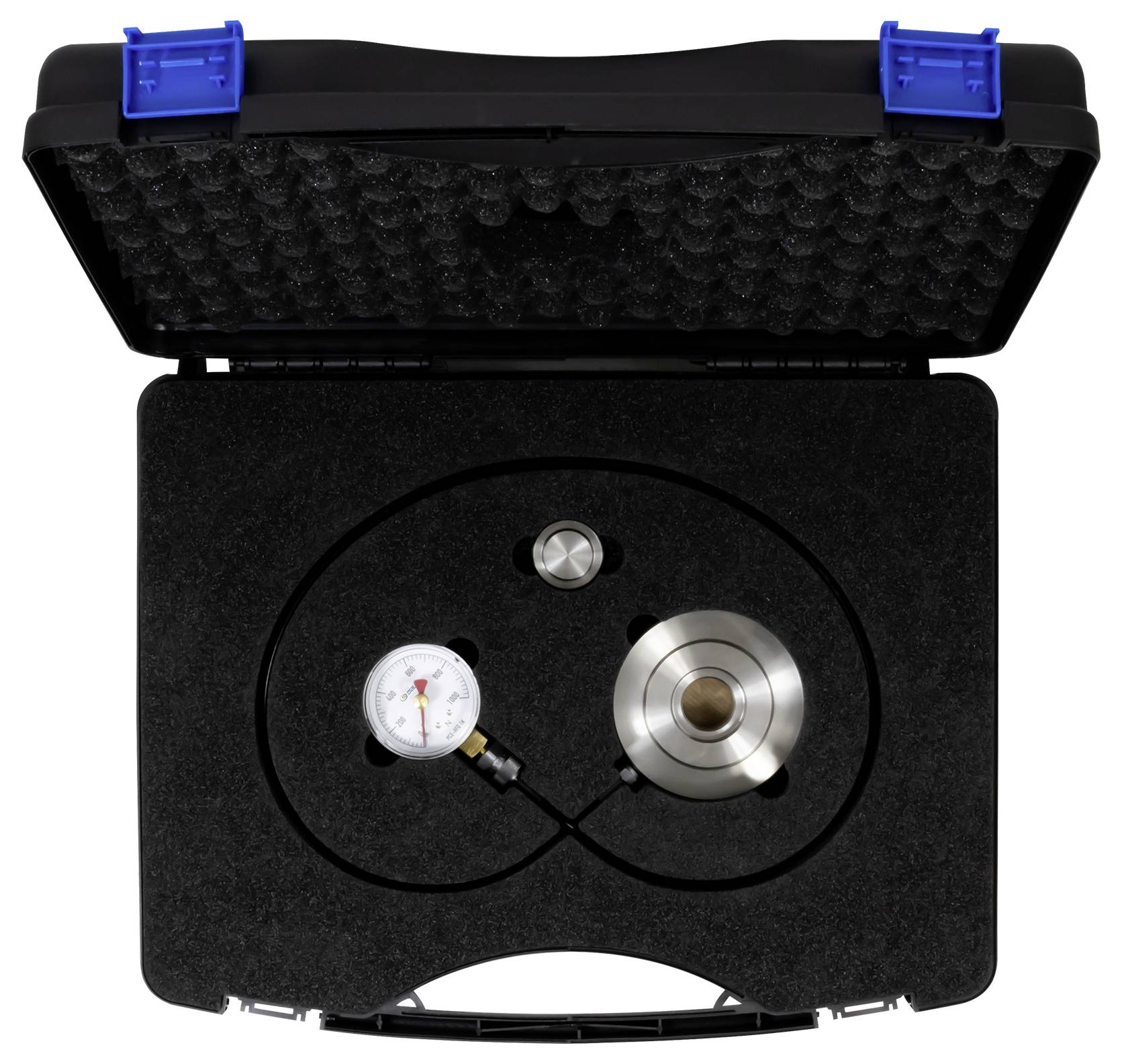

Hydraulic force meter with analogue scale
Made of stainless steel
Compact for small installation rooms
Measurement of static pressure

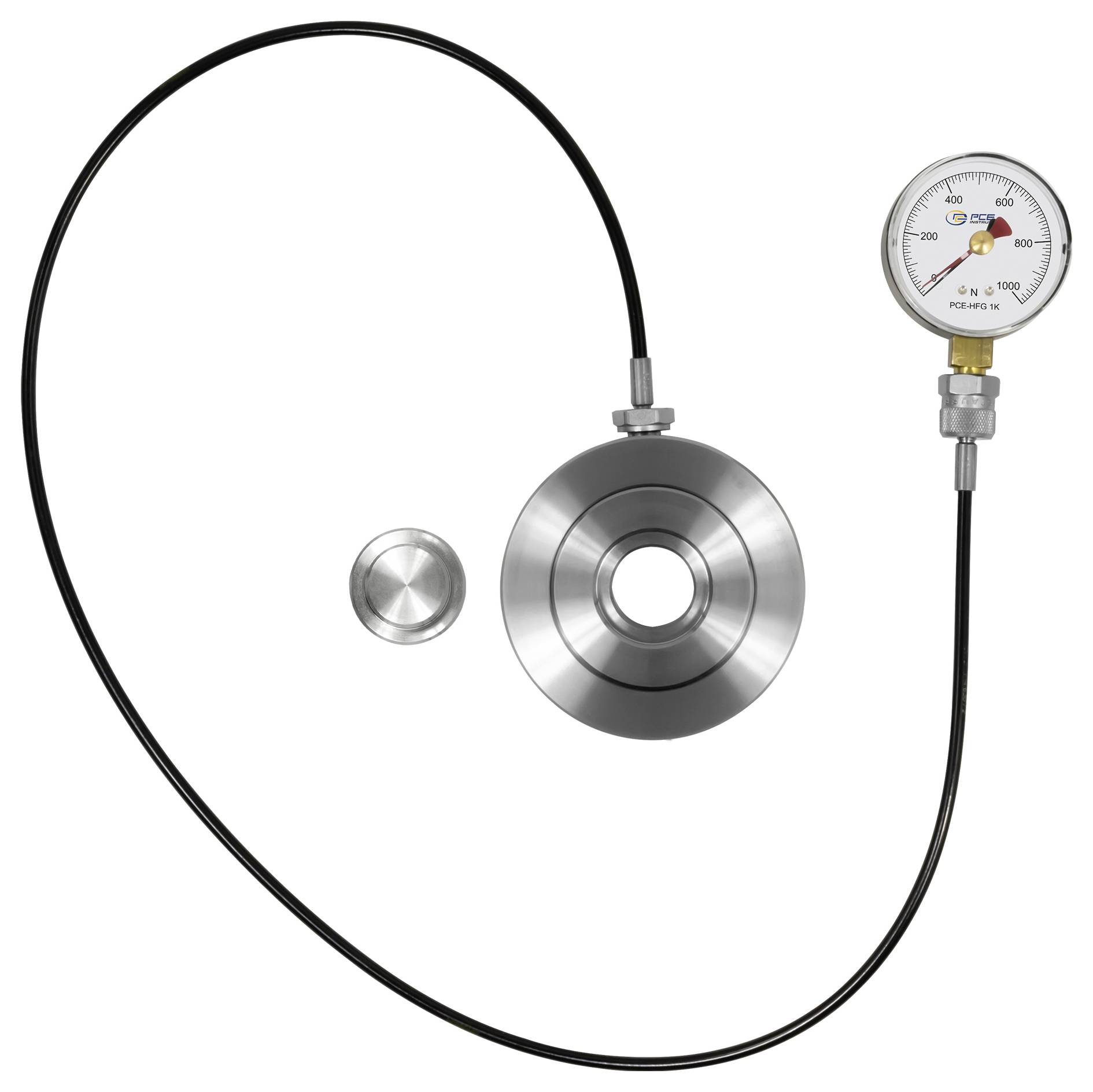

Ring force transducer and pressure stamp
27 mm ring hole size
Pressure force display in Newton [N]
Measuring range 0 … 1,000 N
Resolution 20 N
Integrated drag indicator
Screw socket for axial mounting
With mounting holes

Technical specifications

Measuring range 0 … 1,000 N
Resolution 20 N
Measuring accuracy ±2.5% from
Reading range
Hydraulic hose length 100 cm
Dimensions of the display Ø 55 mm
Mounting holes 2 x M6
Environmental conditions: 0 - 50 °C

Product type: Force gauge

Display: Analogue

Force reading range (max.): 1000 N

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 180 x 105 x 35 mm

Weight: 1.6 kg

Resolution (force): 20 N

Basic accuracy: 1.95 %

Force reading range: 0 - 1000 N

Force reading range (min.): 0 N

Width: 105 mm

Height: 35 mm

Length: 180 mm

Documents & Downloads

Datasheet

Datasheet 3192972 PCE Instruments PCE-HFG 1K-E100 Force gauge 0 - 1000 N Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 3192972 PCE Instruments PCE-HFG 1K-E100 Force gauge 0 - 1000 N Manufacturer's standards (no certificate)

Description

A hydraulic force meter is based on the principle that the force acting on the pressure die is measured hydraulically. The hydraulic pressure generated is displayed by the hydraulic force gauge on a scale in Newton. With the integrated drag indicator, our hydraulic force meter can display the respective maximum measured value.

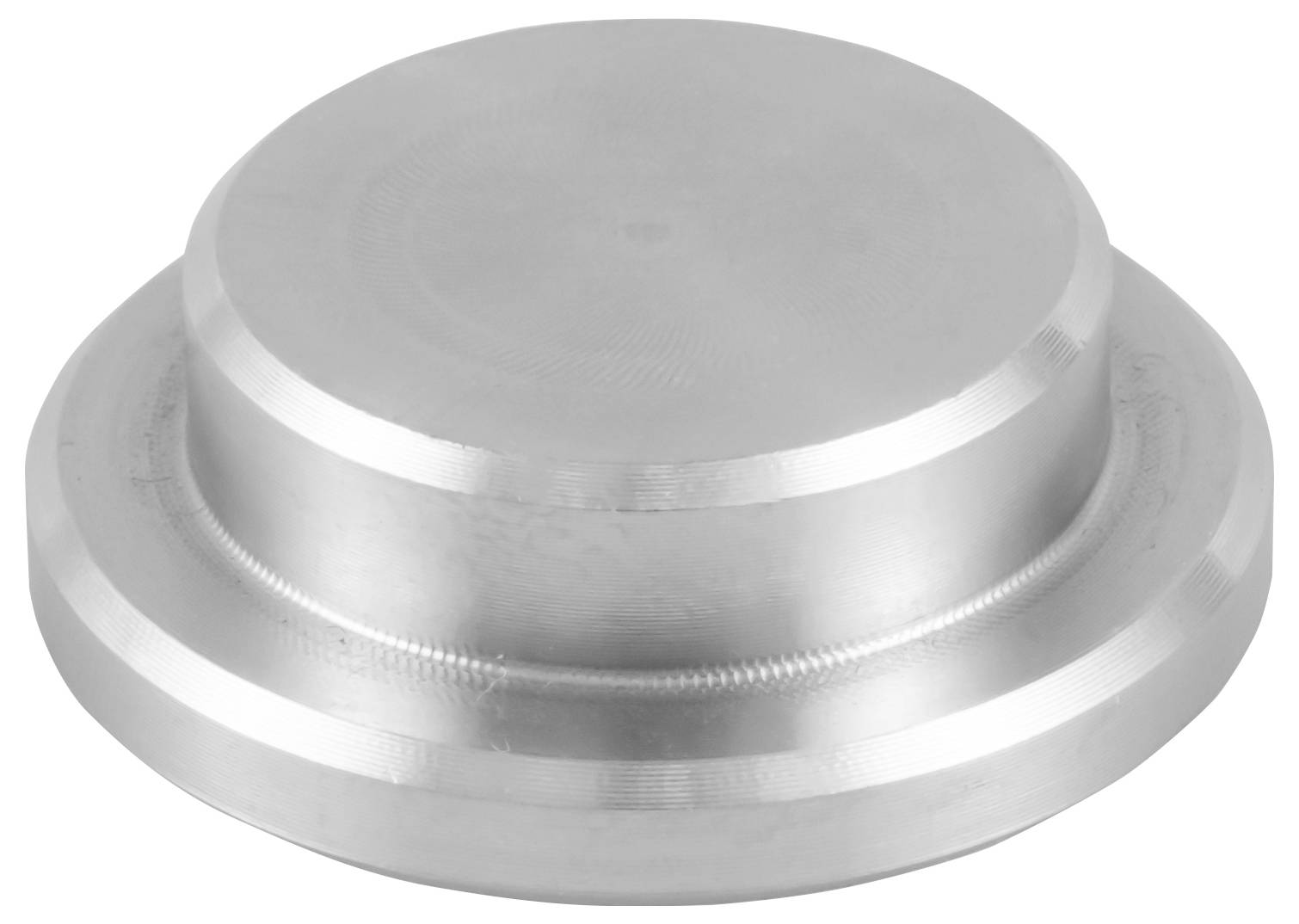

Another special feature of the hydraulic force gauge is the ring opening, which is 27 mm in size. With this ring opening, measurements can be made with the hydraulic force meter on, for example, guide rails, shafts and also bolts from, for example, a hydraulic press. With the applicable stamp adapter, the hydraulic force meter can be converted from a ring force meter to a pressure stamp force meter in seconds. Thus the hydraulic force meter can be used flexibly.

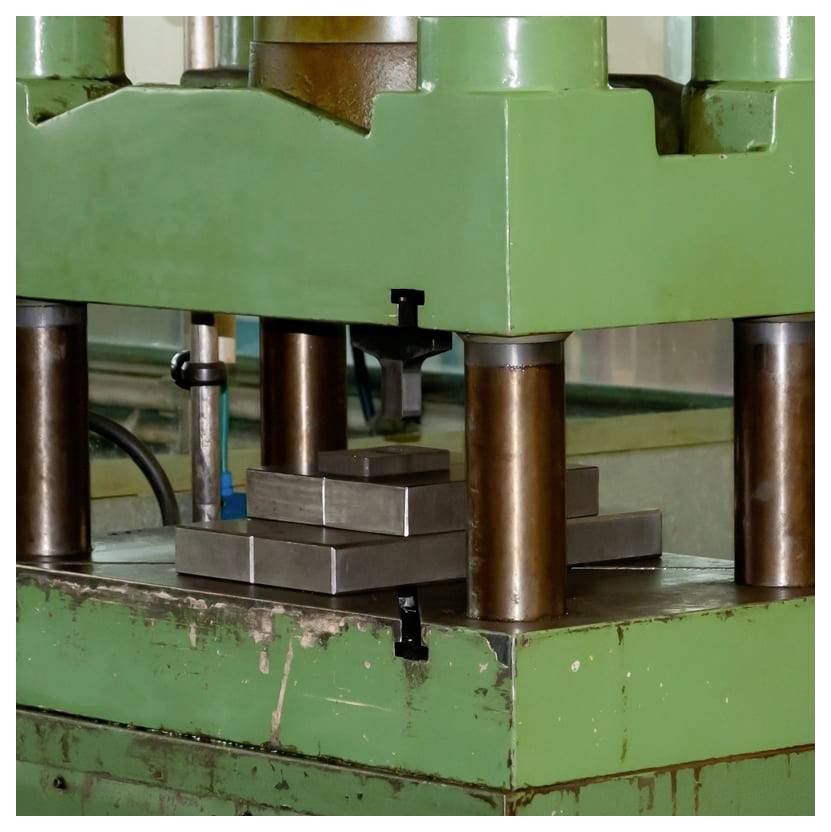

Wherever forces to be measured, a hydraulic force meter is used. For this reason, a hydraulic force gauge can be used optimally for maintenance measurements and adjustments of, for example, industrial machines.

This text is machine translated.
