Name: PCE Instruments PCE-HFG 2.5K-E100-ICA Force gauge 2500 N (max.) ISO standards
Brand: PCE Instruments
SKU: 3813156

Pressure gauge attached to a round load cell sensor beside a calibration certificate, showing a PCE instrument setup for force or pressure measurement.

Hydraulic load cell with round steel sensor, cable, small adapter, and pressure gauge on a white background.

Stainless steel pressure sensor assembly with a digital gauge connected by a black hose, plus a small circular cap piece on a white background.

A silver metallic round lid or cap with a flat top and raised stepped base, shown on a white background.

Close-up of a round silver metal cap or machined disc with a stepped base on a white background.

Green industrial press machine compressing stacked metal blocks on a workshop floor.

Industrial press machine compressing stacked metal blocks in a workshop.

Open black foam case containing a pressure gauge and metal fitting, with blue latches on the lid.<br>

Open black carrying case with foam cutouts holding a metal device and pressure gauge, likely a portable instrument kit.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

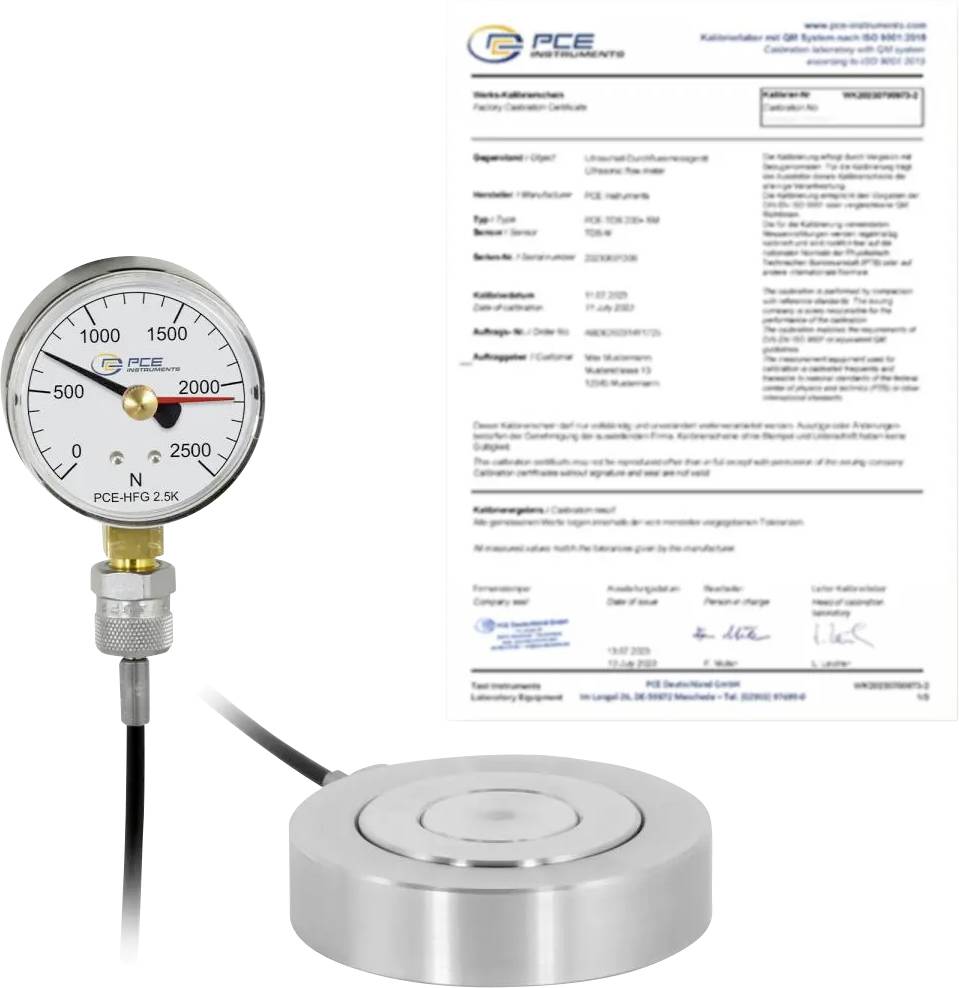

PCE Instruments PCE-HFG 2.5K-E100-ICA Force gauge 2500 N (max.) ISO standards

Hydraulic force meter with analogue scale
Made of stainless steel
Compact for small installation rooms
Measurement of static pressure

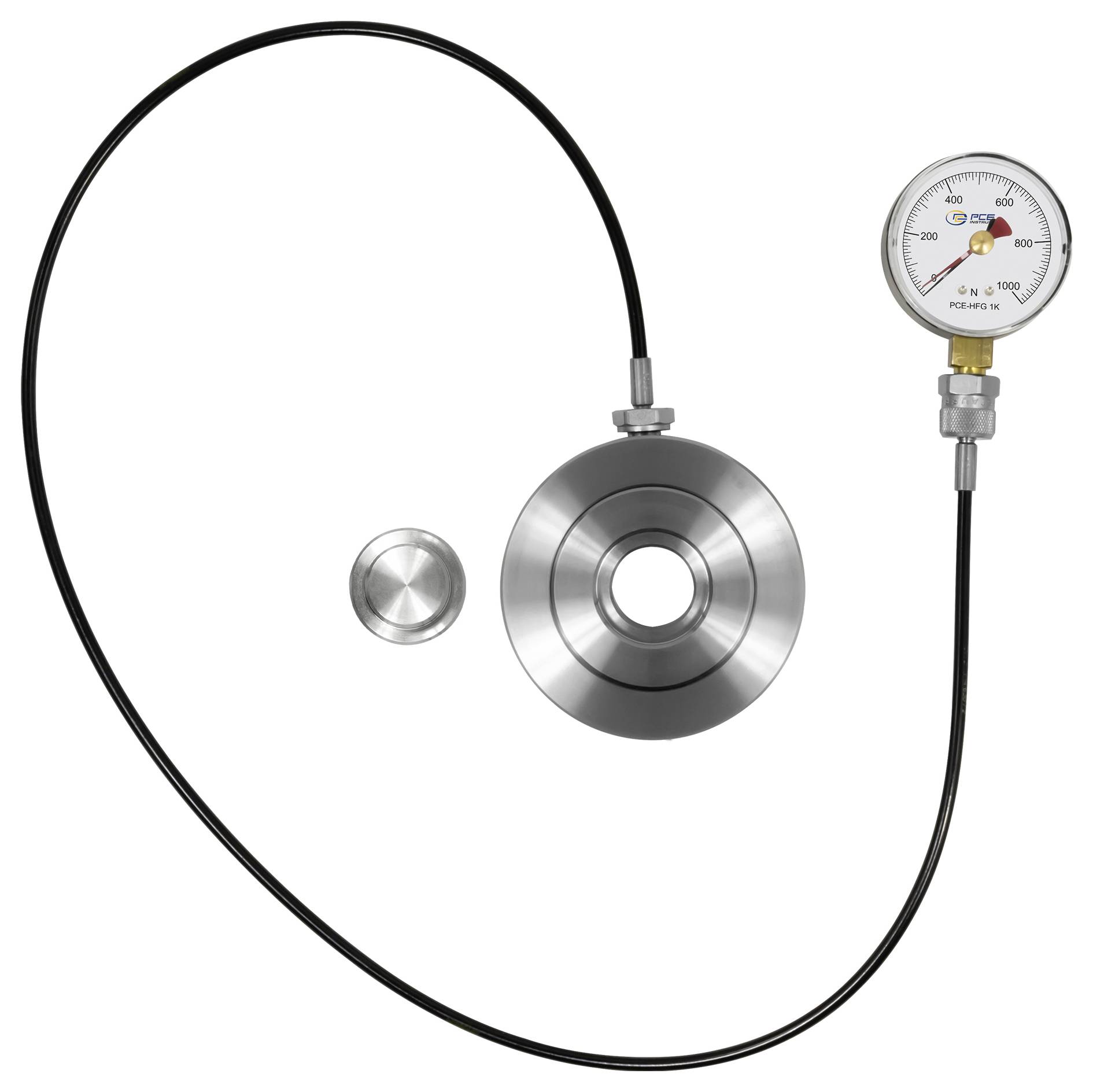

Ring force transducer and pressure stamp
27 mm ring hole size
Pressure force display in Newton [N]
Measuring range 0 … 1,000 N
Resolution 20 N
Integrated drag indicator
Screw socket for axial mounting
With mounting holes
ISO calibration certificate included

Technical specifications

Measuring range 0 … 2,500 N
Resolution 100 N
Measuring accuracy ±1.85% from
Reading range
Hydraulic hose length 100 cm
Dimensions of the display Ø 55 mm
Mounting holes 2 x M6
Environmental conditions: 0 - 50 °C

Product type: Force gauge

Display: Analogue

Force reading range (max.): 2500 N

: ISO standards

Dim: (L x W x H) 180 x 105 x 35 mm

Weight: 1.6 kg

Basic accuracy: 1.95 %

Force reading range: 2500 N (max.)

Width: 105 mm

Height: 35 mm

Length: 180 mm

Documents & Downloads

Datasheet

Datasheet 3813156 PCE Instruments PCE-HFG 2.5K-E100-ICA Force gauge 2500 N (max.) ISO standards

User & Safety Instructions

User & Safety Instructions 3813156 PCE Instruments PCE-HFG 2.5K-E100-ICA Force gauge 2500 N (max.) ISO standards

Description

A hydraulic force meter is based on the principle that the force acting on the pressure die is measured hydraulically. The hydraulic pressure generated is displayed by the hydraulic force gauge on a scale in Newton. With the integrated drag indicator, our hydraulic force meter can display the respective maximum measured value.

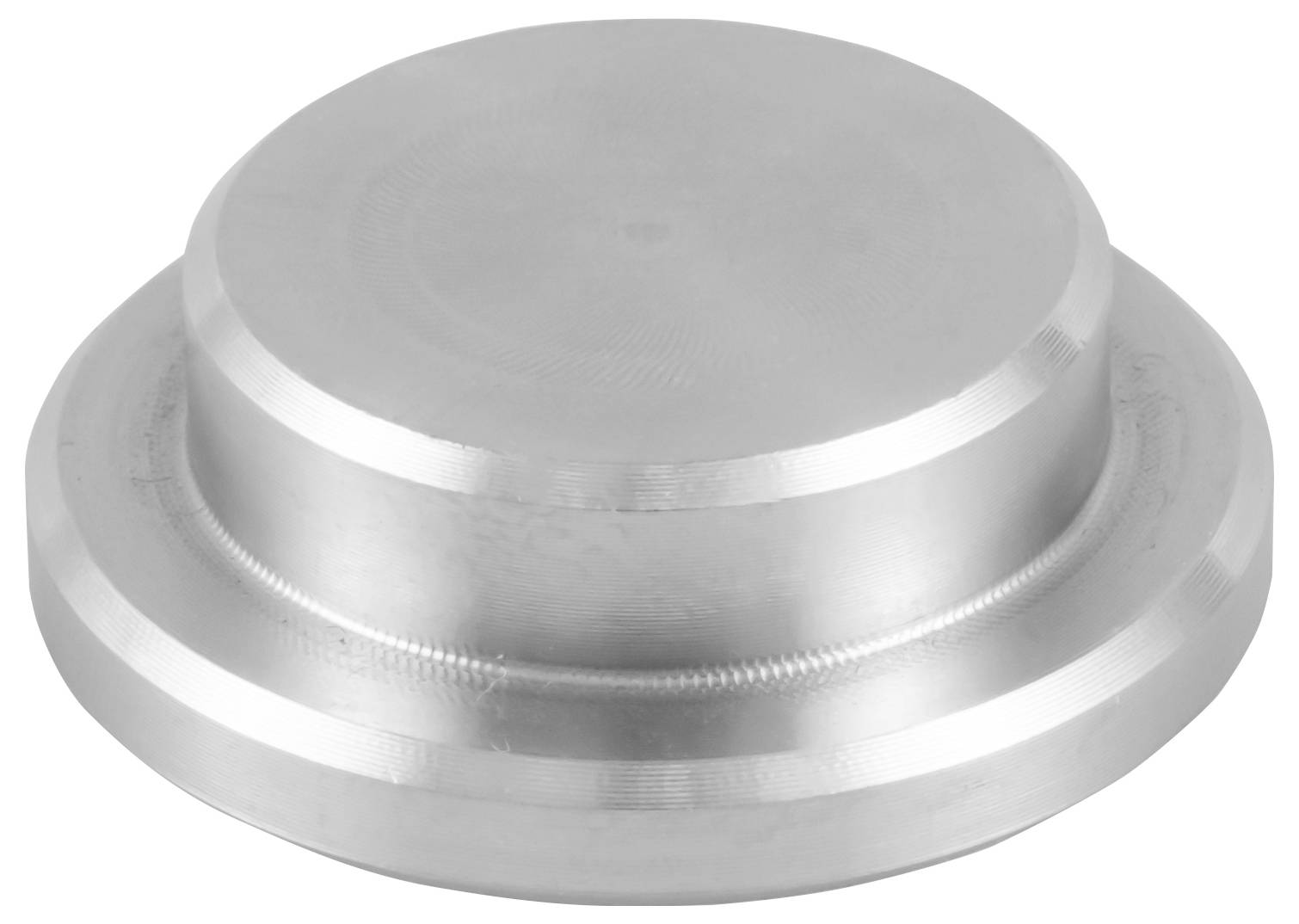

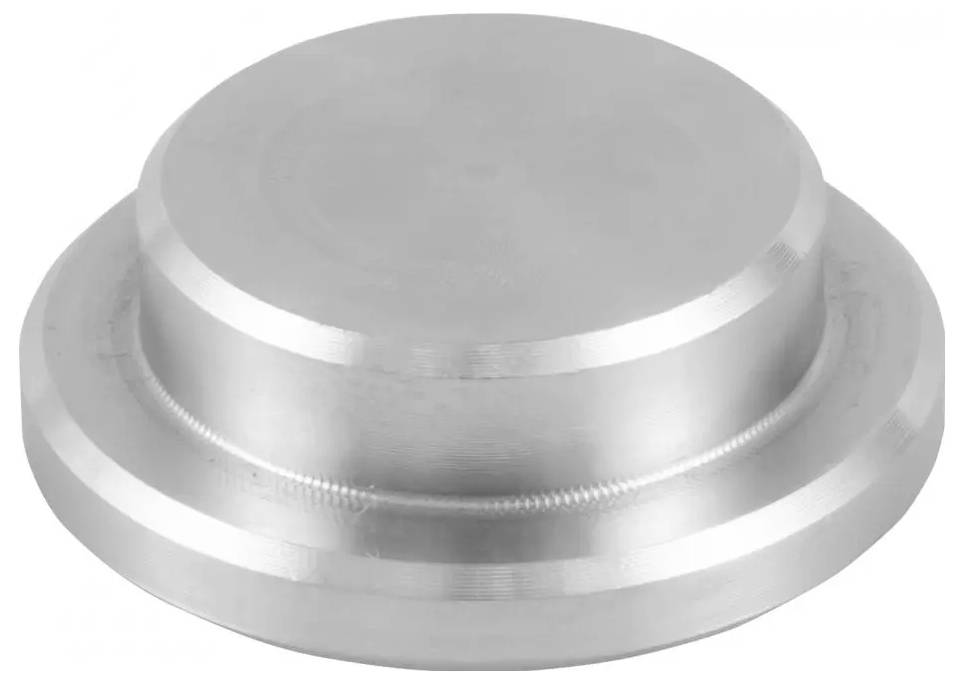

Another special feature of the hydraulic force gauge is the ring opening, which is 27 mm in size. With this ring opening, measurements can be made with the hydraulic force meter on, for example, guide rails, shafts and also bolts from, for example, a hydraulic press. With the applicable stamp adapter, the hydraulic force meter can be converted from a ring force meter to a pressure stamp force meter in seconds. Thus the hydraulic force meter can be used flexibly.

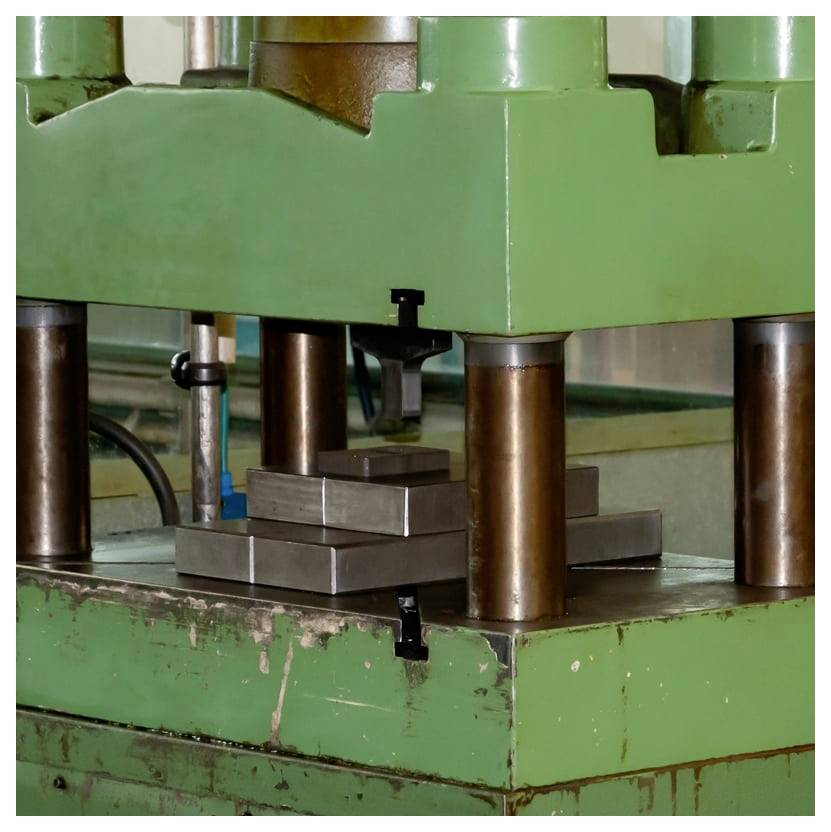

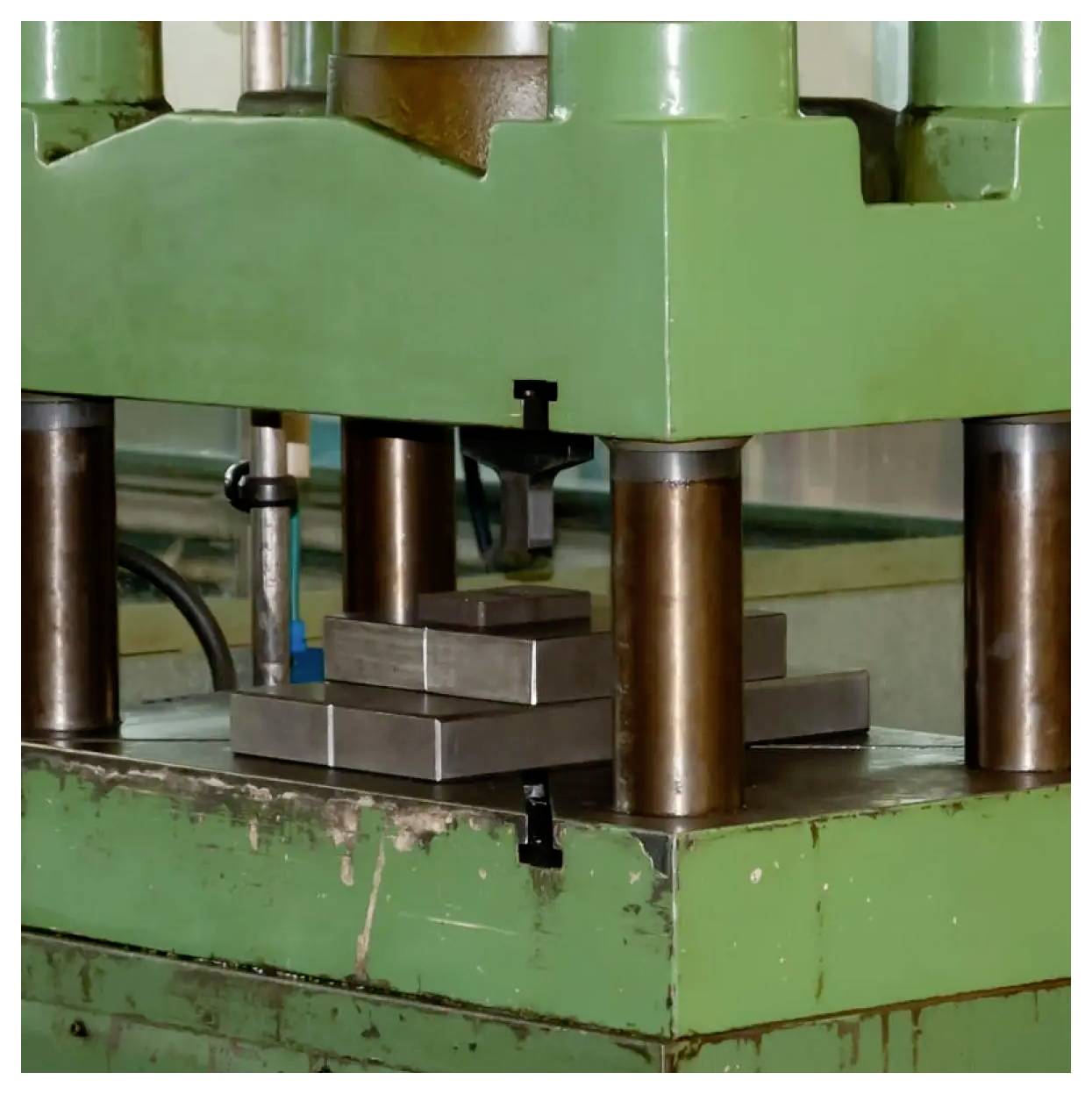

Wherever forces to be measured, a hydraulic force meter is used. For this reason, a hydraulic force gauge can be used optimally for maintenance measurements and adjustments of, for example, industrial machines.

This text is machine translated.
