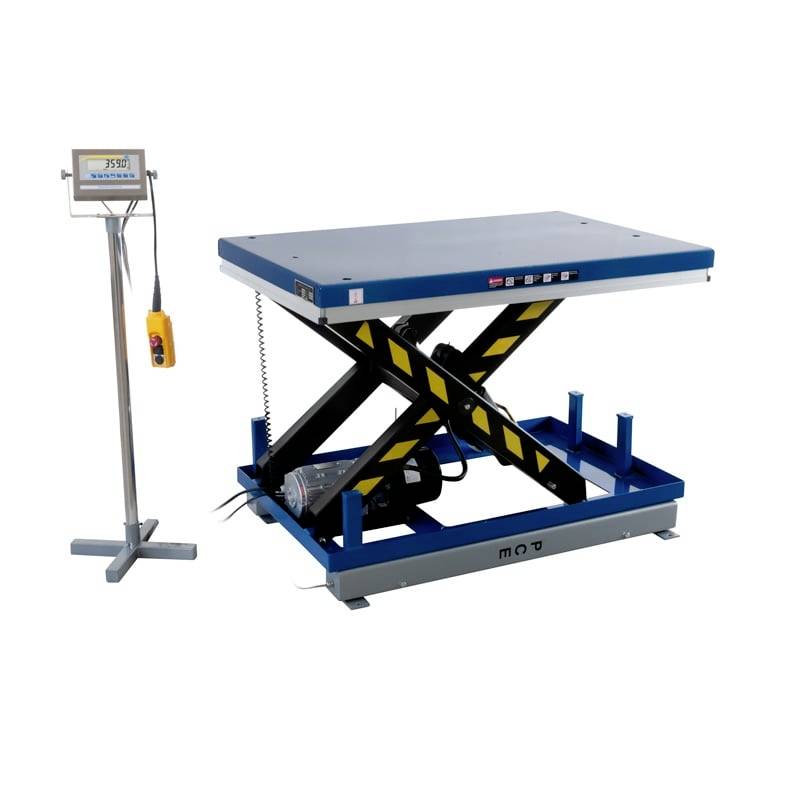

PCE Instruments PCE-HLTS 2T Scissor lift table scales PCE-HLTS 2T Weight range 2000 kg battery-powered

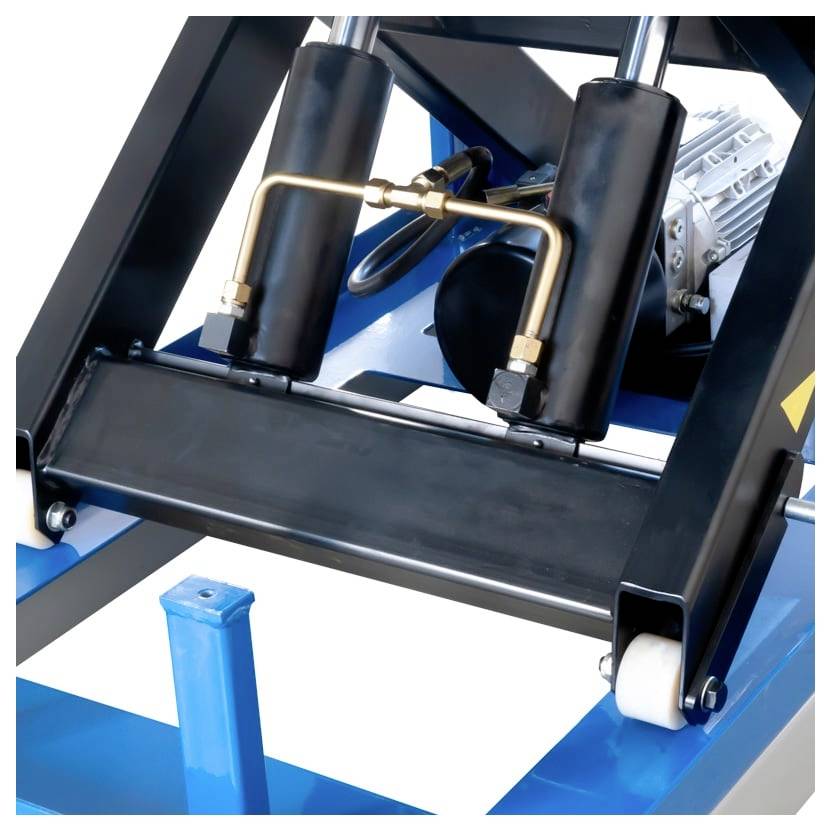

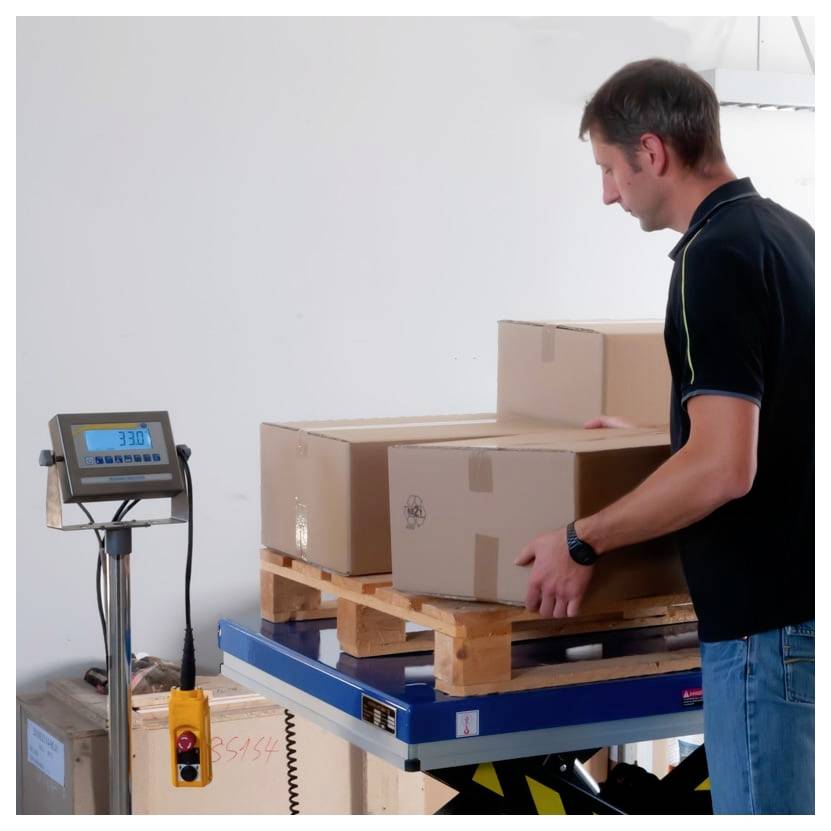

The lifting table balance is a practical combination of height-adjustable work table and scale. This stable combination allows ergonomic working in logistics and in shipping, packaging or picking. Due to the direct weighing of the parts with the lifting table scales or the use of the piece counting function, two work steps can be combined, which saves time. At the same time, the use of a height-adjustable lifting table balance ensures a more ergonomic work, since the working height can be optimally adjusted to the individual circumstances of the employee, particularly in case of heavy parts, thus ensuring that work is carried out without damaging the back is possible. The working surface of the lifting table consists of a platform which is supported by two scissors of the same length on the basic frame of the shear lifting table. The scissors rotate around an axis at the center of the arms, allowing the platform to be lifted and lifted evenly. Thanks to the infinitely adjustable height adjustment, the hydraulic lifting table balance thus helps to work quickly, more comfortably and without damage to the back. This lifting table scale consists of a sturdy shear lifting table which allows the adjustment to an individual working height of 350 …. 1130 mm is possible. The hydraulic lift table scale can lift a load up to 2t (2,000 kg) and weigh with a resolution of 0.5 kg. The bench scale has an enclosed surface area of 1300 x 850 mm. The working surface of the hydraulic lifting table balance is surrounded by a safety bar which immediately interrupts the lowering process in case of a sticking in order to avoid possible personal injury. The lifting and lowering of the lifting table scales are operated via an external control unit with lift button, lowering button and emergency stop button. Thanks to the adjustable alarm limits, for example, the functions of the lifting table scale do not allow a specified actual weight to be exceeded (overload protection). The piece counting function can be used for the completeness check and a summing function can add the total weight of several weights and transfer them to the PC or print them on an optionally available printer with time and date. The lifting table balance is delivered in two parts. On the one hand, the system consists of weighing beams, which are anchored in an orientation to the ground. In the second step, the shear lifting table is screwed to the weighing beams and the power supply to the lifting table balance and the hydraulic. This completes the assembly and allows the hydraulic lift table balance to be used. Accessories The lifting table scales can be combined with additional components to increase the functionality of the system. In addition to an analog interface (4…20 mA), a data logger can also be connected for recording measured values over long periods of time. It is also possible to use PC software to transfer measured values to other data processing programs. For direct documentation, a printer can also be connected to the lifting table scales so that the results can be documented or logged. If the measured values are to be read or controlled from a great distance, the large display can also be used. Safety Note : The specified load capacity of the table-lift scale is only applicable for evenly distributed loads and sufficient ground anchorage.

This text is machine translated.
