Buy PCE Instruments PCE-HM 250 Heating mantle PCE-HM 250

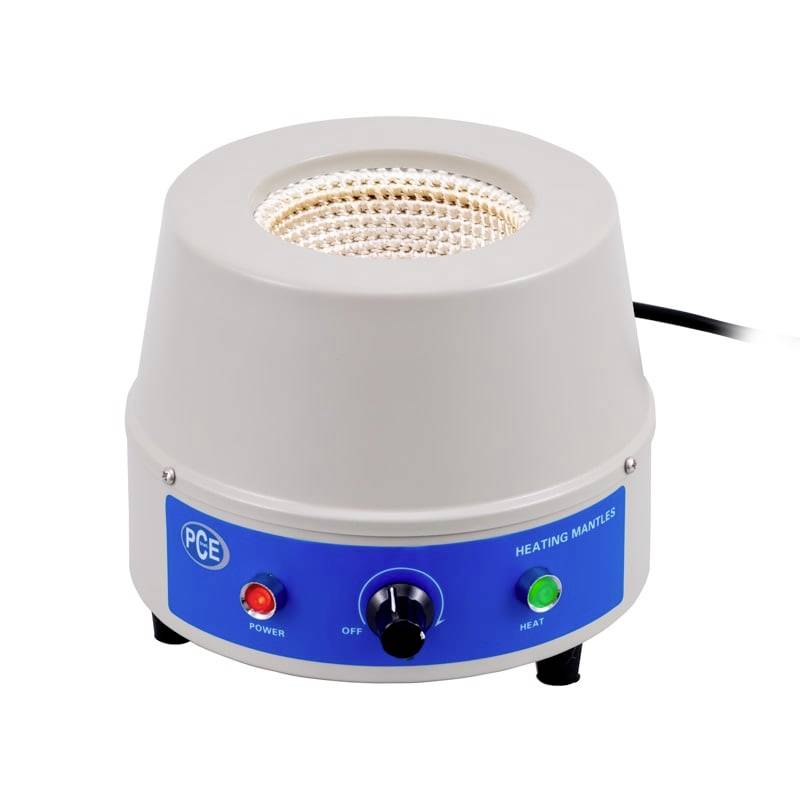

Electric heating mantle with control knob and power/heat indicator lights on a blue front panel.

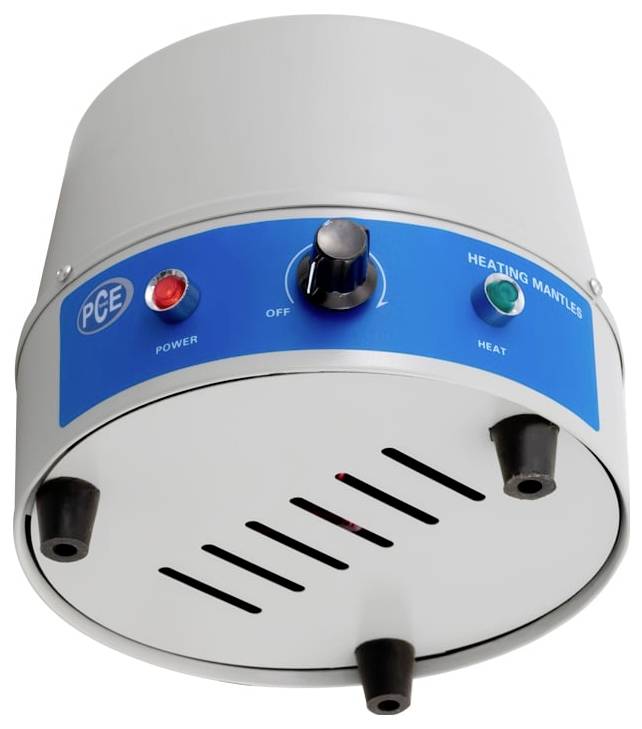

Underside view of a PCE heating mantle with power and heat indicator lights, central control knob, and vent slits.

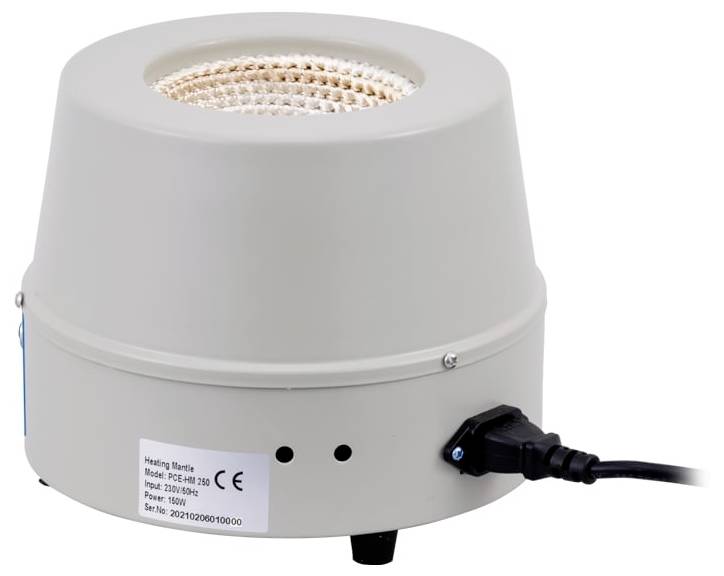

Compact gray electric heating mantle with top opening, power cord, and front label on a white background.

Close-up of a recessed ceiling light with a woven, textured inner reflector in a round white housing.

PCE Instruments PCE-HM 250 Heating mantle PCE-HM 250-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Heating hood PCE-HM 250

{Power} 150 W Operating temperature 0 ... 450 °C Short heat-up time For round pistons 250 ml With rotary switch With integrated controller

Technical specifications

Round piston volume 250 ml Supply voltage 230 V. Maximum operating temperature 0 °C to +450 °C {Power} 150 W Continuous working time Internal dimensions Ø 200 mm x 160 mm Dimensions outside Ø 230 mm X230 mm x 170 mm Weight approx. 2.5 kg

Product type: Heating mantle

Operating voltage: 230 V

: 150 W

Dim: (L x W x H) 235 x 230 x 170 mm

Width: 230 mm

Height: 170 mm

Length: 235 mm

Connection: CEE 7/4 plug

Packaging type: Box

Documents & Downloads

Datasheet

Datasheet 2813603 PCE Instruments PCE-HM 250 Heating mantle PCE-HM 250

User & Safety Instructions

User & Safety Instructions 2813603 PCE Instruments PCE-HM 250 Heating mantle PCE-HM 250

Description

The heating hood PCE-HM 250 is an auxiliary device used in laboratories. The heating hood helps you to heat or temperature different samples or chemicals in the laboratory. The device has a chopped net on the inside into which the round piston can be suspended and then heated. The round bulb is the typical shape of the glass vessels placed in the heating hood. The round flask is a vessel of up to 250 ml in size which allows the liquid to be absorbed accordingly. The temperature range of the heating cover ranges from 0 to 450 °C and this temperature is adjusted directly on the heating cover via a continuously adjustable rotary switch. The rapid heat-up time saves the user time. If you are looking for a heating hood that covers a different drum capacity or temperature range, please look at our heating hoods.

This text is machine translated.

Features

Heating hood PCE-HM 250 Heated cushion for 250 ml round pistons Infinitely adjustable (rotary switch) With 150 watt power With integrated controller Temperature range of 0 ... 450 °C
