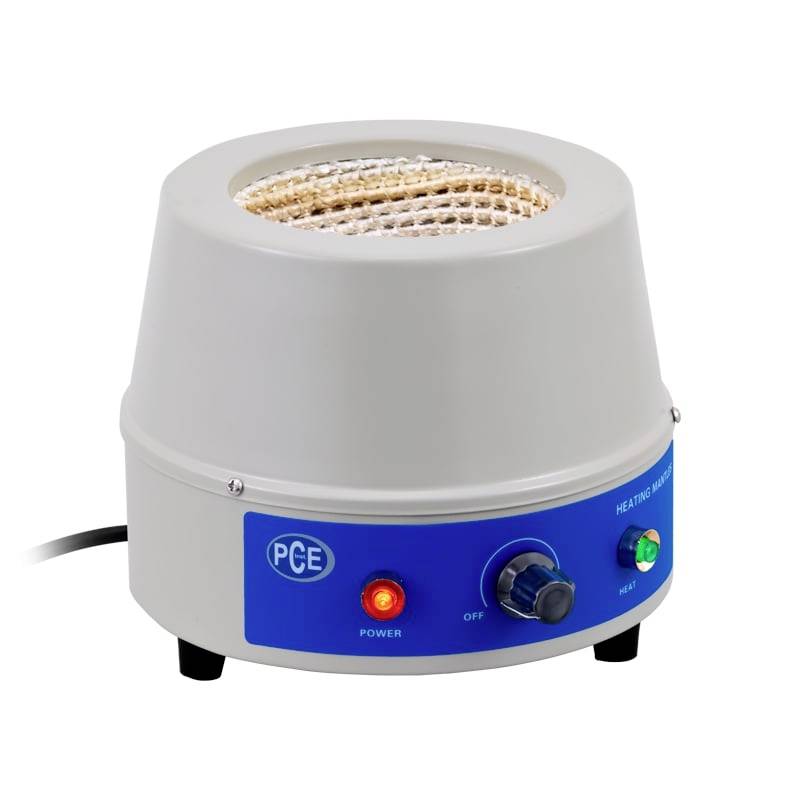

Laboratory heater with exposed heated coil, power light, and control knobs on a blue base.

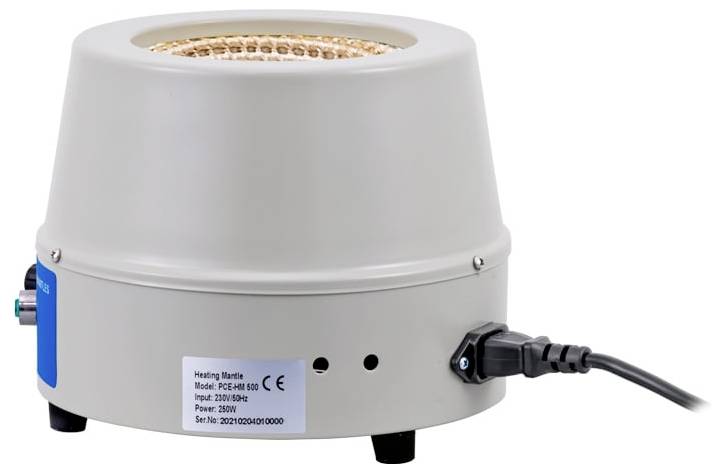

Electric heating mantle with gray cylindrical body, power cord, and label, shown on a white background.

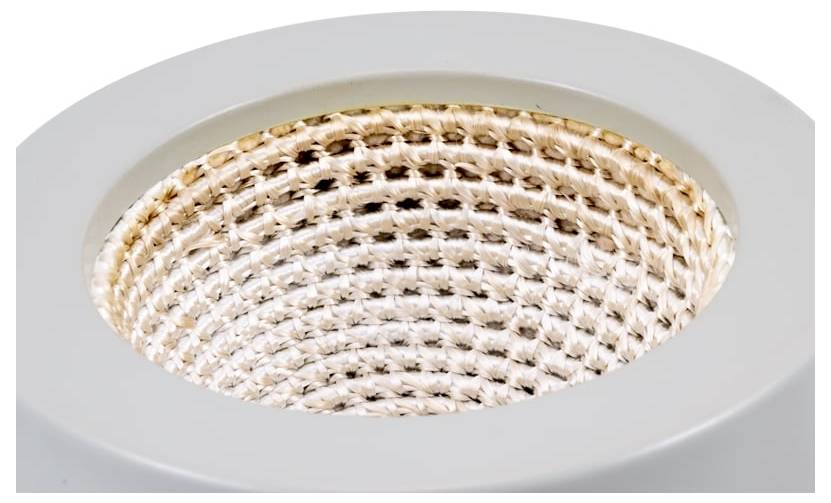

Close-up of a recessed light fixture with a woven, basket-like inner shade set into a gray circular ceiling opening.

PCE Instruments PCE-HM 500 Heating mantle PCE-HM 500-4

PCE Instruments PCE-HM 500 Heating mantle PCE-HM 500-5

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Heating hood PCE-HM 500

Power 250 W Operating temperature 0 ... 450 °C Short heat-up time For round pistons 500 mlWith rotary switch With integrated controller

Technical specifications

Round piston volume 500 ml Supply voltage 230 V. Maximum operating temperature 0 °C to +450 °C Power 250 W Continuous working time Internal dimensions Ø 200 mm X160 mm External dimensions Ø 230 mm x 230 mm x 170 mm Weight approx. 2.5 kg

Product type: Heating mantle

Operating voltage: 230 V

: 250 W

Dim: (L x W x H) 240 x 230 x 230 mm

Width: 230 mm

Height: 230 mm

Length: 240 mm

Connection: CEE 7/4 plug

Packaging type: Box

Documents & Downloads

Datasheet

Datasheet 2813604 PCE Instruments PCE-HM 500 Heating mantle PCE-HM 500

User & Safety Instructions

User & Safety Instructions 2813604 PCE Instruments PCE-HM 500 Heating mantle PCE-HM 500

Description

The heating hood PCE-HM 500 is an auxiliary device used in laboratories. The heating hood helps you to heat or temperature different samples or chemicals in the laboratory. The device has a chopped net on the inside into which the round piston can be suspended and then heated. The round bulb is the typical shape of the glass vessels placed in the heating hood. The round flask is a vessel of up to 500 ml in size which allows the liquid to be absorbed accordingly. The temperature range of the heating cover ranges from 0 to 450 °C and this temperature is adjusted directly on the heating cover via a continuously adjustable rotary switch. The rapid heat-up time saves the user time. If you are looking for a heating hood that covers a different drum capacity or temperature range, please look at our heating hoods.

This text is machine translated.

Features

Heating hood PCE-HM 500 Heated cushion for 500 ml round pistonsInfinitely adjustable (rotary switch)With 250 watt powerWith integrated controllerTemperature range of 0 ... 450 °C
