Buy PCE Instruments PCE-HPT 1 PCE-HPT 1 Temperature data logger 0 up to 400 °C

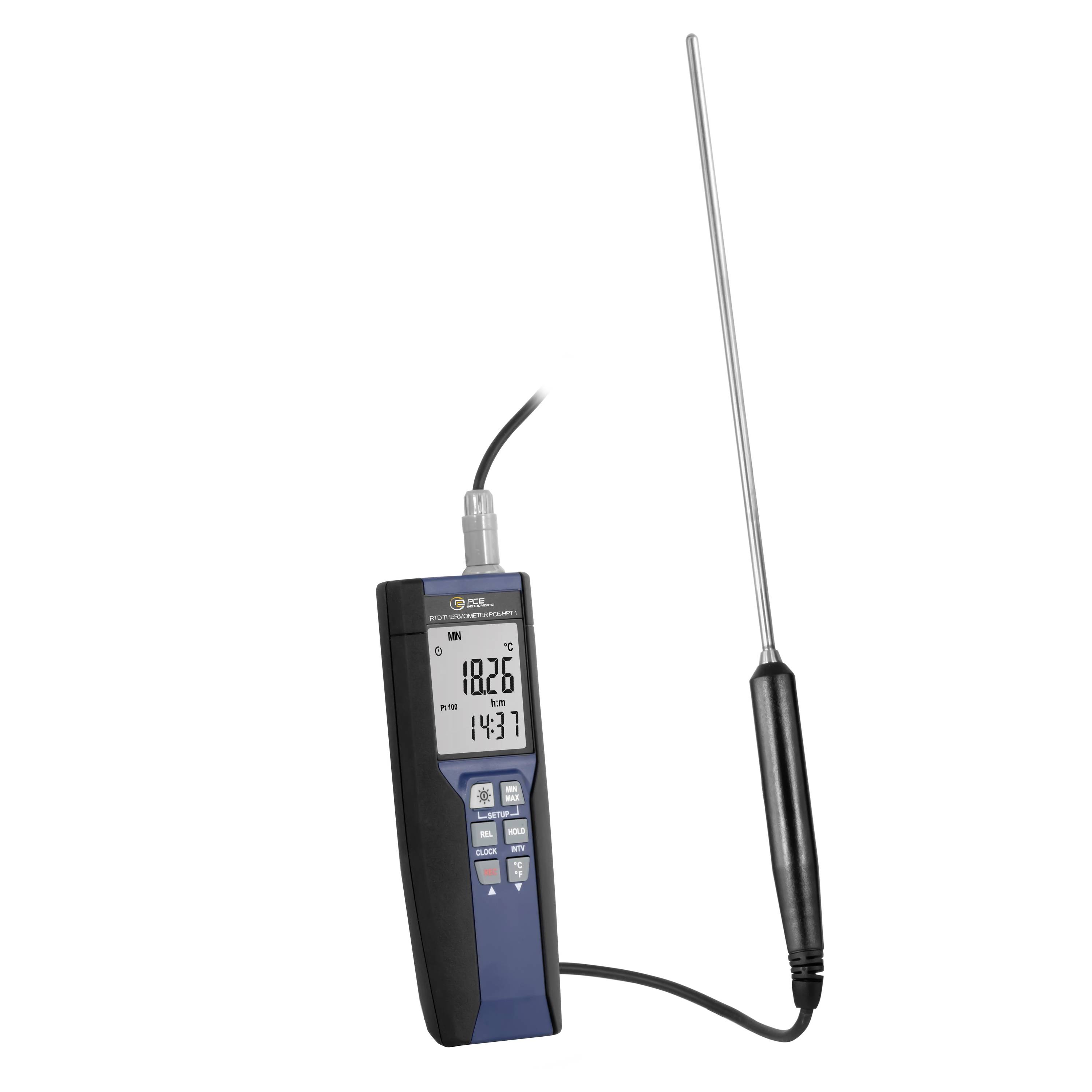

Handheld digital thermometer with a long probe and LCD display reading 18.26 and 14.37.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-HPT 1 PCE-HPT 1 Temperature data logger 0 up to 400 °C

1 channel data logger for temperature
Automatic switch-off
High accuracy
Backlight
Incl. software
Internal data logger
Internal clock
4 conductors Pt-100 sensor class A
Data hold function
Units switchable (°C /°F)

Technical specifications

Measuring range -100 ... +400 °C Accuracy ±0.05 % + 0.1 °C (at 18 °C to 28 °C) device only Resolution 0.01 ° C. Sensor 4 wire Pt-100 Class A Display 5-digit LC display Data transfer USB Data memory up to 5000 measuring points Measurement repeat 0.5 s a measured value Batteries 1 x 9 V block battery or 9 V mains adapter (optional) Dimensions Handheld unit 185 x 65 x 36 mm Dimensions Sensor 235 x 5 mm 123 mm handle 1,5m Anschlusskabel Weight 360 g Operating conditions 0 ... +50 °C, 80% r.h. Storage conditions -10 ... +60 °C, 80 % RH

Product type: Temperature data logger

Temperature reading range (min.): 0 °C

Temperature reading range (max.): 400 °C

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 185 x 65 x 36 mm

Weight: 360 g

Temperature reading range: 0 up to 400 °C

Width: 65 mm

Height: 36 mm

Length: 185 mm

Power supply: 9 V battery (1x)

Type: PCE-HPT 1

Documents & Downloads

Datasheet

Datasheet 2452453 PCE Instruments PCE-HPT 1 PCE-HPT 1 Temperature data logger 0 up to 400 °C

User & Safety Instructions

User & Safety Instructions 2452453 PCE Instruments PCE-HPT 1 PCE-HPT 1 Temperature data logger 0 up to 400 °C

Description

1-channel PT temperature measuring device including 4 conductors PT 100 class A sensor / with software for data transfer and evaluation of the measured data / internal data logger The microprocessor thermometer is a highly accurate 1-channel temperature measuring device. The microprocessor thermometer is ideal for operating various PT-100 sensors with it. By using the four-wire technology, the response time is particularly fast and accurate. This makes the sensors of the microprocessor thermometer suitable for all high-precision and fast processes. The temperature measurement range of the microprocessor thermometer ranges from -100 to +400 °C. The extensive and user-friendly software of the microprocessor thermometer allows a simple evaluation, and it also enables real-time display of the measured values and measurement data. The internal clock with date and time allows the user to precisely assign the events. The microprocessor thermometer has an internal data logger with adjustable measurement interval.

This text is machine translated.
