Buy PCE Instruments PCE-HS 50N Crane scales PCE-HS 50N Weight range 50 kg Readability 20 g battery-powered Blue

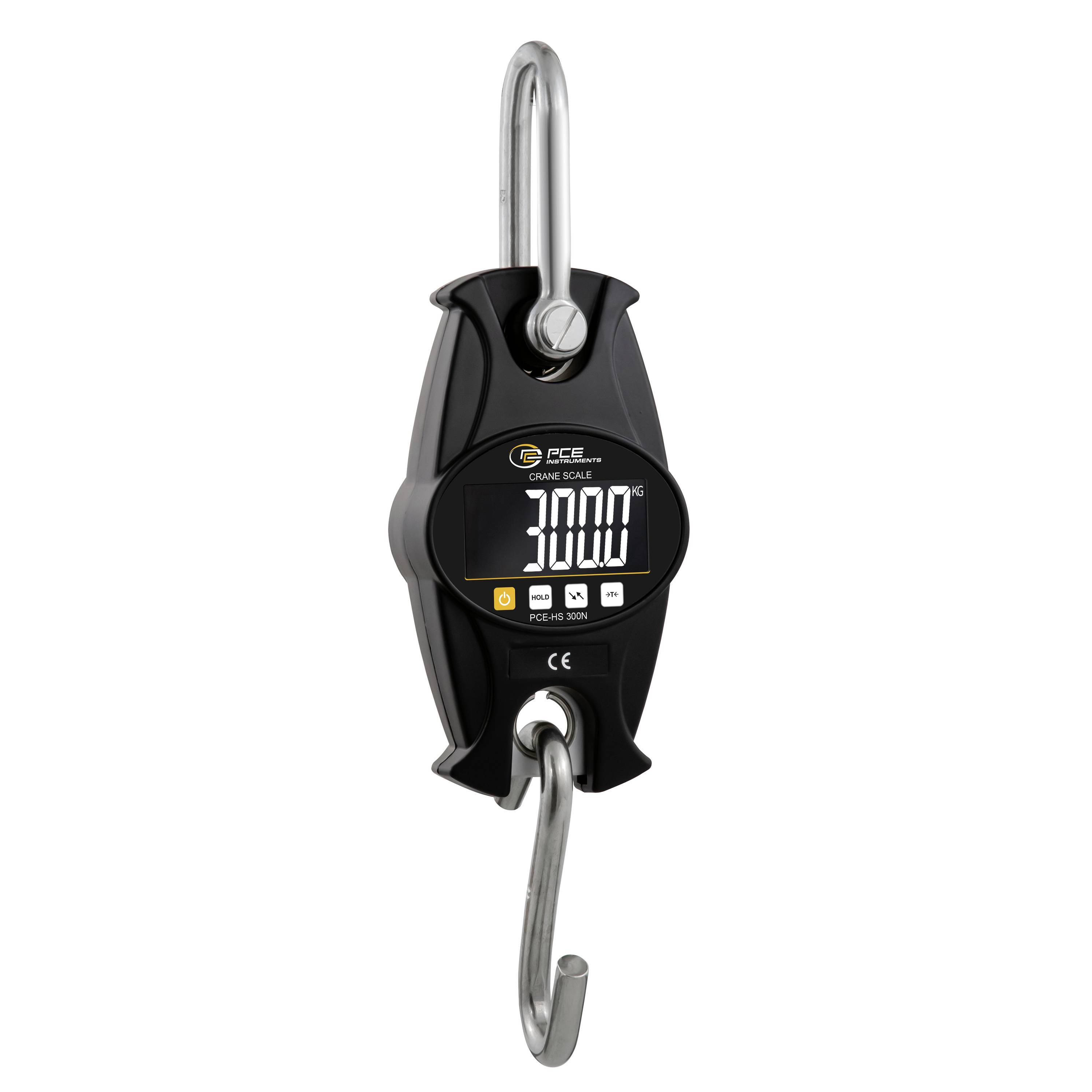

Digital crane scale with hanging hook and top shackle, showing a 3000 reading on the display.

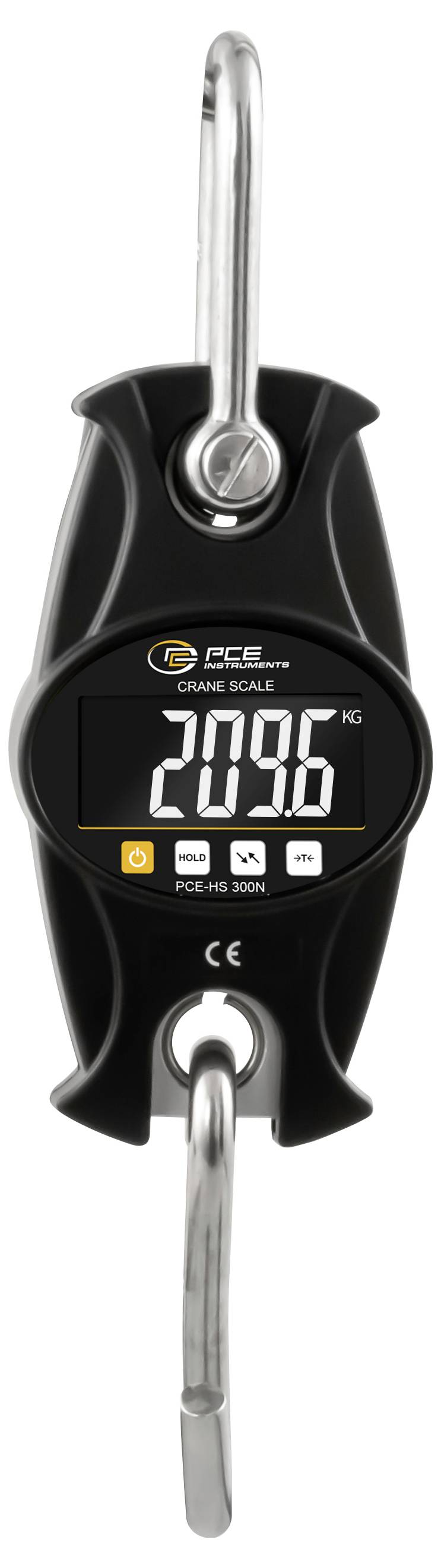

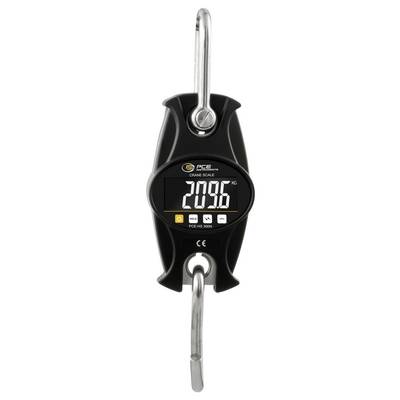

Digital hanging crane scale displaying 209.6 kg, with top hook and bottom hook attached.

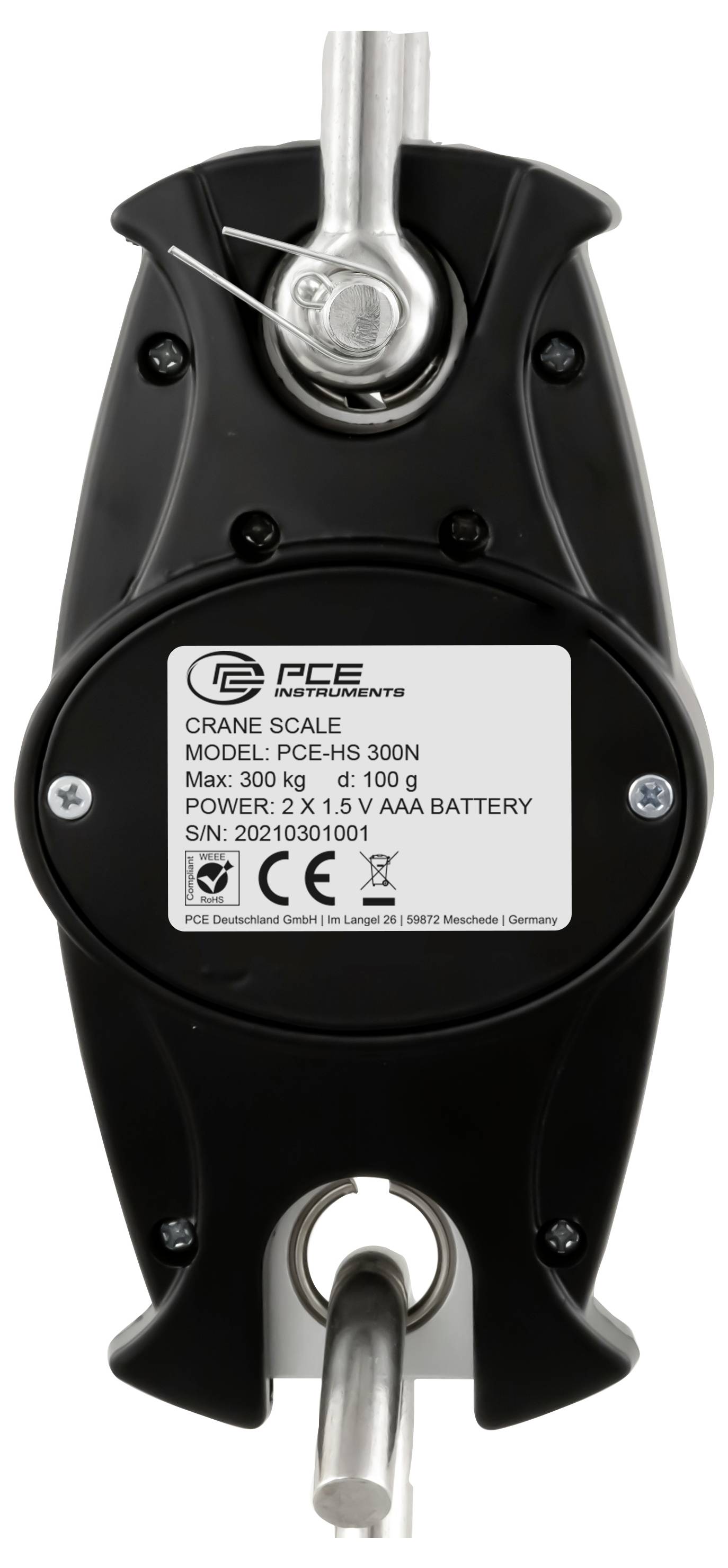

Black PCE crane scale with metal hooks at top and bottom, labeled 'MODEL: PCE-CS 300N' and 'MAX. 300 kg / 3000 N'.

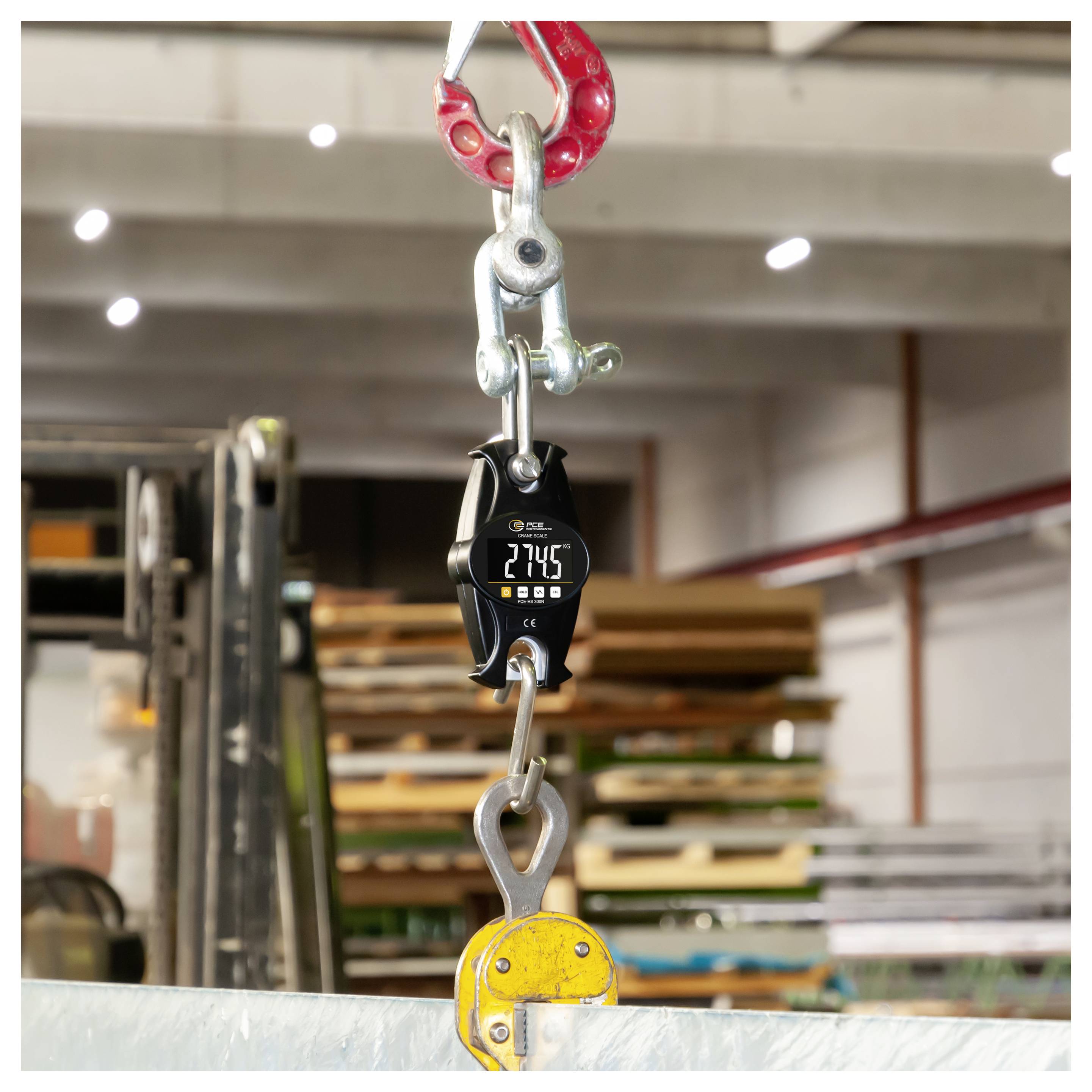

Industrial lifting setup with a digital crane scale reading 2745 suspended between red and silver hooks over a metal load in a warehouse.

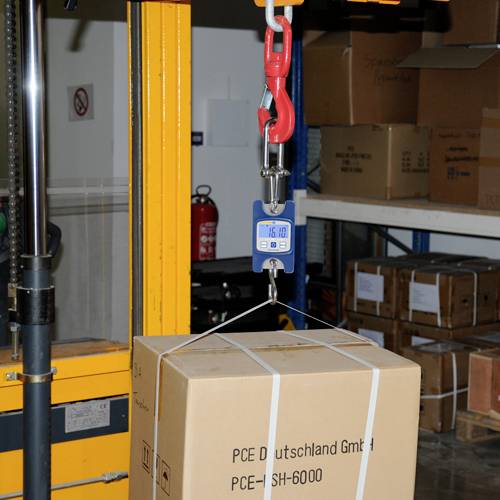

A package is being moved by a crane in a warehouse. It is connected to a blue weighing hook. Storage shelves with cardboard boxes are visible in the background.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digital crane scale PCE-HS 50N

Weighing range up to 50 kg
Battery operation 3 x AA 1.5 V
Automatic swtich-off (selectable)
PEAK
Hold function
Multi-factara
Incl. Hook and snap hook

Technical specifications

Maximum load 50 kg Minimum load (no display) 0.20 kg (200 g) Readability (d) 0.02 kg (20 g) Tolerance / accuracy ± 0.08 kg (80 g) General information Tara Multifactara over the full range Display digit height 19 mm / LCD illuminated Units of measurement kg / lb / N (Newton) Power supply 3 x 1.5 V AA batteries (3.6 V - 5 V) Operating temperature 5 °C ... 35 °C Housing ABS plastic Dimensions 80 x 140 mm (W x H) The depth is tapered from the center with 45 mm to the outside with 30 mm total length with hook and shackle is approx. 260 mm Weight approx.: 400 g

Weight range: 50 kg

Product type: Crane scales

Readability: 20 g

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Blue

Dim: (L x W x H) 45 x 80 x 140 mm (Casing)

Weight: 400 g

Weight resolution: 20 g

Dim. (add. text): Casing

Width: 80 mm

Height: 140 mm

Length: 45 mm

Reproducibility: 0.5 g

Type: PCE-HS 50N

Features: Incl. snap hook
Incl. hook

Documents & Downloads

Datasheet

Datasheet 2452455 PCE Instruments PCE-HS 50N Crane scales PCE-HS 50N Weight range 50 kg Readability 20 g battery-powered Blue

User & Safety Instructions

User & Safety Instructions 2452455 PCE Instruments PCE-HS 50N Crane scales PCE-HS 50N Weight range 50 kg Readability 20 g battery-powered Blue

Description

Digital crane scales PCE-HS 50N up to 50 kg / maximum value display / animal weighing function / auto-off can be deactivated / battery operation The digital crane scales offer a fast and economical possibility to weigh larger objects. The weight must simply be hung freely on the digital crane scales. For this purpose, the digital crane scale comes with a hook and a snap hook. This means that the digital crane scales are used in both the industrial sector and in the private sector (e.g. hunting, fishing, etc.). The digital crane scale has an animal weighing function, which enables the weighing of live animals. For this purpose, the digital crane scale determines an average value from several weighings. Furthermore, the digital crane scale can also be used as a simple force measuring device, since the digital crane scale has been upgraded to Newton with a PEAK hold function (maximum value display) and the measurement value conversion. The digital crane scale has an automatic shut-off function, which can be deactivated and the possibility of executing multiple-thread, which was very useful for weighing or in the production of mixtures.

This text is machine translated.
