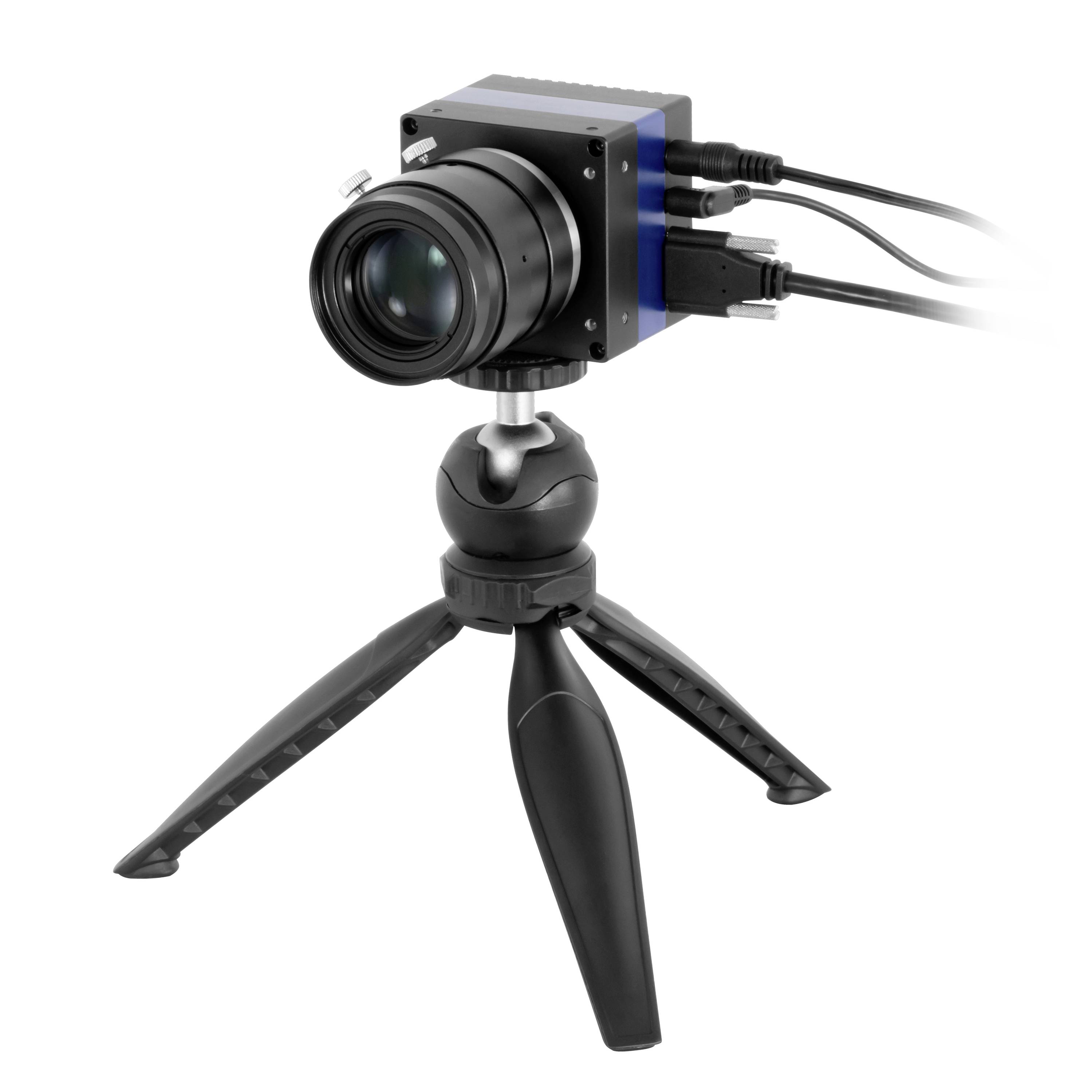

Compact camera mounted on a small tripod with multiple cables attached, isolated on a white background.

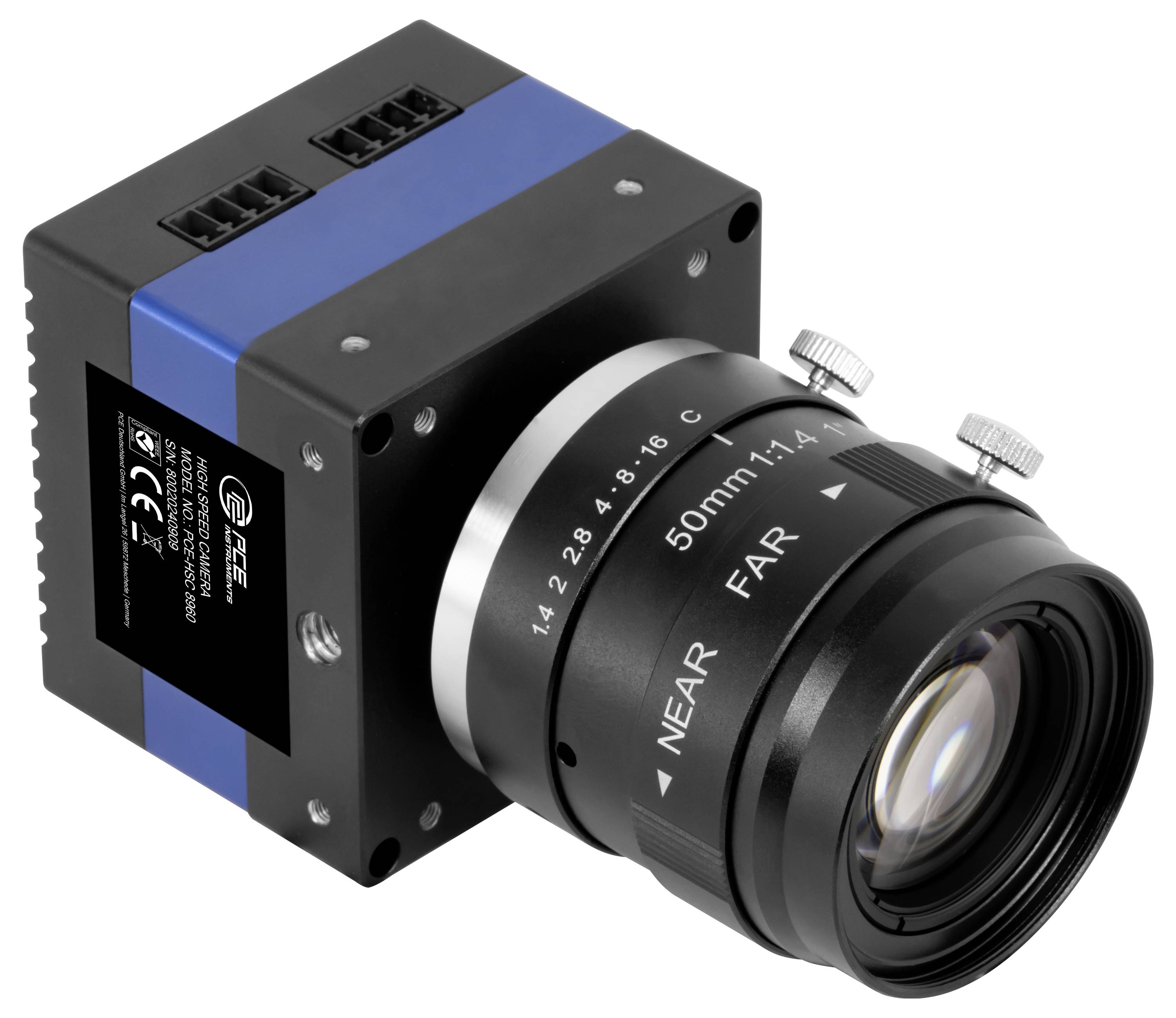

Industrial camera with attached 50mm lens, shown on a white background.<br>

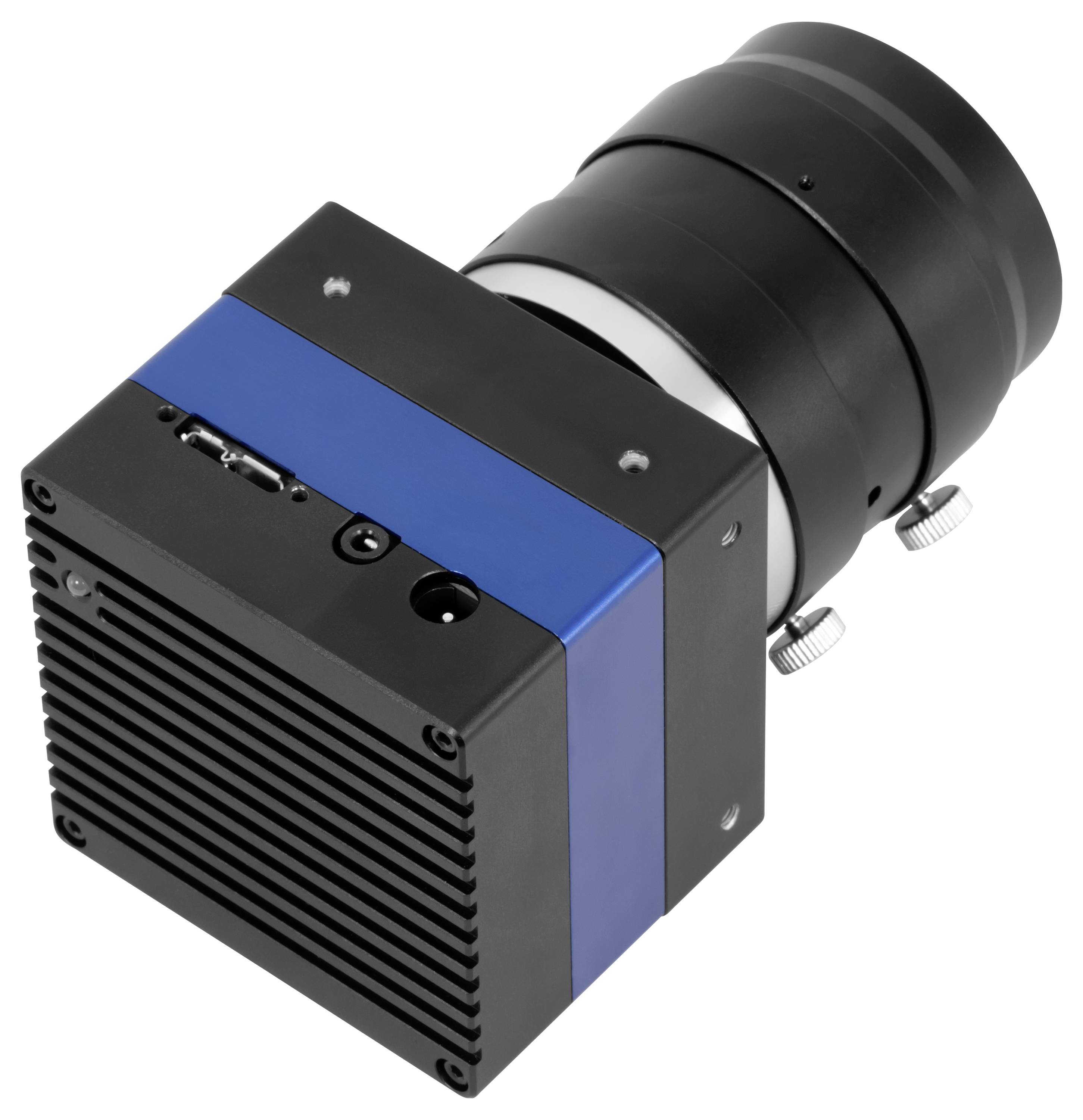

Black industrial camera or sensor with a large lens and blue accent panel, shown on a white background.

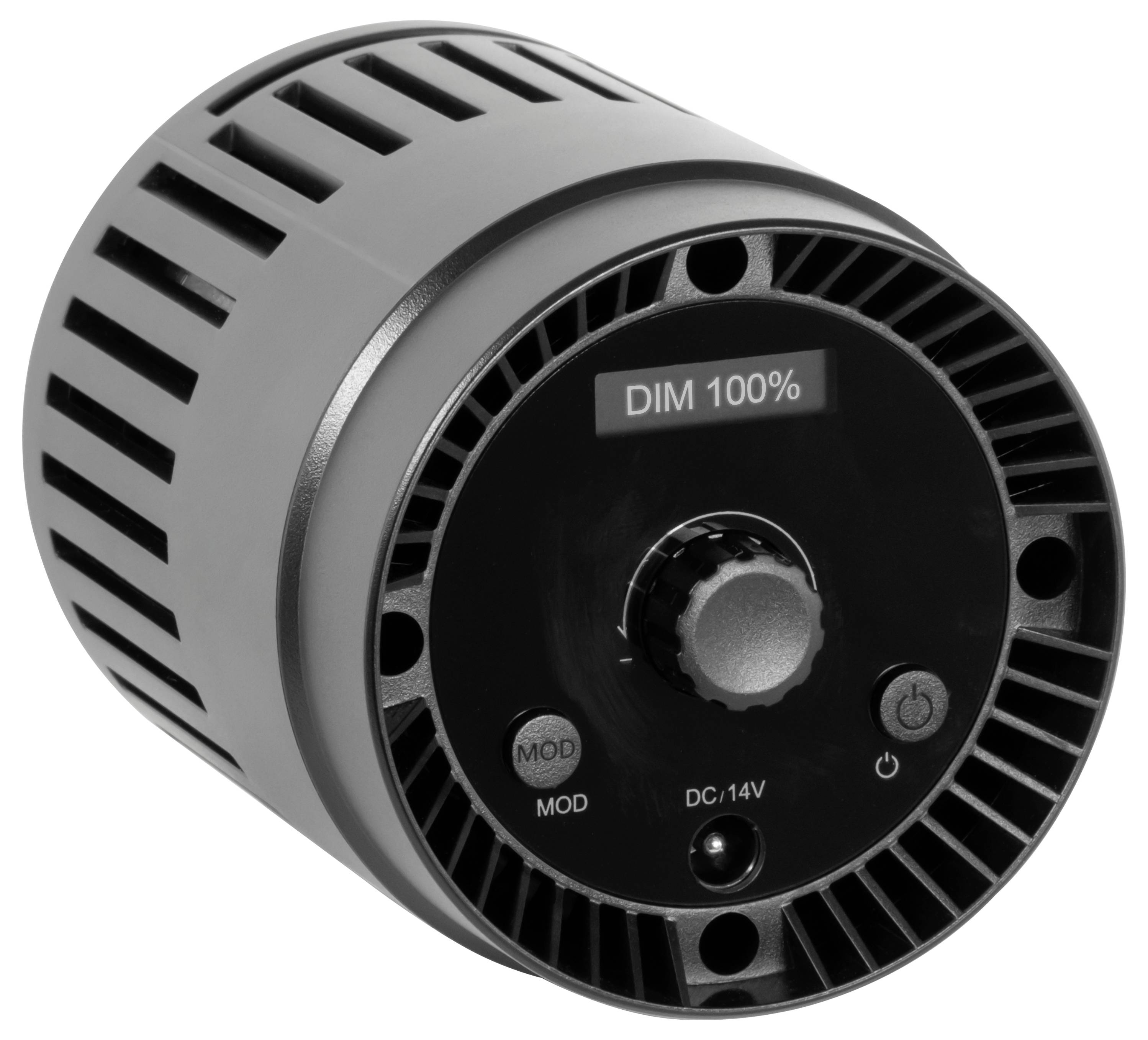

Close-up of a cylindrical dimmer control with a central knob, labeled 'DIM 100%', 'MOD', and 'DC/14V', shown on a white background.

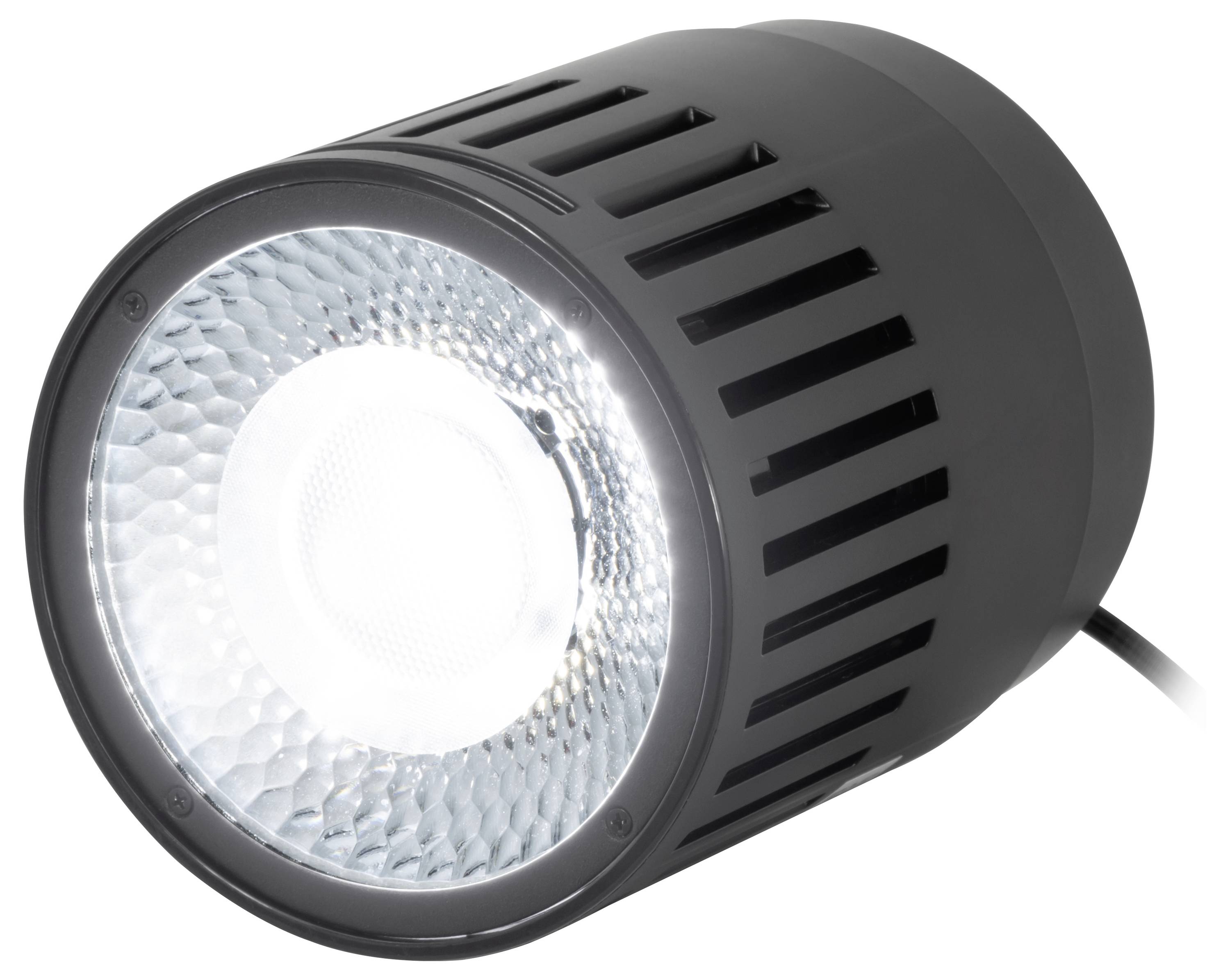

Black cylindrical LED spotlight with a reflective front lens and vented sides, shown with a power cord on a white background.

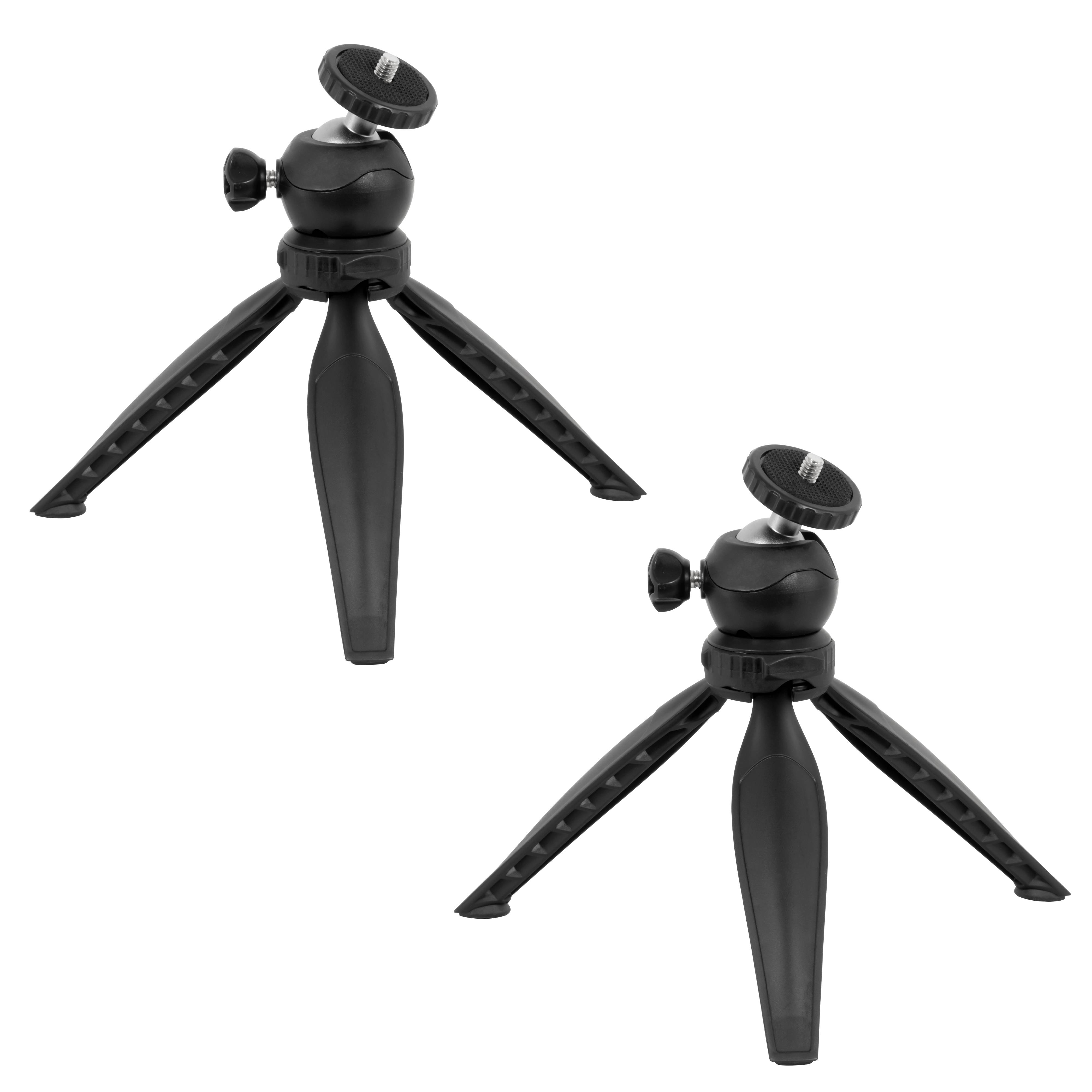

PCE Instruments PCE-HSC 8960 Inspection camera-5

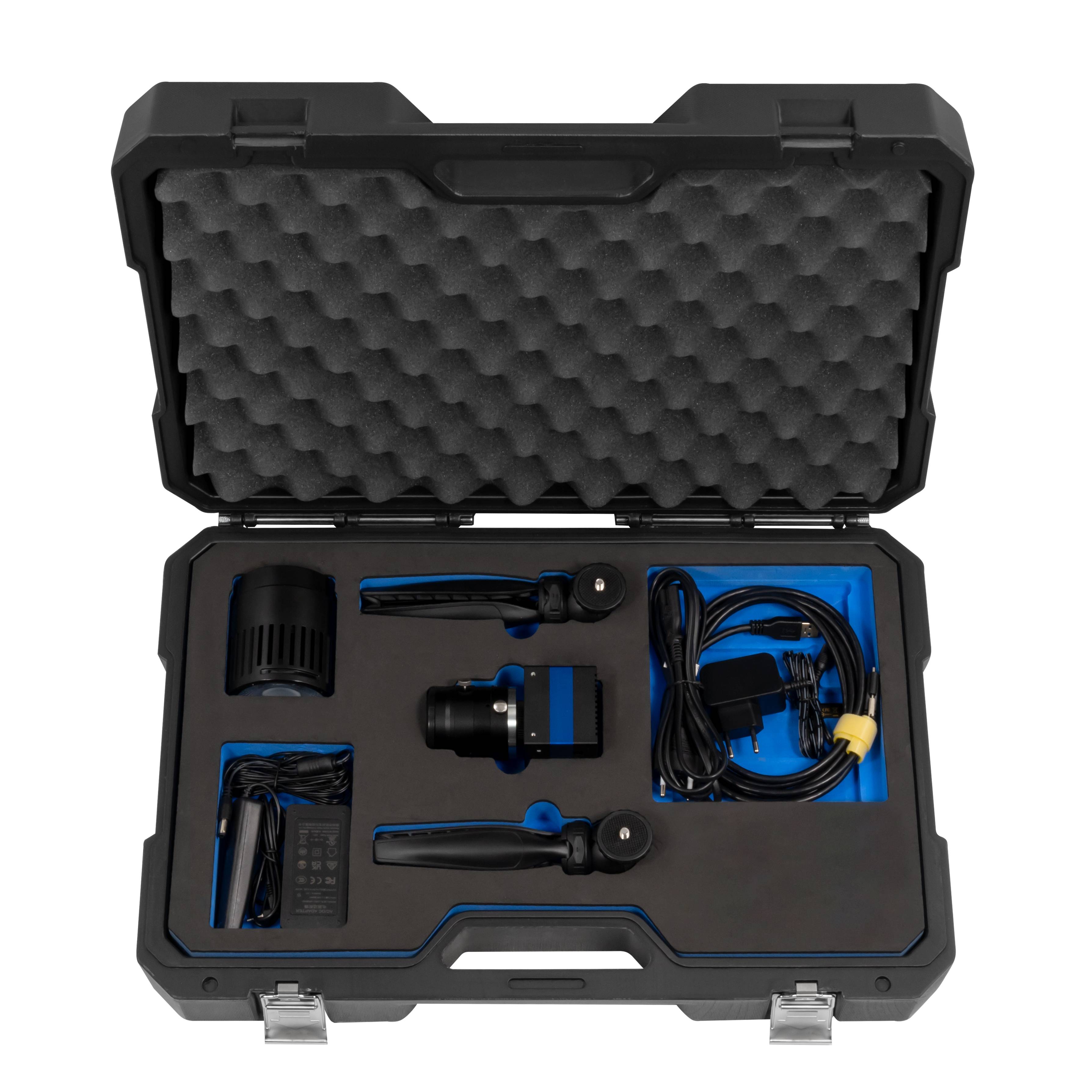

PCE Instruments PCE-HSC 8960 Inspection camera-6

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-HSC 8960

5 MP CMOS sensor
Up to 8960 fps
USB 3.0 interface
Trigger input
Robust metal casing
PC Software

Technical specifications

General Technical Data
Interface Micro USB 3.0
Sensor CMOS
Resolution 2560 x 1024 @ 140 FPS, 640 x 256 @ 2240 FPS, 1280 x 512 @ 560 FPS, 800 x 320 @ 1432 FPS, 1920 x 768 @ 245 FPS, 320 x 128 @ 8960 FPS
Aluminium casing
Tripod socket 1/4 inch
Light intensity 33 W Dimmable, 35800 lx @ 0.5 m,9600 lx @ 1 m,2500 lx @ 2 m.
Fine-thread fixing M2.5
Lens F1.4 / f=50mm,C-Mount / CS Mount
Image / video format bmp, jpg, png, mp4, mpg
Trigger input TTL/RS-422 from the expansion I/O connector
Sensitivity ISO 100 ... 6400 (monochrome)
Pixel size 5 µm
Digital amplification 0.01 ... 16 x
Shutter speed 0,001 ... 100 ms
Protection class (device) IP20
Power supply 100 ... 240 V AC | 50/60 Hz, power supply included
Connector type Euro plug
Operating conditions 0 ... 40 °C , 20 ... 80 % r.F.
Storage conditions -20 ... 60 °C , 20 ... 95 % r.F.
Dimensions ( L x W x H ) 110 x 60 x 60 mm
Weighs 509 g.

Product type: Inspection camera

Endoscope features: High-resolution
Image function
LED lit
Video output

Camera resolution: 800 x 320 Pixel

: IP20

Power supply (details): 240 V AC

Light source: LED

Weight: 509 g

Dim: (L x W x H) 110 x 60 x 60 mm

Length: 110 mm

Width: 60 mm

Height: 60 mm

Type: PCE-HSC 8960

Ambient temperature: 60 °C

Documents & Downloads

Datasheet

Datasheet 3369086 PCE Instruments PCE-HSC 8960 Inspection camera

User & Safety Instructions

User & Safety Instructions 3369086 PCE Instruments PCE-HSC 8960 Inspection camera

Description

The inspection camera sets new standards in the world of high-resolution slow-motion pictures. Equipped with a modern 5 megapixel CMOS sensor, this model delivers pin-sharp images with high detail accuracy. The ability to capture events at extremely high frame rates allows you to capture details and phenomena that are not visible to the naked eye or to normal cameras.

With an impressive shooting speed of up to 8960 frames per second (FPS), the inspection camera enables the investigation of processes that remain invisible to the naked eye. The integrated USB 3.0 interface ensures a fast and reliable data transfer, so that the recordings can be processed and analyzed in real time on a PC. Additionally the trigger input with remote release enables a precise control of the recording times, WAS is crucial especially in experiments or precise time lapse recordings. The robust metal housing protects the inspection camera from the challenges of daily use and guarantees a long life even under the most demanding conditions. The professional PC-software included in the delivery offers a comprehensive range of tools for image processing, analysis and administration of your recordings.

Whether scientific experiments are carried out, industrial processes monitored or breathtaking slow-motion shots are created for film projects, this inspection camera offers the power and flexibility required to implement visions precisely.
