Buy PCE Instruments PCE-HT 114 PCE-HT 114 Multi-channel data logger Unit of measurement Temperature, Humidity

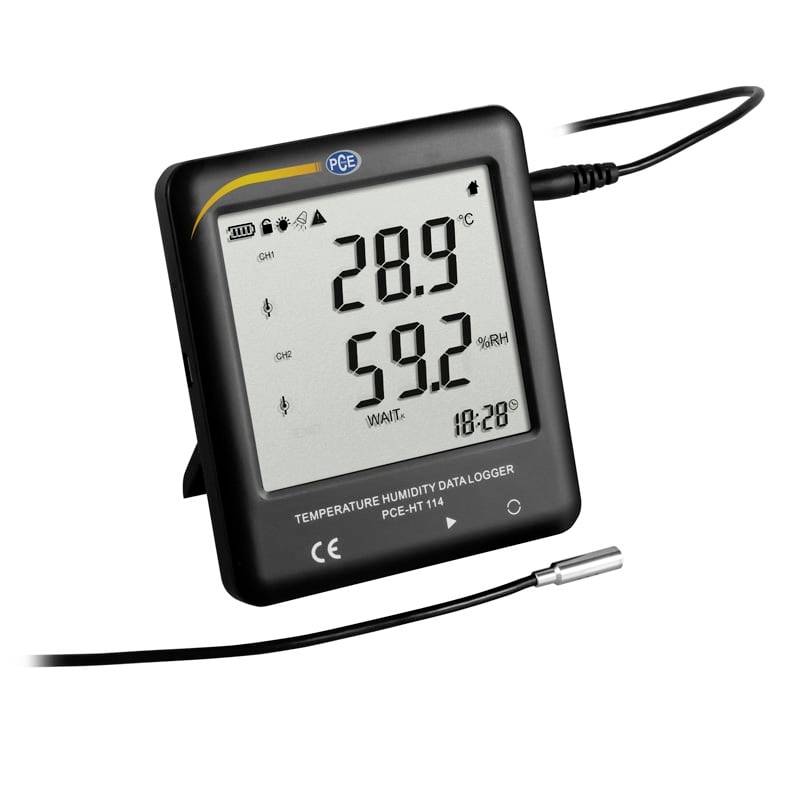

Digital temperature and humidity data logger displays 28.9°C and 59.2% RH, with a probe sensor attached.<br>

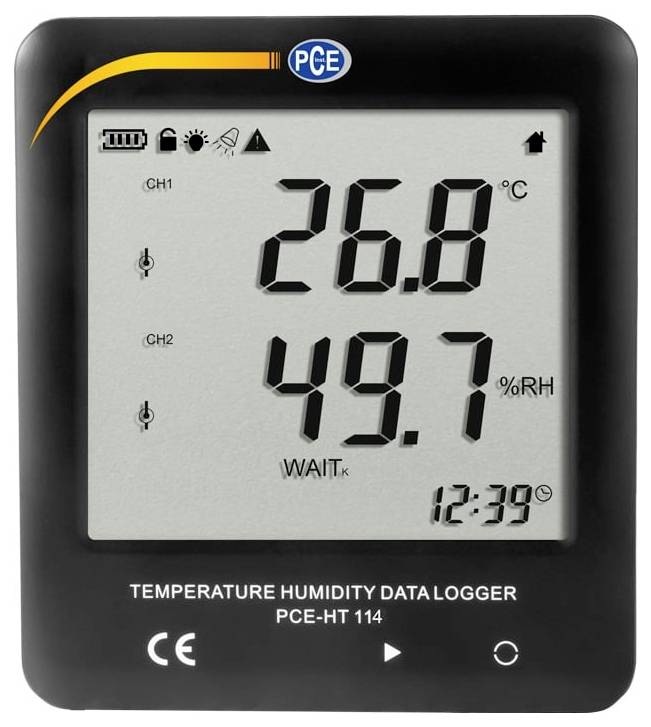

Digital temperature and humidity data logger display showing CH1 26.8°C and CH2 49.7% RH, with time 12:39.<br>

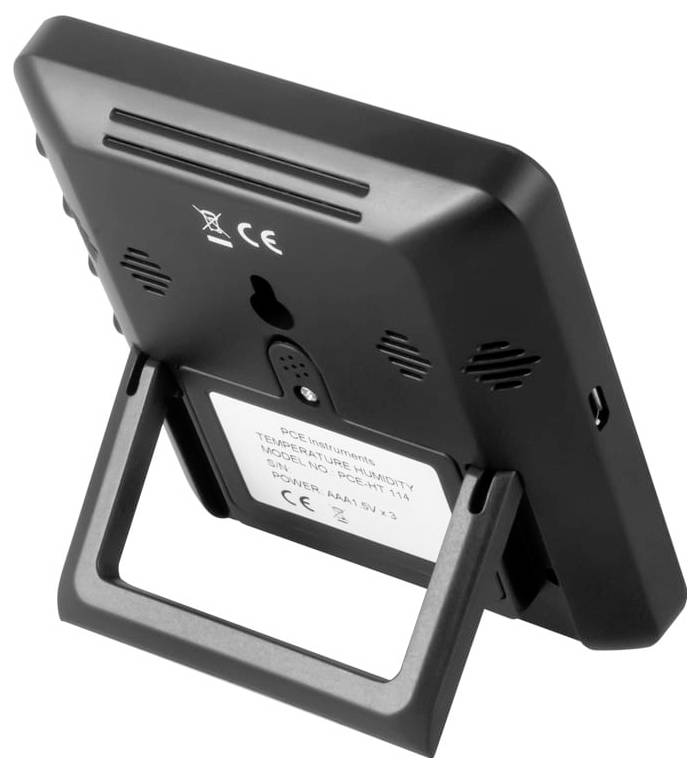

Back view of a black digital photo frame on a fold-out stand, showing vents, ports, and a white label.

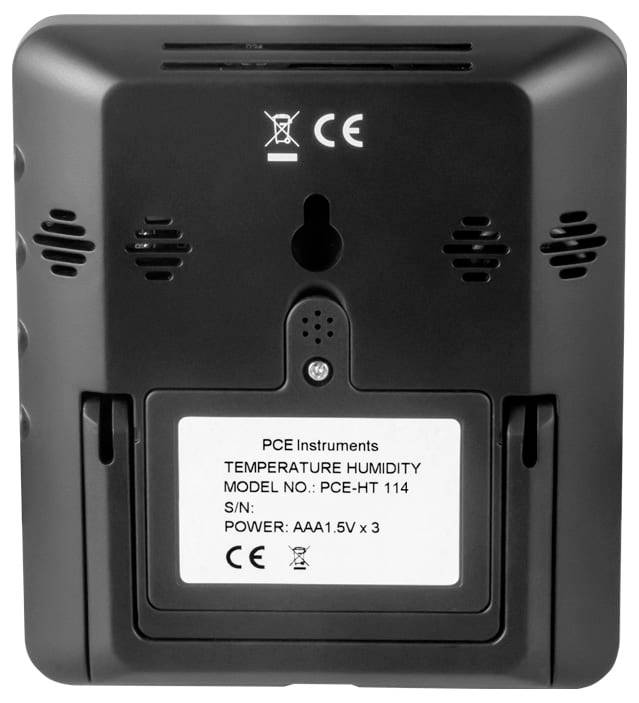

Back of a PCE Instruments temperature and humidity monitor with wall-mount slot, speaker vents, and battery compartment label.

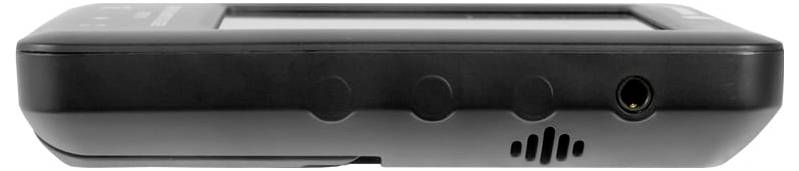

Bottom view of a black handheld electronic device showing two circular buttons, a headphone jack, and a speaker grille.

1/5

Unavailable

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Hygrometer PCE-HT 114

Temperature and humidity data logger
LCD
Memory for 25,920 measured values
Fast reading via USB
Adjustable alarm limit values
External sensor

Technical specifications

Measuring function Temperature measuring range -40 ... 125 °C (external) Resolution 0.1 °C Accuracy ± 0.3 °C (-10 ... 65 °C) ± 0.5 °C (remaining range) Measuring function Humidity measuring range 0 ... 100 % r.F. (external) Resolution 0.1 % r.h. Accuracy ± 3 % (10 % ... 90%) ± 4% (remaining range) Response time 5 min. Memory 25920 measured values Memory rates 30s, 60s, 2 min, 5 min, 10 min, 15 min, 20 min, 25 min, 30 min, 1 h or individually adjustable Measurement interval / update rate Display 5 s alarm Adjustable acoustic alarm Interface USB Power supply 3 x 1.5 V AAA batteries 5 V USB Battery life approx. 1 year (without lighting / without alarm) Operating conditions -30 ... 65 °C Storage conditions -30 ... 65 °C (without battery) Dimensions 96 x 108 x 20 mm (display device) 5.7 x 24 mm (sensor head) 2 m (sensor cable) Weight 120 g Protection class IP20

Product type: Multi-channel data logger

Unit of measurement: Temperature
Humidity

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 96 x 20 x 108 mm

Weight: 120 g

Width: 20 mm

Height: 108 mm

Length: 96 mm

Interfaces: USB

Power supply: USB
AAA batteries (3x)

Type: PCE-HT 114

Basic accuracy: 0.3 %

Accuracy ± °C: 0.3 °C

Max. temperature: 125 °C

Min. temperature: -40 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2452458 PCE Instruments PCE-HT 114 PCE-HT 114 Multi-channel data logger Unit of measurement Temperature, Humidity

Description

Refrigerator Hygrometer PCE-HT 114 Refrigerator Data logger for temperature and humidity / LCD / 25,920 measured value memory / fast reading via USB / adjustable alarm limit values / external sensor The hygrometer PCE-HT 114 possesses a temperature and air humidity sensor at 2m cable. The PCE-HT 114 hygrometer records the temperature and air humidity in the interior of the refrigerator and displays them simultaneously via the LCD display. The PCE-HT 114 hygrometer stores the measured values in a format used by the software for analysis as well as in PDF format. The PDF document that creates the hygrometer shows a graph that shows the measurement process. An overview of all measured values is also displayed directly in the measurement report. The hygrometer has a base and a mounting bracket on the back. The display can be switched off to conserve battery power. The PCE-HT 114 hygrometer can store up to 25,920 measured values, which can be evaluated with the help of the software. To establish a connection to a PC, the hygrometer has a USB interface. The software can also be used to set alarms for high or low temperatures. It is also possible to switch to the optional external sensor via the software.

This text is machine translated.
