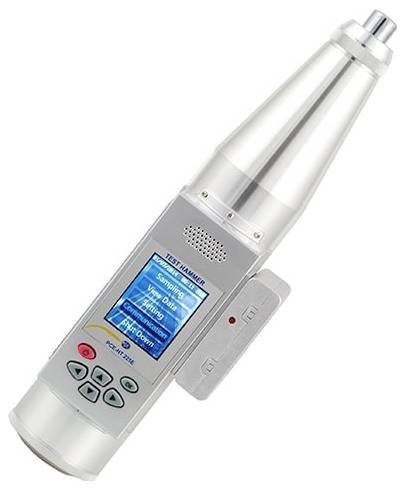

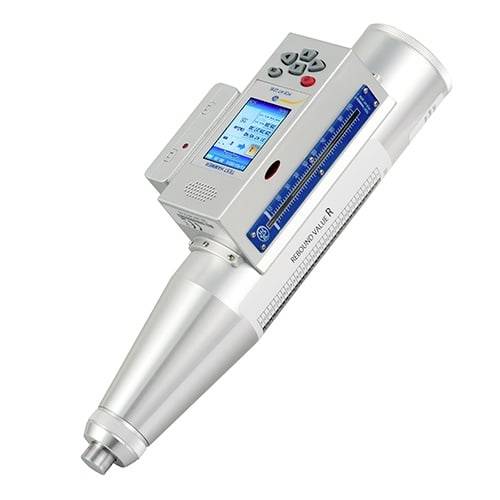

PCE Instruments PCE-HT 225E Schmidt hammer
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
HARDNESS TESTER PCE-HT 225E

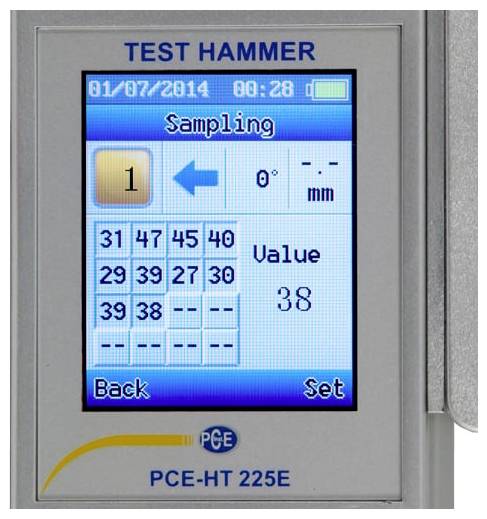

- Digital LC-display
- Voice function with measured value announcement
- Incl. data evaluation software
- USB interface
- Measured value memory for 200 measured values
- Non-destructive measurement
Technical specifications
- Technical data Nominal kinetic energy 2,207 J (2,207 Nm) Spring constant 785 N/m Spring elongation 75 mm ± 0.3 mm Average rebound value 80 ± 2 Radius of the spherical tip 25 mm ± 1 mm grip of the measuring tip 0.65 ... 0.15 N Interface USB 2.0 Storage capacity Memory for more than 200 data Display LCD 176 x 220 Power supply 4 x AAA batteries Weight 1.1 kg. Dimensions Ø 54 x 280 mm
- Product type
Schmidt hammer
- Display type
Digital (LCD)
- Dim
(Ø x H) 54 mm x 280 mm
- Weight
1.1 kg
- Operating voltage
3.6 V
- Features
+ data logger
- Content
1 pc(s)
- Height
280 mm
- (Ø)
54 mm

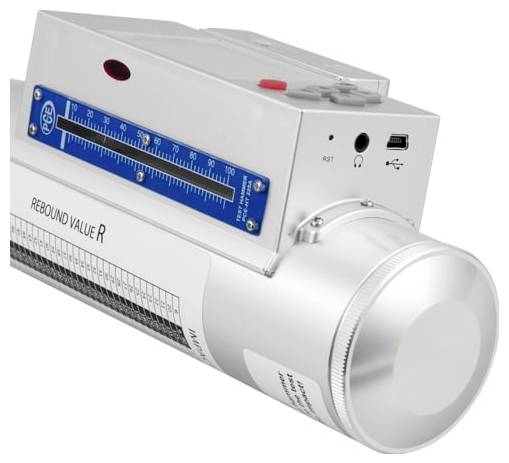

- Interfaces
1x USB 2.0 (device)
USB 2.0 port Mini B
Jack plug 3.5 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452461 PCE Instruments PCE-HT 225E Schmidt hammer
User & Safety Instructions
User & Safety Instructions 2452461 PCE Instruments PCE-HT 225E Schmidt hammer
Description

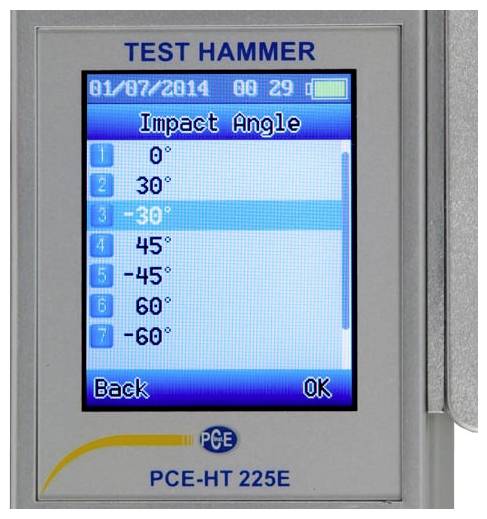

Digital concrete testing hammer for determining concrete hardness / digital LC-display / voice function with measured value announcement / robust and easy to use / USB interface / measured value storage for 200 measured data / software for data evaluation of the digital concrete testing hammer is an indispensable instrument for the non-destructive measurement of the hardness of the concrete. The digital concrete test hammer shows the measured value directly converted on the LC display, which is incorporated in the design. The USB interface enables data transfer to a printer or PC. The user can thus concentrate completely on the measurement. Thanks to the software, the data determined with the concrete test hammer can be downloaded, displayed and processed quickly and easily. Various parameters such as impact direction, form factor and time factor as well as carbonatization can be easily adjusted.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Delivery scope 1 x digital concrete testing hammer PCE-HT 225E
- 1 x carrying case
- 1x USB cable
- 1 x grinding stone for smoothing rough surfaces
- 1 x software
- 1x user manual
