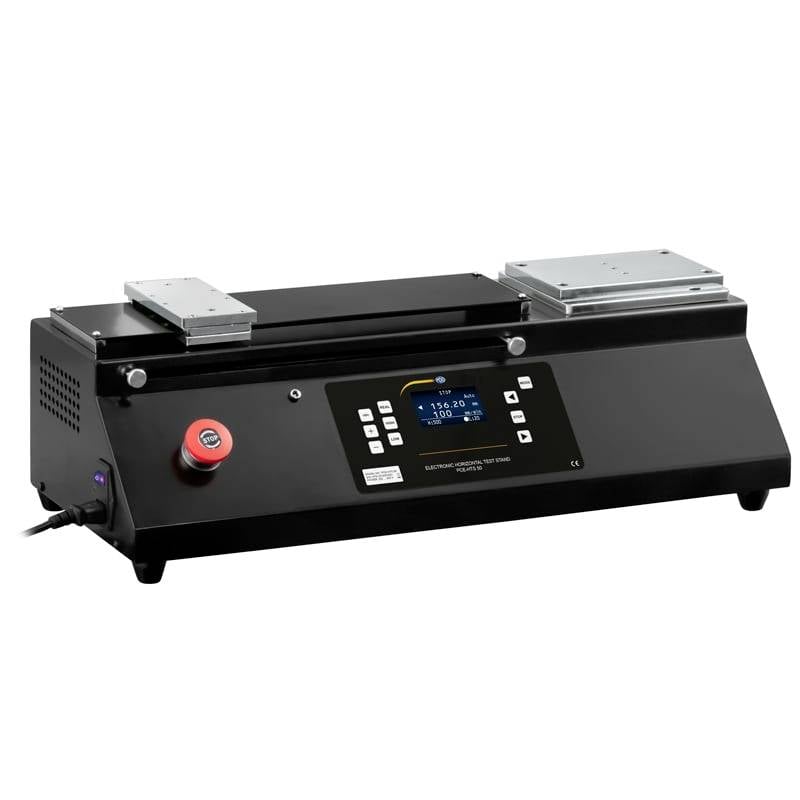

PCE Instruments PCE-HTS 50 Force test stand Manufacturer's standards (no certificate)

The horizontal force measuring stand has a force range of 500 N. with a travel distance of 270 mm, tensile strengths of large or elastic test specimens can be checked. The driving speed can be precisely adjusted in 1 mm/min steps between 1 - 500 mm/min at the horizontal force level. This means that the horizontal force level is used, for example, in the quality inspection of films, rubber bands or even ropes. The driving speed and the traversing mode can be set at any horizontal force level. In manual mode, the horizontal force level only moves when the drive button is pressed. In automatic mode, this is done automatically. As soon as the clamping device has moved to a limit switch, the horizontal force measuring level stops by itself With the horizontal force level, the limit switches can be set as required. This allows the travel path to be limited as required. This has several advantages. This prevents the measuring device from moving into the chuck by limiting it. Another advantage is that depending on the application, the length of the train can be defined during a train test. In addition to the test bench, PCE Instruments also offers suitable force measuring systems that can be mounted to the horizontal force measuring stand. Different chuck types are available as an option for a wide variety of test tasks. Thus, a large range of measuring tasks can be carried out with a single measuring system.
