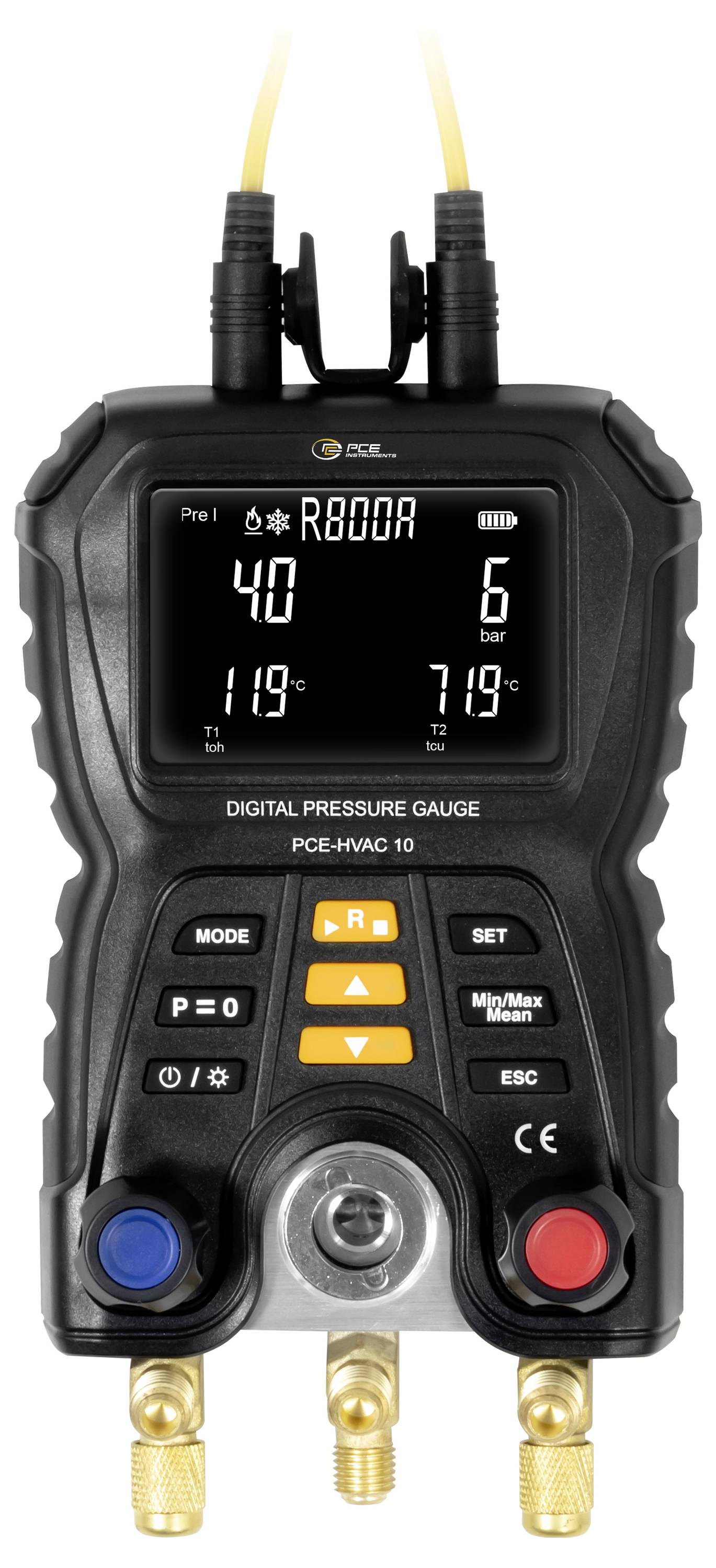

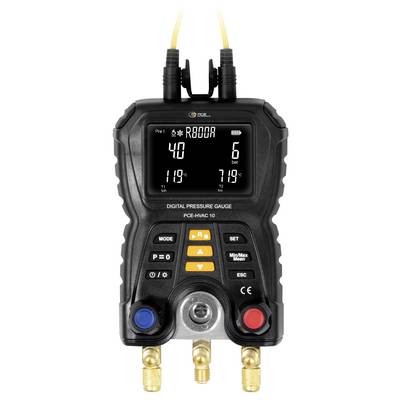

Handheld digital pressure gauge with two hose connectors, dual digital readouts showing 40 and 6 bar and 119°C, and several control buttons.

Three coiled Ethernet cables in yellow, blue, and red, each with gold RJ45 connectors on a white background.

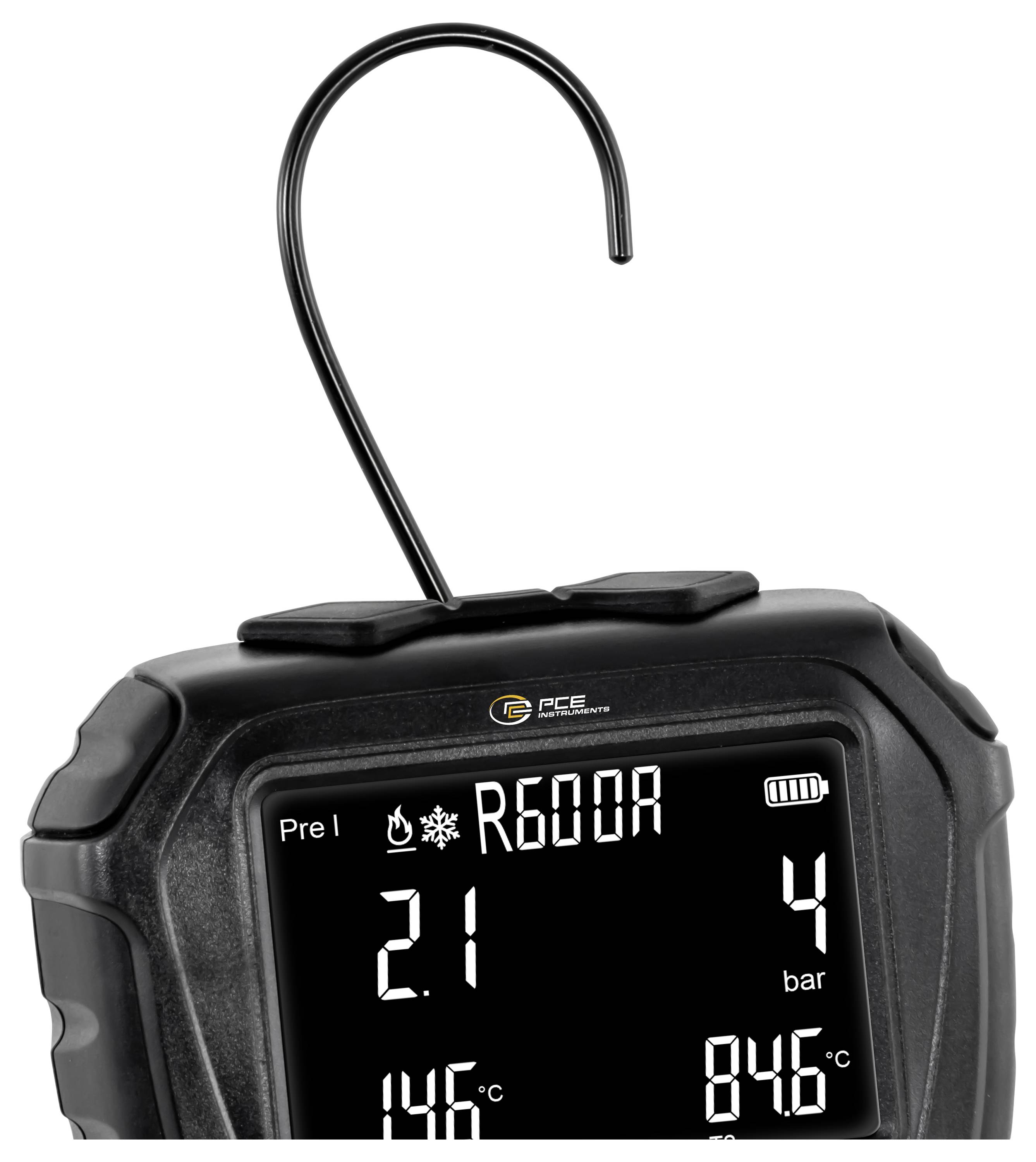

Handheld digital gauge with hook display showing 'R600A', 2.1 bar, 4 bar, 14.6°C and 84.6°C.

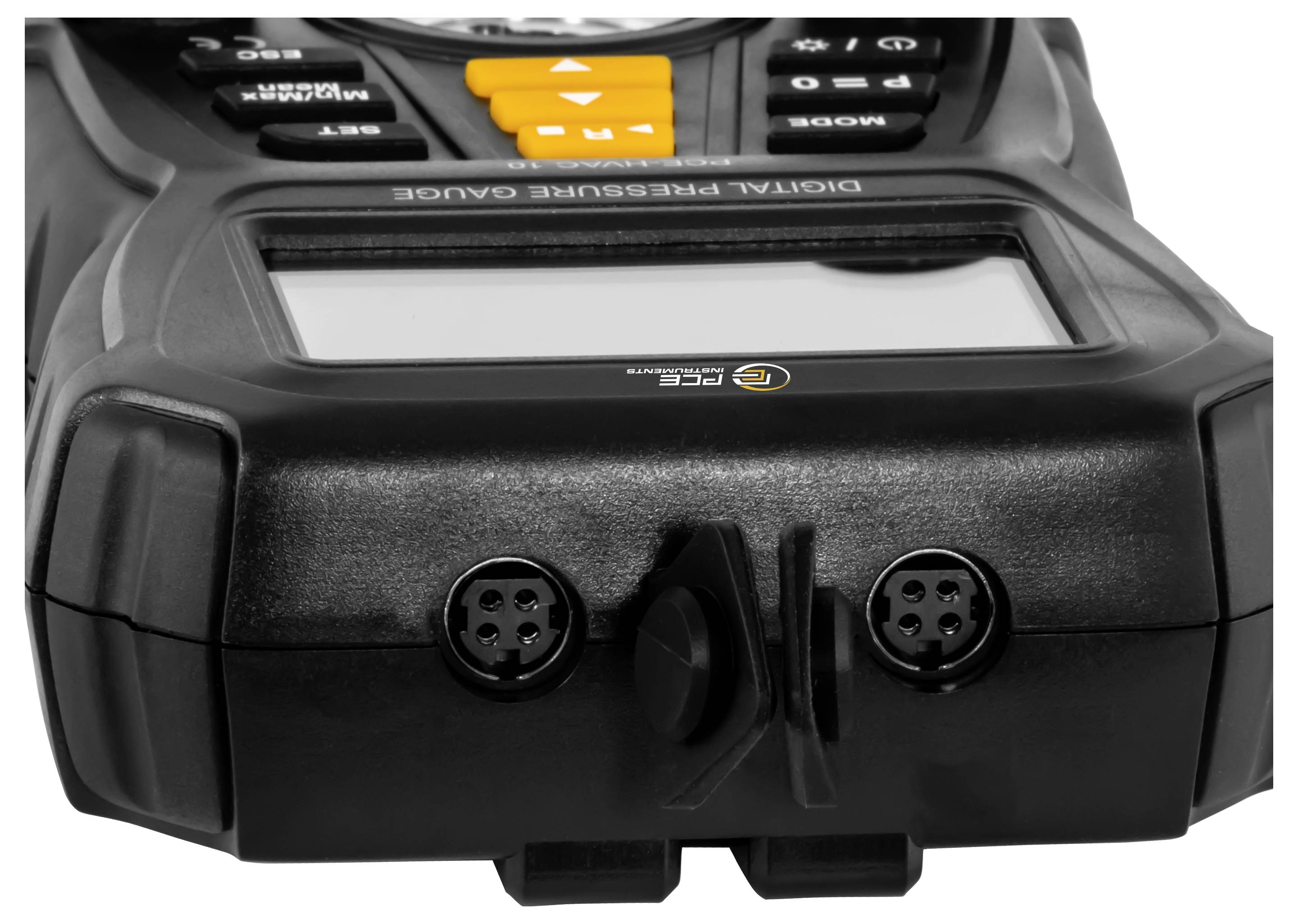

Close-up of a digital pressure gauge with a blank display and two front ports, showing orange control buttons on top.

PCE Instruments PCE-HVAC 10 Differential pressure gauge Pressure, Temperature -1 - 60 bar Thermometer, External sensor-5

PCE Instruments PCE-HVAC 10 Differential pressure gauge Pressure, Temperature -1 - 60 bar Thermometer, External sensor-6

1/7

Datasheet (PDF)

Unavailable

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-HVAC 10

Measuring range: -1 ... +60 bar
Resolution 0.01 bar
Accuracy ±0.5% FS
83 refrigerants stored in the device
2-way valve block with 3 connections 7/16" – UNF
Includes 2 clamp temperature probes NTC
Temperature measurement -10 ... +200 °C

Technical specifications

Temperature NTC
Measurement range -10 °C ... +200 °C
Resolution 0.1 °C
Accuracy ±(1 °C + 1 digit)
Pressure
Measuring range -1 bar ... +60 bar
Resolution: 0.01 bar
Accuracy ±0.5 % FS.
General Technical Data
Units MPa, kPa, psi, bar, °F, °C
Connection type 3 x 7/16" – UNF
Display type LCD
Automatically switches off approx. 30 min.
Coolant measuring medium (see instructions)
Battery type AA Battery (1.5V)
Menu language English
Protection class IP42
Weighs 768 g.
Device weight supplied with 2185 grams
Device weight with delivery scope and packaging 2271 g
Dimensions (L x W x H) 204 x 116 x 65 mm
Dimensions incl. packaging (L x W x H) 345 x 275 x 105 mm

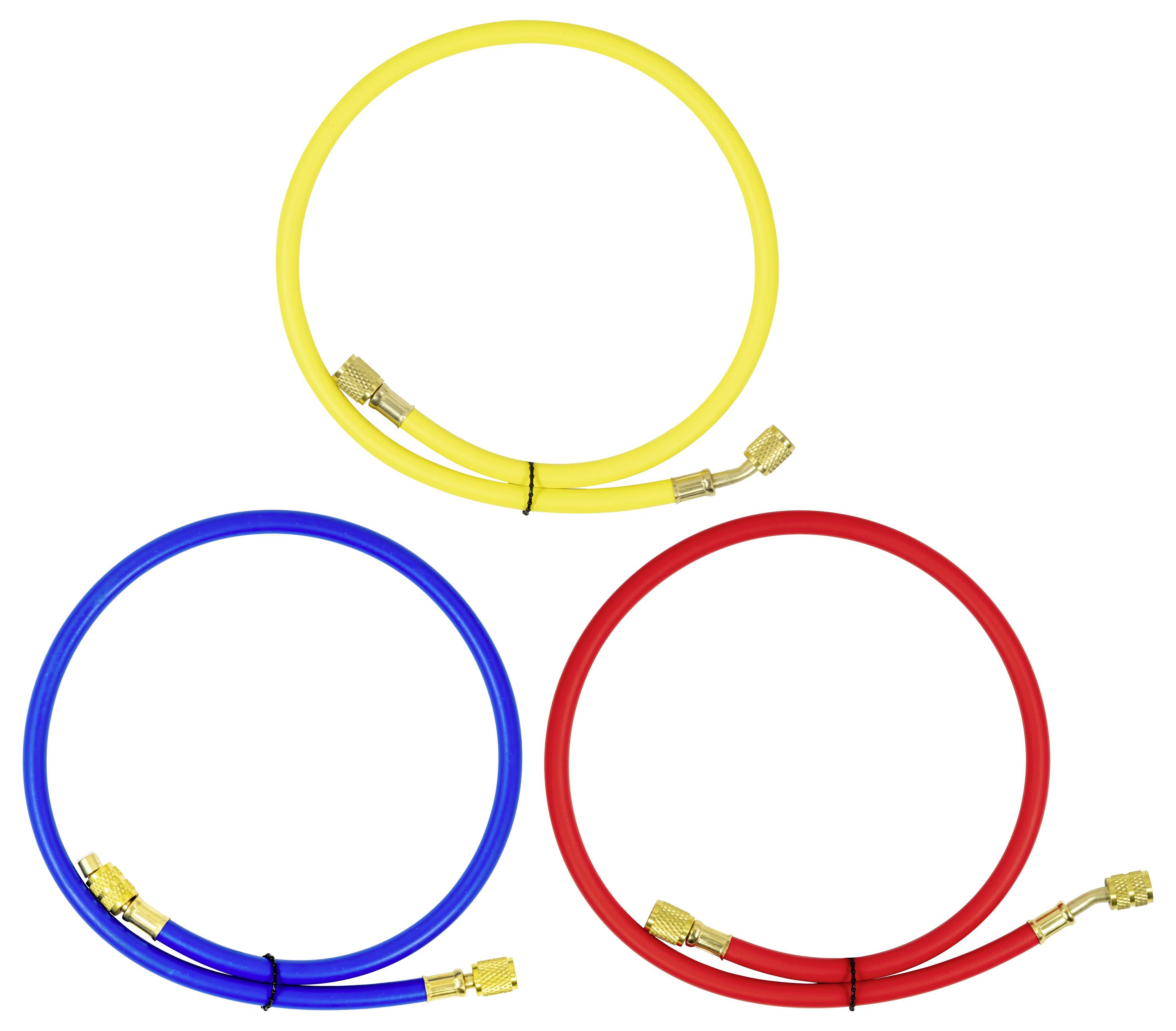

Other dimensions Length of refrigerant hoses: 0.8 m.
Length of temperature sensor: 0.8 m.
Operating conditions 0 ... +45 °C, +10 ... 95 % r.F.
Storage conditions -20 ... +60 °C, +10 ... 95 % r.F.

Power supply (details): 6 V

Product type: Differential pressure gauge

Reading range: -1 - 60 bar

Unit of measurement: Pressure
Temperature

Pneumatic connection: 2-way valve block with 3 connections 7/16" – UNF

: Manufacturer's standards (no certificate)

Print resolution: 0.01 bar

Basic accuracy: 0.5 %

Accuracy: 1 °C

: IP42

Dim: (L x W x H) 204 x 116 x 65 mm

Weight: 768 g

Resolution: 0.01 bar

Features: Thermometer
External sensor

Accuracy: 0.5 %

Reading range (max.): 60 bar

Reading range (min.): -1 bar

Width: 116 mm

Height: 65 mm

Length: 204 mm

Documents & Downloads

Datasheet

Datasheet 3324684 PCE Instruments PCE-HVAC 10 Differential pressure gauge Pressure, Temperature -1 - 60 bar Thermometer, External sensor

User & Safety Instructions

User & Safety Instructions 3324684 PCE Instruments PCE-HVAC 10 Differential pressure gauge Pressure, Temperature -1 - 60 bar Thermometer, External sensor

Description

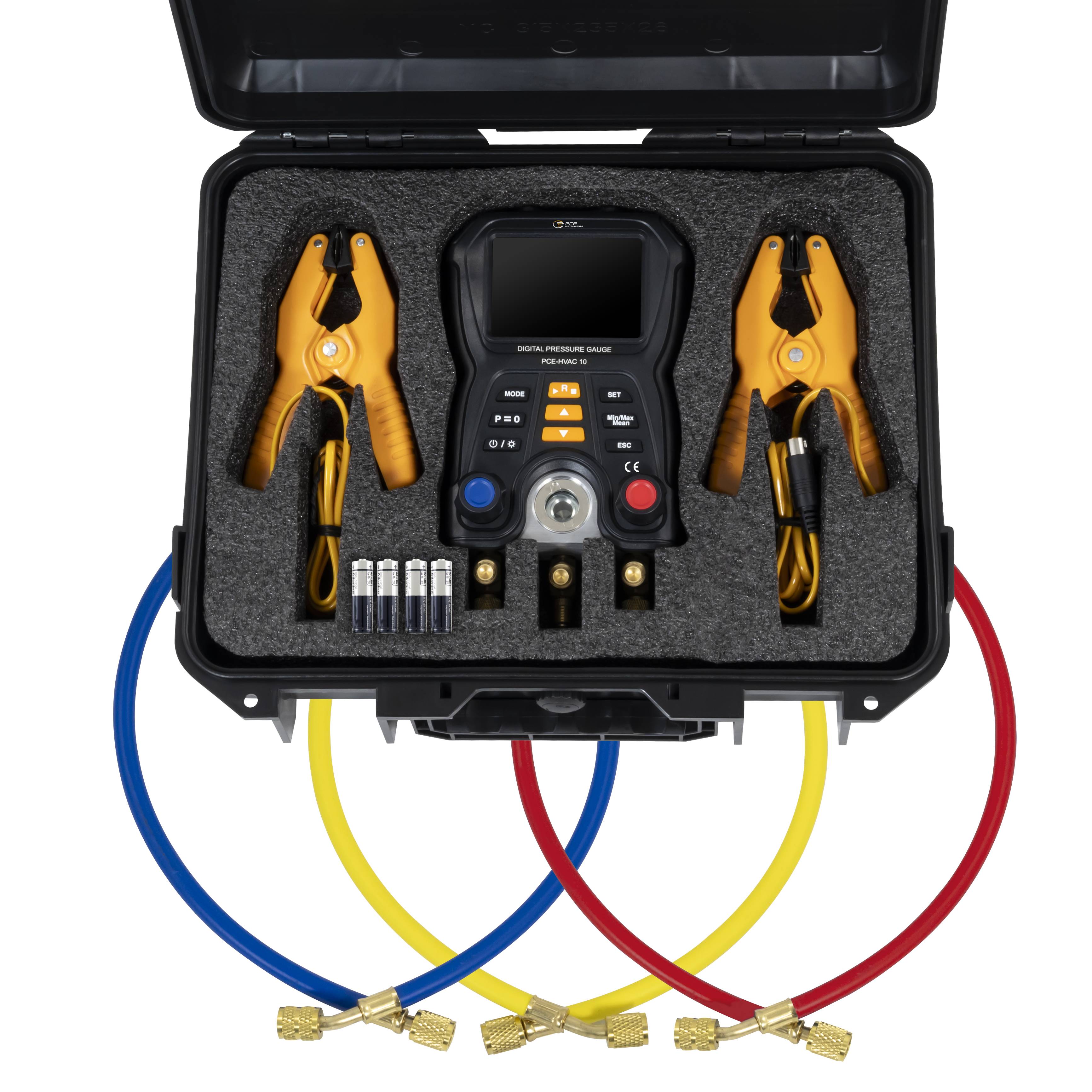

The pressure meter/pressure meter is a robust measuring device for the daily use at refrigeration plants and heat pumps for the determination of pressure and temperature. The measurement with the pressure gauge / pressure gauge is made by the refrigerant hoses supplied and 2 NTC probe temperature sensors. By simply plugging or screwing, all measurement parameters can be recorded at the same time. The 2-way valve steel block with 3 connectors and 3 hose clips allows quick and easy use of the pressure gauge / pressure gauge. The 83 stored refrigerants can be selected quickly and are visible on the measuring screen at the top. During measurement, the suspension device guarantees a secure attachment. The pressure measuring device/pressure gauge is operated by 4 x 1.5V AA batteries.

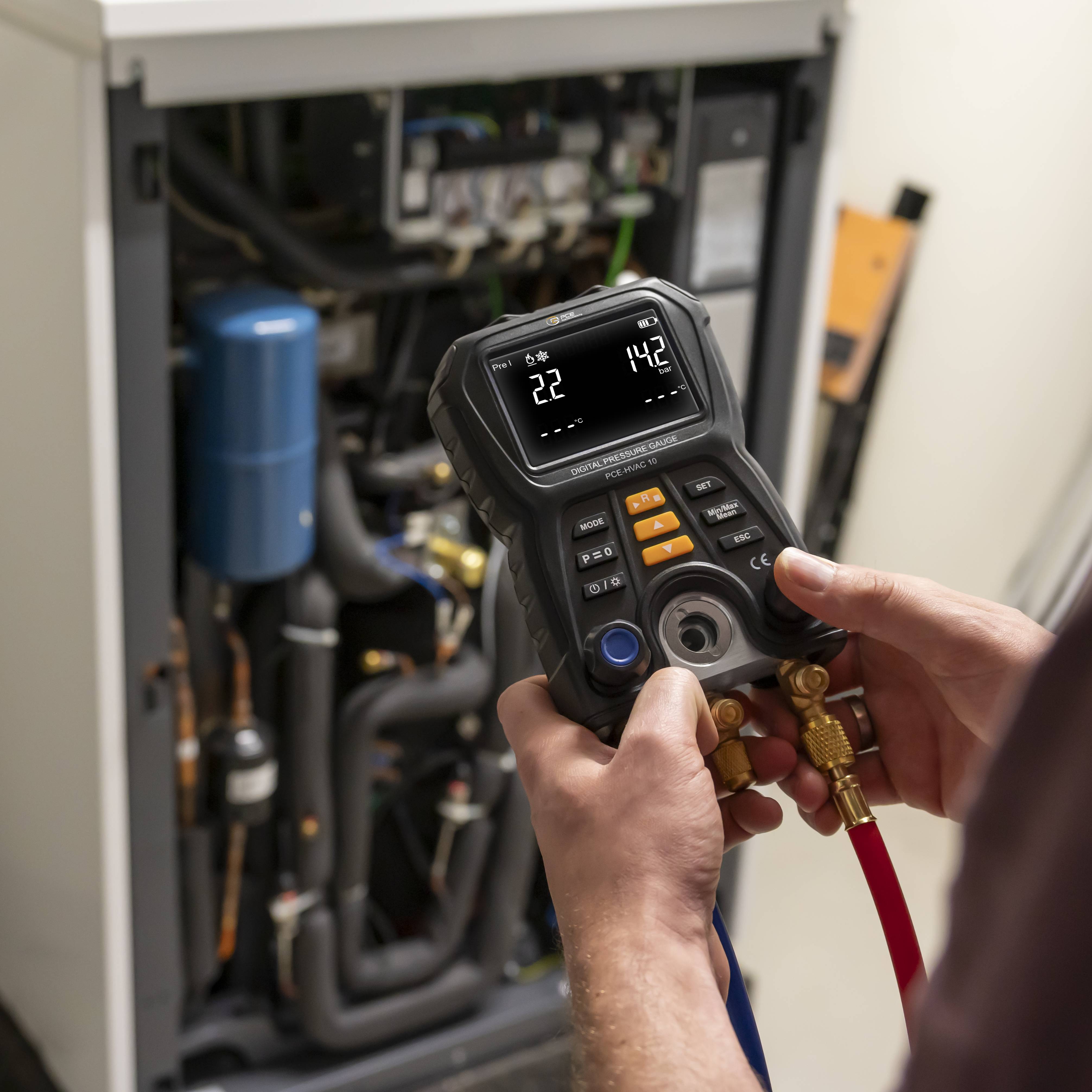

The pressure meter / pressure gauge is ideal for commissioning, service and maintenance. Additional features such as automatic heat pump mode, which eliminates the need to change refrigerant hoses, and the temperature-compensated density test function make it very easy to work on refrigeration systems and heat pumps.
