Buy PCE Instruments PCE-HVAC 3S Hygrometer

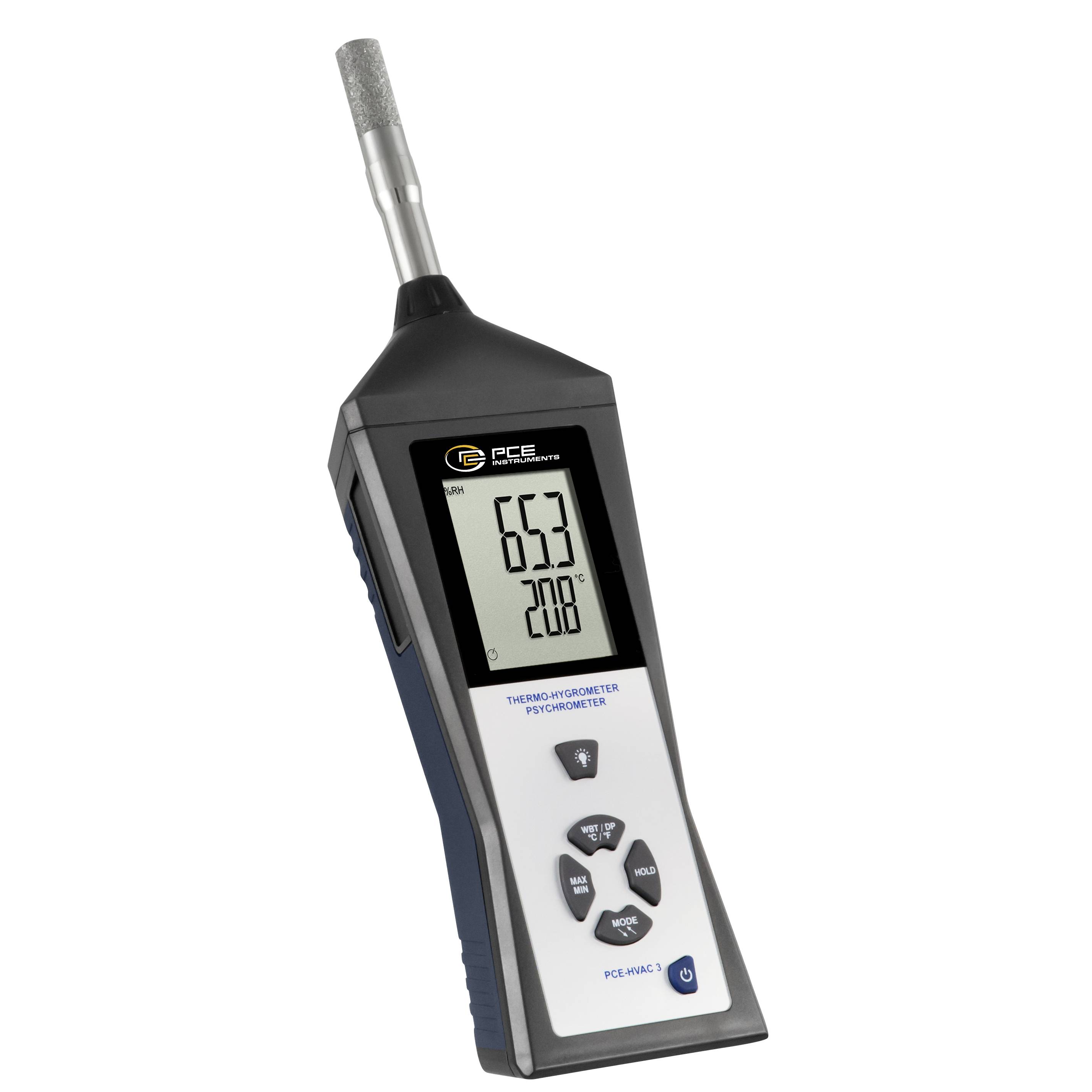

Handheld digital thermo-hygrometer with probe, showing 65.3% humidity and 20.8°C on the display.

Warehouse worker checking inventory with a handheld scanner among stacked cardboard boxes on storage shelves.

A silver textured cylindrical grinding bit or abrasive tool accessory on a white background.

Close-up of a rotary drill bit with a cylindrical abrasive tip and metal shaft attached to a black chuck on a white background.

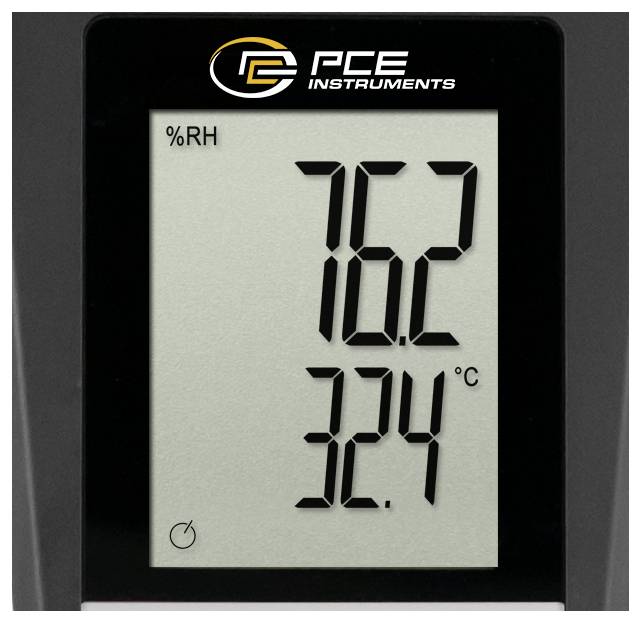

Digital PCE Instruments display showing 76.2% relative humidity and 32.4°C temperature.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

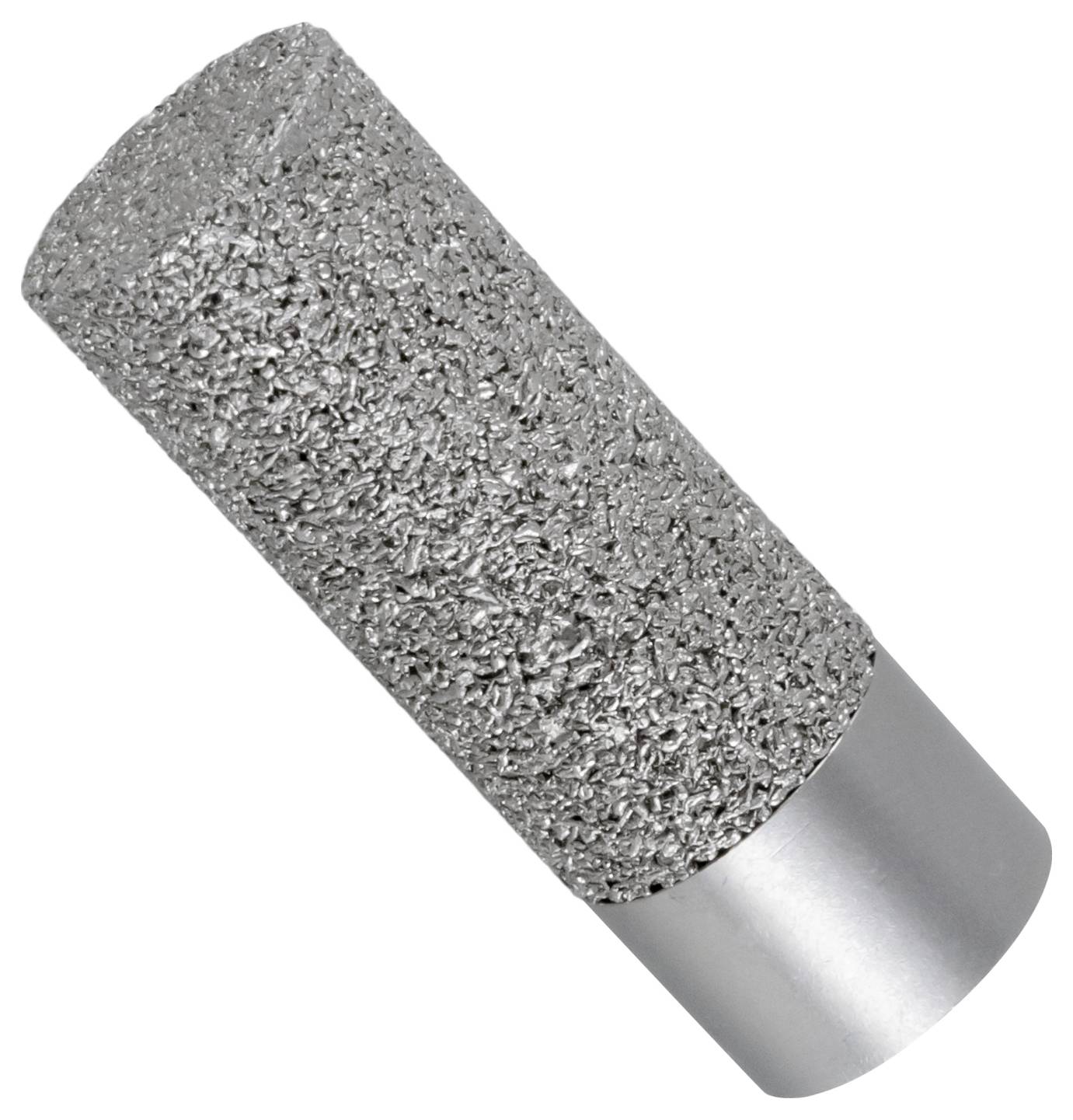

Thermal hygro psychrometer PCE-HVAC 3 with sintered cap

Ergonomically designed housingOne-handed operationBacklightHOLD and extreme value displayAutomatic switch-off can be deactivatedMeasurement of dew point and wet bulb temperature

Technical specifications

Humidity measurement range 0 ... 20 % (accuracy: ±4 % RH)20 ... 40 % (accuracy: ±3 % RH)40 ... 60 % (accuracy: ±2 % RH)60 ... 80 % (accuracy: ±3 % RH) 80 ... 100 % (accuracy: ±4 % RH)Temperature measuring range:-30 ... -19.9 °C (Accuracy ±1.0 °C)-20 ... +60 °C (Accuracy ±0.5 °C)+60 ... +100 °C (accuracy ±1.0 °C)Humidity resolution 0.001Resolution temperature: 0.1 °CMeasurement units: °C.°FDew point (°C / °F)Wet bulb temperature (°C / °F)Measurement parameters: %RH, GPP (Grains per pound), g/kg, g/m³ (absolute), gr/ft³ (absolute)Display: dual LCDResponse time <15 secondsSensor type: Humidity: Precise capacitive sensorTemperature: ThermistorAbsolute humidity: 0 ... 500 g/m³0 ... 218.5 g/ft³ Measuring range dew point temperature: -30 ... +100 °C Measuring range for wet bulb temperature : 0 ... +80 °C, Operating conditions: 0 ... +50 °C, <80 % RH (non-condensing)Storage conditions: -40 ... +85 °C, <99 % RH (non-condensing)Power supply: 9 V block batteryBattery life: Approx. 48 hoursDimensions 300 x 75 x 50 mmWeight 400 g

Product type: Hygrometer

Max. temperature: +100 °C

: Manufacturer's standards (no certificate)

Power supply: 9 V battery (1x), included

Min. temperature: -30 °C

Resolution (temperature): 0.10 °C

Documents & Downloads

Datasheet

Datasheet 2620712 PCE Instruments PCE-HVAC 3S Hygrometer

User & Safety Instructions

User & Safety Instructions 2620712 PCE Instruments PCE-HVAC 3S Hygrometer

Description

Humidity meter in ergonomically designed housing / background lighting / for recording ambient humidity (%RH) and room temperature (°C / °F) / Calculation of dew point and wet bulb temperature in °C and °F / extreme value measurement The PPCE-HVAC 3 moisture meter is a multifunctional diagnostic tool for climate check. In addition to ambient humidity and room temperature, the psychrometer also determines the dew point and wet bulb temperature in °C and °F. The heat and climate measurement and installation is thus one of the core areas of application of the humidity meter PCE-HVAC 3. The measurement of ambient humidity and temperature is determined directly via the installed sensors. In addition, the dew point temperature and wet bulb temperature can be shown on the display. The calculation is based on the transmitted values via the sensors. In addition to the large, easy to read dual display, which also offers the possibility of lighting, the humidity meter comes out with six buttons, was the reason why it is an intuitive measuring instrument, which makes extensive climate checks in the private and professional area possible in a simple way. In addition to the one-time measurement with the psychrometer, condition monitoring can also be carried out over a long period of time. The psychrometer is equipped accordingly.

This text is machine translated.
