PCE Instruments PCE-HWA 30-ICA Anemometer Datalogger function, Thermometer, USB interface
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments heat-wire anemometer PCE-HWA 30-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-HWA 30-ICA
- Heat-wire anemometer with data memory
- Software for reading the measured values
- Pivoting telescopic arm
- Measuring range 0.3 ... 30.0 m/s
- Data memory for up to 960 measurements
- Beaufort scale

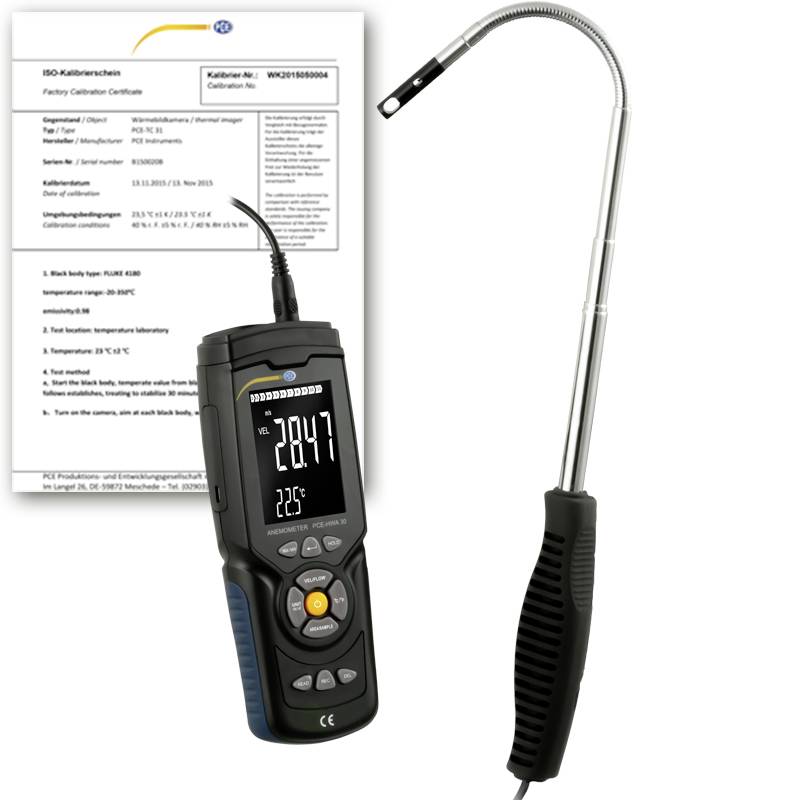

- Incl. ISO calibration certificate
Technical specifications
- Speed
- Measuring range 0.3 ... 30 km/h
- Resolution 0.01 km/h
- Accuracy ±3 % ±0.1 m/s of MW.
- Speed
- Measuring range 60 ... 5904 ft/min
- Resolution 0.01 ft/min
- Accuracy ±3 % ±20 ft/min v. MW.
- Speed
- Measuring range 0.6 ... 58.3 knots
- Resolution: 0.01 nodes
- Accuracy ±3 % ±0.2 knots of MW.
- Speed
- Measuring range 1 ... 108 km/h
- Resolution 0.01 km/h
- Accuracy ±3 % ±0.4 km/h v. MW.
- Speed
- Measuring range 0.7 ... 67 mph
- Resolution 0.01 mph
- Accuracy ±3% ±0.2 mph from MW.
- Volume flow
- Measuring range 0 ... 999900 m³/min.
- Resolution 0.001 m³/min.
- Volume flow
- Measuring range 0 ft ³/min ... 999900 CFM
- Resolution 0.001 m³/min.
- Temperature
- Measuring range 0 ... 45 °C
- Resolution 0.1 °C
- Accuracy: ±1.0 °C
- Temperature
- Measuring range 32 ... 113 °F
- Resolution 0.18 °F
- Accuracy +/1.8 °F
- General Technical Data
- Cable length: 1.5 m
- MEASUREMENT FUNCTIONS HOLD, MAX., MIN.
- Display type LCD
- Display size 3 inches
- Display update rate 1 x per second
- Measurement rate 1 Hz
- Storage medium Internal memory
- Memory capacity: 960 values
- Storage intervals of 0 s.
- Storage intervals of up to 9999 s.
- Interface Micro-USB
- Automatically switches off approx. 10 min.
- ABS casing (acrylonitrile-butadiene-styrene copolymers)
- Dimensions of telescopic rod: 265 ... 875 mm, probe diameter: Ø 9.3 mm
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Voltage supply: 5 V DC / 1 A
- Battery/Battery 1 x 3.7 V internal , Lithium-polymer battery
- 1000 mAh output
- Operating conditions 0 ... 50 °C , 40 ... 80 % r.F.
- Storage conditions -20 ... 60 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 194 x 74 x 35 mm
- Weighs 236 g.
- Wind speed resolution
0.01 m/s, 0.01 km/h
- Product type
Anemometer
- Dim
(L x W x H) 194 x 74 x 35 mm
- Features
Datalogger function
Thermometer
USB interface
- Calibration service
Incl. ISO calibration certificate
- Width
74 mm
- Height
35 mm
- Length
194 mm
- Power supply (details)
3.7 V, 1000 mAh battery, 5 V DC, 1 A micro USB-interface
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812576 PCE Instruments PCE-HWA 30-ICA Anemometer Datalogger function, Thermometer, USB interface
User & Safety Instructions
User & Safety Instructions 3812576 PCE Instruments PCE-HWA 30-ICA Anemometer Datalogger function, Thermometer, USB interface
Description

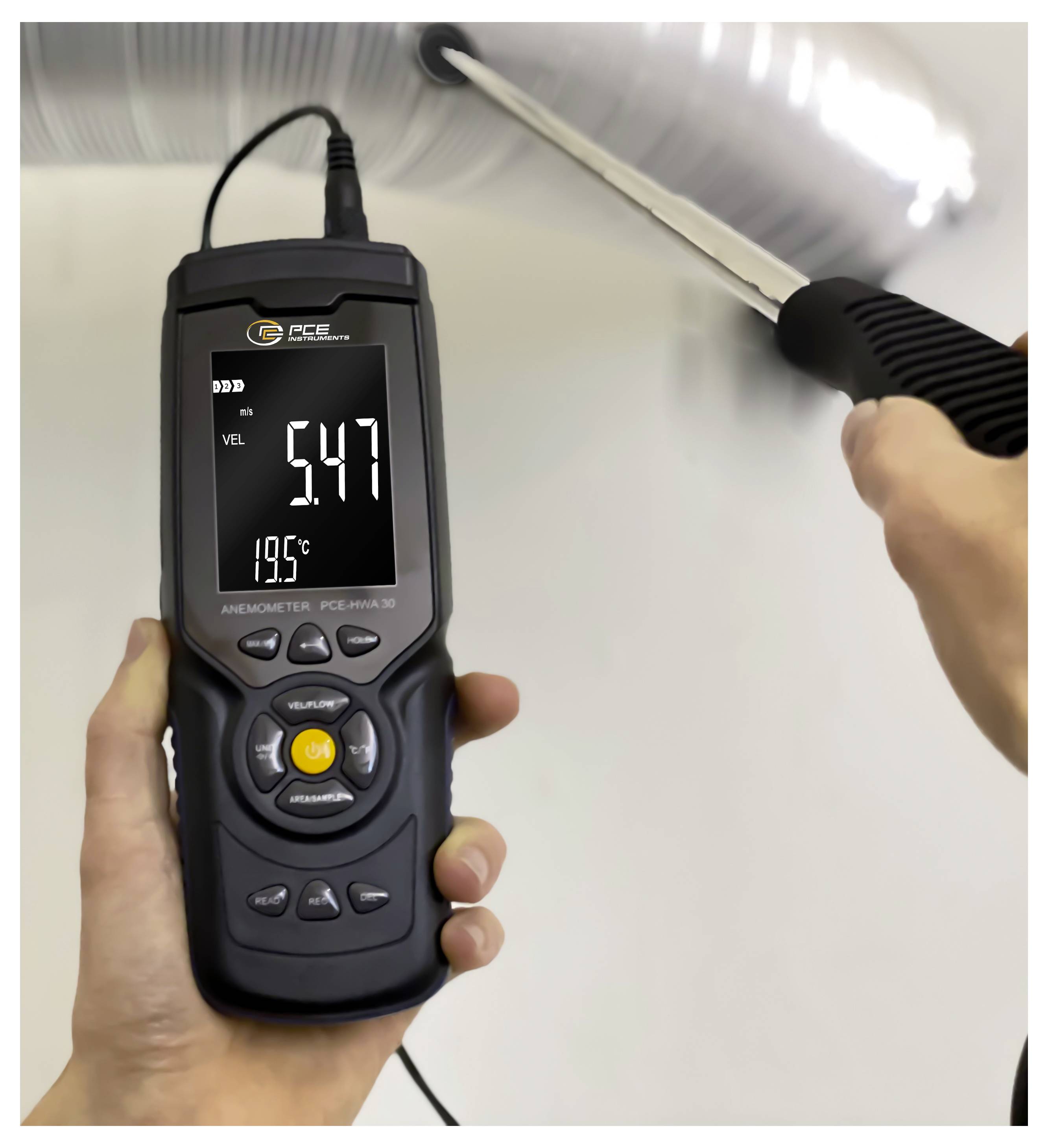

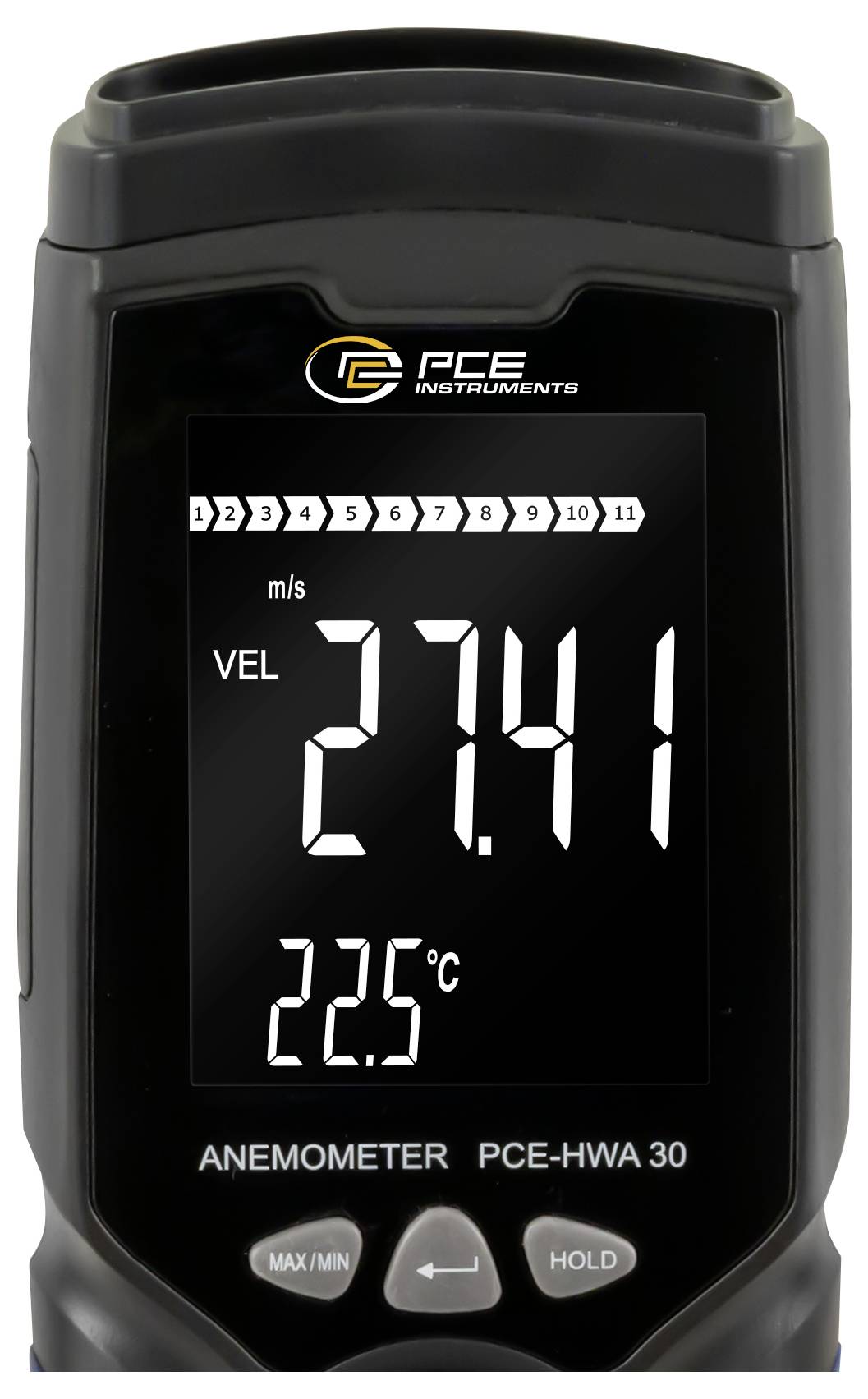

The heat-wire anemometer measures the speed of flow according to the hot-wire principle. This guarantees a particularly compact design. The measuring range of the heat-wire anemometer is between 0.3 … 30.0 m/s. In addition to the flow speed, the heat wire anemometer can measure the volume flow and ambient temperature. For each measurement, a Beaufort scale is displayed next to the measurement value. On the basis of this scale, you can read the current wind strength.
With the integrated data memory up to 960 measured values can be recorded with the heat-wire anemometer. In order to read the data this can be done directly on the heat-wire anemometer. At the same time the measured values from the heat-wire anemometer can be transmitted to a PC via the micro-USB interface. For further processing of the data there is a suitable software for the heat-wire anemometer available in the download portal of PCE INSTRUMENTS.

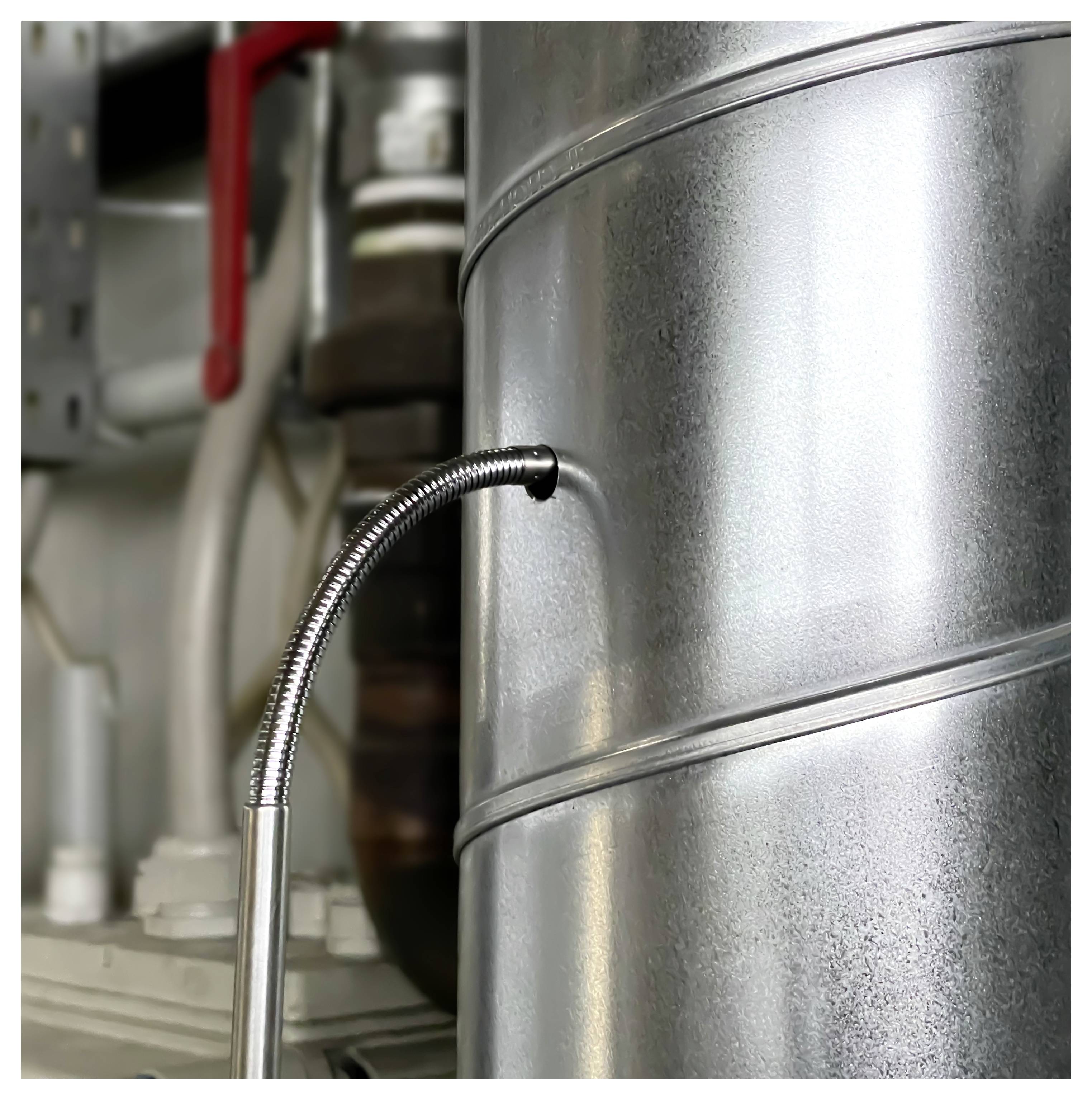

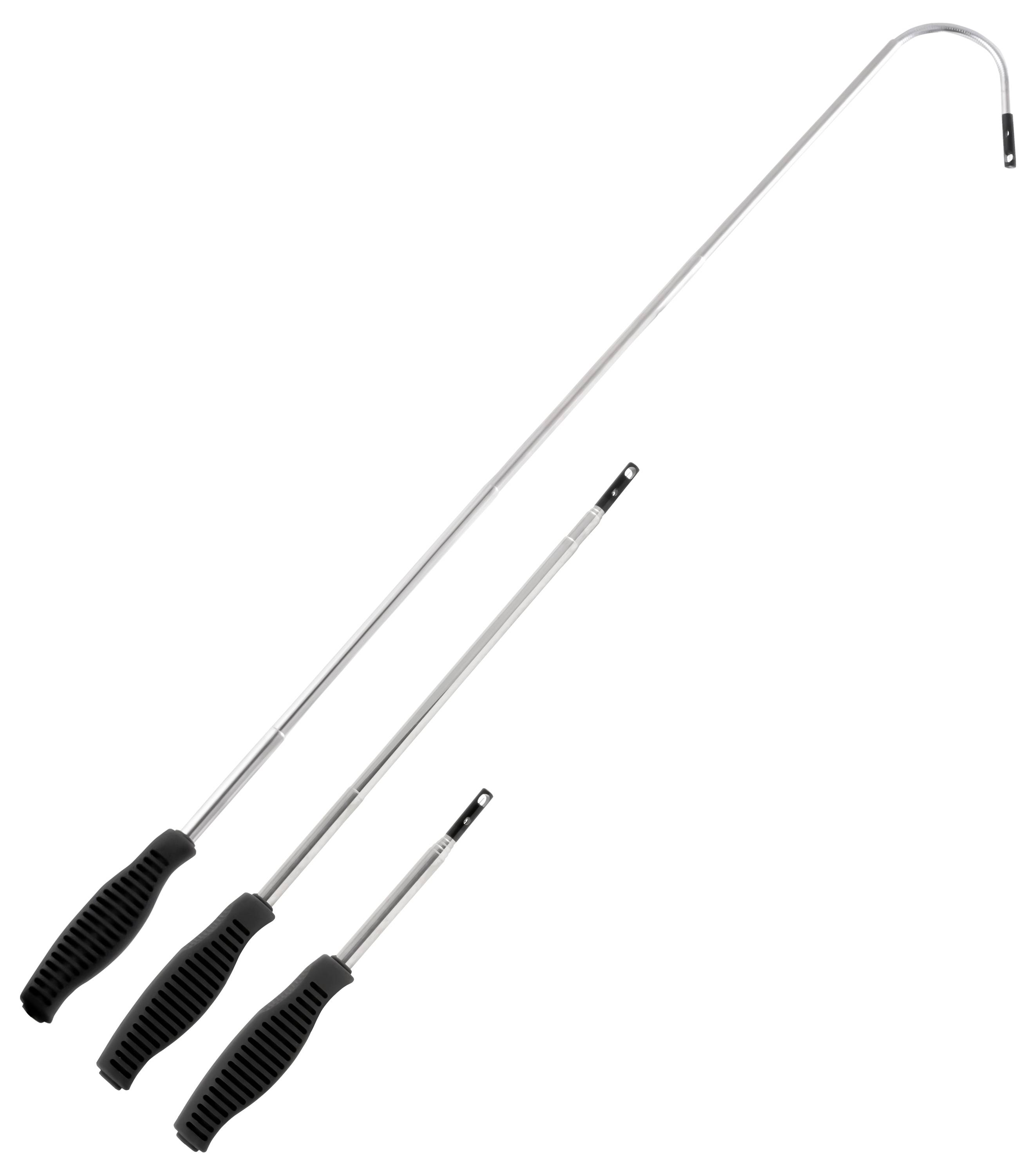

For optimum alignment, the telescopic arm of the heat-wire anemometer can be extended to up to 750 mm. In addition, the head of the heat-wire anemometer is semi-rigid and can thus be aligned differently. The battery of the heat-wire anemometer with a capacity of 1000 mAh allows mobile use. To recharge the battery, the heat-wire anemometer must be connected to a 5 V DC micro-USB power supply.
This text is machine translated.
With the integrated data memory up to 960 measured values can be recorded with the heat-wire anemometer. In order to read the data this can be done directly on the heat-wire anemometer. At the same time the measured values from the heat-wire anemometer can be transmitted to a PC via the micro-USB interface. For further processing of the data there is a suitable software for the heat-wire anemometer available in the download portal of PCE INSTRUMENTS.
For optimum alignment, the telescopic arm of the heat-wire anemometer can be extended to up to 750 mm. In addition, the head of the heat-wire anemometer is semi-rigid and can thus be aligned differently. The battery of the heat-wire anemometer with a capacity of 1000 mAh allows mobile use. To recharge the battery, the heat-wire anemometer must be connected to a 5 V DC micro-USB power supply.
This text is machine translated.

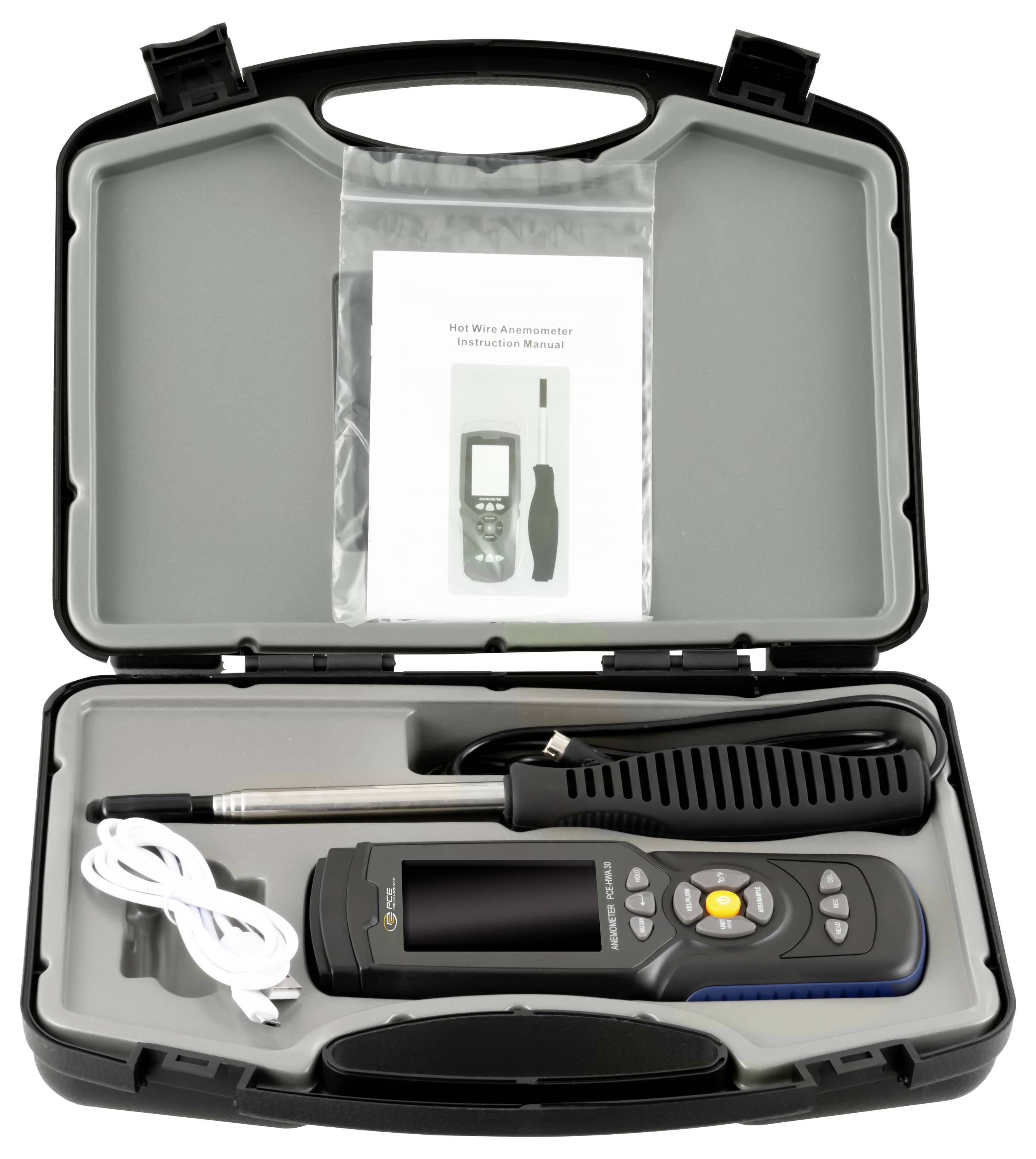

Scope of delivery
- 1 x heat wire anemometer PCE-HWA 30-ICA
- 1 x micro USB cable
- 1 x transport case
- 1x user manual
- 1 x ISO calibration certificate
