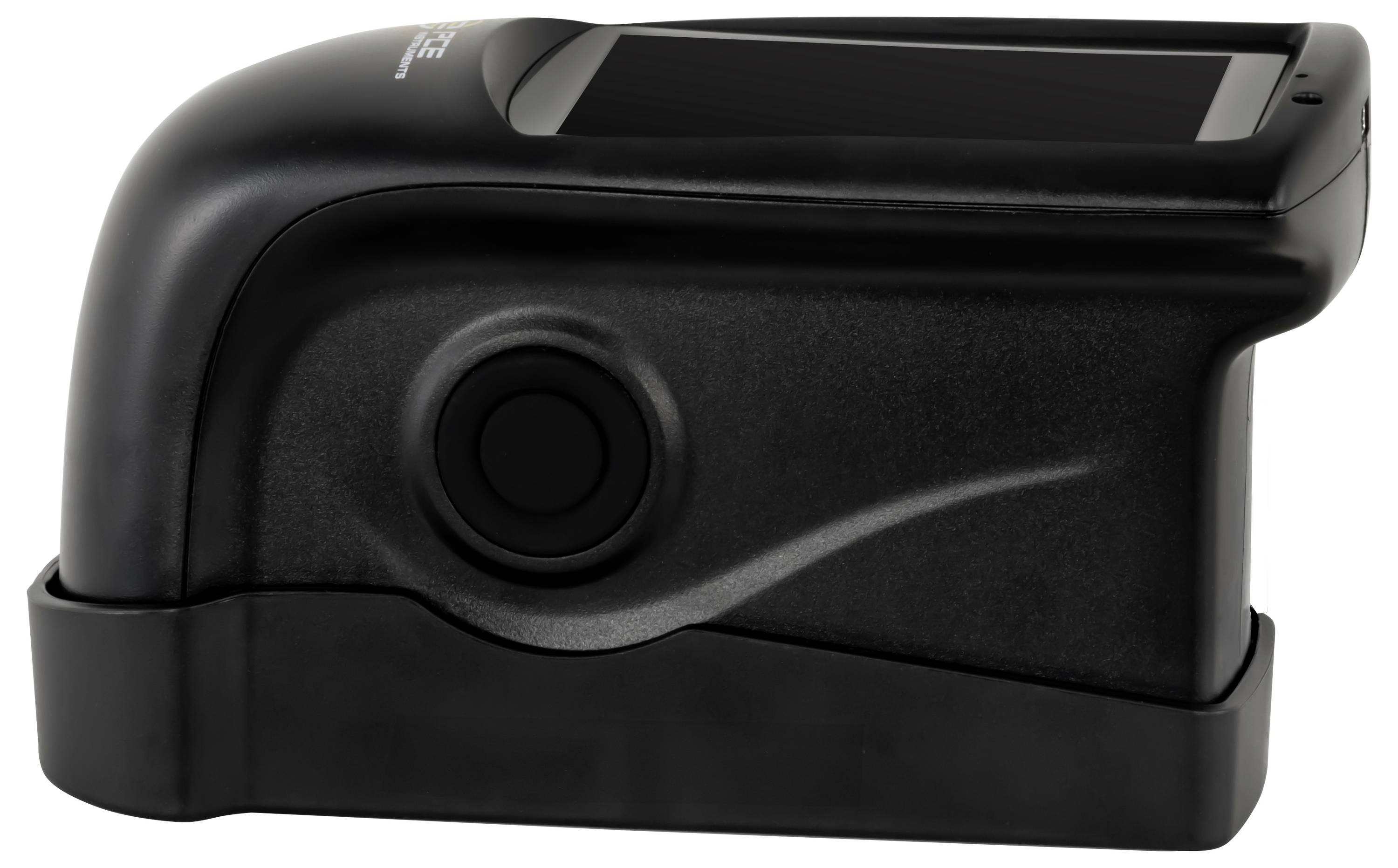

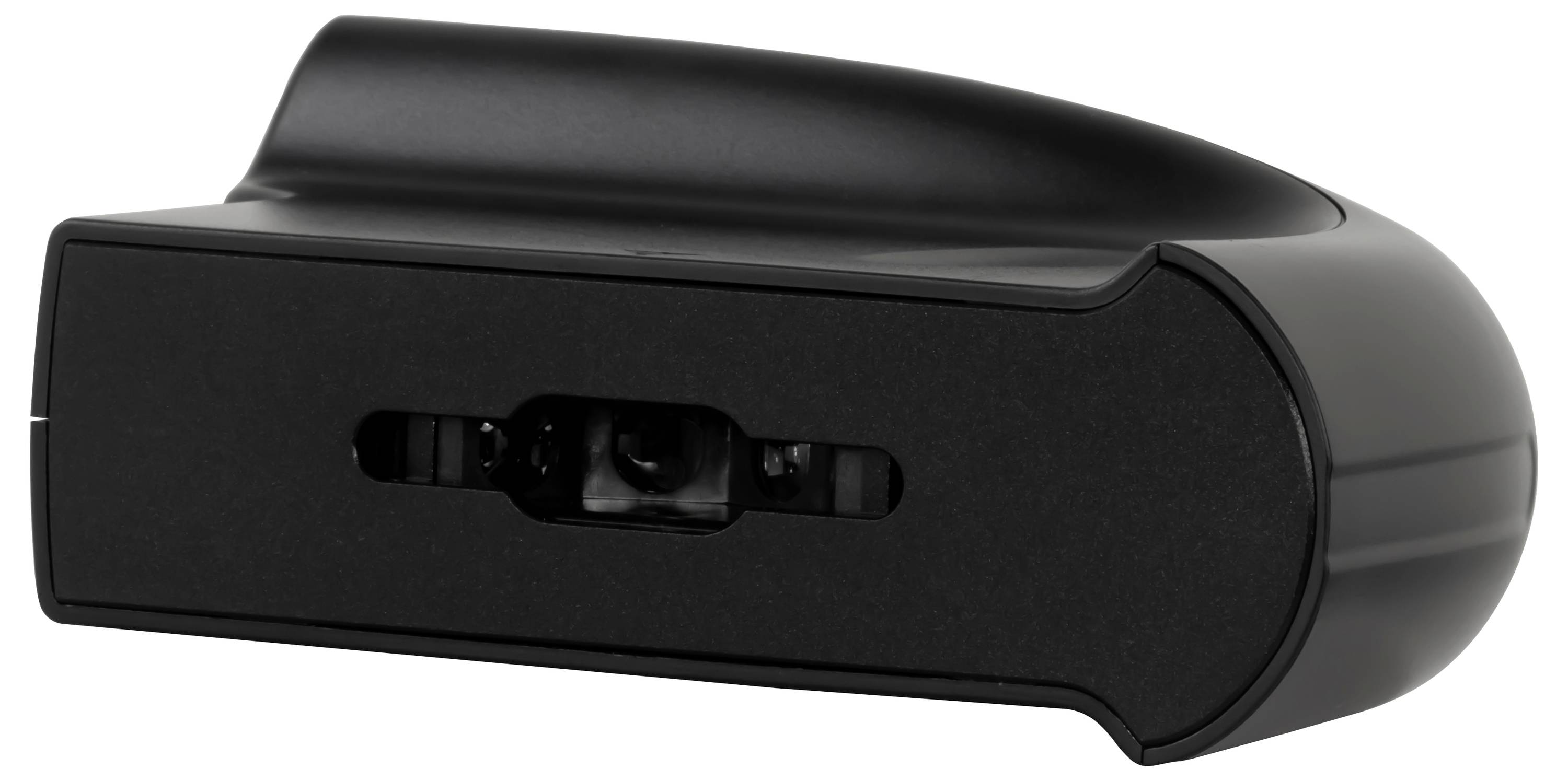

PCE Instruments PCE-IGM 100-ICA PCE-IGM 100-ICA Gloss meter Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments Glanyard meter PCE-IGM 100-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE IGM 100-ICA
- Different measurement geometries
- 3.5 inches TFT
- Internal measured value memory
- Calibration plate included in delivery
- Small measurement time
- With analysis software

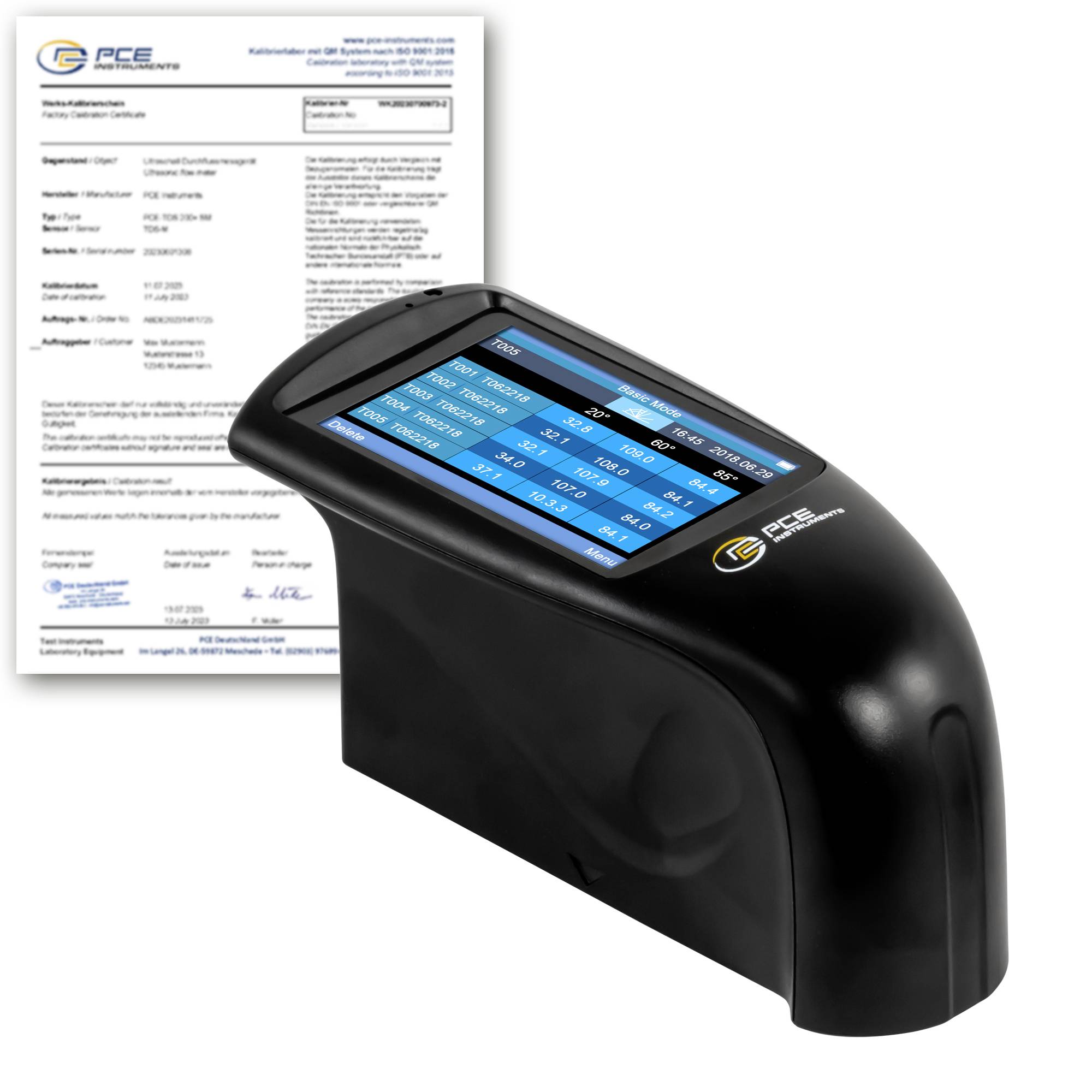

- Incl. ISO calibration certificate
Technical specifications
- Shine
- Measuring geometry 20°
- Measuring range 0 ... 1000 GU
- Resolution: 0.1 Gu
- Accuracy ±1.2 GU / ±1.2 %
- Shine
- Measuring geometry 60°
- Measuring range 0 ... 1000 GU
- Resolution: 0.1 Gu
- Accuracy ±1.2 GU / ±1.2 %
- Shine
- Measuring geometry 85°
- Measuring range 0 ... 160 GU
- Resolution: 0.1 Gu
- Accuracy ±1.2 GU / ±1.2 %
- General Technical Data
- REPEATABILITY ±0.1 GU / ±0.2 GU / ±0.2 GU (%)
- Display type TFT touch-screen
- Display size 3.5 inches
- Storage medium Internal memory
- Memory capacity: 5000 values
- Storage capacity (additional information) Basic measurement: 1000, Statistical mode: 5000, continuous measurement: 5000
- Interface Mini-USB, RS232
- Standard(s) ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
- Measuring area additional information 20 ° : 10x10 mm / 60 ° : 9x15 mm / 85 ° : 5x36 mm
- Measurement time 1 s.
- REPRODUCIBILITY ±0.2 GU / ±0.5 GU / ±0.5 GU (%)
- Measuring geometry 20°, 60°, 85°
- Colour grade corresponds to CIE 1931(2 °) under a CIE C light source
- Menu language English (US), Chinese
- Protection class (device) IP20
- Power supply 100 ... 240V AC | 50 ... 60 Hz
- Connector type for device Euro plug
- Battery/battery 1 x 1.5 V internal , lithium-ion battery
- Capacity 3200 mAh
- Operating conditions 0 ... 40 °C , 0 ... 85 % r.F.
- Storage conditions -20 ... 50 °C , 0 ... 85 % r.F.
- Dimensions ( L x W x H ) 160 x 75 x 90 mm
- Weight 350 g
- Product type
Gloss meter
ISO standards
- Dim
(L x W x H) 160 x 75 x 90 mm
- Display
Touchscreen
- Weight
350 g
- Calibration service
Incl. ISO calibration certificate
- Features
Data logger
- Width
75 mm
- Height
90 mm
- Length
160 mm
- Interfaces
USB
RS232
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812577 PCE Instruments PCE-IGM 100-ICA PCE-IGM 100-ICA Gloss meter Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812577 PCE Instruments PCE-IGM 100-ICA PCE-IGM 100-ICA Gloss meter Calibrated to (ISO standards)
Description
A gloss measuring device is a test device for determining surfaces. Spectral reflections of the light beam that hits a surface are measured with the gloss measuring device. The touch-screen enables an easy navigation.
The gloss measuring device is used mainly in areas where it is important that the surfaces have the same structure and thus the same surface properties. This is often done in quality control. Thus, the gloss measuring instrument is a measuring instrument that is used in many different companies that produce in some way.
The scope of delivery for this gloss measurement device also includes a CD-Rom with special evaluation software. Means measured data can be saved to the device and transferred to a computer. The software from the gloss gauge also has an analysis function that is used for accurate evaluation.
This text is machine translated.
The gloss measuring device is used mainly in areas where it is important that the surfaces have the same structure and thus the same surface properties. This is often done in quality control. Thus, the gloss measuring instrument is a measuring instrument that is used in many different companies that produce in some way.
The scope of delivery for this gloss measurement device also includes a CD-Rom with special evaluation software. Means measured data can be saved to the device and transferred to a computer. The software from the gloss gauge also has an analysis function that is used for accurate evaluation.
This text is machine translated.

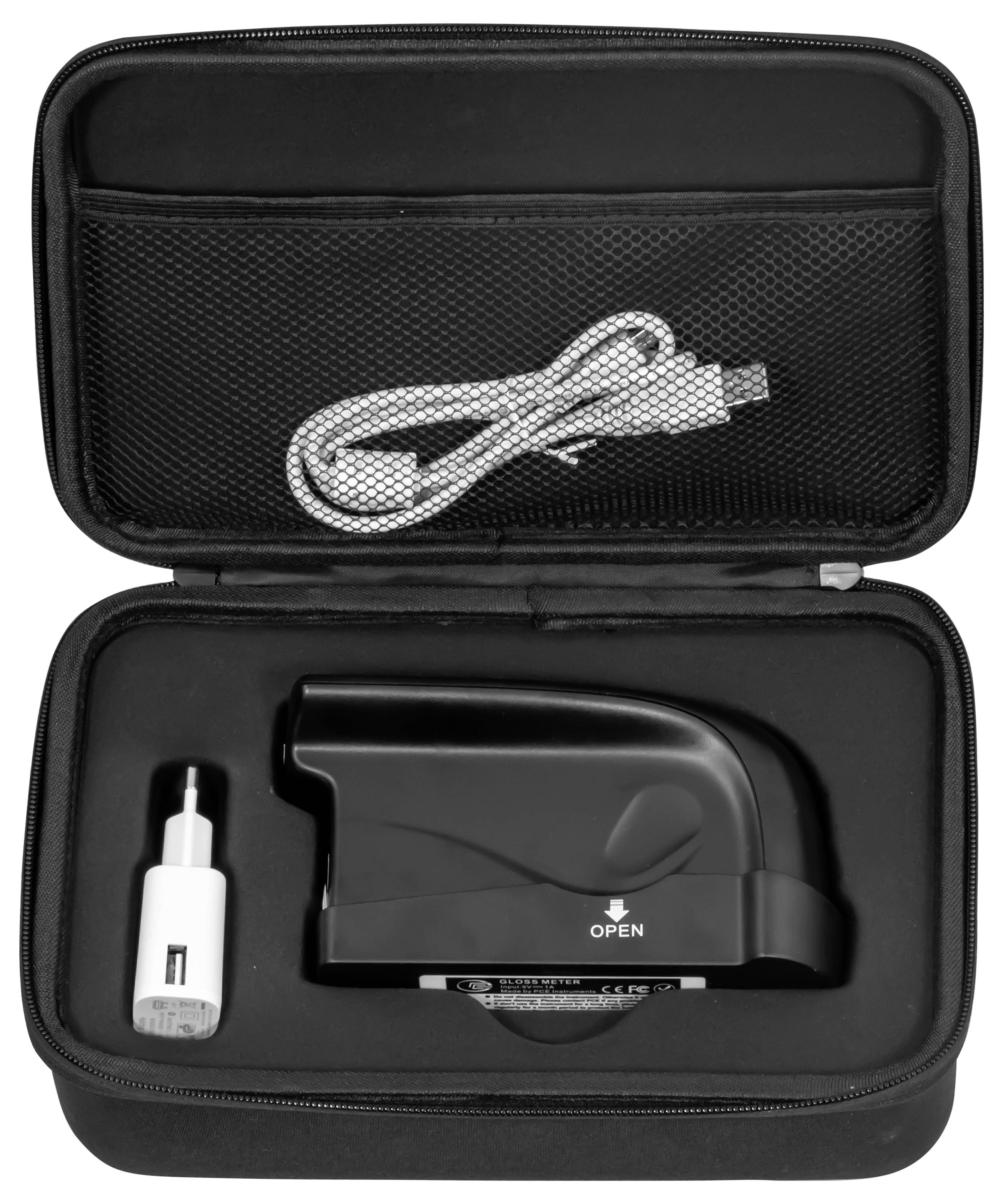

Scope of delivery
- 1 x gloss measuring device PCE-IGM 100-ICA
- 1 x evaluation software (on CD-ROM)
- 1 x Charging adapter 5 V
- 1 x mini USB cable

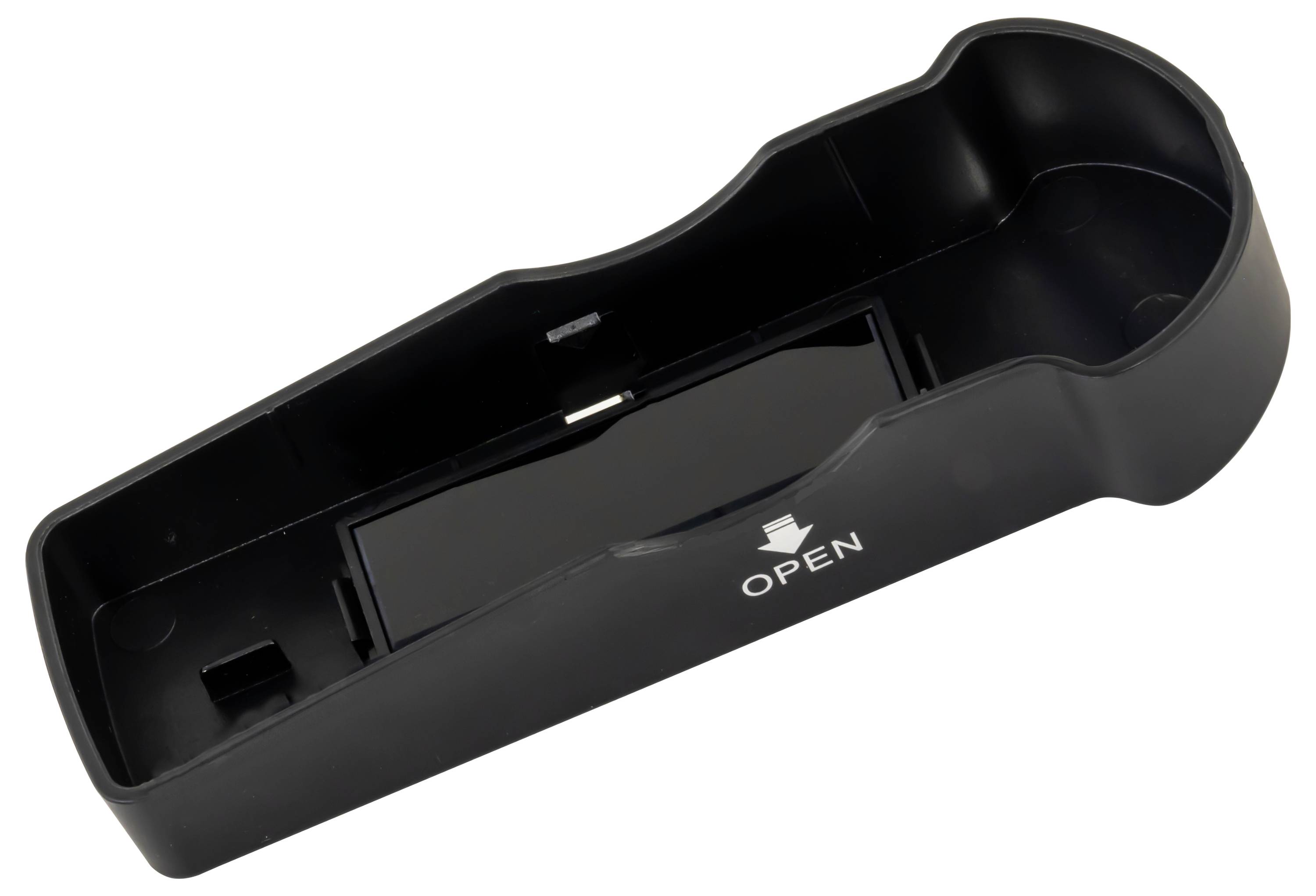

- 1 x calibration plate
- 1x user manual
- 1 x ISO calibration certificate
