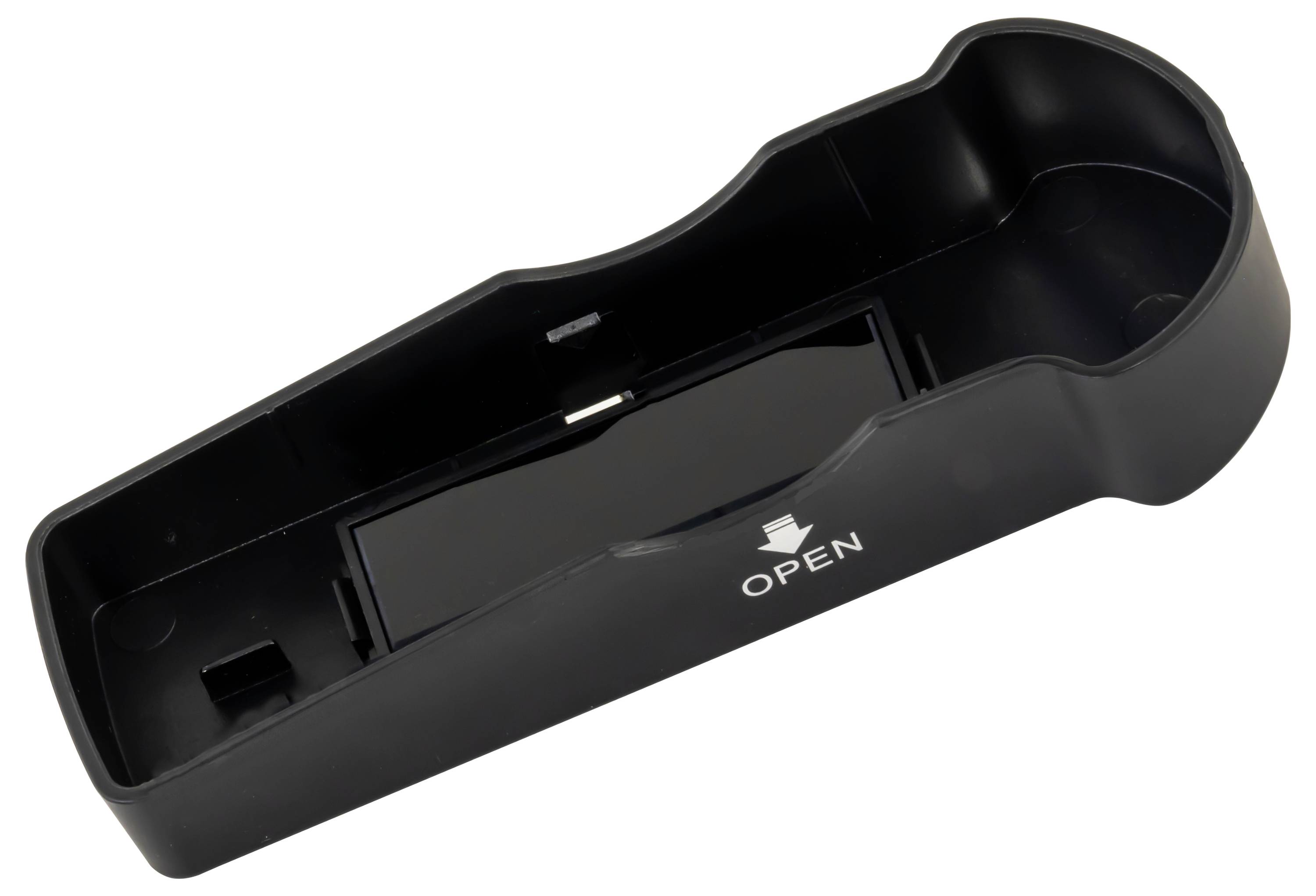

Black plastic battery compartment tray with sliding cover labeled 'OPEN' on a white background

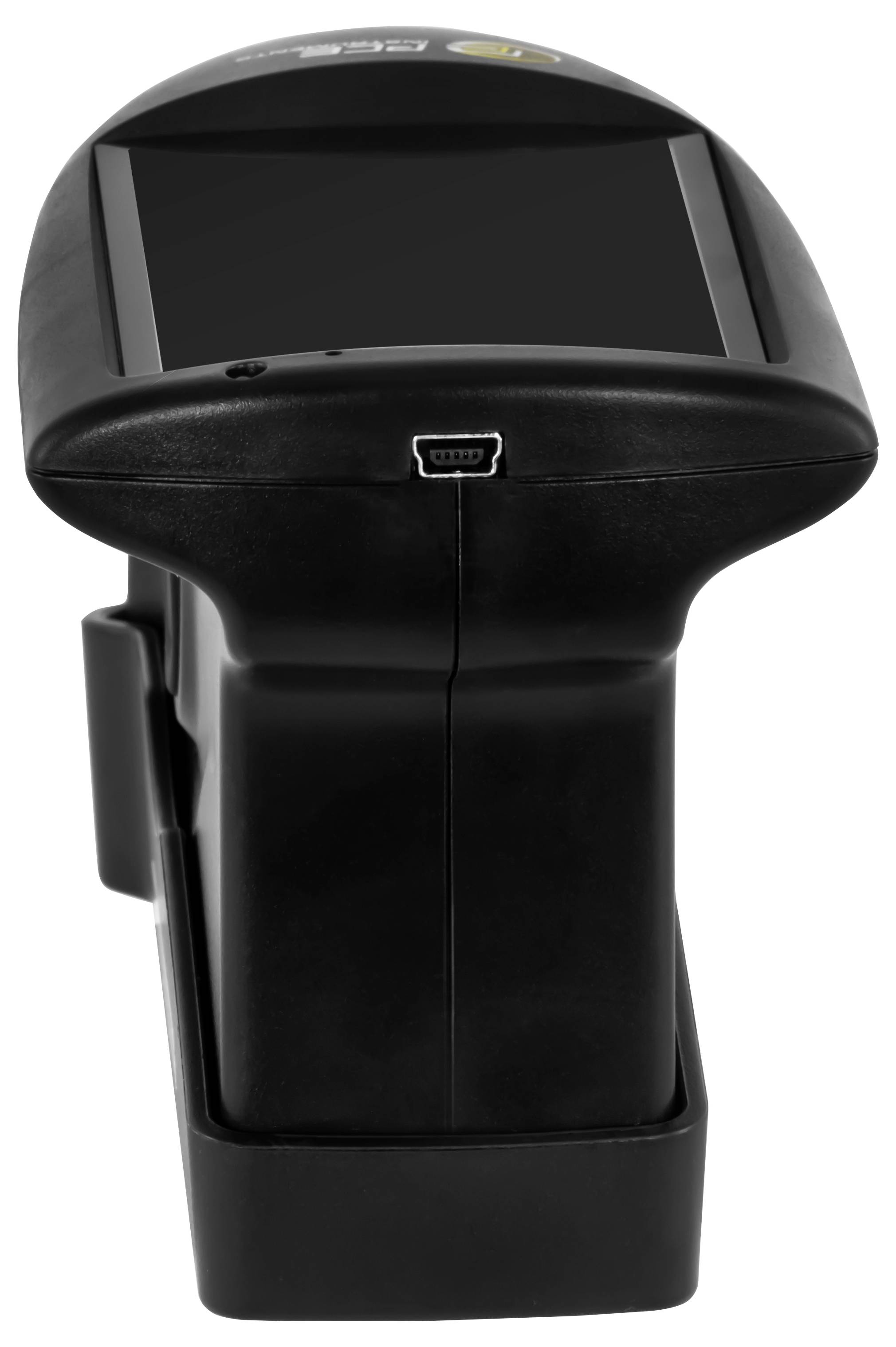

Black handheld device with a small screen and USB port, shown front view on a white background.

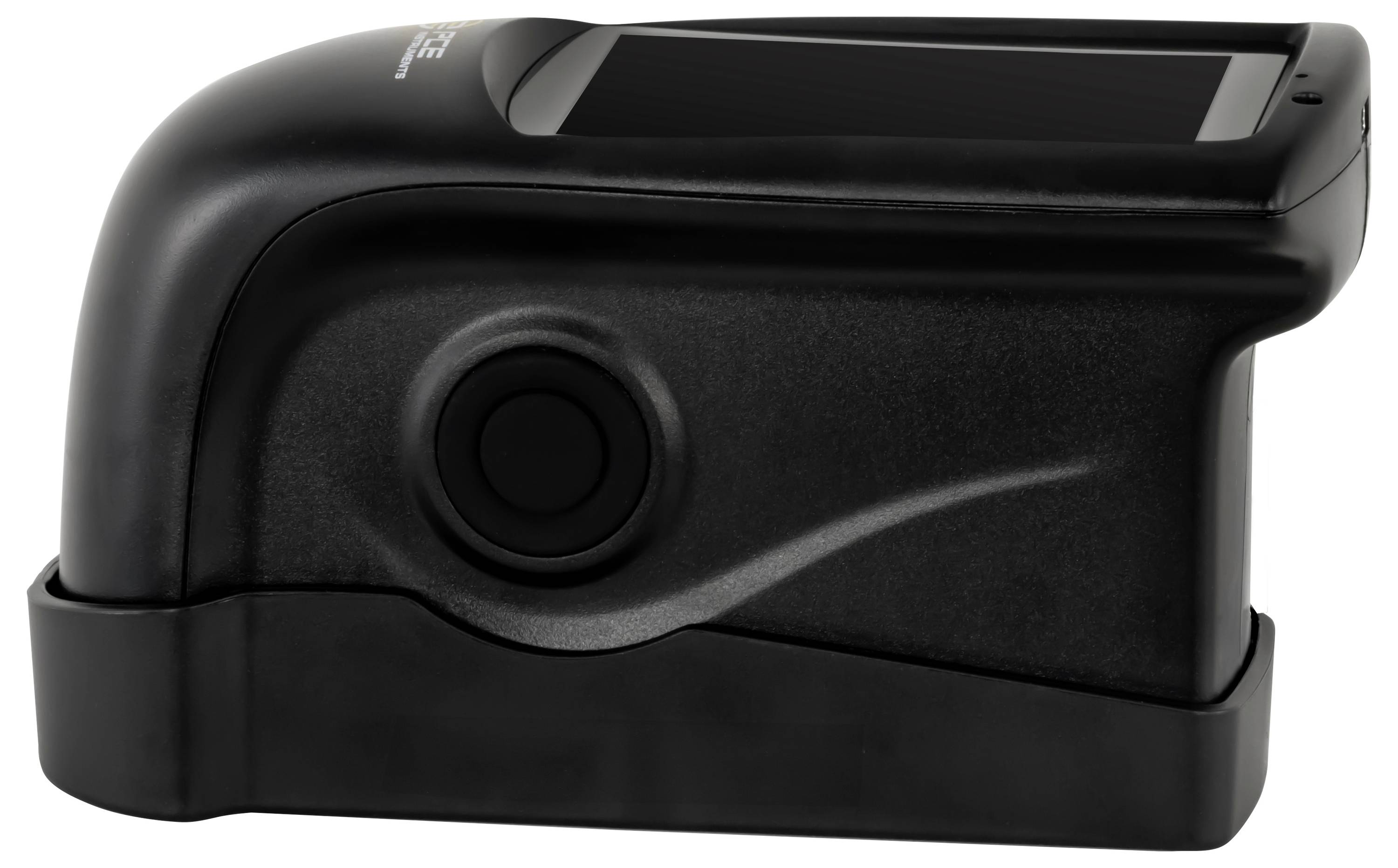

Black handheld electronic device docked in a charging base, shown in side view on a plain background.

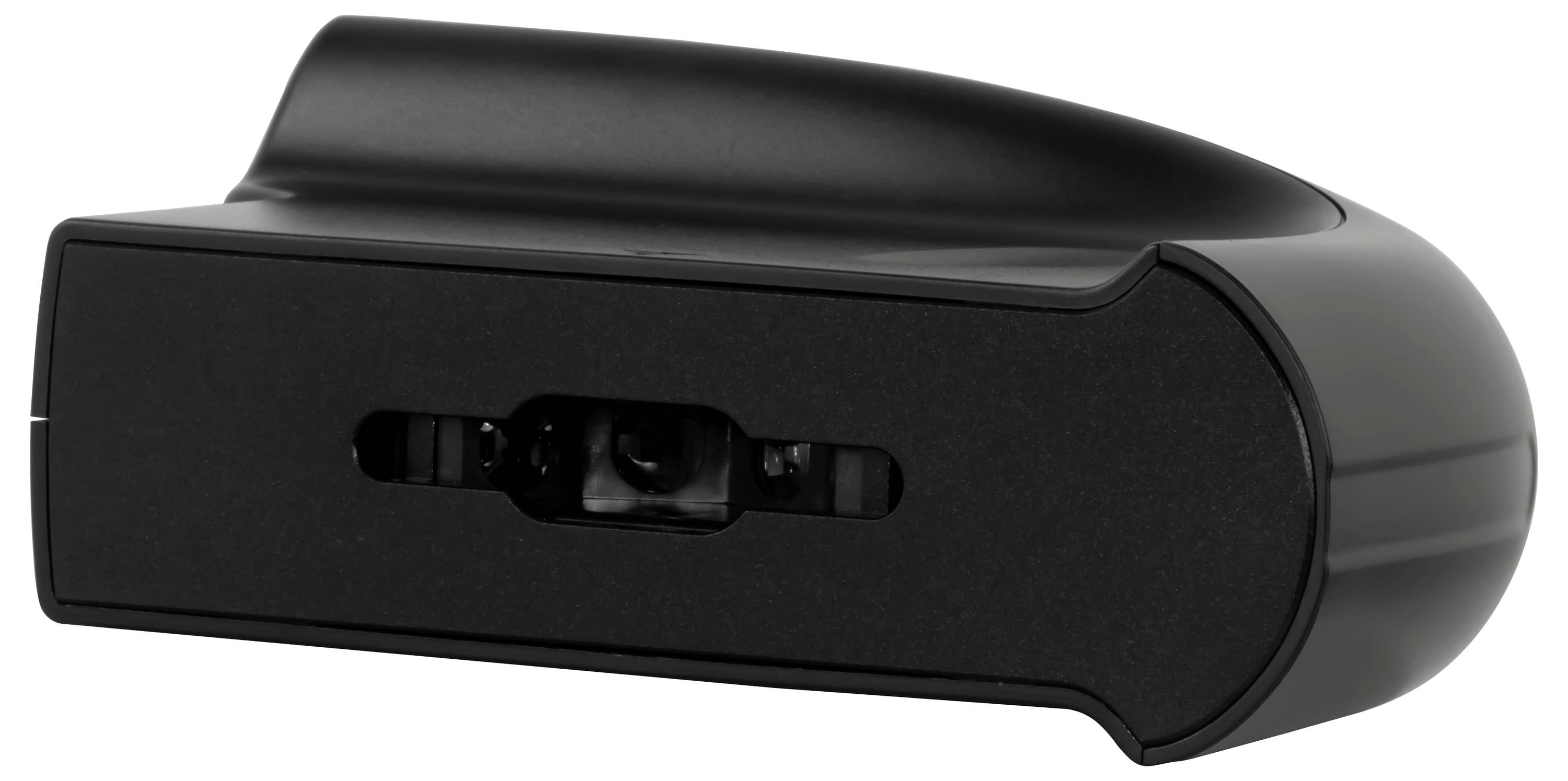

Black compact wall-mounted sensor/device with a horizontal opening on the front, shown on a white background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

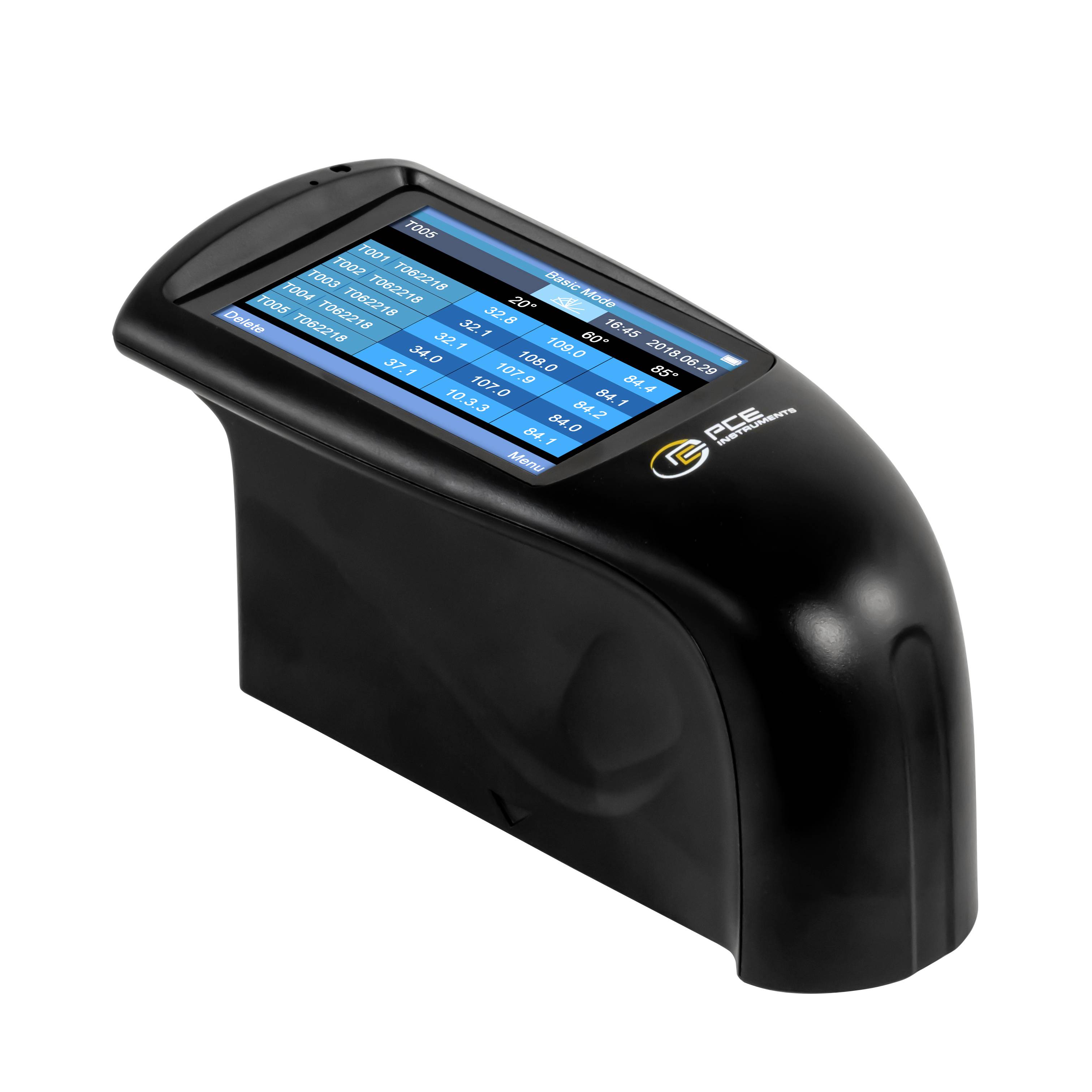

Gloss meter PCE-IGM 100

Different measuring geometries
3.5" TFT
Internal measured value memory
Calibration plate included in delivery
Low measurement time
With evaluation software

Technical specifications

Measuring geometries 20 ° / 60 ° / 85 ° Display 3.5 " TFT touch display (320 x 480 pixels) STANDARDS ISO 2813 GB/T 9754 ASTM D 523 ASTM D 2457 Measuring area 20 ° : 10x10 mm 60 ° : 9X15 mm 85 ° : 5x36 mm Measuring range 20 ° : 0 ... 1000 GU 60 ° : 0 ... 1000 GU 85 ° : 0 ... 160 GU Readability 0.1 GU Repeatability measuring range 0 ... 10 GU: ±0.1 GU Measurement range 10 ... 100 GU: ±0.2 GU Measurement range 100 ... 1000 GU: ±0.2 GU (%) Reproducibility measuring range 0 ... 10 GU: ±0.2 GU Measurement range 10 ... 100 GU: ±0.5 GU Measurement range 100 ... 1000 GU: ±0.5 GU (%) Color art corresponds to CIE 1931(2 °) under a CIE C light source Measuring accuracy ±1.2 GU / ±1.2 % Measuring time 1 second Dimensions 160 x 75 x 90 mm Weight 350 g Menu language English, Chinese Power supply 3200 mAh Li-ion battery Interface USB / RS-232 Measurement memory Basic measurement: 1000 statistical mode: 5000 continuous measurement: 5000 Software included Ambient temperature 0 ... +40 °C). Storage temperature -20 ... +50 °C Relative humidity < 85 % rel. humidity (non-condensing)

Product type: Gloss meter

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 160 x 75 x 90 mm

Display: Digital

Weight: 350 g

Width: 75 mm

Height: 90 mm

Length: 160 mm

Documents & Downloads

Datasheet

Datasheet 2452475 PCE Instruments PCE-IGM 100 PCE-IGM 100 Gloss meter

User & Safety Instructions

User & Safety Instructions 2452475 PCE Instruments PCE-IGM 100 PCE-IGM 100 Gloss meter

Description

Gloss measuring device for mobile use / different measuring geometries / 3.5" TFT display / low measuring time / internal measured value memory / including evaluation software A gloss measuring device is a test device for determining surfaces. The gloss measuring device measures spectral reflections of the light beam that hits a surface. The touch screen enables easy navigation. The gloss measuring device is used especially in areas where it is important that the surfaces have an identical structure and thus have the same surface properties. This is often done in quality control. Thus, the Glangmeter is a measuring instrument used in many different companies that produce in some way. A CD-ROM with special evaluation software is also included in the delivery for this shining measuring device. Thus, measured data can be stored on the device first and later transferred to a computer. The software from the Glanzmeter also has an analysis function, which serves the exact evaluation.
