Name: PCE Instruments PCE-IRT 10-ICA IR thermometer Calibrated to (ISO standards) Display (thermometer) 20:1 0 - 600 °C IP65,
Brand: PCE Instruments
SKU: 3812589

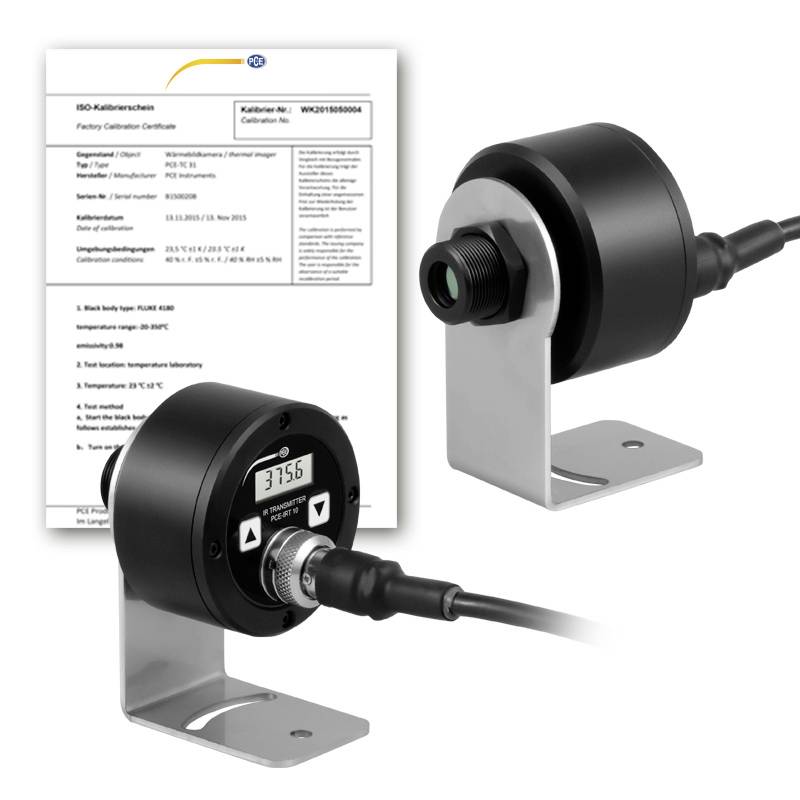

Two black sensor devices on metal brackets with attached cables, shown beside an ISO calibration certificate, illustrating calibrated measurement equipment.

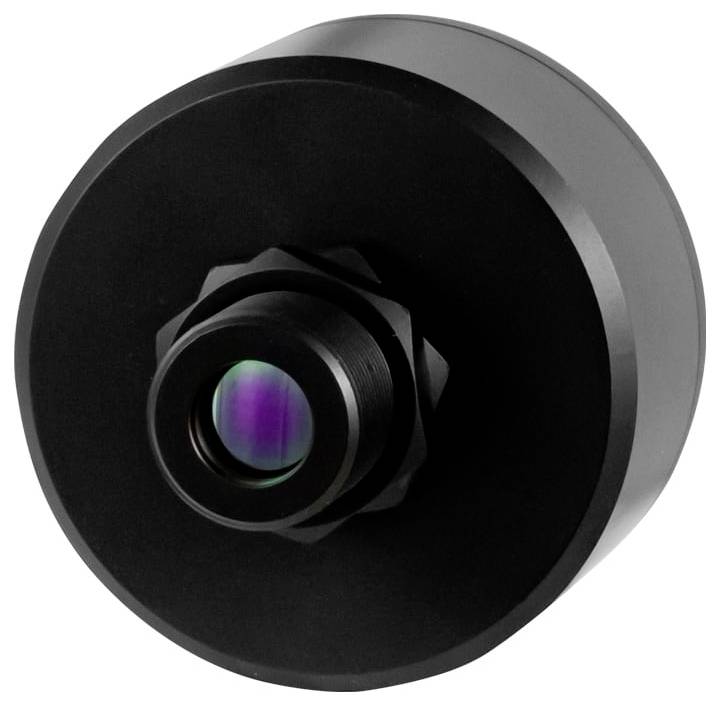

Close-up of a black camera lens or optical sensor module on a white background.

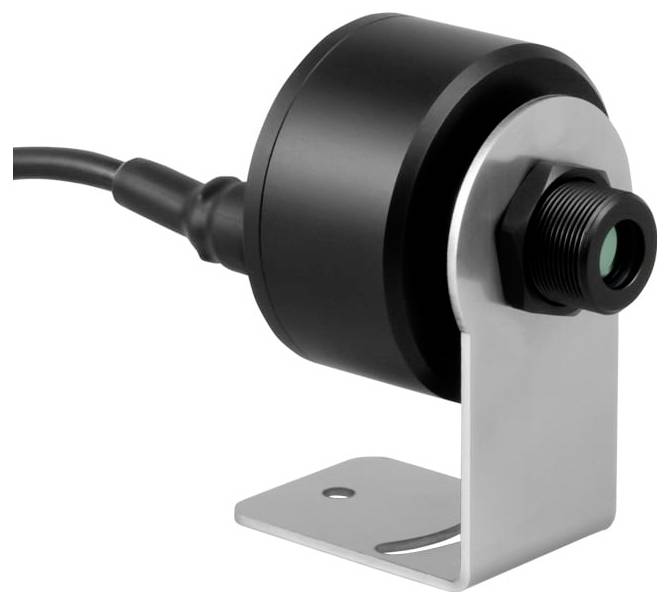

Black cylindrical sensor camera on an L-shaped metal mounting bracket with attached cable, shown against a white background.

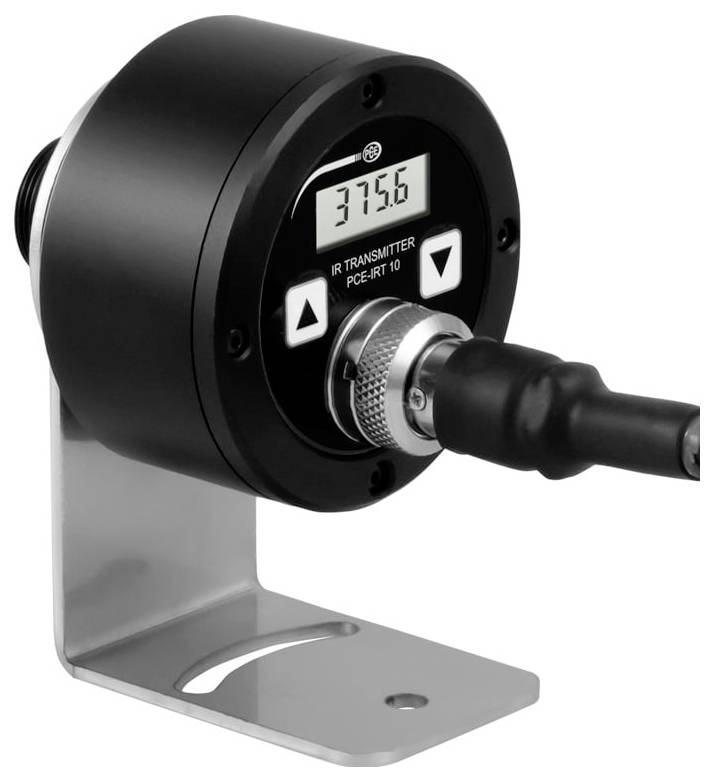

Black digital IR transmitter mounted on a metal bracket, showing a display reading 375.6 and up/down control buttons with a connected cable.

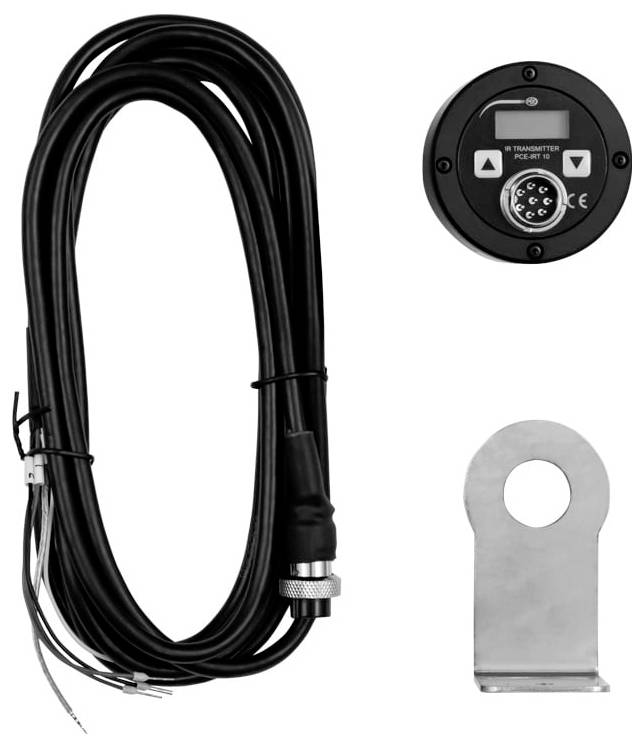

Coiled black sensor cable with connector, plus round transmitter display and metal mounting bracket shown as product parts.

1/5

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments infrared temperature meter PCE-IRT 10-ICA

Measurements of 0 ... 600 °C.
Including mounting bracket
Output signal: 4 ... 20 mA
Easy operation and assembly
150 MS response time
1 m connection cable
Incl. ISO calibration certificate

Technical specifications

Infrared temperature
Measuring range 0 ... 600 °C
Resolution 0.1 °C
Accuracy ±1.5 °C or 1 % of MW. Which applies in each case greater value
General Technical Data
Repeatability ±1 °C or 0.5 % of MW, whichever is greater
Outputs 4 ... 20 mA
Cable length 1 m
Unit(s) °C
Display type LCD
Measuring spot 20:1
Housing stainless steel
Measurement time 150 ms
Emission level from/to 0.1 ... 1
Spectral range 8 ... 14 µm
Protection class (device) IP65
Power supply 12 ... 24 V DC / max. 20 mA
Operating conditions 0 ... 70 °C , 10 ... 85 % r.F.
Storage conditions 0 ... 70 °C , 10 ... 85 % r.F.
Dimensions ( L x W x H ) 63.5 x 59.5 x 59.5 mm
Weight 200 g

Product type: IR thermometer

Max. temperature: 600 °C

Basic accuracy: 1 %

Accuracy ± °C: 1.5 °C

Emissivity: adjustable 0.100 - 1.0

Display: 20:1

: ISO standards

Dim: (L x W x H) 63.5 x 59.5 x 59.5 mm

Pick-up time (details): 150 ms

Resolution (temperature): 0.1 °C

Features: IP65
Pyrometer

Emission level (max.): 1.000

Emission level (min.): 0.100

Weight: 200 g

Calibration service: Incl. ISO calibration certificate

Width: 59.5 mm

Height: 59.5 mm

Length: 63.5 mm

Power supply (details): 12 - 24 V DC

Power supply: 12 - 24V / DC

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812589 PCE Instruments PCE-IRT 10-ICA IR thermometer Calibrated to (ISO standards) Display (thermometer) 20:1 0 - 600 °C IP65,

User & Safety Instructions

User & Safety Instructions 3812589 PCE Instruments PCE-IRT 10-ICA IR thermometer Calibrated to (ISO standards) Display (thermometer) 20:1 0 - 600 °C IP65,

Description

The infrared thermometer has been developed for fixed installation. This infrared temperature sensor has a 4 ... 20 mA output, which uses the measuring range of 0 ... 10 to 600 °C. The emission level is 0.1 ... 1.000 on the infrared temperature sensor can be set freely. With a response time of only 150 ms the infrared thermometer can be used optimally for fast processes.

The infrared temperature sensor is supplied with a 1 m connection cable. In addition, the infrared temperature sensor with the supply voltage of 12 ... 24 V DC supplied. The analogue output signal can also be tapped via this. For setting the emission value and the automatic hold function the infrared thermometer has an illuminated display. The measured value is also shown continuously on this display.

The infrared thermometer is made of stainless steel and protected according to IP65. The compact infrared sensor is mounted with the help of a 90° angle. This allows the infrared temperature meter to be connected directly to machines in order to easily monitor critical processes.
