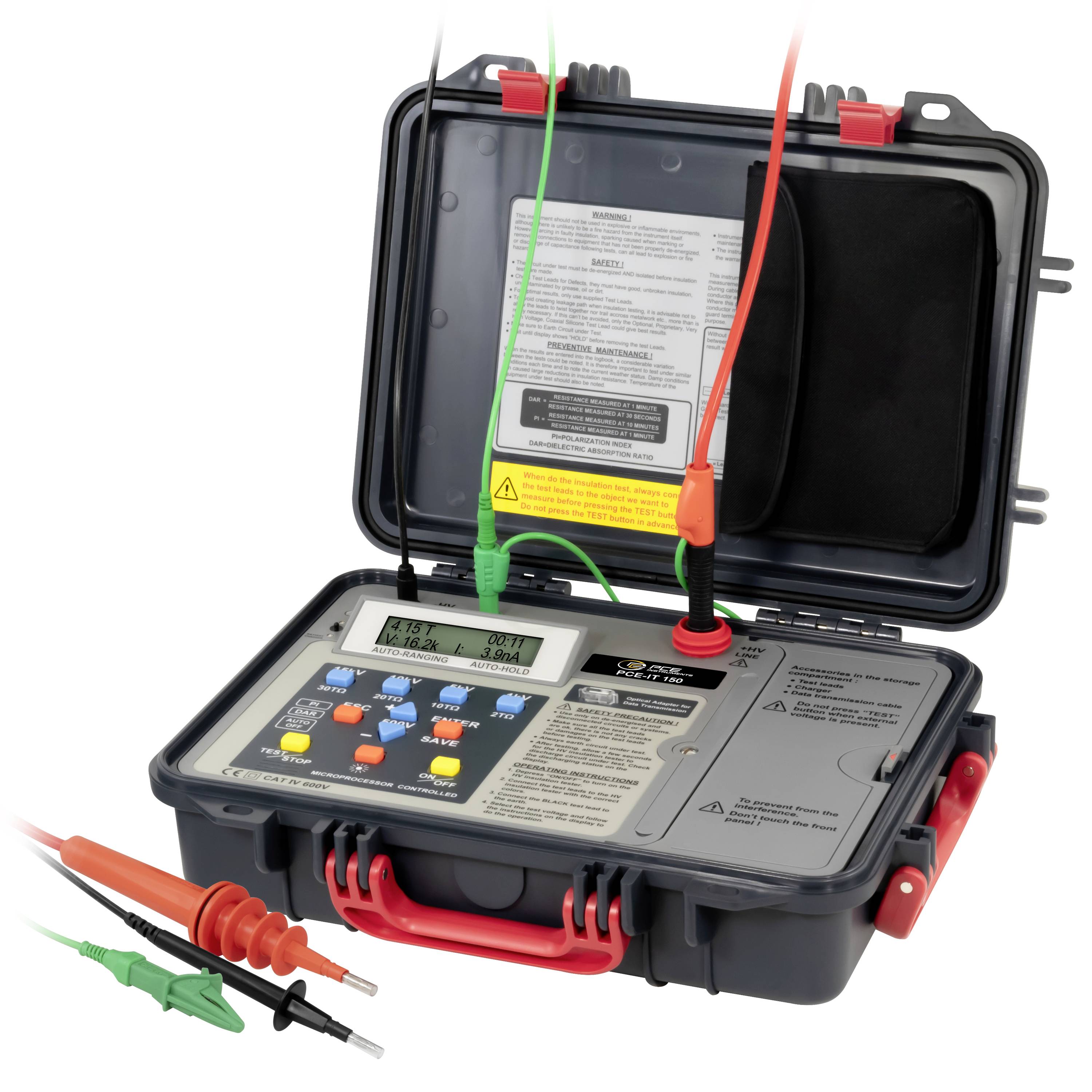

Portable electrical test instrument in a rugged case, with red and green probes connected and two loose test leads in front.

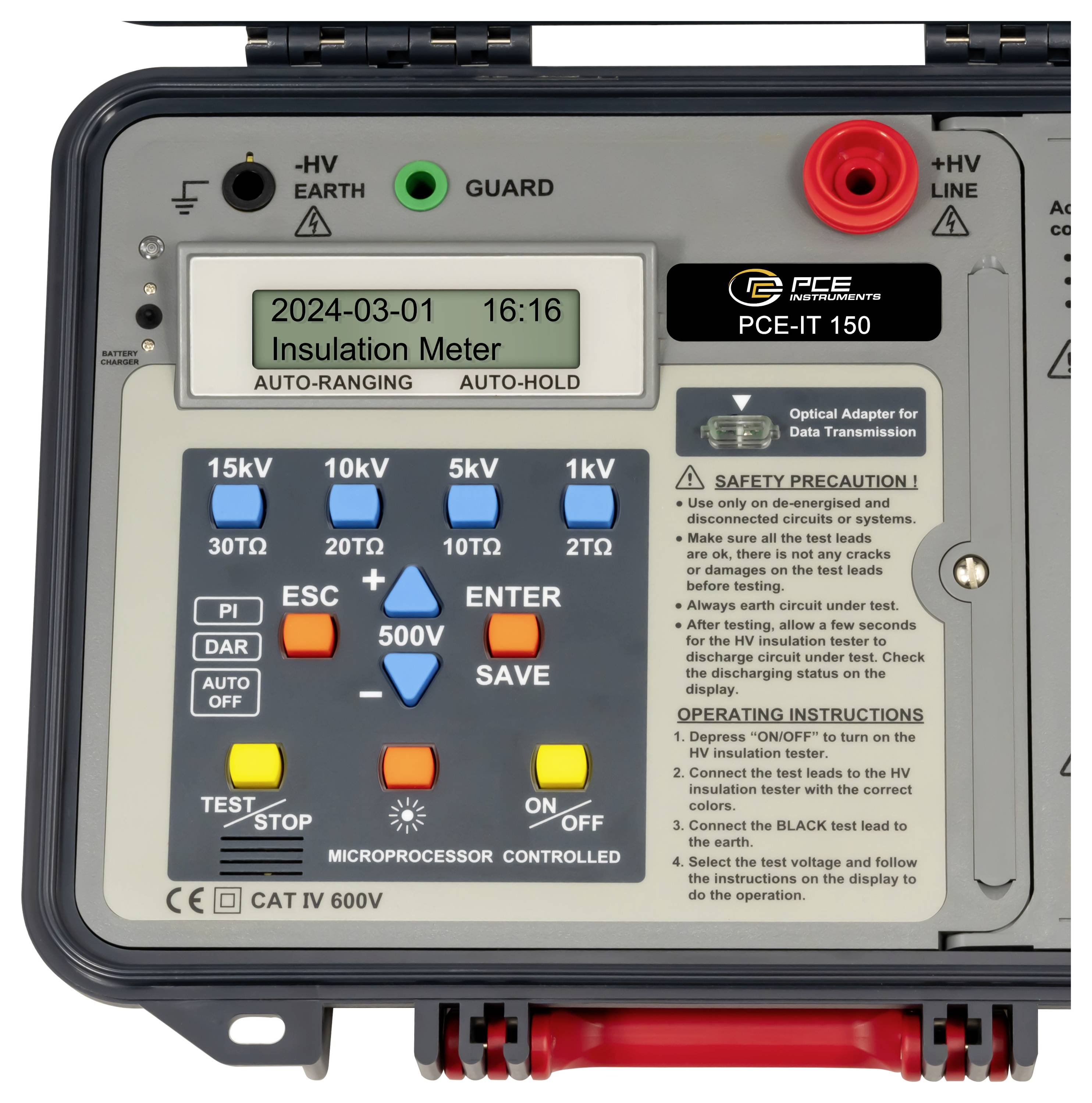

Front panel of a PCE IT 150 insulation tester with display, voltage range buttons, and test controls for measuring electrical insulation.

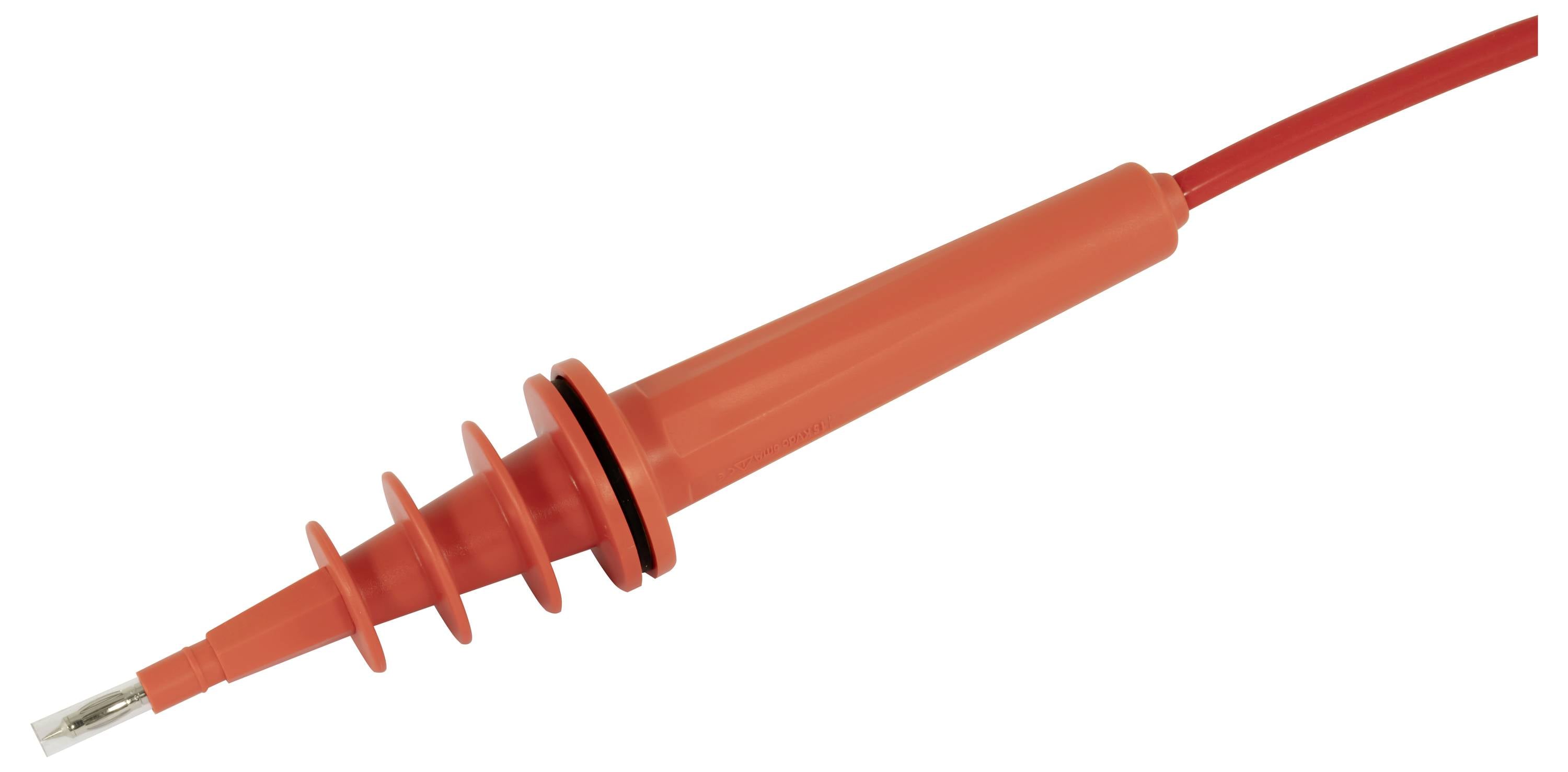

Orange insulated electrical test probe with pointed metal tip on a white background.

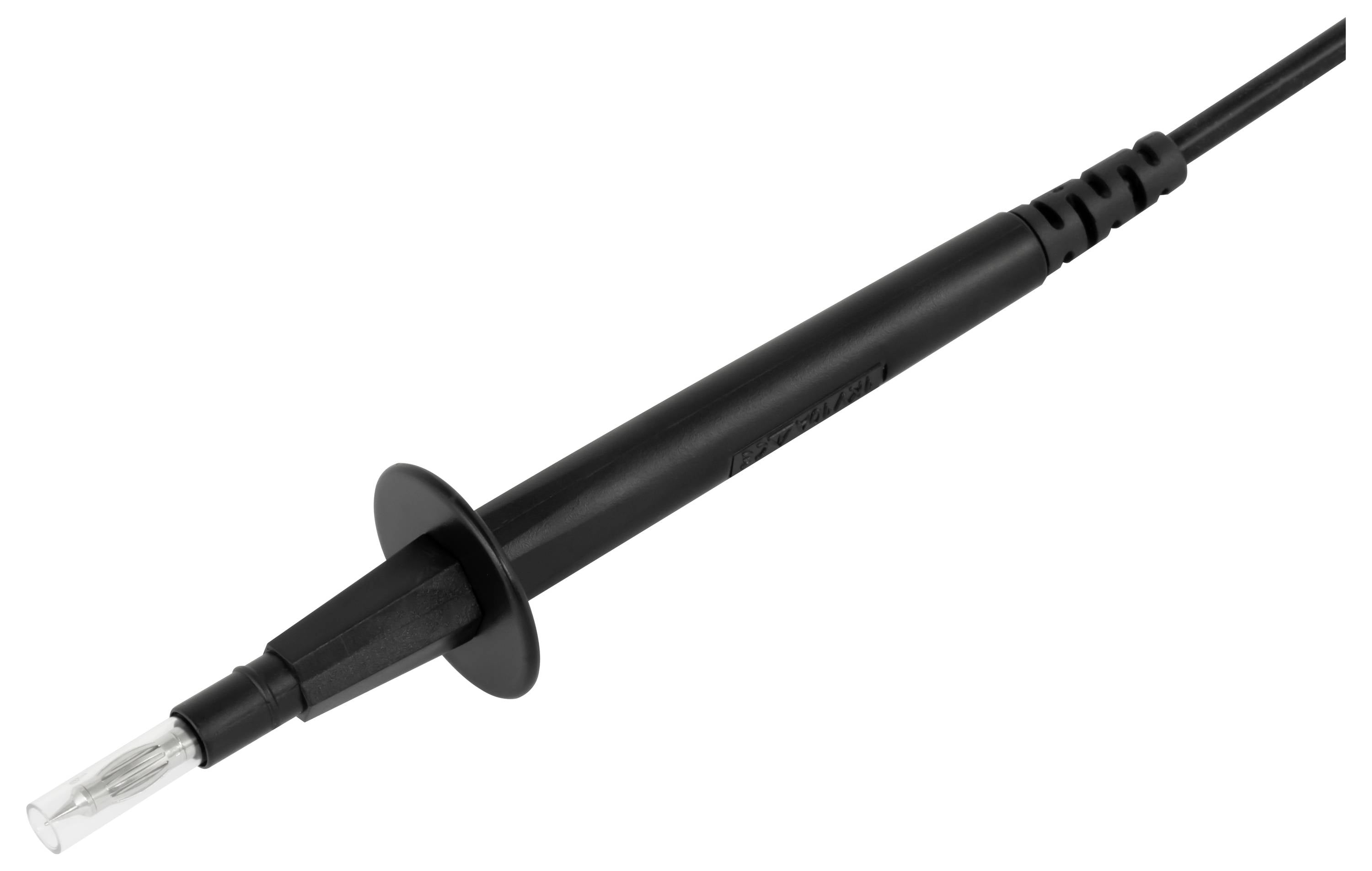

Black soldering iron with pointed metal tip and attached power cord on a white background

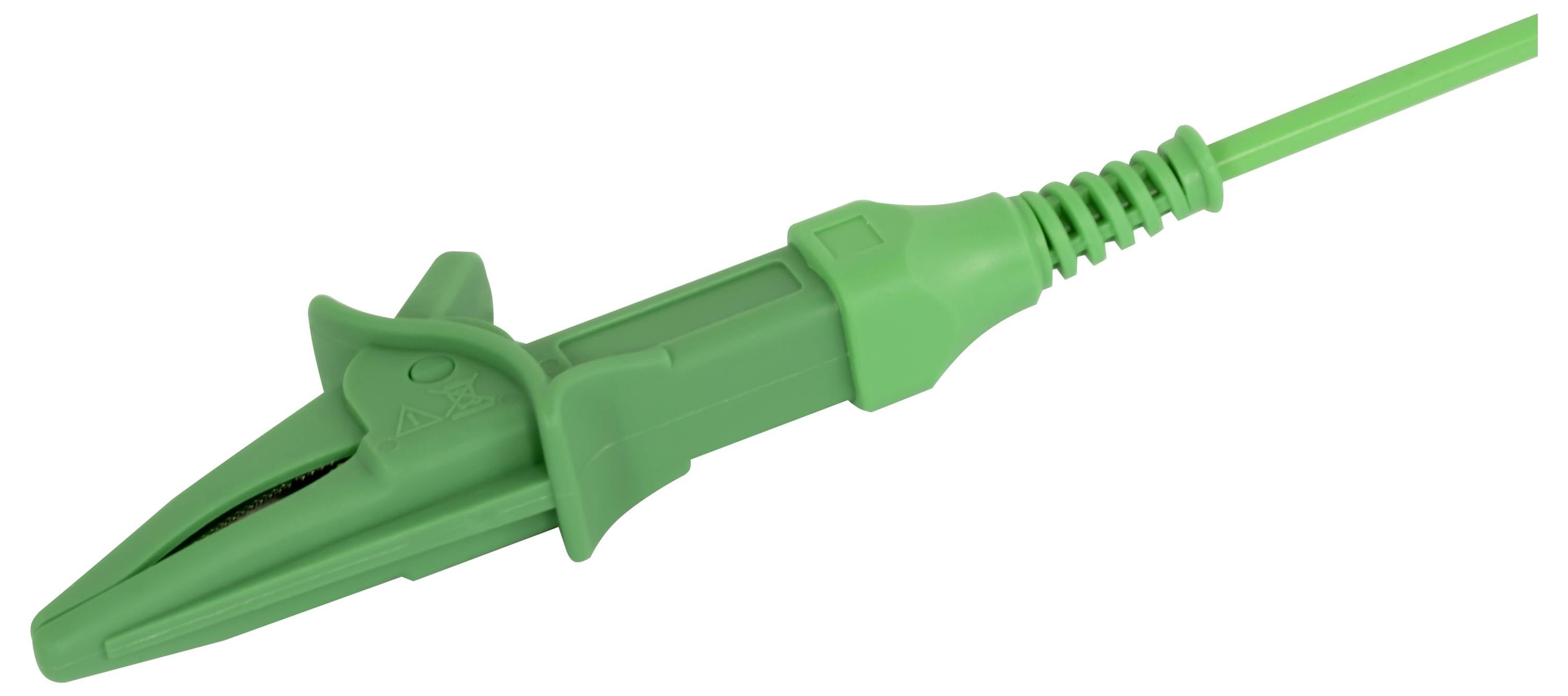

Green plastic twist-and-lock cable connector plug shown on a white background.

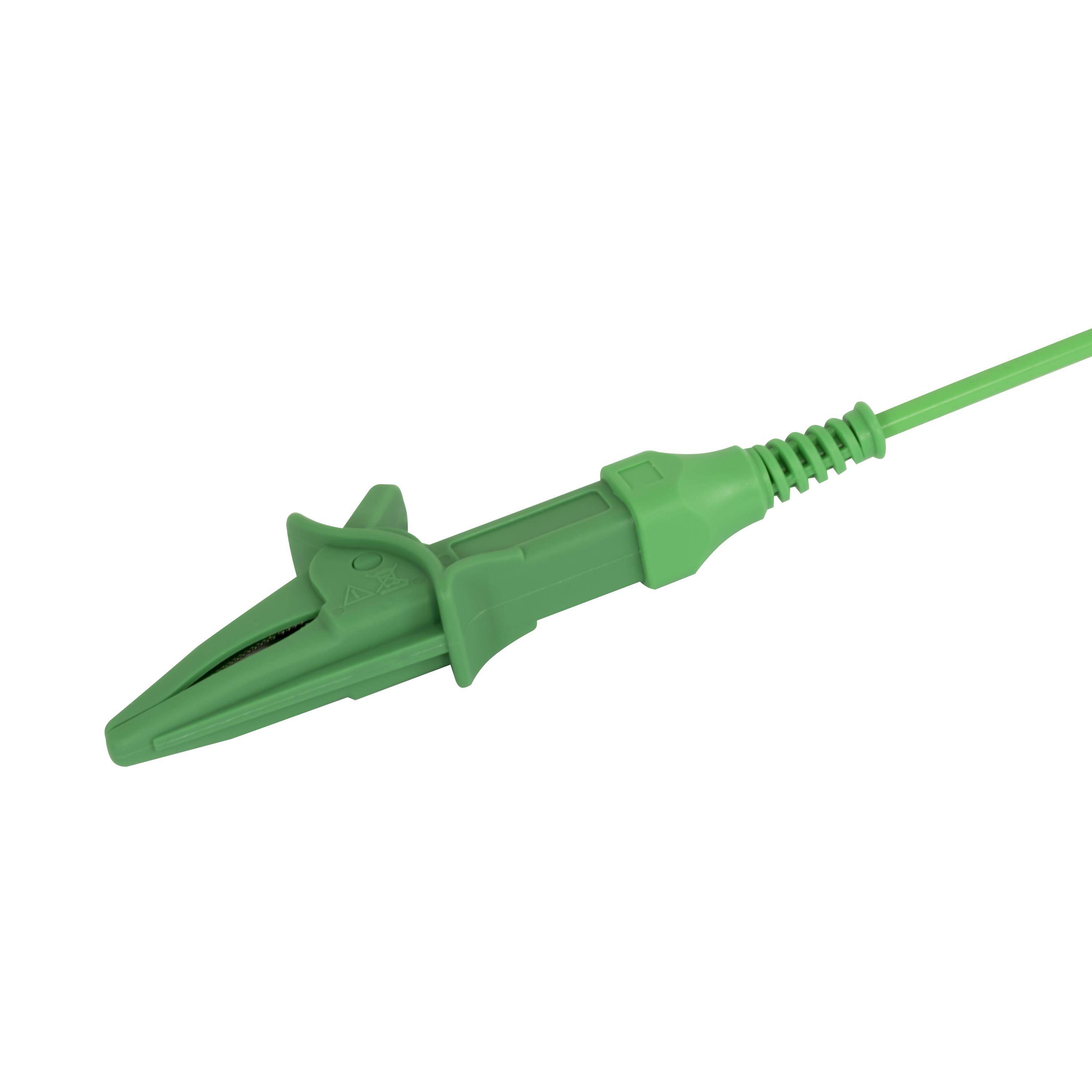

PCE Instruments PCE-IT 150 Insulation tester 15000 V 30 TΩ-5

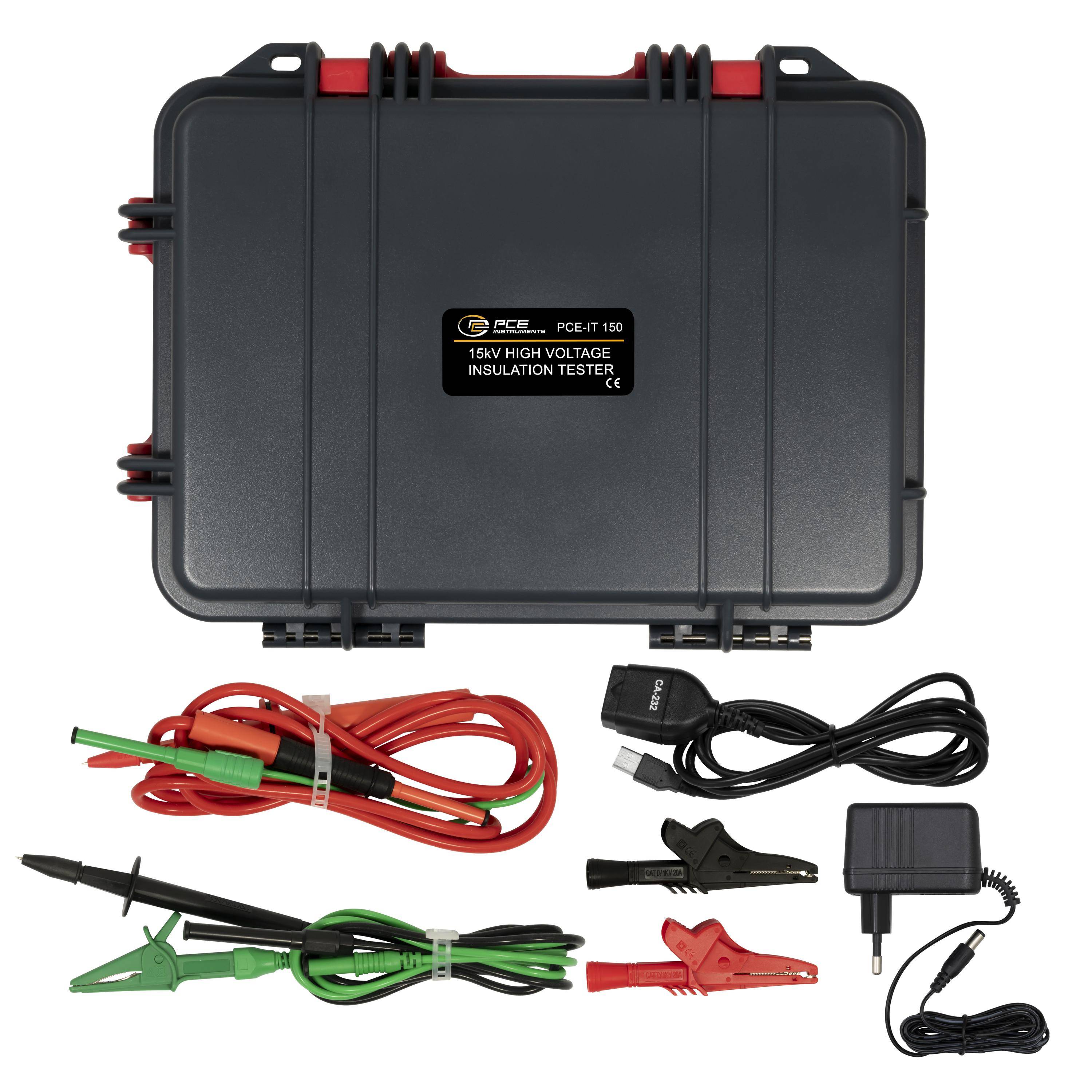

PCE Instruments PCE-IT 150 Insulation tester 15000 V 30 TΩ-6

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-it 150

15 kV Insulation tester
Insulation resistance up to 30 TΩ
Polarisation index PI
DIELECTRIC absorption ratio
4 buttons for test voltage
Memory for 200 measurements
Incl. software
Li-ion battery
Date-time display
Test timer
Adjustable testing voltage
External voltage alarm
Auto switch-off

Technical specifications

DC voltage
Measuring range 30 V ... 600 V
Resolution 1 V
Accuracy ±(2.0% of MW. +3 digits)
Alternating voltage AC
Measuring range 30 V ... 600 V
Resolution 1 V
Accuracy ±(2.0% of MW. +3 digits)
Insulating resistance
Measuring range 0 GΩ ... 1 GΩ
Resolution 0.001 GΩ
Accuracy ±(5% of mw.+5 digits),
Insulating resistance
Measuring range 1 GΩ ... 10 GΩ
Resolution 0.01 GΩ
Accuracy ±(5% of mw.+5 digits)
Insulating resistance
Measuring range 10 GΩ ... 100 GΩ
Resolution 0.1 GΩ
Accuracy ±(5% of mw.+5 digits)
Insulating resistance
Measuring range 100 GΩ ... 1 TΩ
Resolution 1 GΩ
Accuracy ±(5% of mw.+5 digits)
Insulating resistance
Measuring range 1 TΩ ... 10 TΩ
Resolution 10 GΩ
Accuracy ±20%,
Insulating resistance
Measuring range 10 TΩ ... 30 TΩ
Resolution 100 GΩ
Accuracy ±20%,
General Technical Data
MEASUREMENT FUNCTIONS HOLD, PI, DAR
Display type LCD
Storage medium Internal memory
Memory capacity: 200 measurements
Interface RS232
Automatically switches off approx. 5 min.
Automatic switch-off deactivated No.
Test voltage 500 V ... 15 kV
Safety standard CAT IV 600 V.
Menu language English (US)
Protection class (device) IP66
Protection class (additional information) only with the lid closed
Power supply 100 ... 240 V | 50/60 Hz
Connector type for device Euro plug
Weighs 6362 g.
Dimensions (L x W x H) 325 x 430 x 132 mm
Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
Storage conditions 0 ... 40 °C , 0 ... 80 % r.F.
Capacity 5200 mAh

Product type: Insulation tester

Test voltage: 15000 V

Reading type: DC voltage
AC voltage
Insulation resistance

: Manufacturer's standards (no certificate)

Interfaces: 1x RS 232

: IP66

Power supply (details): 240 V

Dim: (L x W x H) 325 x 430 x 132 mm

Weight: 6362 g

Display type: Digital (LCD)

Insulation resistance (max.): 30 TΩ

Voltage reading range (max.): 600 V

Voltage reading range (min.): 30 V

Reading category: CAT IV

Width: 430 mm

Height: 132 mm

Length: 325 mm

Documents & Downloads

Datasheet

Datasheet 3324685 PCE Instruments PCE-IT 150 Insulation tester 15000 V 30 TΩ

User & Safety Instructions

User & Safety Instructions 3324685 PCE Instruments PCE-IT 150 Insulation tester 15000 V 30 TΩ

Description

The insulation measuring device is for insulation measurements with a test voltage up to 15 kV. The measuring range of 0 ... 30 TΩ and additional measurement functions make the tester very versatile. With 4 quick selection buttons for the common test voltages and the option to set the voltage in 500 V steps. Pre-configured diagnostic tests, including (PI), dielectric absorption ratio (DAR) and a memory function for 200 measurements. These can be transferred via the interface to the software, which also enables operation of the insulation measuring device. In addition, the alternating and direct voltages up to 600 V can be measured with the insulation measuring device. The insulation measuring device is delivered in a robust case which also offers protection class IP66 when the lid is closed.

Over the course of its normal life, electrical insulation is exposed to various loads that cause its deterioration. The causes are thermal, mechanical and chemical influences as well as moisture. Although isolation is designed to withstand these stresses over the years, abnormal stress can increase the natural aging process and drastically shorten the life cycle. It is therefore advisable to check regularly whether an accelerated aging process is taking place and to determine if the effects are reversible.

This text is machine translated.
