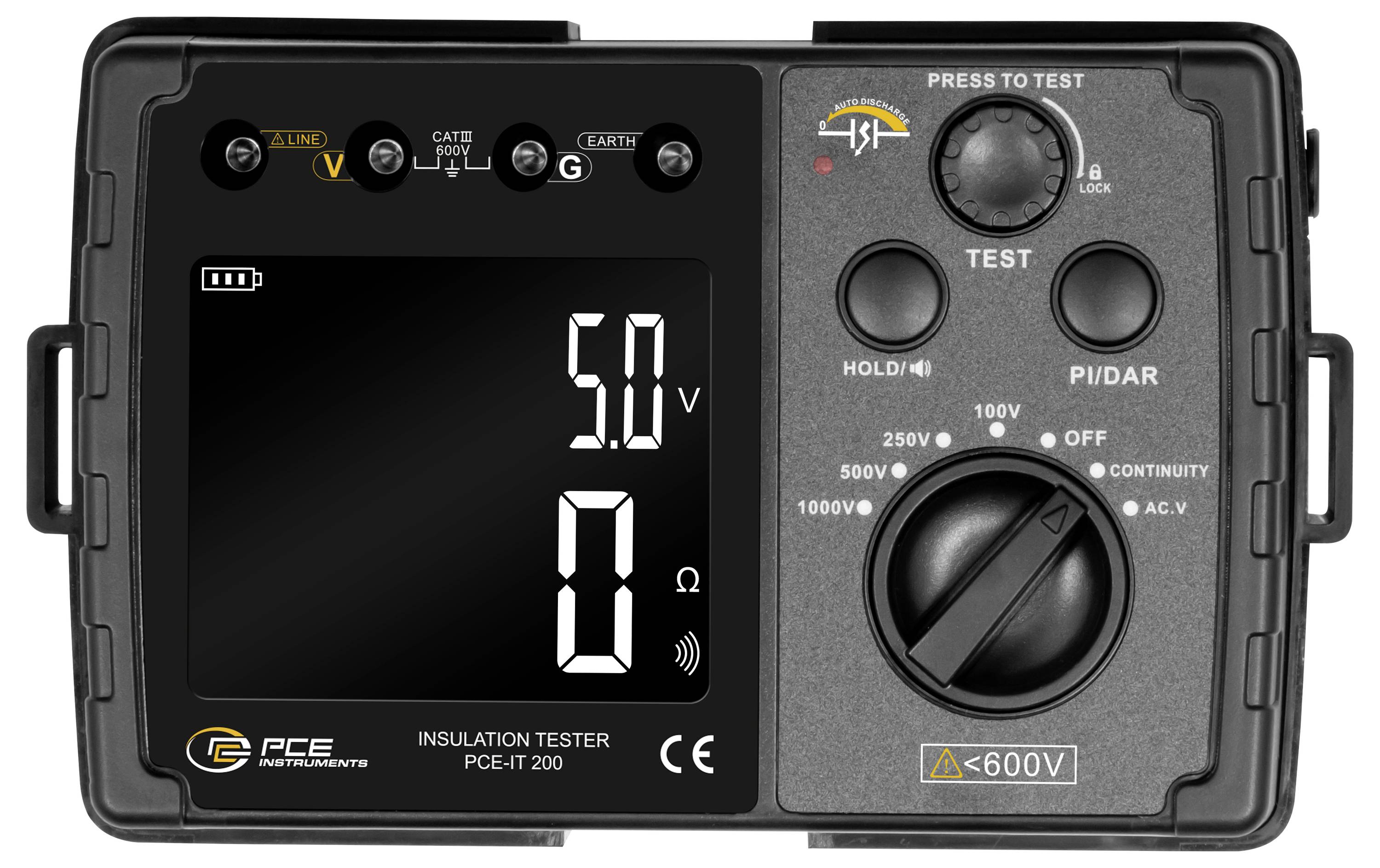

PCE Instruments PCE-IT 200 Insulation tester 15000 V 5.5 GΩ
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-IT 200
- HOLD, PI (Polarization index), DAR (absorption ratio)
- Automatic detection of AC and DC
- Automatic discharge
- High-voltage display
- Alarm when the limit has been exceeded
- Overload: AC 720 V/10 seconds

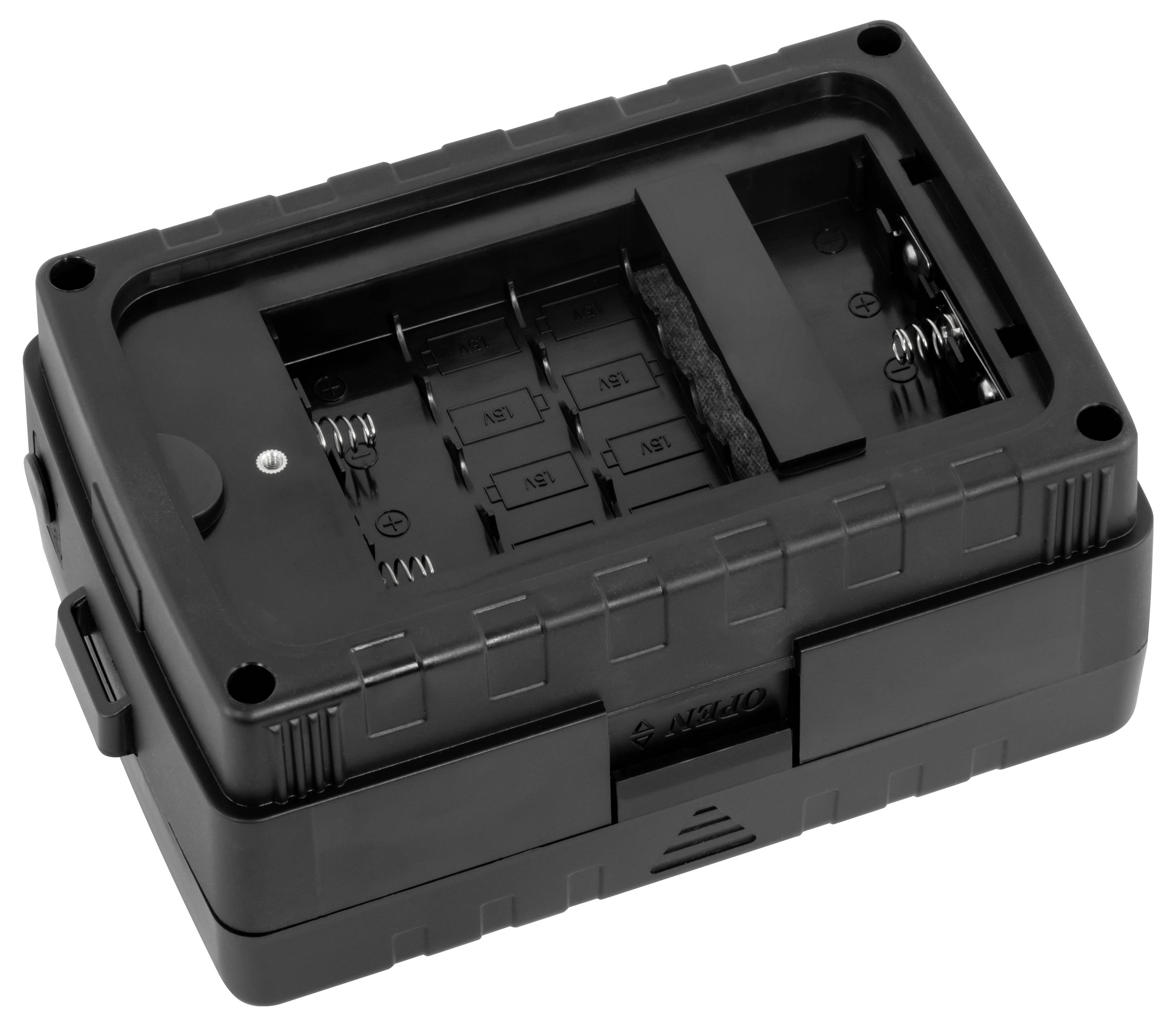

- Powered by 6 x 1.5V AA batteries
- External power supply 9V DC is possible
- LCD-colour display:
- Buzzer and light alarm
- 10 MΩ internal resistance test
Technical specifications
- DC voltage
- Measuring range 30 V ... 600 V
- Resolution 1 V
- Accuracy ±2% of MW. ±3 digits
- Alternating voltage AC
- Measuring range 30 V ... 600 V
- Resolution 1V
- Accuracy ±2% of MW. ±3 digits
- Overload, AC 720 V/10 seconds
- Insulating resistance
- Test voltage 100 V DC
- Measuring range 0 GΩ ... 1.5 GΩ
- Resolution 0.01 GΩ
- Accuracy ±5% of MW. ±3 digits (over 100 kΩ)
- Insulating resistance
- Test voltage 250 V DC
- Measuring range 0 GΩ ... 5.5 GΩ
- Resolution 0.01 GΩ
- Accuracy ±5% of MW. ±3 digits (over 100 kΩ)
- Insulating resistance
- Test voltage 500 V DC
- Measuring range 0 GΩ ... 5.5 GΩ
- Resolution 0.01 GΩ
- Accuracy ±5% of MW. ±3 digits (over 100 kΩ)
- Insulating resistance
- Test voltage 1000 V DC
- Measuring range 0 GΩ ... 5.5 GΩ
- Resolution 0.01 GΩ
- Accuracy ±5% of MW. ±3 digits (over 100 kΩ)
- Resistance
- Measuring range 0 Ω ... 999 Ω
- Resolution 0.1 Ω
- Accuracy ±(2% of MW. +3 digits)
- General Technical Data
- MEASUREMENT FUNCTIONS HOLD, PI, DAR
- Display type LC-color display
- Measurement rate 2 Hz
- Standard(s) IEC 6010-1
- Operating time 12 h
- Safety standard CAT III 600 V, CAT I 2500 V
- Optical alarm, acoustic alarm
- Menu language English (US)
- Protection class (device) IP20
- Power supply DC9V
- Weighs 689 g.
- Dimensions (L x W x H) 110 x 176 x 77 mm
- Operating conditions 0 ... 40 °C , 0 ... 85 % r.F.
- Storage conditions -20 ... 60 °C , 0 ... 90 % r.F.
- Battery 6x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Product type
Insulation tester
- Test voltage
15000 V
- Reading type
DC voltage
AC voltage
Insulation resistance
Resistance
Manufacturer's standards (no certificate)
- Reading range - resistance
999 Ω
- Interfaces
1x mains power
IP20
- Power supply (details)
1.5 V
- Dim
(L x W x H) 110 x 176 x 77 mm
- Weight
689 g
- Display type
Digital (LCD)
- Insulation resistance (max.)
5.5 GΩ
- Voltage reading range (max.)
600 V
- Voltage reading range (min.)
30 V
- Reading category
CAT III 600 V
CAT I
- Width
176 mm
- Height
77 mm
- Length
110 mm
Documents & Downloads
Datasheet
Datasheet 3192921 PCE Instruments PCE-IT 200 Insulation tester 15000 V 5.5 GΩ
User & Safety Instructions
User & Safety Instructions 3192921 PCE Instruments PCE-IT 200 Insulation tester 15000 V 5.5 GΩ
Description
Our compact insulation tester is perfect for measuring the insulation resistance of electrical devices and household appliances. With its ability to measure insulation resistance, AC voltage, low resistance, PI (polarization index) and DAR (dielectric absorption), it is a versatile and reliable tool for many application scenarios. With test voltages of 100 V, 250 V, 500 V and 1000 V, insulation resistances of up to 5.5 GΩ can be measured, WAS enables a precise analysis and evaluation of the insulation quality. The insulation tester not only provides the ability to measure DC voltage in the measurement range from 30 V to 600 V and AC voltage, but also measures the resistance in the range from 0 Ω to 999 Ω with high accuracy, in order to ensure a good diagnosis of electrical systems.
The automatic AC and DC detection as well as the automatic discharge guarantee a user-friendly operation and maximum safety during the measuring process. In addition, the insulation tester has a high-voltage alarm and an alarm when a limit has been exceeded to inform the operator of possible risks. The insulation tester is operated with 6 x AA batteries and also has an external power supply of 9V DC.
The device conforms to the standards: CAT III 600 V, CAT I 2500 V and IEC 6010-1, and comes with approx. 80 cm long test leads in a device case.
This text is machine translated.
The automatic AC and DC detection as well as the automatic discharge guarantee a user-friendly operation and maximum safety during the measuring process. In addition, the insulation tester has a high-voltage alarm and an alarm when a limit has been exceeded to inform the operator of possible risks. The insulation tester is operated with 6 x AA batteries and also has an external power supply of 9V DC.
The device conforms to the standards: CAT III 600 V, CAT I 2500 V and IEC 6010-1, and comes with approx. 80 cm long test leads in a device case.
This text is machine translated.
Features
- Automatic detection of AC and DC
- Buzzer and light alarm
Scope of delivery

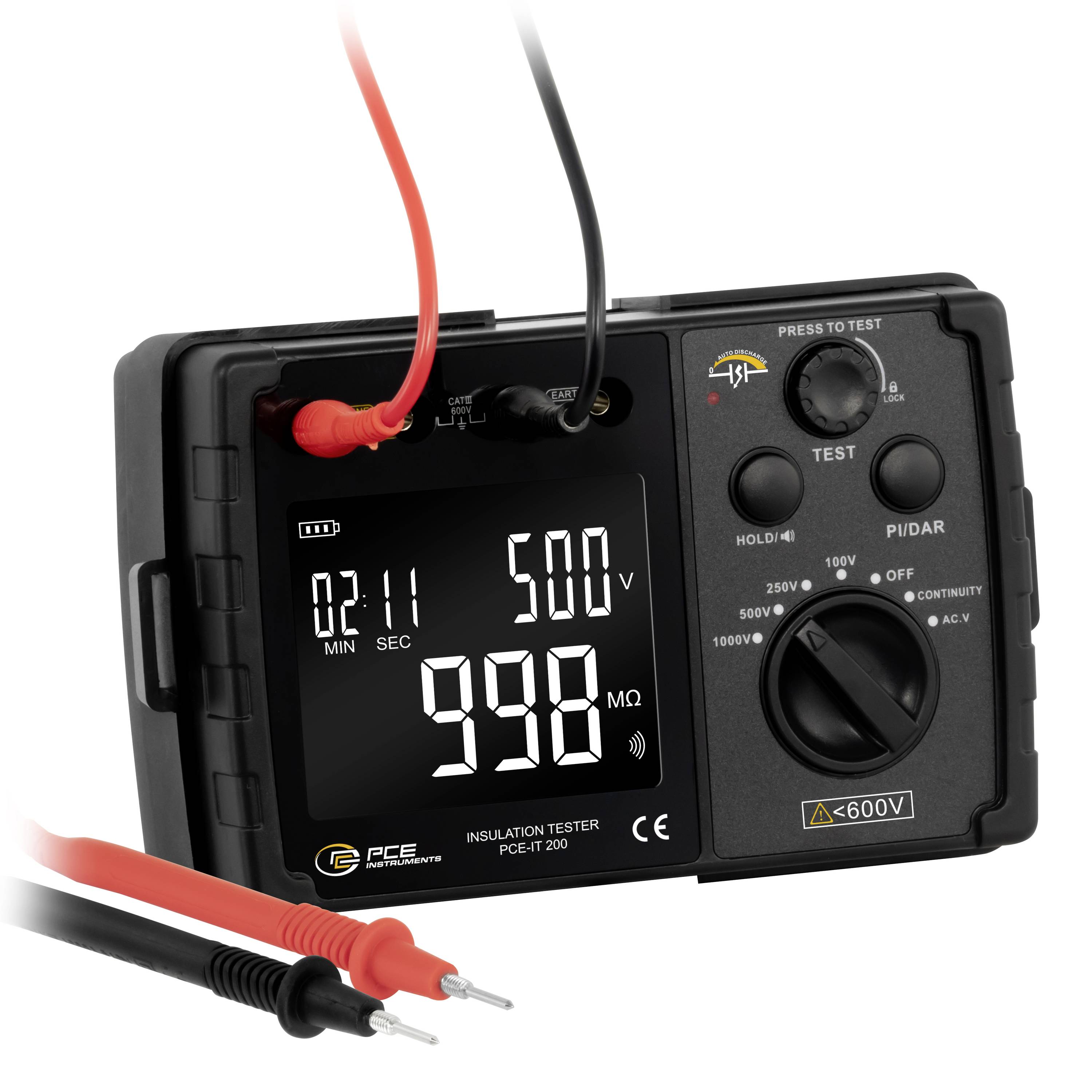

- 1 x insulation tester PCE-IT 200
- 6 x 1.5V AA batteries

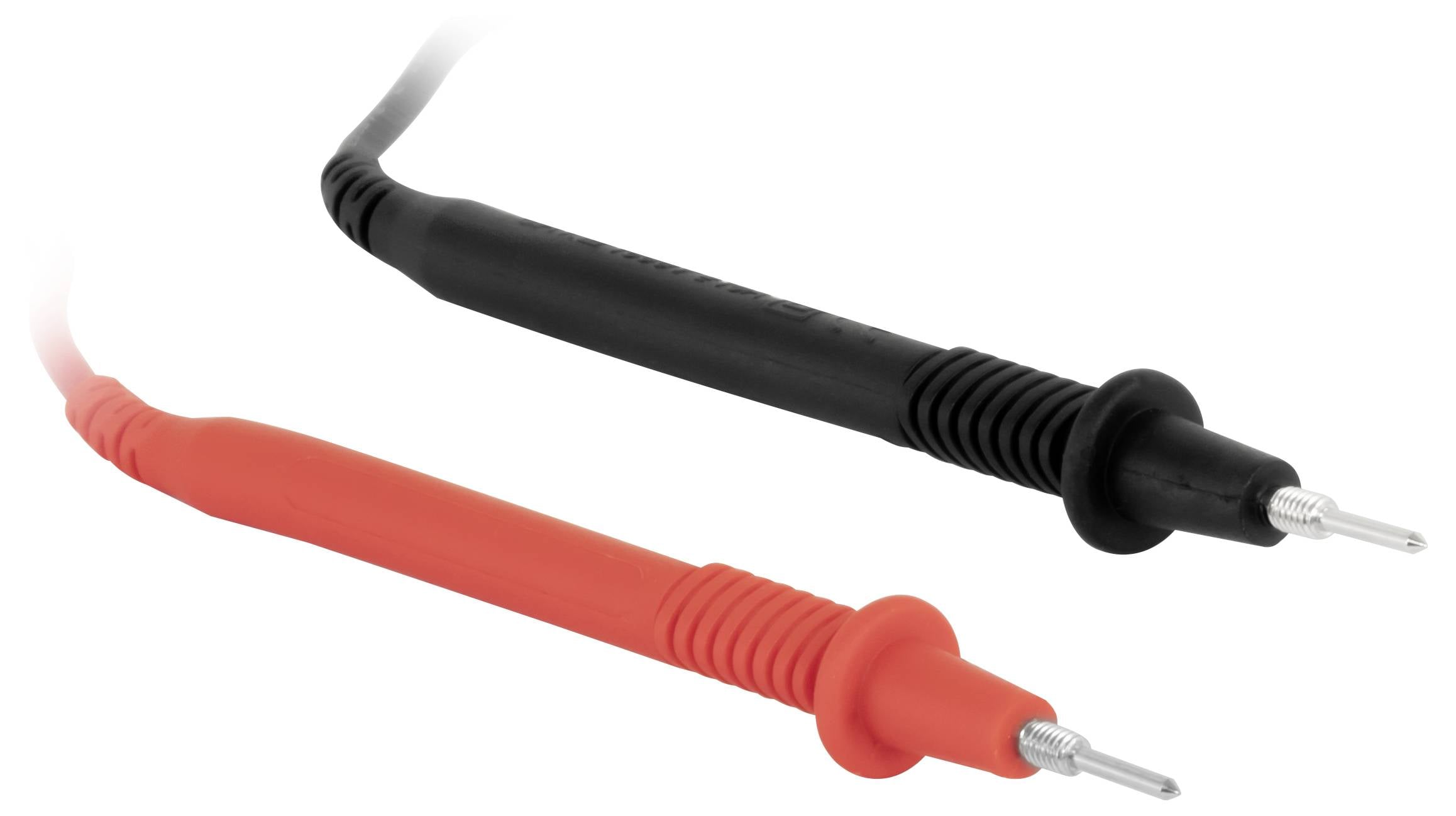

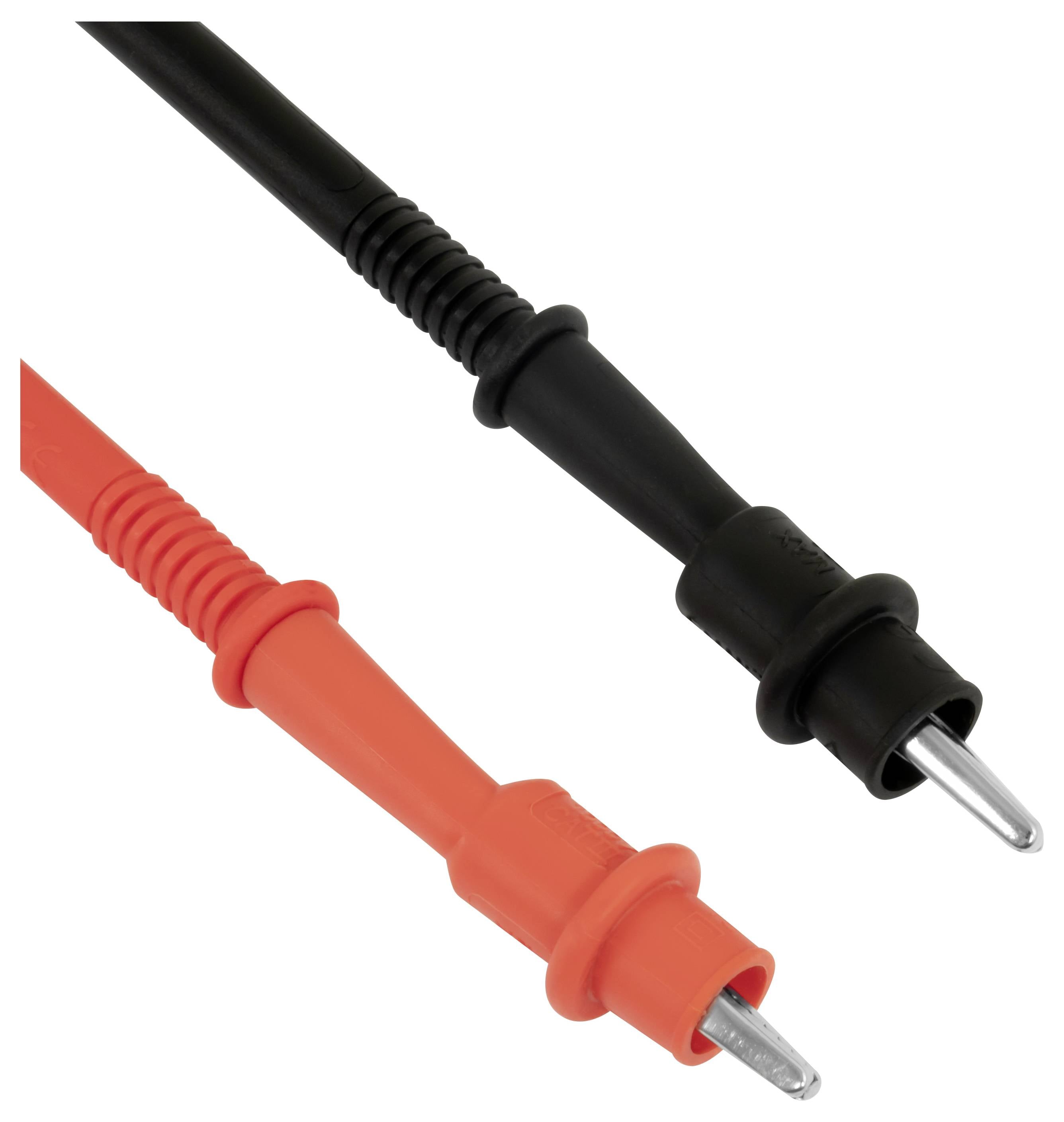

- 1 x test leads
- 1 x appliance bag
- 1x user manual
