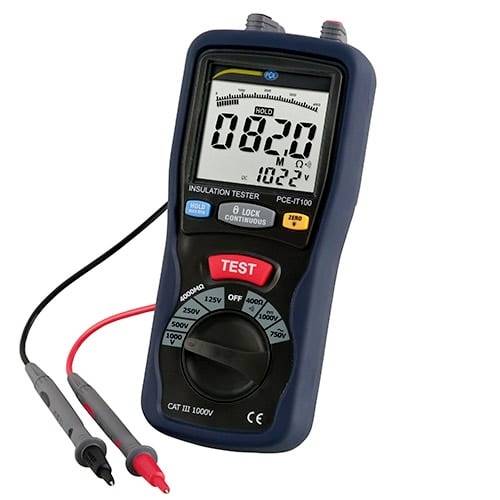

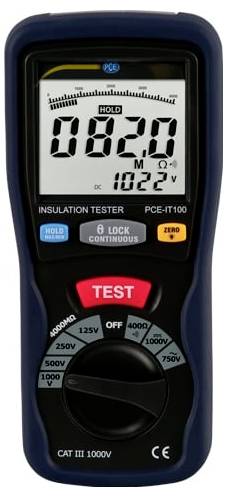

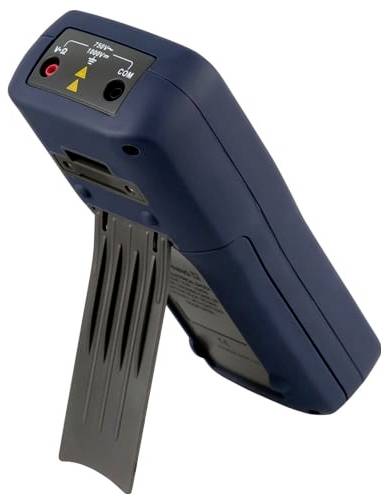

Ohm meter PCE-IT100

Large measuring range
4 different test voltages up to 1 kV
Auto Power Off function
SAFETY: EN 61010-1, CAT III 1000 V.
Dual display with backlight.
With carrying case
Individual measurement and continuous measurement
Incl. ISO calibration certificate

Technical specifications

Reading range AC voltage (40 ... 400 Hz) 750 V Resolution 1 V. Accuracy ±0.8 % ± 3 dgt DC voltage 1000 V. Resolution 1 V. Accuracy ±1.2 % ±10 dgt Resistance 40 Ω / 400 Ω Resolution 0.01 Ω / 0.1 Ω Accuracy ±1.2 % ± 3 dgt Insulating resistance 4 MΩ / 40 MΩ / 400 MΩ / 4000 MΩ RESOLUTION 0.001 MΩ / 0.01 MΩ / 0.1 MΩ / 1 MΩ Insulating resistance 125 V ±(2% + 10 dgt) / ±(2% + 10 dgt) / ±(4% + 5 dgt) / ±(5% + 5 dgt) 250 V / 3 ±(2% + 10 dgt) / ±(2% + 10 dgt) / ±(3% + 5 dgt) / ±(4% + 5 dgt) 500 V ±(2% + 10 dgt) / ±(2% + 10 dgt) / ±(4% + 5 dgt) / ±(4% + 5 dgt) 1000 V ±(3% + 10 dgt) / ±(2% + 10 dgt) / ±(2% + 5 dgt) / ±(4% + 5 dgt) Continuity test beep: ≤ 35 Ω, test current ≤ 200 mA Power supply 6 x 1.5 V AA batteries Ambient conditions 0 ... 40 °C /< 80 % r.h. (Operation) -10 ... 60 °C /< 70 % r.h. (Warehouse) Dimensions:200 mm x 92 mm x 50 mm Weight 700 g (with battery) STANDARDS IEC10101, CAT III 1000 V

Product type: Ohmmeter

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452481 PCE Instruments PCE-IT100 Ohmmeter

User & Safety Instructions

User & Safety Instructions 2452481 PCE Instruments PCE-IT100 Ohmmeter

Description

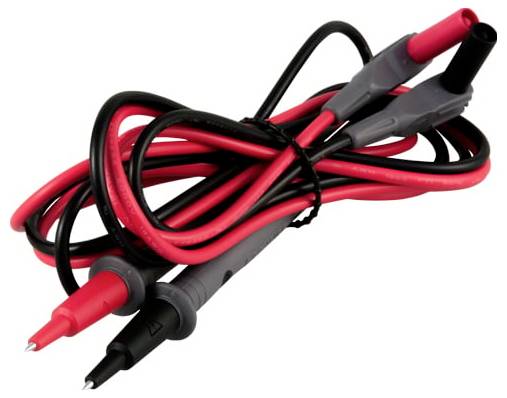

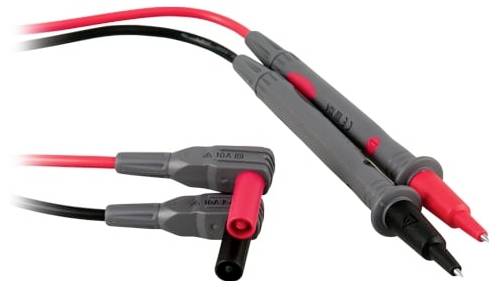

Ohm meter PCE-IT100 for insulation resistance up to 4000 MΩ / cat III 1000 V / simple handling Single or continuous measurement / max/min value Function of insulation tester PCE-IT100 records with auxiliary voltages of 125 V, 250 V, 500 V and 1000 V insulation resistance up to max. 4000 MΩ. Furthermore, the measurement of low-resistance resistances up to 400 Ω and a measurement function for AC and DC voltages is offered by this insulation tester. A continuity tester with a beep is also part of the insulation tester's equipment. In addition to a data hold function for holding the current measured value, the max. or min. value can also be recorded in the insulation tester for voltage and low ohm measurement. The display of the insulation tester is easy to read thanks to the large digits and the lighting even under difficult lighting conditions. The large keys and the rotary wheel for selecting the measuring functions permit a simple operation of the insulation meter PCE-IT 100. The insulation tester comes with a set measuring leads with test probes, a test lead with alligator clips and 6 batteries for operating the insulation meter. Limit values to be observed for insulation measurement - for new systems (dry rooms): 1000 Ohm x Volt of the operating voltage (e.g. at 230 Volt >230 kOhm) - for new systems (damp rooms, outdoors): 500 Ohm x Volt of the operating voltage - earthed devices: 1000 Ohm x Volt of the operating voltage - protectively insulated devices: 2 MOhm - Power tools: 2 MOhm - Protective extra-low voltage: 250 kOhm - Electrical measuring devices: 5 MOhm - Common test voltage values are 100 Volt for low-voltage and telecommunications systems, 500 Volt for building installation and domestic appliances, 1000 Volt for low-voltage motors and transformers
