Buy PCE Instruments PCE-ITE 50 Insulation tester

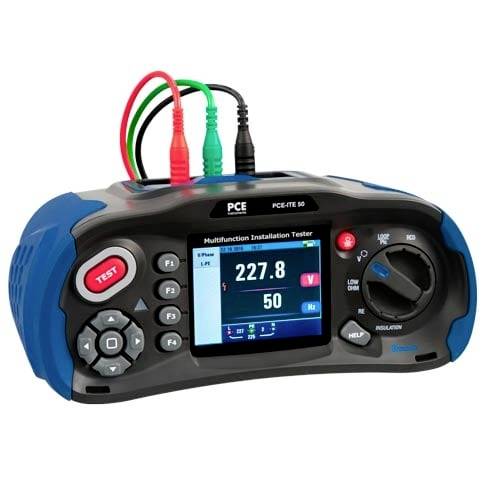

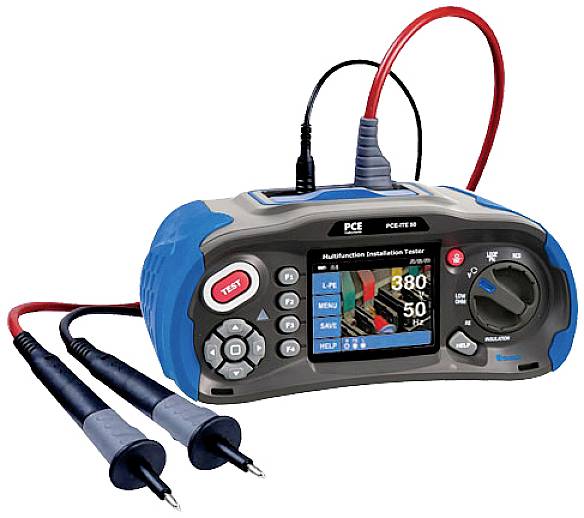

Portable multifunction installation tester with screen showing 227.8 and 50, red TEST button, dial, and attached test leads.

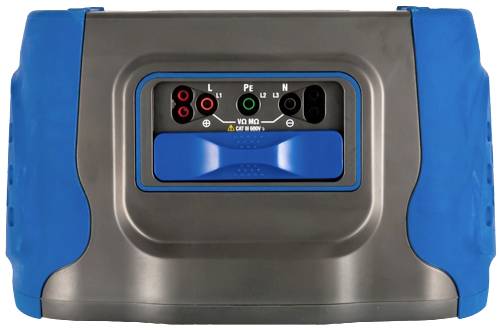

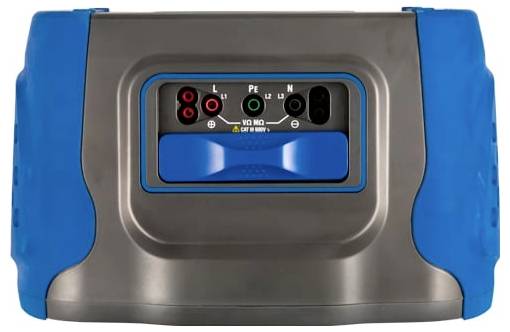

Blue and gray electrical device front panel with three labeled power connectors: L, PE, and N, plus a central handle or slot.

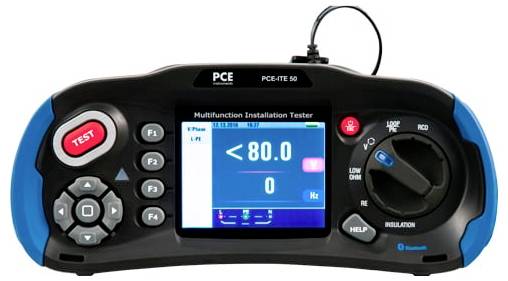

PCE Instruments PCE-ITE 50 Insulation tester-2

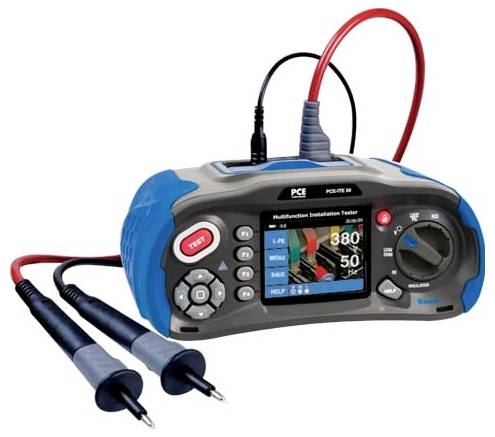

Portable insulation tester with two probe leads, digital display, test button, and rotary selector knob on a blue and gray handheld device.

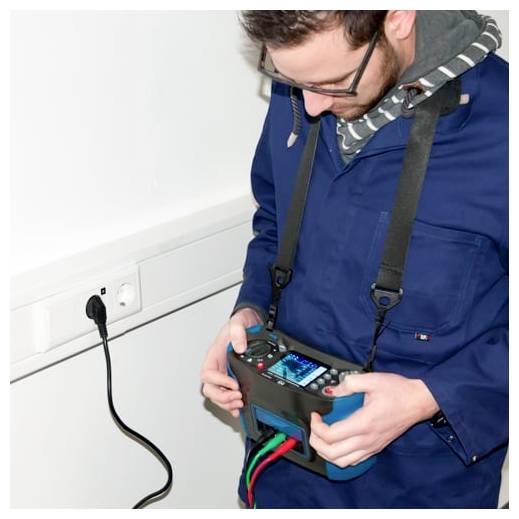

Technician inspecting an electrical device while holding a cable tester near a wall outlet with a plugged-in cord.

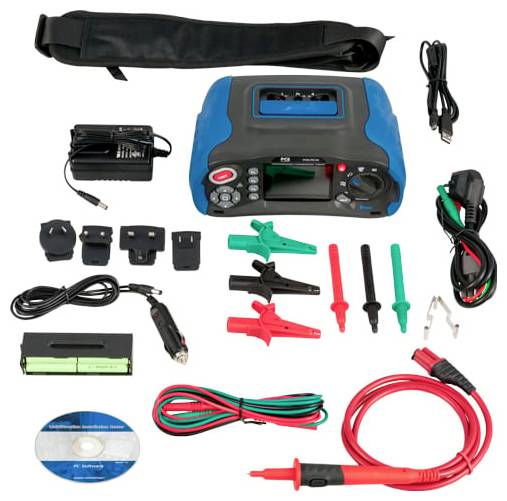

Electronics test kit with blue handheld device, power adapter, cables, clips, probes, carrying bag, and CD laid out on white background.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Installation tester PCE-ITE 50

3.5 ´color TFT LCD display
LOOP RESISTANCE L-N, L-PE AND N-PE
Adjustable FI test current
SD card and Bluetooth
dual display
Good / bad FI test
Low ohm measurement
Up to 1000 V terminal voltage

Technical specifications

Insulation test Terminal voltage 125 V (0 ... 10%) Measurement range Resolution accuracy 0.125 ... 4 MΩ 0.001 MΩ ± (2% +10 digits) Measurement range of test current short circuit current 1 mA @ Load 125 kΩ < = 1 mA Measurement range Resolution accuracy 4,001 ... 40 MΩ 0.01 MΩ ± (2 % +10 digits) 40.01 ... 400 MΩ 0.1 MΩ ± (4 % +5 digits) 400.1 ... 1000 MΩ 1 MΩ ± (5% +5 digits) Terminal voltage 250 V (0 ... 10%) Measurement range Resolution accuracy 0.125 ... 4 MΩ 0.001 MΩ ± (2% +10 digits) Measurement range of test current short circuit current 1 mA @ Load 250 kΩ < = 1 mA Measurement range Resolution accuracy 4,001 ... 40 MΩ 0.01 MΩ ± (2 % +10 digits) 40.01 ... 400 MΩ 0.1 MΩ ± (3 % +2 digits) 400.1 ... 1000 MΩ 1 MΩ ± (3% +2 digits) Terminal voltage 500 V (0 ... 10%) Measurement range Resolution accuracy 0.125 ... 4 MΩ 0.125 ... 4 MΩ 0.001 MΩ Measurement range of test current Short-circuit current 1 mA @ Load 500 kΩ < = 1 mA Measurement range Resolution accuracy 4,001 ... 40 MΩ 0.01 MΩ ± (2 % +10 digits) 40.01 ... 400 MΩ 0.1 MΩ ± (3 % +2 digits) 400.1 ... 1000 MΩ 1 MΩ ± (4% +5 digits) Terminal voltage 1000 V (0 ... 10%) Measurement range Resolution accuracy 0.125 ... 4 MΩ 0.001 MΩ ± (3% +10 digits) Measurement range of test current short circuit current 1 mA @ Load 1 MΩ< = 1 mA Measurement range Resolution accuracy 4,001 ... 40 MΩ 0.01 MΩ ± (2 % +10 digits) 40.01 ... 400 MΩ 0.1 MΩ ± (3 % +2 digits) 400.1 ... 1000 MΩ 1 MΩ ± (4% +5 digits) Low ohm / low ohm measurement Measurement range Resolution accuracy 2.000 Ω 0.001 Ω ± (1.5 % + 30 digits) 20.00 Ω 0.01 Ω ± (1.5 % + 3 digits) 200.0 Ω 0.1 Ω ± (1.5 % + 3 digits) 2000 Ω 1 Ω ± (1.5 % + 5 digits) Max. Open circuit voltage 5.8 V Overload protection 250 Vrms Continuity tester Resolution reading range 2000 Ω 0.01 Ω Max. Open circuit voltage 5.8 V Overload protection 250 Vrms Short circuit current > = 200 mA Loop resistance L-PE (Hi-Amp): Test current 4.0 A. Measurement range Resolution accuracy 0.23 ... 9.99 Ω 0.01 Ω ± (5% + 6 digits) 10.0 ... 99.9 Ω 0.1 Ω ± (5 % + 6 digits) 100 ... 999 Ω 1 Ω ± (5% + 6 digits) L-PE (without tripping): Test current 15 mA Measuring range Resolution accuracy 0.23 ... 9.99 Ω 0.01 Ω ± (5% + 6 digits) 10.0 ... 99.9 Ω 0.1 Ω ± (5 % + 6 digits) 100 ... 999 Ω 1 Ω ± (5% + 6 digits) L-N: Test current 4.0 A Measurement range Resolution Accuracy 0.23 ... 9.99 Ω 0.01 Ω ± (4 % + 4 digits) 10.0 ... 99.9 Ω 0.1 Ω ± (4 % + 4 digits) 100 ... 999 Ω 1 Ω ± (4% + 4 digits) RCD test RCD (in) 10 mA, 30 mA, 100 mA, 300 mA, 650 mA, 1 A. Factors x 1/2, x1, x2, x5 Accuracy of tripping time ± (1 % + 1 ms) Waveform of test current sine (AC), pulse (DC) Trigger characteristic G and S. Trigger time 0 ° or 180 ° Voltage range 194...260 V AC (50/60 Hz) Accuracy of current measurement ± (5% +2 digits) Voltage measurement Measurement range Resolution accuracy 80...500 V AC/DC 1 V ± (2 % + 2 DIGITS) Frequency measurement Measurement range Resolution accuracy 45...65 Hz 1 Hz ±2 Hz Earthing measurement Measurement range Resolution accuracy 0.00...99.99 Ω 0.01 Ω ± (2 % + 30 digits) 100.0...999.9 Ω 0.1 Ω ± (2 % + 6 digits) 1000...2000 Ω 1 Ω ± (2 % + 6 digits) General specifications Power supply 8 x 1.2...1.5 V AA Battery operating time approx. 15 h. Measurement category CAT III 600 V IP 65 protection Display 3.5 " TFT (320 x 240 Pixel) Operating environment 0...45 °C, 0...95 % RH, non-condensing Dimensions: 24.2 cm x 10.5 cm x 14.5 cm Weight 1.56 kg

Product type: Insulation tester

: Manufacturer's standards (no certificate)

Interfaces: 1x parallel
1x ST Duplex
1x USB

: IP65/67 (IEC 60529, EN 60529)
Splash-proof controller
IP65
IP65 (closed)
IP65/IP67/IP69K
IP65 (electronics casing)
IP65 (DIN 40050)
IP65/IP68/IP69K
IP65/67 (IEC 60529, EN 60529)

Dim: (L x W x H) 14.5 x 24.2 x 10.5 mm

Weight: 1.56 kg

Display type: Digital (LCD)

Reading category: CAT III
CAT III 600 V

Width: 24.2 mm

Height: 10.5 mm

Length: 14.5 mm

Voltage supply: Battery
Rechargeable
Mains
230 V/AC
USB

Memory: Yes

Test procedure: automated

Features: RCD/FI testing
incl. software

Accuracy: 2 %

VDE standard: 0100
0100-600

Documents & Downloads

Datasheet

Datasheet 2452485 PCE Instruments PCE-ITE 50 Insulation tester

User & Safety Instructions

User & Safety Instructions 2452485 PCE Instruments PCE-ITE 50 Insulation tester

Description

Robust installation tester / insulation resistance / earthing resistance / loop impedance / voltage measurement / low ohm measurement / RCD test is a robust installation tester with a large 3.5" TFT color LCD display. The installation tester ensures that fixed installations are safe and correctly installed. Thanks to the dual display, intuitive symbols and the high viewing angle, you can carry out your measurements comfortably and quickly with the installation tester. With the low-ohm measurement of the installation tester, you can check the earth conductor, equipotential bonding rails and earth conductor for a low-ohm continuity. The measuring range for the low-ohm measurement is in the range of 0...2000 Ω with a resolution of 0.001...1 Ω for the installation tester. The most important measurement of the installation tester is the measurement of the insulation resistance. During insulation measurement, electrical cables are energized to allow residual currents that generate material migration or heat to flow. In most cases, fault currents are so minimal that they are not recognized by protective devices and in the worst case, they can lead to a fire. The installation tester can carry out the installation measurement with a test voltage of 125 V, 250 V, 500 V or 1000 V. The test current is 1 mA each. The earthing measurement of the installation tester is independant of the mains supply. In order to bring all systems and circuits of a power supply system to a common potential (reference ground or reference potential) and to protect against short-circuit currents and overvoltages, the earthing resistance should be as low as possible. With a measurement range of 0...2000 Ω with a resolution of 0.01...1 Ω, the installation tester thus offers all the prerequisites for a meaningful measurement of the earthing resistance.

This text is machine translated.
