Buy PCE Instruments PCE-ITM 20 Handheld multimeter Digital Waterproof (IP67) CAT IV 600 V

Digital multimeter with probes showing a 232.64 reading and 049.9 Hz at the top, set to a measurement mode on its dial.

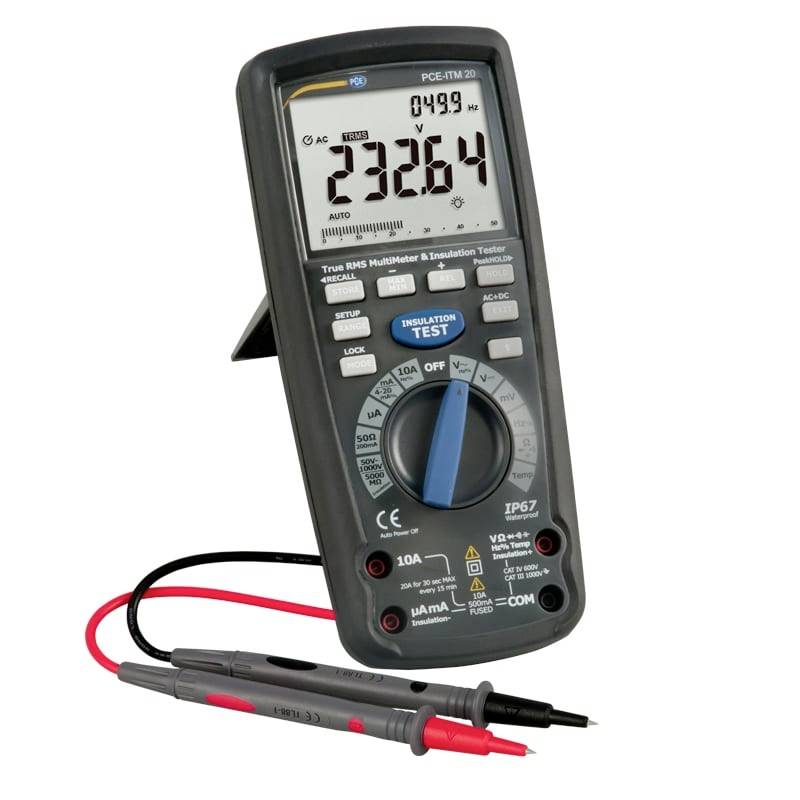

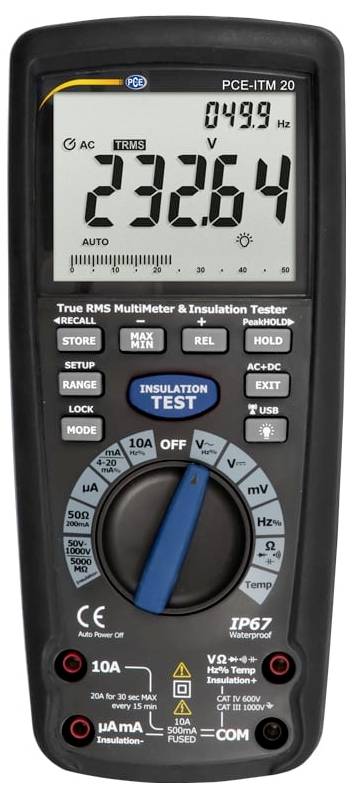

Handheld digital multimeter and insulation tester showing 232.64 V AC and 49.9 Hz, with central selector dial and test buttons.

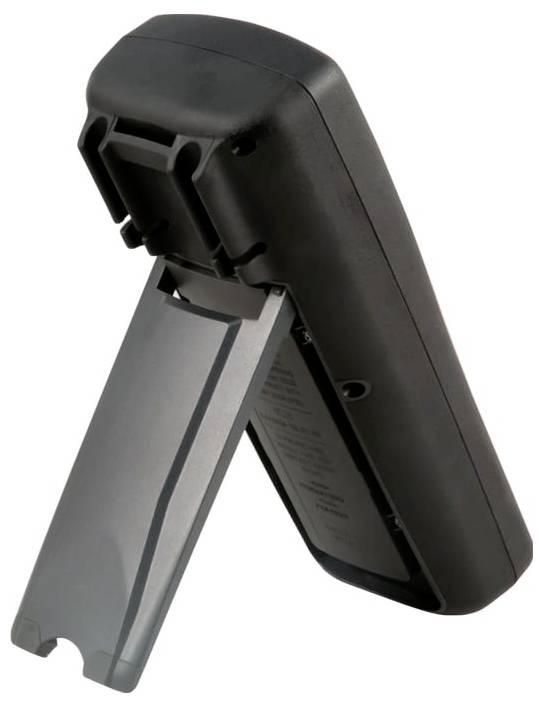

Black electronic device with a folding gray stand, shown from the back on a white background.

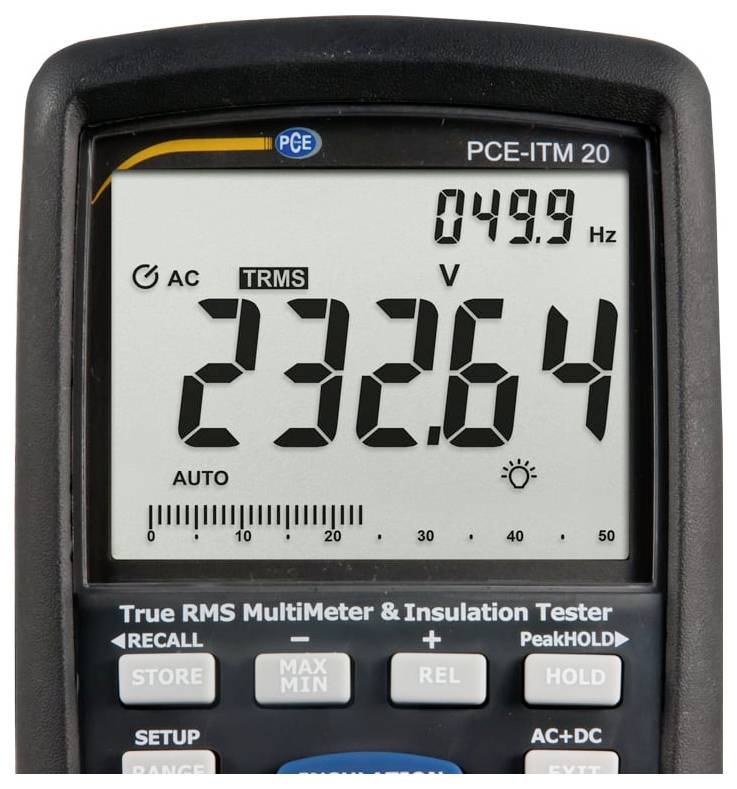

Digital multimeter display showing AC true RMS voltage of 232.64 V and frequency of 49.9 Hz.

Mechanic in blue coveralls uses a test light and probe to inspect wiring under a vehicle on a lift.

A mechanic is working underneath a car on a vehicle lift, checking the electronics with a diagnostic device in a garage workshop.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ammeter PCE-ITM 20

CAT IV 600 V

Technical specifications

Insulation tester Test voltage / test current Reading range Resolution Accuracy 50 V 1 mA @ 50 kΩ 0.01 ... 5 MΩ 0.0001 MΩ ± (4% + 20 digits) 5 ... 50 MΩ 0.001 MΩ ± (4% + 20 digits) 50 ... 500 MΩ 0.01 MΩ ± (4% + 20 digits) 500 ... 1000 MΩ 0.1 MΩ unspecified 125 V / 1 mA @ 125 kΩ 0.01 ... 5 MΩ 0.001 MΩ ± (2% + 20 digits) 5 .... 50 MΩ 0.001 MΩ ± (2% + 20 digits) 50 ... 500 MΩ 0.01 MΩ ± (3% + 20 digits) 500 .... 5000 MΩ 0.1 MΩ ± (4% + 20 digits) 250 V / 1 mA @ 250 kΩ 0.01 ... 5 MΩ 0.0001 MΩ ± (2% + 20 digits) 5 ... 50 MΩ 0.001 MΩ ± (2% + 20 digits) 50 ... 500 MΩ 0.01 MΩ ± (3% + 20 digits) 500 ... 5000 MΩ 0.1 MΩ ± (4% + 20 digits) 500 V / 1 mA @ 500 kΩ 0.01 ... 5 MΩ 0.0001 MΩ ± (2% + 20 digits) 5 ... 50 MΩ 0.001 MΩ ± (2% + 20 digits) 50 ... 500 MΩ 0.01 MΩ ± (3% + 20 digits) 500 ... 5000 MΩ 0.1 MΩ ± (4% + 20 digits) 1000 V / 1 mA @ 1000 kΩ 0.01 ... 5 MΩ 0.0001 MΩ ± (2% + 20 digits) 5 ... 50 MΩ 0.001 MΩ ± (2% + 20 digits) 50 ... 500 MΩ 0.01 MΩ ± (3% + 20 digits) 500 ... 5000 MΩ 0.1 MΩ ± (4% + 20 digits) Short circuit current 1.5 mA Multimeters Measurement range Resolution Accuracy of measured variable 50 mV 0.001 mV ± (0.06 %+ 20 digit) Direct voltage 500 mV 0.01 mV ± (0.06 %+ 6 digits) 5 V 0.0001 V ± (0.06 %+ 4 digits) 50 V 0.001 V ± (0.06 %+ 4 digits) 500 V 0.01 V ± (0.06 %+ 4 digits) 1000 V 0.1 V ± (0.1 %+ 3 digits) Alternating voltage 50 mV 0.001 mV ± (1 % + 50 digits) AC + DC 500 mV 0.01 mV ± (1 % + 50 digits) 50 .... 1000 Hz 5 V 0.0001 V ± (1 % + 30 digits) 50 V 0.001 V ± (1 % + 30 digits) 500 V 0.01 V ± (1 % + 30 digits) 1000 V 0.1 V ± (1 % + 30 digits) The specified accuracy for AC voltage refers to 5 ... 100 % of the measuring range Direct current Measuring range Resolution Accuracy 500 µA 0.01 µA ± (0.5 % + 3 digits) 5000 µA 0.1 µA ± (0.5 % + 3 digits) 50 mA 0.001 mA ± (0.5 % + 3 digits) 500 mA 0.01 A ± (0.5 % + 3 digits) 10 A 0.001 A ± (0.5 % + 3 digits) Alternating current 500 µA 0.01 µA ± (1% + 30 digits) AC + DC 5000 µA 0.1 µA ± (1% + 30 digits) 50 .... 1000 Hz 50 mA 0.001 mA ± (1% + 30 digits) 500 mA 0.01 A ± (1% + 30 digits) 10 A 0.001 A ± (1% + 30 digits) The specified accuracy refers to 5 ... for alternating current. 100 % of the measuring range Resistance Measurement range Resolution accuracy 50 Ω 0.01 Ω ± (0.2 % + 20 digit) 500 Ω 0.1 Ω ± (0.1 % + 10 digit) 5 kΩ 0.0001 kΩ ± (0.1 % + 3 digit) 50 kΩ 0.001 kΩ ± (0.1 % + 3 digit) 500 kΩ 0.01 kΩ ± (0.1 % + 3 digit) 5 MΩ 0.001 MΩ ± (1 % + 10 digits) 50m Ω 0.001 MΩ ± (1.5 % + 50 digits) Capacity 50 nF 0.001 nF ± (1.5 % + 50 digit) 50 nF 0.01nF ± (1.5 % + 10 digit) 500 nF 0.1 nF ± (1.5 % + 10 digit) 5 µF 0,001µF ± (1.5 % + 5 digit) 50 µF 0,01µF ± (1.5 % + 5 digit) 500 µF 0,1µF ± (1.5 % + 5 digit) 5 MF 0.001 MF ± (3 % + 30 digit) 10 MF 0.01 MF ± (3 % + 30 digit) Frequency 50 Hz 0.001 Hz ± (0.02 % + 3 digits) (electronics) 500 Hz 0.01 Hz ± (0.02 % + 3 digits) 5 kHz 0.0001 kHz ± (0.02 % + 3 digits) 50 kHz 0.001 kHz ± (0.02 % + 3 digits) 500 kHz 0.01 kHz ± (0.02 % + 3 digits) 5 MHz 0.0001 MHz ± (0.02 % + 3 digits) 50 MHz 0.001 MHz ± (0.02 % + 3 digits) 100 MHz 0.01 MHz not specified Sensitivity: 0.8 V RMS min @ 20% ... 80 % duty cycle< 100 kHz 5 V RMS min @ 20 % ... 80% > 100 kHz Reading range - frequency accuracy (electric) 40 Hz ... 10 kHz 0.01 1 Hz ... ± (0.1%) 0.001 kHz Duty cycle 0.1 ... 99.9% 0.01% ± (1.2% + 2 digits) Pulse width 100 µs ... 100 ms Frequency: 5 Hz ... 150 kHz Temperament - 58 ... 2462 °F 0.1 °F ± (0.5 % + 7 °F) TYPE K Thermocouple -50 ... 13350 °C 0.1 °C ± (0.5 % + 3.5 °C) 4 ... 20 mA % -25 ... 125% 0.01% ± 50 digit Resistance 50 Ω Range 50 Ω 0.001 Ω ± (1 % + 20 digits) 500 Ω 0.01 Ω ± (1 % + 20 digits) Open circuit voltage 5 V. Overload protection 250 V General information about the insulation multimeter Memory 9999 memory points Housing double-shaped housing, IP67 (water and dust-proof) Drop test 2 m Diode test Test current 0.9 mA Open circuit voltage 2.8 mA Continuity testing Acoustic signal for resistance< 35 Ω / test current< 0.35 mA Peak detection detection detection > 1ms Temperature sensor thermocouple type K. Input impedance DC voltage > : 10 MΩ AC voltage > 9 MΩ AC coupling TRMS Bandwidth AC 50 Hz ... 1 kHz Crest Factor< 3 at 500 V < 1.5 at 1000 V. Display 50000 digit LCD illuminated with bar graph Automatic switch-off after 15 minutes measuring rate / update Display 10 Hz Power supply 6 x 1.5 V AA batteries Fuses mA,µA: 0.5 A / 1000 V. Ceramic quick-acting A: 10 A / 1000 V ceramic quick-acting Operating conditions 5 ... 40 °C / max. 80 % r.h. Storage conditions -20 ... 60 °C / max. 80 % r.h. Operating height max. 2000 m Weight approx.: 720 g Dimensions 220 x 95 x 50 mm Safety EN61010-1 IEC 61010-1 Part 2 (2001) cat IV 600 V, cat III 1000V UL 61010-1 Part 2 (2004) CAN/CSA C22.2 No 6110-1 Part 2 (2004) UL 61010B-2-031 Part 1 (2003)

Product type: Handheld multimeter

A AC reading range (min.): 0 µA

Amperage reading range AC (max.): 500 µA

Basic accuracy: 1 %

Height: 50 mm

Width: 95 mm

Length: 220 mm

Weight: 720 g

: Manufacturer's standards (no certificate)

Reading category: CAT IV 600 V

Current reading: AC

Type: PCE-ITM 20

Display: Digital

Dim: (L x W x H) 220 x 95 x 50 mm

Features: Waterproof (IP67)

Documents & Downloads

Datasheet

Datasheet 2452487 PCE Instruments PCE-ITM 20 Handheld multimeter Digital Waterproof (IP67) CAT IV 600 V

User & Safety Instructions

User & Safety Instructions 2452487 PCE Instruments PCE-ITM 20 Handheld multimeter Digital Waterproof (IP67) CAT IV 600 V

Description

Ammeter PCE-ITM 20 The insulation multimeter is a multimeter and insulation tester in one measuring device / test voltage up to 1000 V / large LCD display / temperature measurement / frequency measurement / internal memory / cat IV 600 V / IP67 of this insulation multimeter PCE-ITM 20 combines a versatile insulation multimeter with an insulation tester. In addition to the usual measurement variables such as voltage, current and resistance, this insulation multimeter is also equipped with a frequency and capacitance measurement. The temperature measurement can also be carried out via a thermocouple included in the delivery. The automatic range selection (auto range) allows fast and safe working with the insulation multimeter, while the large LCD display with background lighting ensures a good readability. The highlight of this insulation multimeter is the integrated insulation tester. With test voltages of up to 1000 V insulation resistance of up to 5000 MΩ (5 GΩ) is measured. The insulation multimeter can also measure the PI and THE value directly. Thus, it is quickly possible to make a statement about the insulation value of the test object with the help of the insulation multimeter. In addition, this insulation multimeter has an internal memory. This gives you the option of calling up and writing off the stored measured values for subsequent analysis in the display.
