PCE Instruments PCE-JR 911 PCE-JR 911 Temperature data logger

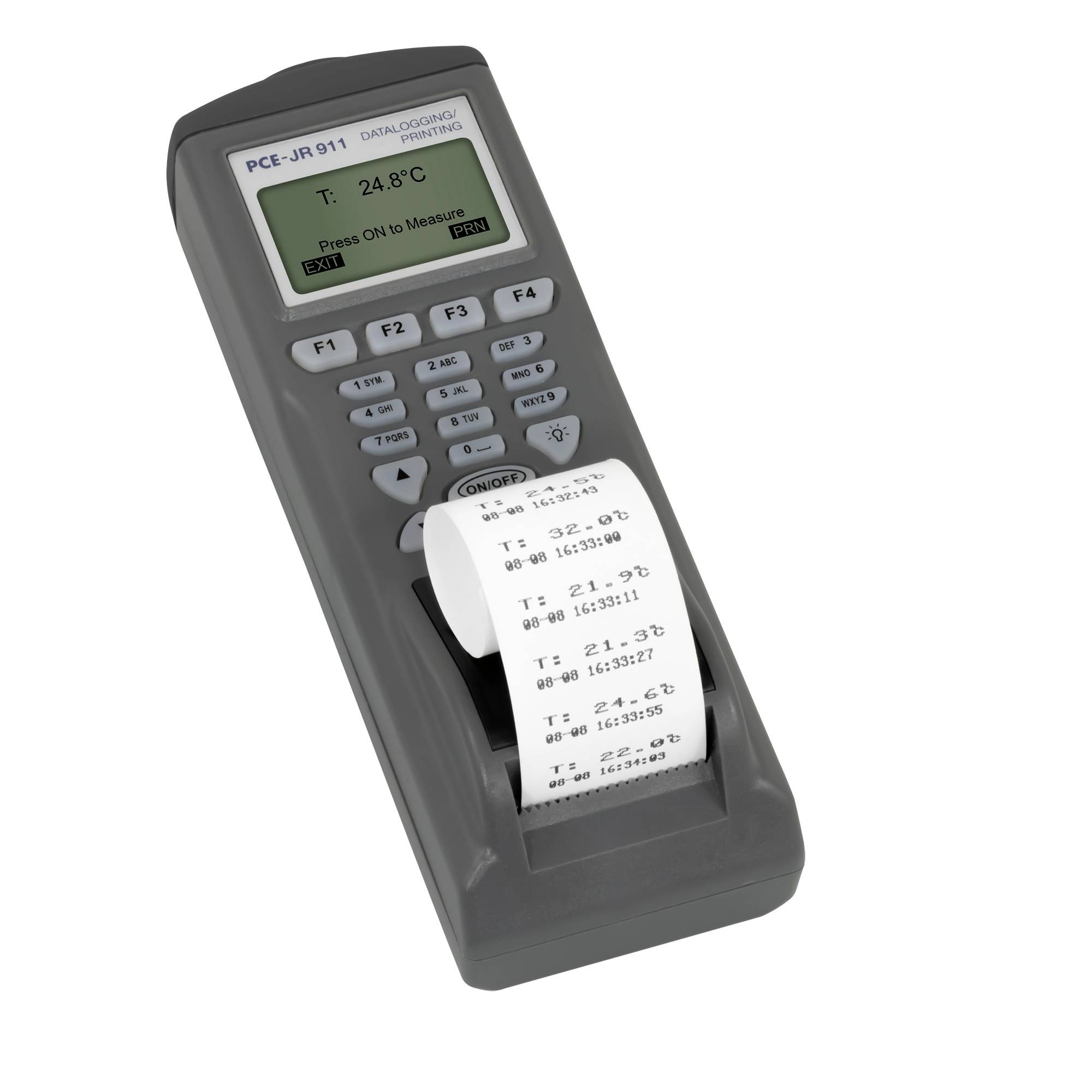

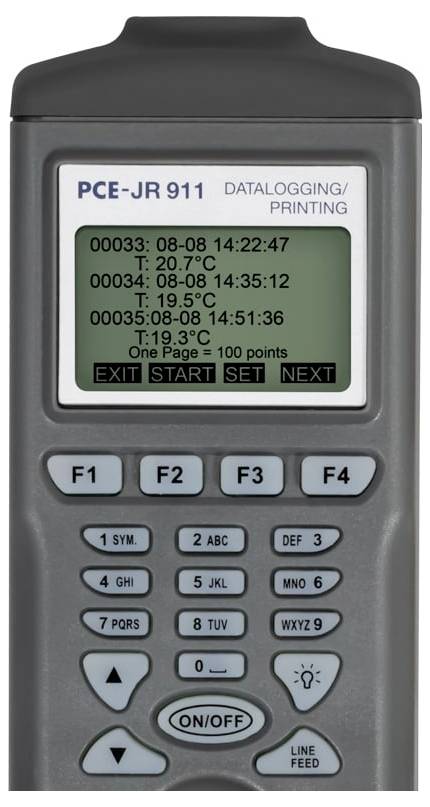

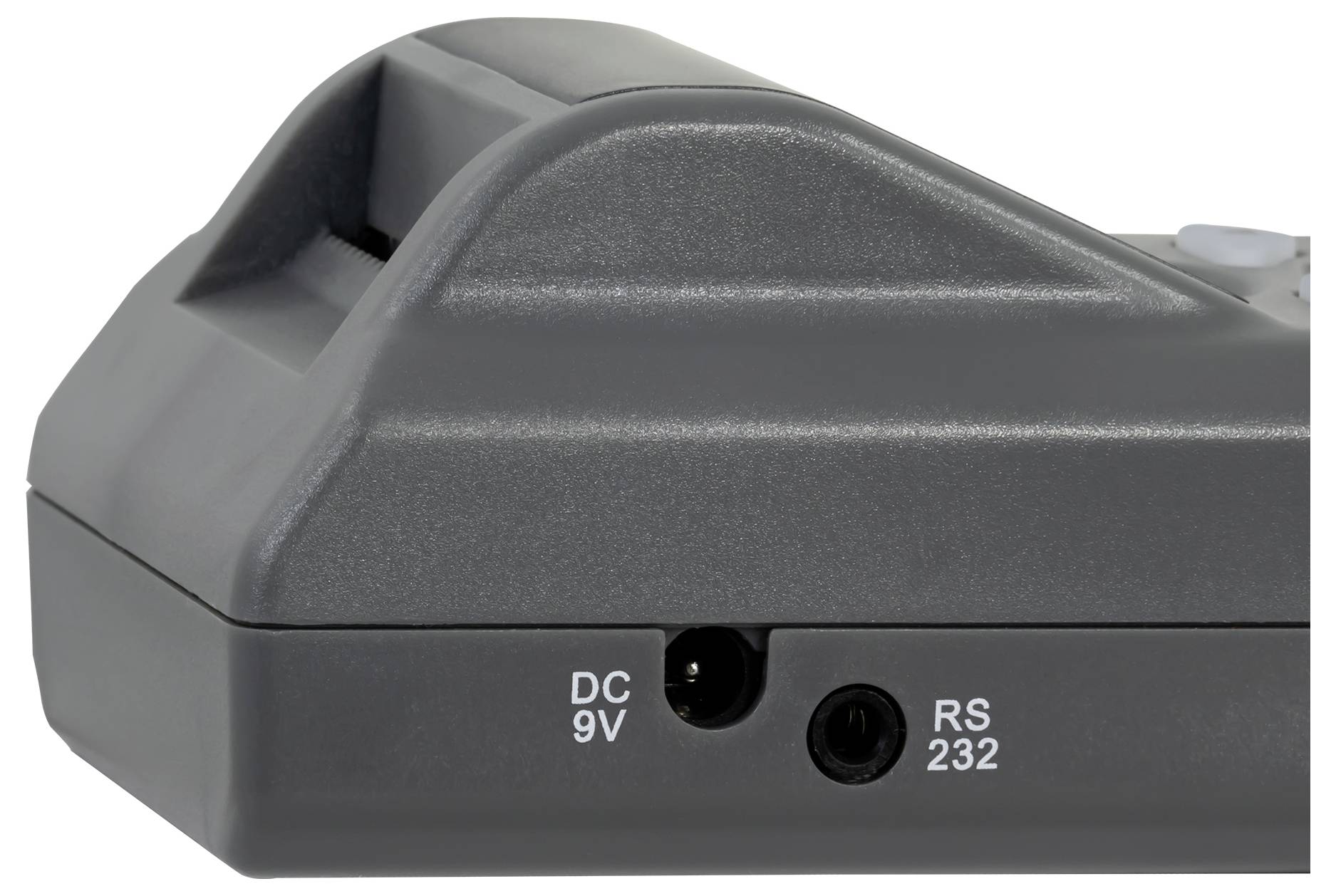

Measuring device for non-contact temperature measurement with internal memory, data logger function, software / cable for data transfer and integrated printer with the data logger - infrared thermometer you get a measuring device with which you can carry out versatile measuring tasks perfectly. On the one hand, you can measure and read the temperature of bodies directly without touching, on the other hand you can also store the measured values internally in the infrared thermometer and transfer them to a PC or laptop via the RS-232 interface. The measuring device also has a data logger function, i.e. you set the recording rate on the device and have it measured on site (e.g. for a week). After such a series of measurements, the data can be transferred to a PC and evaluated. In addition, a small printer is integrated in the infrared thermometer. This allows you to print the measured values directly on site. Another feature is the possibility to assign up to 99 measuring point designations. This allows you to uniquely assign the measured values. Of course, the emission levels can be set on the measuring instrument (between 0.3 and 1.0), depending on the surface of the material to be measured. The visible laser beam helps in the precise sighting of the target. Due to its wide range of functions, this infrared thermometer is used in all branches of industry, in the food and transport industry as well as in research and development. The meter is always shipped factory calibrated. In addition, it can also be calibrated and certified according to ISO. The extensive accessories, already included in the basic equipment, make the device multi-functional. Other accessories, such as a tripod (very useful for long-term recording), a USB adapter and spare paper rolls can be ordered as an option. Using the supplied English software and the PC cable, the measured data stored in the device can be transferred to the PC or laptop and evaluated there. The data is available as a column or graphic. They can also be transferred to other spreadsheet programs, such as MS Excel. Online measurements (measurement and direct transfer of data to the PC) are also possible.

This text is machine translated.
