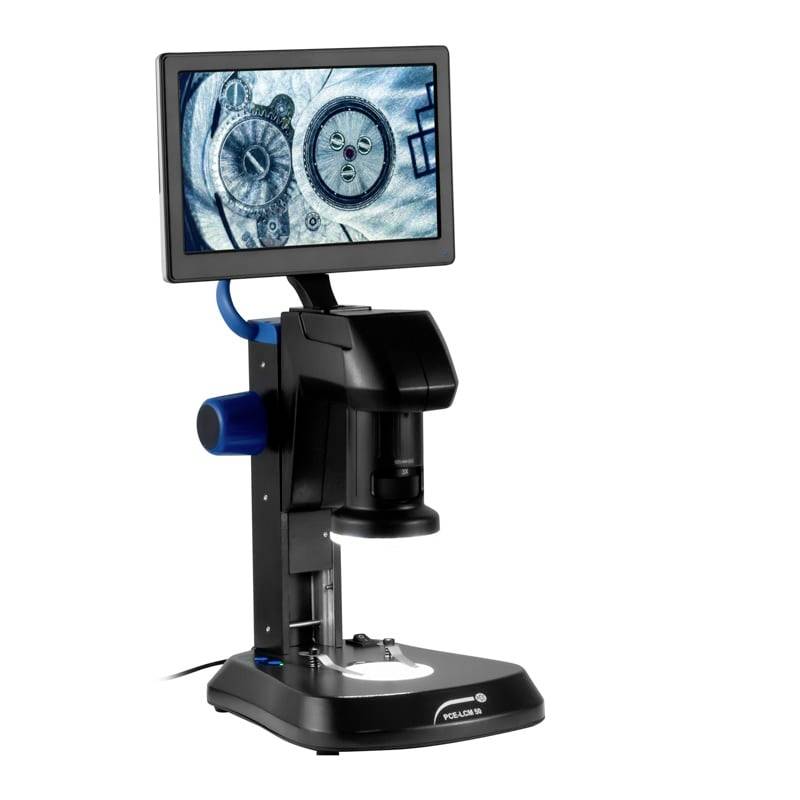

Digital microscope with built-in screen displaying gears, on a white background.

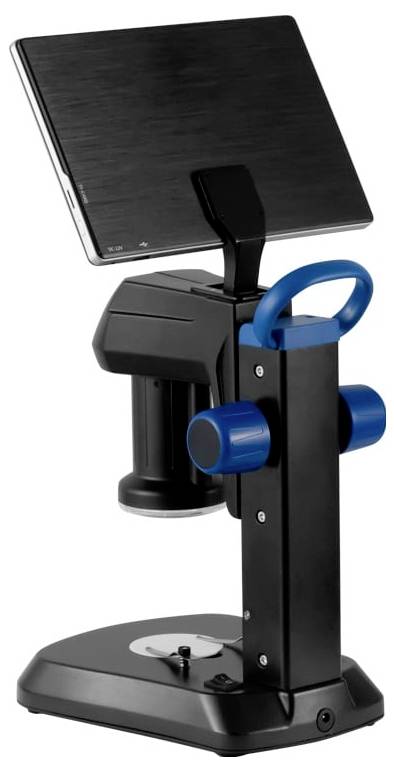

Desktop microscope on a stand with a tilt-adjustable display and blue adjustment knobs, shown against a white background.

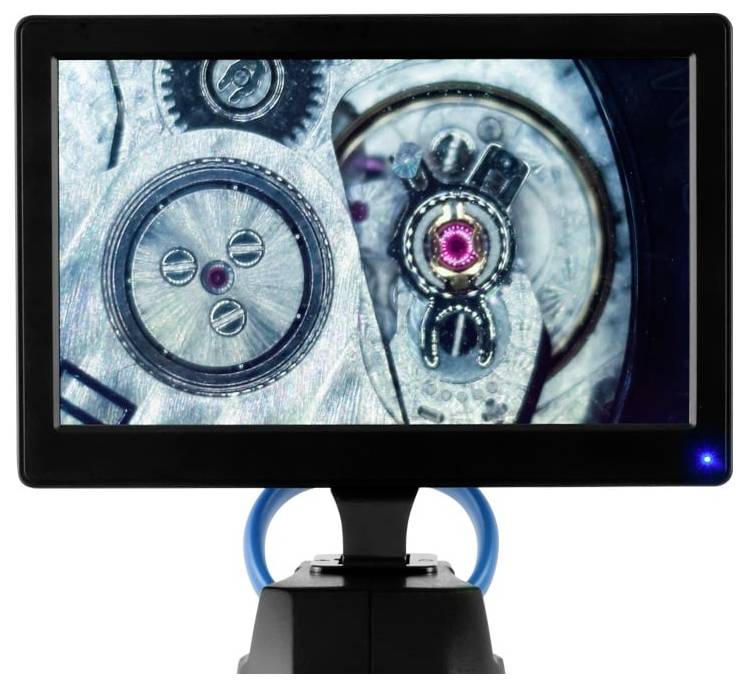

Close-up of a mechanical watch movement on a display monitor, showing gears and a jeweled component.

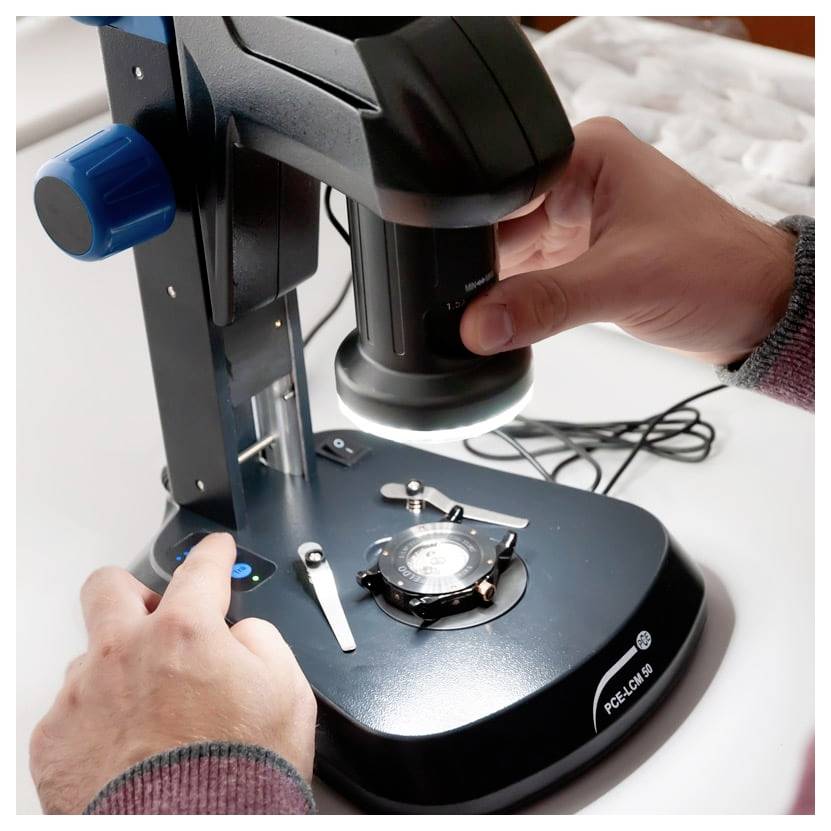

Hands adjusting a digital microscope on a lab bench, with the illuminated lens focused on the stage and sample area.

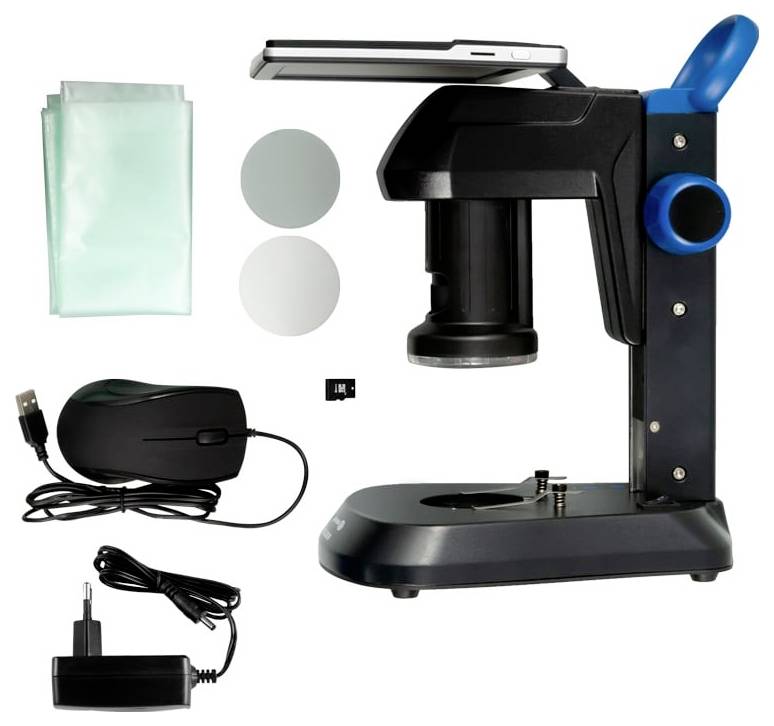

Black desktop scanner kit with document holder, two cleaning cloths, USB mouse-shaped accessory, power adapter, and two round discs on white background

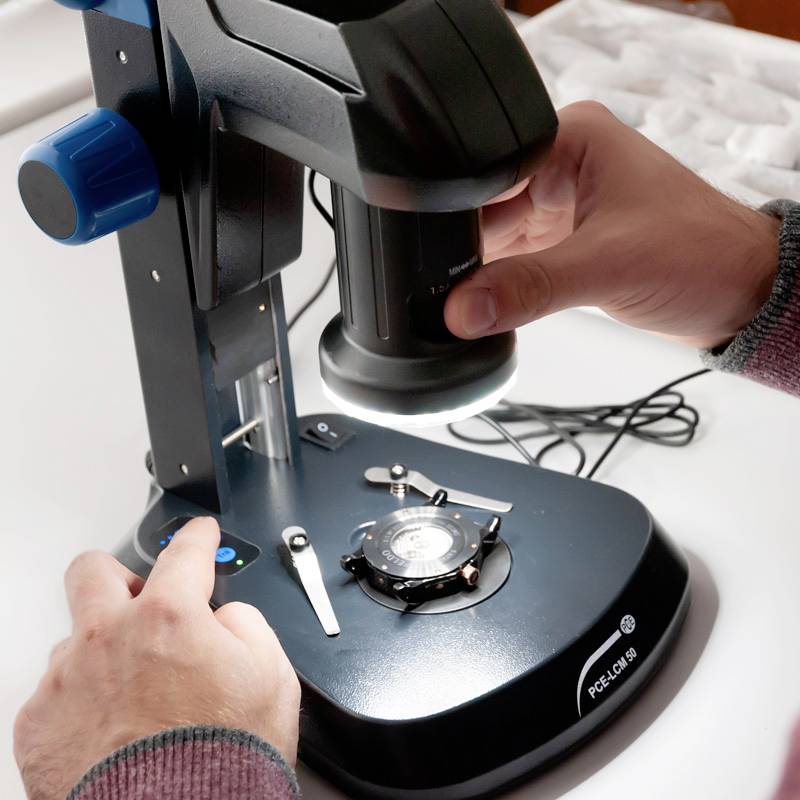

A person is adjusting a microscope to examine samples on a circular slide. Hands are visible.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Reflected LIGHT MICROSCOPE PCE-LCM 50

Adjustable digital zoom
Carry handle for easy transport
User interface can be operated via PC mouse
Contrast disc and transmitted light disc
Adjustable optical magnification
Video and photo recording

Technical specifications

Optical Zoom 8.1 ... 32.4 x Optical lens 1 ... 4 x Barlow lens 0.3 times Digital Zoom 1 ... 10 x max. Object height 4 cm Fixed working distance 90.5 mm Image sensor 1/3", 3MP White balance Automatic or by pressing a button Display resolution 1024 x 600 pixels Frame frequency 30 fps Pixel size 2.75 x 2.75 µm Interface: USB 2.0 Power supply Primary: 100 ... 240 V Secondary 12 V, 1 A Lighting ring with 21 x 20 mA LEDs, 5 levels adjustable Lighting transmitted light 7 x 20 mA LEDs, 5 levels adjustable Ambient conditions -5 ... 40 °C, 45 ... 85 % r.F. Dimensions 300 x 225 x 270 mm Weight approx. 2.3 kg

Product type: Reflected-light microscope

Documents & Downloads

Datasheet

Datasheet 2452491 PCE Instruments PCE-LCM 50 PCE-LCM 50 Reflected-light microscope

User & Safety Instructions

User & Safety Instructions 2452491 PCE Instruments PCE-LCM 50 PCE-LCM 50 Reflected-light microscope

Description

Reflected-light microscope Optical microscope with video and photo recording / User interface for adjusting the image / adjustable optical magnification 1 ... 4-fold / dirt protection thanks to protective cover / image sensor 1/3" 3MP / optimal illumination of the samples thanks to LED ring with the reflected light microscope allows the possibility of displaying small objects quickly and easily enlarged. During the analysis, the enlarged image can be saved on the reflected light microscope directly on the accompanying Micro-SD card by mouse click and evaluated or sent on the PC for later analyzes. The magnification factor of the reflected light microscope is between 8.1 and 32.4. Thus, even smaller objects can be displayed in a magnified manner with the reflected light microscope. The light ring on the reflected light microscope consists of 21 LEDs. The reflected light microscope also has another lighting unit in the base for transmitted light microscopy. In addition, the entire lighting can be adjusted separately in 5 steps with the reflected light microscope. The user interface is also helpful, in which the digital brightness can be set manually or automatically with the reflected light microscope. Due to the two lighting methods and the extensive setting options of the lighting, almost every object to be analyzed can be optimally illuminated with the reflected light microscope.
